Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

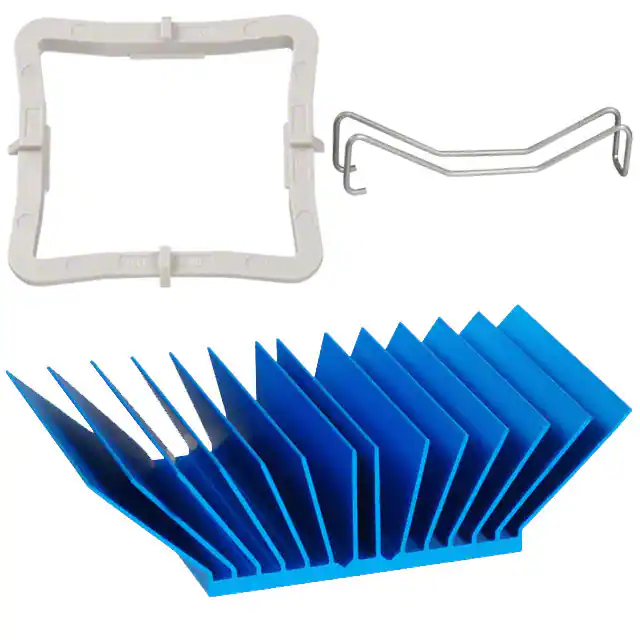

ATS-50350P-C1-R0HEAT SINK 35MM X 35MM X 17.5MM |
465 |
|
Технический лист |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.689" (17.50mm) | - | 2.30°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-52350P-C0-R0HEATSINK 35X35X17.5MM W/OUT TIM |
178 |
|
- |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Angled Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.689" (17.50mm) | - | 2.30°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-51190D-C1-R0HEAT SINK 19MM X 19MM X 9.5MM |
137 |
|
Технический лист |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.374" (9.50mm) | - | 16.70°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

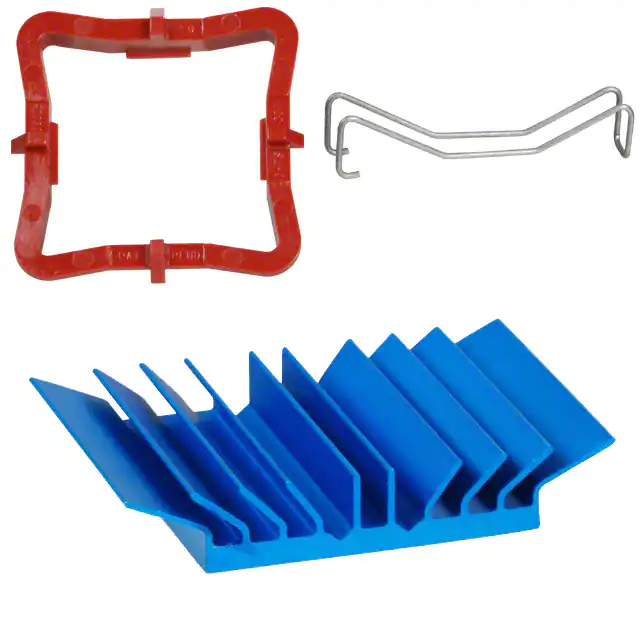

ATS-50270B-C1-R0HEAT SINK 27MM X 27MM X 7.5MM |
254 |
|
Технический лист |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.295" (7.50mm) | - | 7.90°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-25-C2-R0HEATSINK 60X60X25MM XCUT T766 |
330 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.984" (25.00mm) | - | 6.26°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-50310B-C1-R0HEAT SINK 31MM X 31MM X 7.5MM |
238 |
|
Технический лист |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.295" (7.50mm) | - | 6.90°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-51350R-C1-R0HEAT SINK 35MM X 35MM X 19.5MM |
1,083 |
|
Технический лист |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.768" (19.50mm) | - | 2.20°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-53230R-C1-R0HEAT SINK 23MM X 23MM X 19.5MM |
551 |
|
Технический лист |
maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 0.900" (23.00mm) | 0.906" (23.01mm) | - | 0.768" (19.50mm) | - | 7.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-50230G-C1-R0HEAT SINK 23MM X 23MM X 12.5MM |
135 |
|
Технический лист |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.900" (23.00mm) | 0.906" (23.01mm) | - | 0.492" (12.50mm) | - | 6.70°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-61350K-C1-R0MAXIGRIP FANSINK 35X35X14.5MM |
1,026 |
|
Технический лист |
fanSINK, maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Pin Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.571" (14.50mm) | - | 1.90°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-50270G-C1-R0HEAT SINK 27MM X 27MM X 12.5MM |
233 |
|
Технический лист |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.492" (12.50mm) | - | 4.80°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
1276952.22" WIDE X 12" DC/DC HEATSINK |
142 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | DC/DC Converter | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 2.220" (56.39mm) | - | 0.410" (10.42mm) | - | - | 1.75°C/W | Aluminum | - |
|
|
ATS-EX1-C5-R0MAXFLOW HEAT SINK BLK T412 |
116 |
|
- |
maxiFLOW | Bulk | Active | - | - | Adhesive | - | - | - | - | - | - | 4.00°C/W @ 200 LFM | - | - | - |
|

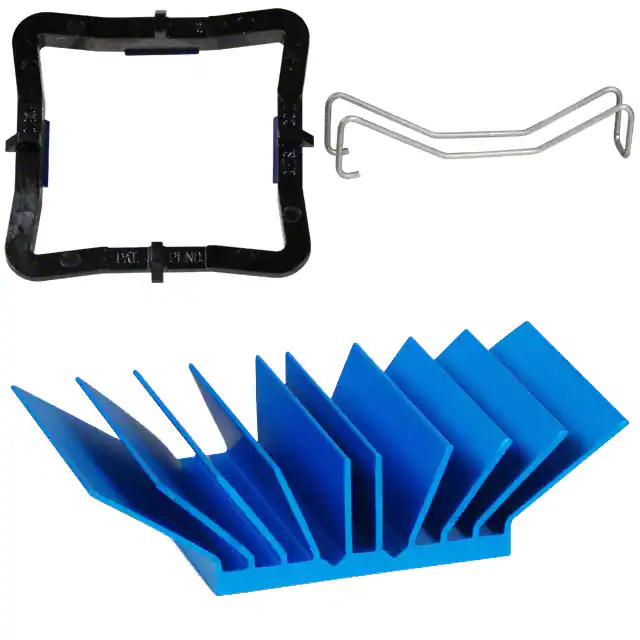

ATS-50310G-C1-R0HEAT SINK 31MM X 31MM X 12.5MM |
343 |
|
Технический лист |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.492" (12.50mm) | - | 4.30°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-1138-C1-R01/4 BRICK HEATSINK 37X58X6.1MM |
190 |
|
Технический лист |
maxiFLOW | Bulk | Active | Top Mount | Quarter Brick DC/DC Converter | Bolt On | Rectangular, Angled Fins | 1.457" (37.00mm) | 2.323" (59.00mm) | - | 0.240" (6.10mm) | - | 9.40°C/W @ 200 LFM | - | Aluminum | Gold Anodized |
|
ATS-53350R-C1-R0HEAT SINK 35MM X 35MM X 19.5MM |
319 |
|
Технический лист |
maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.768" (19.50mm) | - | 3.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
1277002.125" WIDE X 12" FLATBACK HEATS |
201 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 2.125" (53.98mm) | - | 1.000" (25.40mm) | - | - | 1.10°C/W | Aluminum | - |
|
ATS-1038-C1-R0HEATSINK 40X38X10MM NYLONPUSHPIN |
1,374 |
|
Технический лист |
maxiFLOW | Bulk | Active | Top Mount | BGA | Push Pin | Rectangular, Angled Fins | 1.575" (40.00mm) | 1.500" (38.10mm) | - | 0.394" (10.00mm) | - | 3.90°C/W @ 300 LFM | - | Aluminum | Green Anodized |
|
ATS-51290K-C1-R0HEAT SINK 29MM X 29MM X 14.5MM |
399 |
|
Технический лист |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.142" (29.00mm) | 1.142" (29.00mm) | - | 0.571" (14.50mm) | - | 4.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-51190R-C1-R0HEAT SINK 19MM X 19MM X 19.5MM |
2,860 |
|
Технический лист |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.768" (19.50mm) | - | 7.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
