Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

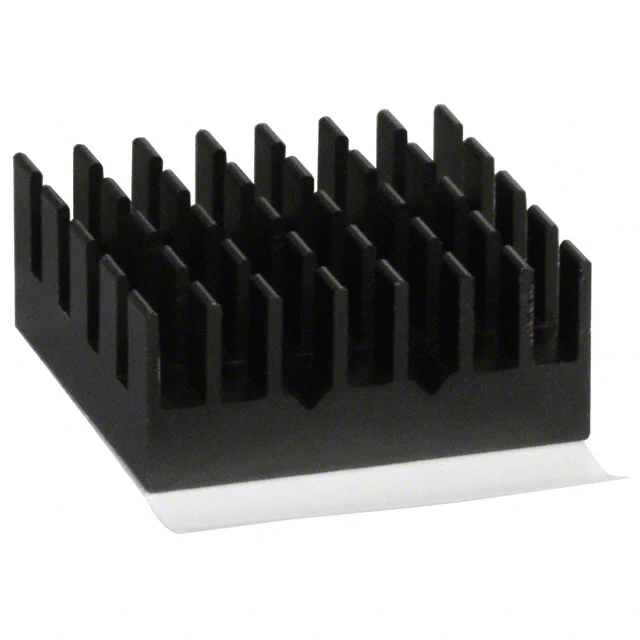

ATS-55230D-C1-R0HEAT SINK 23MM X 23MM X 9.5MM |
529 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 0.900" (23.00mm) | 0.906" (23.01mm) | - | 0.374" (9.50mm) | - | 18.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
960-31-12-S-AB-0HEATSINK 31X12MM SIDE PUSH PIN |
268 |
|
Технический лист |
960 | Tray | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.220" (31.00mm) | 1.220" (31.00mm) | - | 0.472" (12.00mm) | - | 5.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
593202B03500GHEATSINK TO-220 VERT MNT W/TABS |
3,613 |
|
Технический лист |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 2.000" (50.80mm) | 1.380" (35.05mm) | - | 0.480" (12.19mm) | 6.0W @ 60°C | 5.00°C/W @ 200 LFM | 10.40°C/W | Aluminum | Black Anodized |
|
ATS-CPX035035035-180-C2-R0HEATSINK 35X35X35MM R-TAB CP |
295 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.378" (35.00mm) | - | 3.32°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P2-146-C1-R0HEATSINK 30X30X35MM L-TAB |
7,532 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 1.378" (35.00mm) | - | 3.98°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-54350D-C1-R0HEAT SINK 35MM X 35MM X 9.5MM |
5,325 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.374" (9.50mm) | - | 10.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

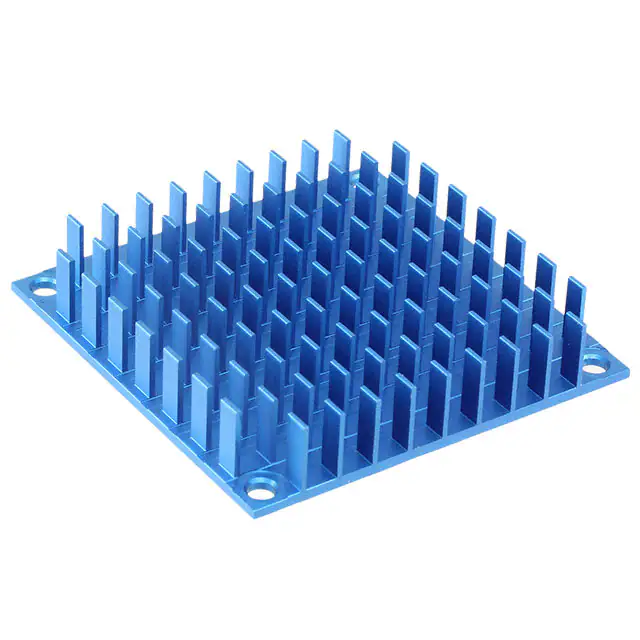

ATS-CPX060060012-207-C2-R0HEATSINK 60X60X12MM XCUT CP |
179 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.472" (12.00mm) | - | 6.39°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

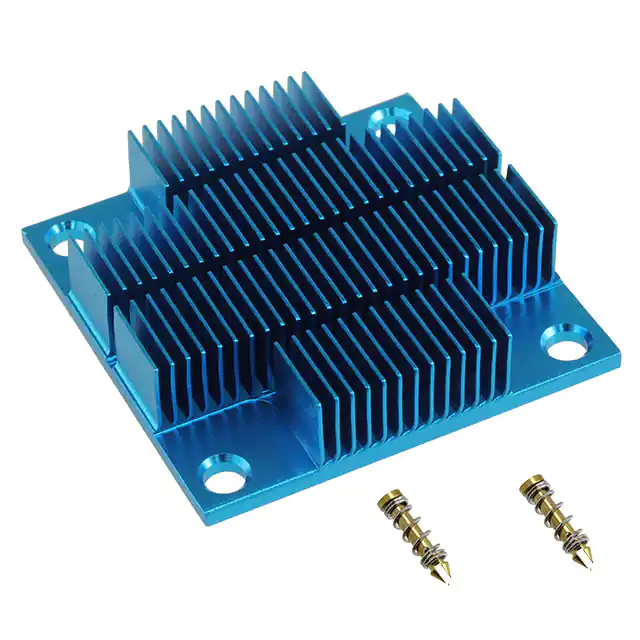

ATS-20F-175-C2-R0HEATSINK 35X35X10MM R-TAB T766 |
206 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.394" (10.00mm) | - | 13.52°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

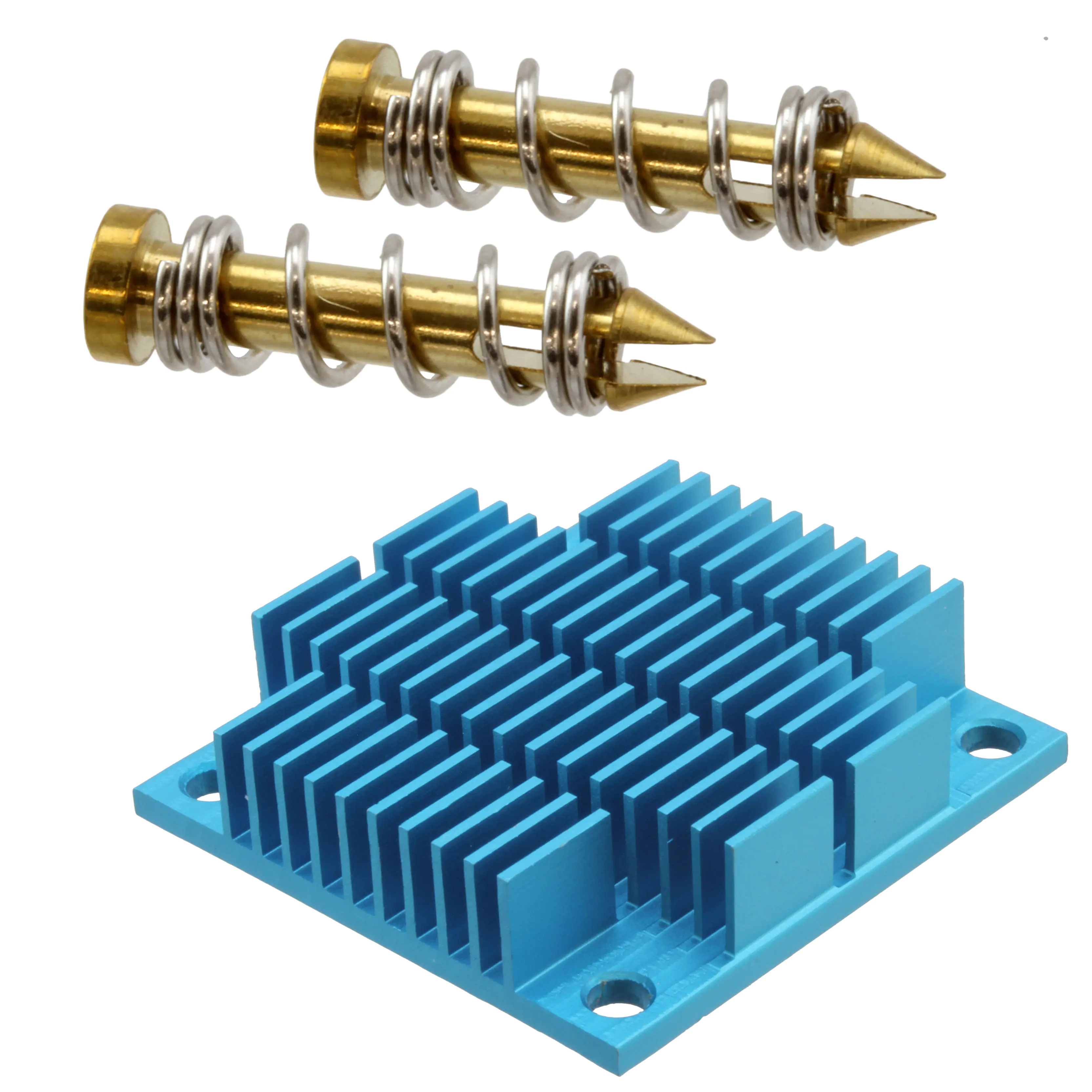

ATS-14E-181-C2-R0HEATSINK 40X40X10MM R-TAB T766 |
553 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.394" (10.00mm) | - | 11.95°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

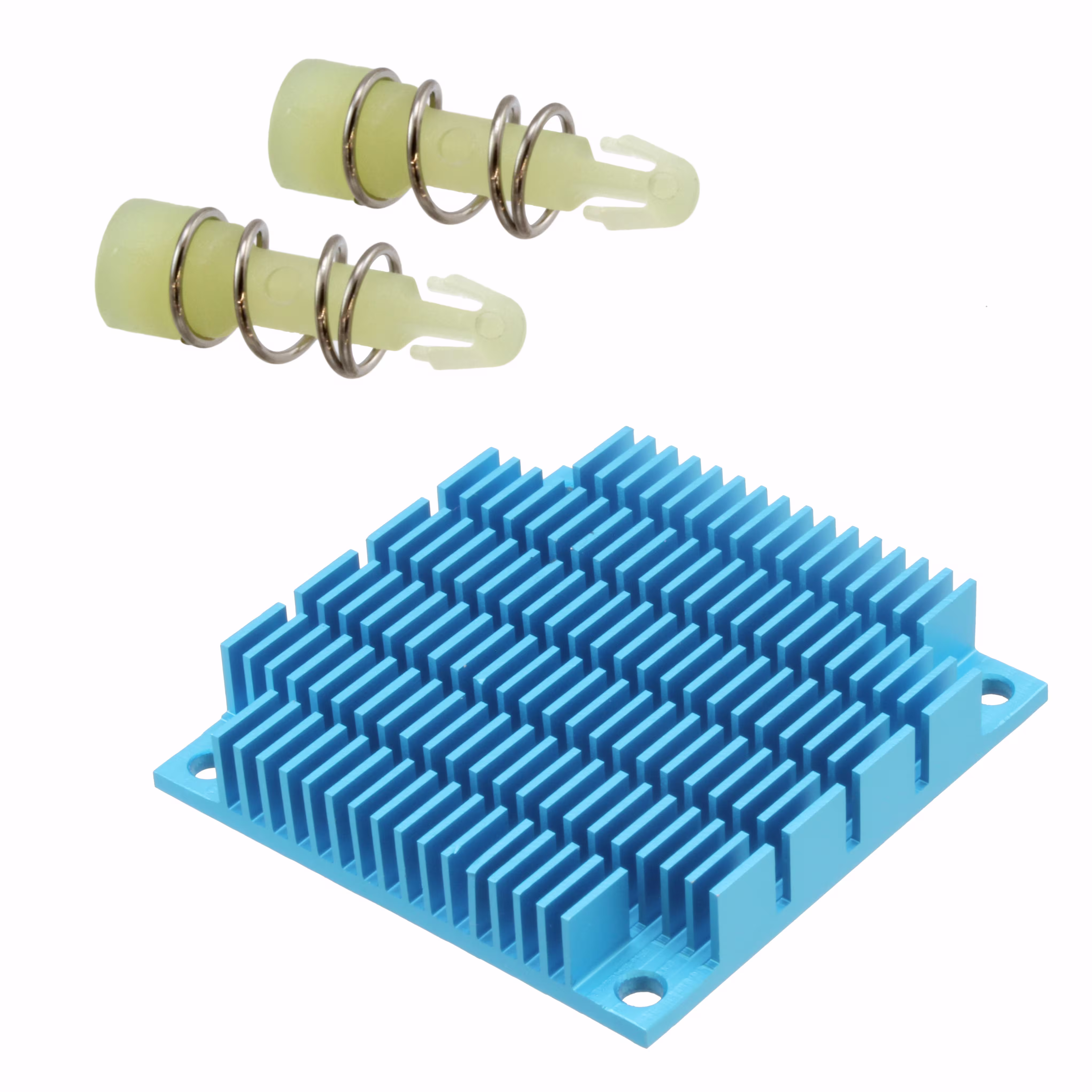

ATS-P1-16-C2-R0HEATSINK 54X54X10MM XCUT T766 |
591 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.394" (10.00mm) | - | 18.08°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
TGH-0550-01ALUMINIUM HEAT SINK 55X55MM |
594 |
|
Технический лист |
TGH | Bulk | Active | Top Mount | - | - | Square, Fins | 2.165" (55.00mm) | 2.165" (55.00mm) | - | 0.236" (6.00mm) | - | - | - | Aluminum | - |
|

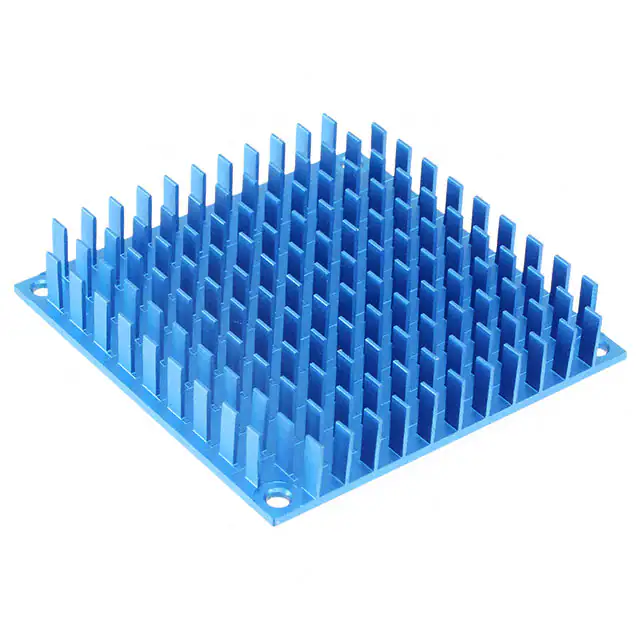

ATS-CPX070070012-210-C1-R0HEATSINK 70X70X12MM XCUT CP |
164 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.472" (12.00mm) | - | 5.17°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-54210D-C0-R0HEATSINK 21X21X9.5MM W/OUT TIM |
110 |
|
- |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.374" (9.50mm) | 0.3W @ 20°C | 20.20°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-54190K-C1-R0HEAT SINK 19MM X 19MM X 14.5MM |
2,287 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.571" (14.50mm) | 0.3W @ 20°C | 12.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS-54300R-C0-R0HEATSINK 30X30X19.5MM W/OUT TIM |
181 |
|
- |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.768" (19.50mm) | - | 4.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-52230B-C1-R0HEAT SINK 23MM X 23MM X 7.5MM |
1,631 |
|
Технический лист |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 0.900" (23.00mm) | 0.906" (23.01mm) | - | 0.295" (7.50mm) | - | 10.90°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-52210G-C0-R0HEATSINK 21X21X12.5MM W/OUT TIM |
172 |
|
- |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Angled Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.492" (12.50mm) | - | 7.20°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
APR27-27-12CB/A01HEATSINK FORGED W/THERMAL TAPE |
366 |
|
Технический лист |
APR | Box | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.047" (26.60mm) | 1.047" (26.60mm) | - | 0.457" (11.60mm) | - | 5.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
APF40-40-10CBHEATSINK LOW-PROFILE FORGED |
258 |
|
Технический лист |
APF | Box | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Not Included) | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.370" (9.40mm) | - | 2.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

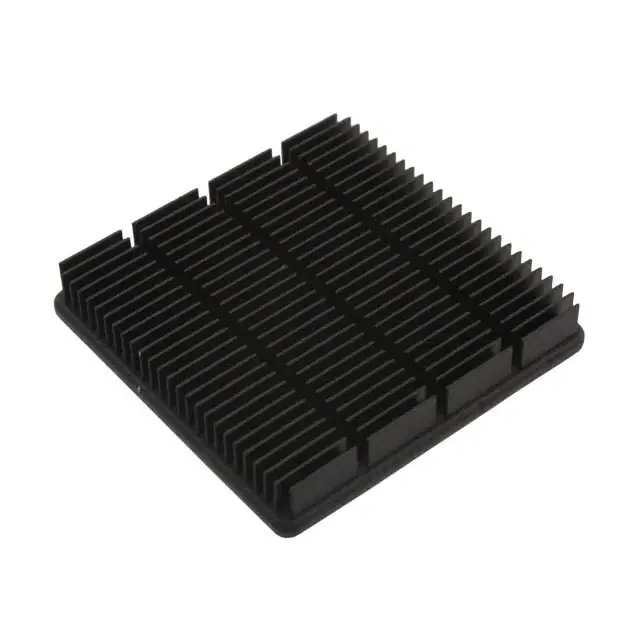

APF40-40-06CBHEATSINK LOW-PROFILE FORGED |
701 |
|
Технический лист |
APF | Box | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Not Included) | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.250" (6.35mm) | - | 3.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
