Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1277656.39" WIDE X 36" FLATBACK HEATSI |
43 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 6.390" (162.31mm) | - | 0.875" (22.23mm) | - | - | 0.44°C/W | Aluminum | - |
|
ATS-EXL114-1220-R0PCIE EXTRUSION PROFILE, AL6063 |
29 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 3.150" (80.00mm) | - | 1.181" (30.00mm) | - | 2.50°C/W @ 200 LFM | 6.20°C/W | Aluminum | Degreased |
|
512-9UHEATSINK FOR PWR MOD/IGBT/RELAY |
66 |
|
Технический лист |
512 | Bulk | Active | Top Mount, Extrusion | Power Modules | Adhesive | Rectangular, Fins | 9.000" (228.60mm) | 7.200" (182.88mm) | - | 2.410" (61.21mm) | - | - | 0.56°C/W | Aluminum | - |
|
ATS-EXL115-300-R0PCIE EXTRUSION PROFILE, AL6063 |
33 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 11.811" (300.00mm) | 4.724" (120.00mm) | - | 1.181" (30.00mm) | - | 1.70°C/W @ 200 LFM | 4.60°C/W | Aluminum | Degreased |
|
512-12UHEATSINK FOR PWR MOD/IGBT/RELAY |
30 |
|
Технический лист |
512 | Bulk | Active | Top Mount, Extrusion | Power Modules | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 7.200" (182.88mm) | - | 2.410" (61.21mm) | - | - | 0.45°C/W | Aluminum | - |
|
122261HEATSINK 19584 PROFILE 12" |
43 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | Power Modules | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 11.000" (279.40mm) | - | 1.375" (34.93mm) | - | - | - | Aluminum | Unfinished |
|

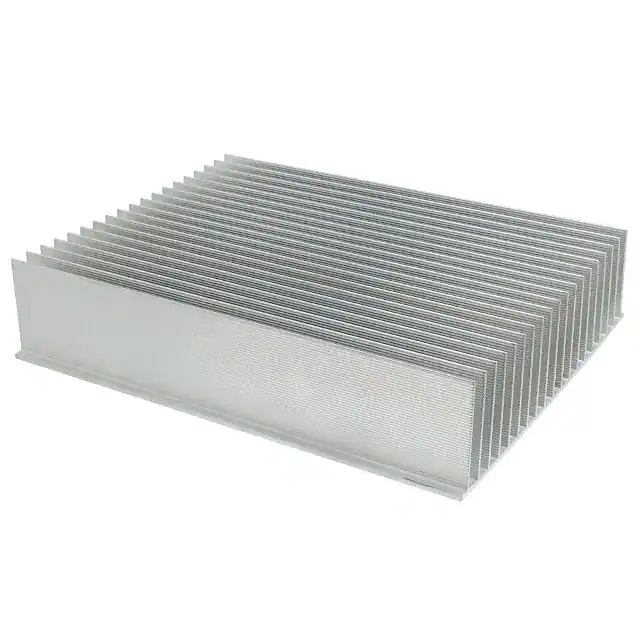

122260HEATSINK 19035 PROFILE 12" |
32 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | Power Modules | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 9.240" (234.70mm) | - | 2.660" (67.56mm) | - | - | - | Aluminum | Unfinished |
|
1277934.519" WIDE X 36" FLATBACK W/MOU |
26 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Bolt On | Rectangular, Fins | 36.000" (914.40mm) | 4.519" (114.78mm) | - | 1.898" (48.21mm) | - | - | 0.60°C/W | Aluminum | - |
|

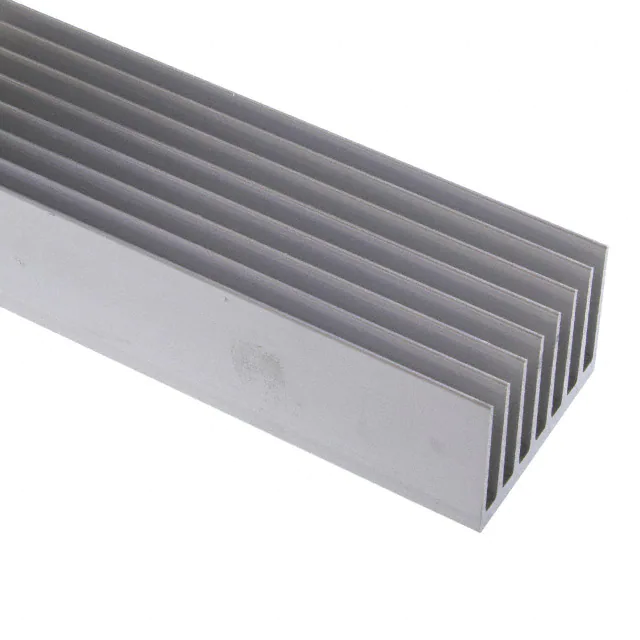

637302F00000G63730 EXTRUSION 2.25X2.996"X4' |
30 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Pin Fins | 48.000" (1219.20mm) | 3.000" (76.20mm) | - | 2.250" (57.15mm) | - | 1.00°C/W @ 200 LFM | - | Aluminum | - |
|

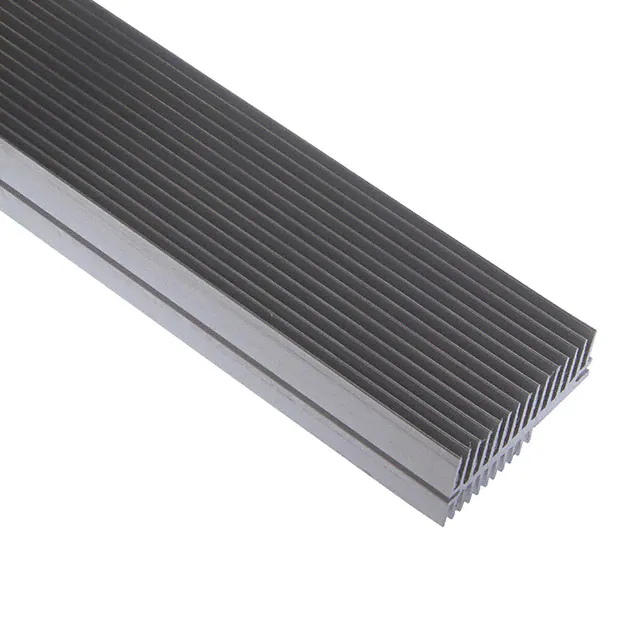

780102F00000G78010 EXTRUSION 2.95X1.34"X4.1' |
143 |
|
Технический лист |
- | Box | Active | Board Level, Vertical, Extrusion | - | PC Pin | Rectangular, Pin Fins | 49.500" (1257.30mm) | 1.339" (34.00mm) | - | 2.953" (75.00mm) | - | - | - | Aluminum | - |
|

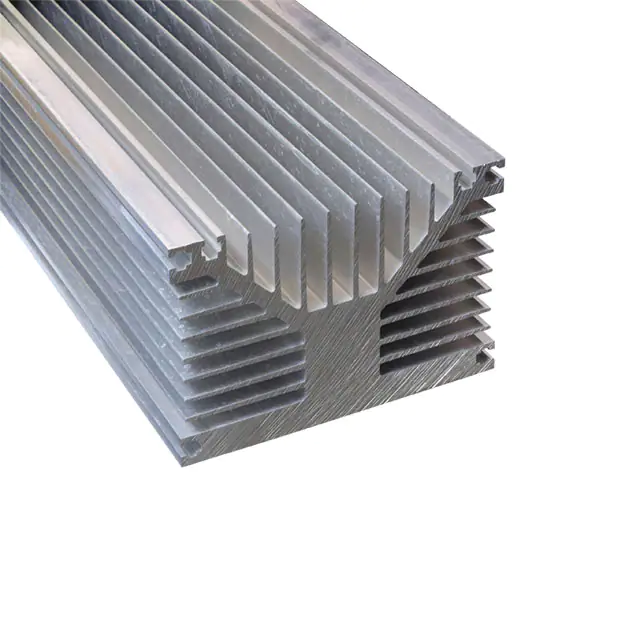

1256147.52WX36" EXTRUSION 17003 |
95 |
|
Технический лист |
- | Box | Active | Board Level, Extrusion | Power Modules | Press Fit | Rectangular, Fins | 36.000" (914.40mm) | 7.520" (191.01mm) | - | 5.300" (134.62mm) | - | - | 0.16°C/W | Aluminum | - |
|
HSS-B20-0953H-01HEATSINK TO-220 2.3W ALUMINUM |
2,844 |
|
Технический лист |
HSS | Bag | Active | Board Level | TO-220 | PC Pin | Rectangular, Fins | 0.500" (12.70mm) | 0.504" (12.80mm) | - | 0.590" (15.00mm) | 2.3W @ 75°C | 11.04°C/W @ 200 LFM | 33.28°C/W | Aluminum | Black Anodized |
|
HSE12-B20-NPHEAT SINK, EXTRUSION, TO-218/TO- |
1,947 |
|
Технический лист |
HSE | Bag | Active | Top Mount | TO-218, TO-220 | Bolt On | Rectangular | 0.984" (25.00mm) | 0.472" (12.00mm) | - | 0.177" (4.50mm) | 1.94W @ 75°C | 19.20°C/W @ 200 LFM | 38.75°C/W | Aluminum Alloy | Black Anodized |
|
HSS14-B20-NPHEAT SINK, STAMPING, TO-220, 19. |
4,978 |
|
Технический лист |
HSS | Box | Active | Board Level, Vertical | TO-220 | - | Rectangular | 0.980" (24.89mm) | 0.750" (19.05mm) | - | 0.157" (4.00mm) | 3.1W @ 75°C | 11.60°C/W @ 200 LFM | 23.91°C/W | Aluminum Alloy | Black Anodized |
|
ATS-PCBT1083HEATSINK TO-220 BLACK |
1,709 |
|
Технический лист |
- | Bulk | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.700" (17.78mm) | 1.750" (44.45mm) | - | 0.375" (9.52mm) | - | 6.60°C/W @ 200 LFM | 17.00°C/W | Aluminum | Black Anodized |
|
HSS20-B20-NPHEAT SINK, STAMPING, TO-218/TO-2 |
1,864 |
|
Технический лист |
HSS | Bag | Active | Top Mount | TO-218, TO-220 | Bolt On | Rectangular, Fins | 0.866" (22.00mm) | 0.748" (19.00mm) | - | 0.433" (11.00mm) | 2.84W @ 75°C | 11.20°C/W @ 200 LFM | 26.40°C/W | Aluminum Alloy | Black Anodized |
|
ATS-PCB1018HEATSINK TO-220 BLACK |
10,243 |
|
Технический лист |
- | Bulk | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.902" (22.90mm) | 1.000" (25.40mm) | - | 0.374" (9.50mm) | - | 8.10°C/W @ 200 LFM | 20.80°C/W | Aluminum | Black Anodized |
|
ATS-PCB1006HEATSINK TO-220 VERT MNT W/TAB |
4,770 |
|
Технический лист |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 0.752" (19.10mm) | 0.860" (21.84mm) | - | 0.390" (9.91mm) | - | 11.00°C/W @ 200 LFM | 21.20°C/W | Aluminum | Black Anodized |
|
V5274A-THEATSINK ALUM ANOD |
1,352 |
|
Технический лист |
- | Bulk | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.984" (25.00mm) | 0.472" (12.00mm) | - | 0.177" (4.50mm) | - | - | 60.00°C/W | Aluminum | Black Anodized |
|
HSS26-B20-P38HEAT SINK, STAMPING, TO-218/TO-2 |
2,998 |
|
Технический лист |
HSS | Bag | Active | Board Level, Vertical | TO-218, TO-220 | Bolt On and PC Pin | Rectangular, Fins | 2.000" (50.80mm) | 1.378" (35.00mm) | - | 0.335" (8.50mm) | 4.5W @ 75°C | 9.20°C/W @ 200 LFM | 16.66°C/W | Aluminum Alloy | Black Anodized |
