Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-06D-132-C2-R0HEATSINK 60X60X25MM XCUT T766 |
121 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.984" (25.00mm) | - | 2.66°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

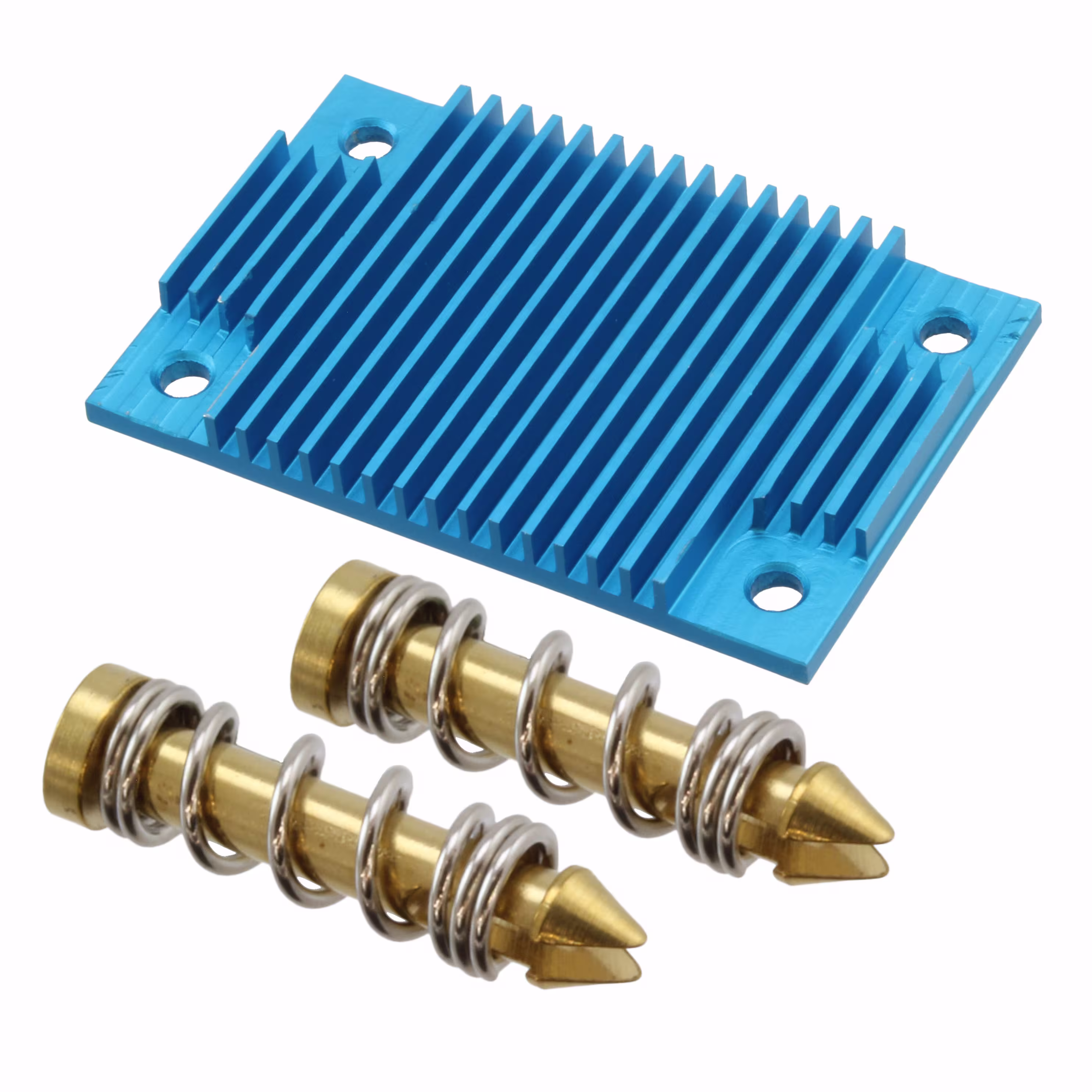

ATS-11E-35-C2-R0HEATSINK 36.83X57.6X5.84MM T766 |
180 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 1.450" (36.83mm) | 2.267" (57.60mm) | - | 0.230" (5.84mm) | - | 22.48°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
906-31-2-23-2-B-0HEATSINK 31X31X23MM PIN |
165 |
|
Технический лист |
906 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.892" (22.65mm) | - | 2.40°C/W @ 200 LFM | 9.90°C/W | Aluminum | Black Anodized |
|

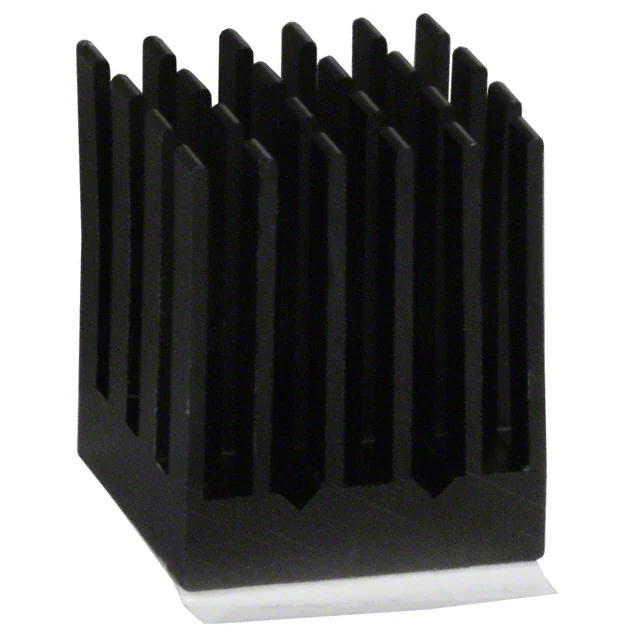

ATS-55170R-C1-R0HEAT SINK 17MM X 17MM X 19.5MM |
206 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 0.669" (17.00mm) | 0.669" (17.00mm) | - | 0.768" (19.50mm) | - | 11.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

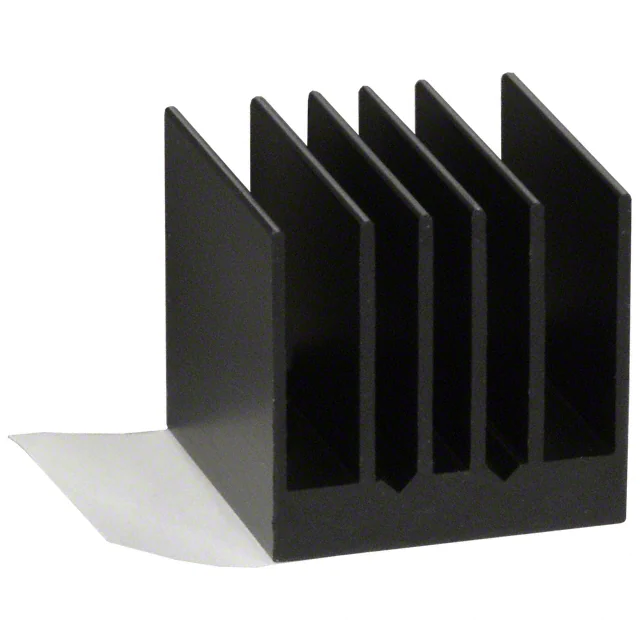

ATS-54210R-C1-R0HEAT SINK 21MM X 21MM X 19.5MM |
561 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.768" (19.50mm) | 0.3W @ 20°C | 7.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-54400K-C1-R0HEAT SINK 40MM X 40MM X 14.5MM |
1,508 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.571" (14.50mm) | - | 4.60°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

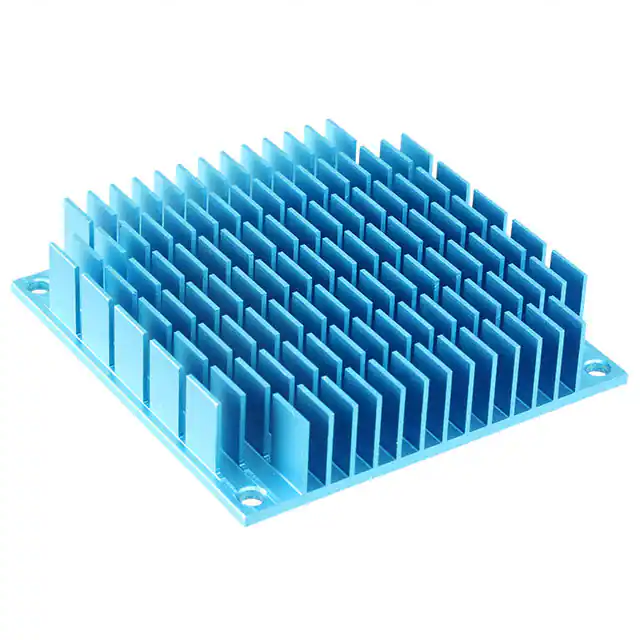

ATS-CPX070070015-134-C2-R0HEATSINK 70X70X15MM XCUT CP |
275 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.590" (15.00mm) | - | 4.44°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

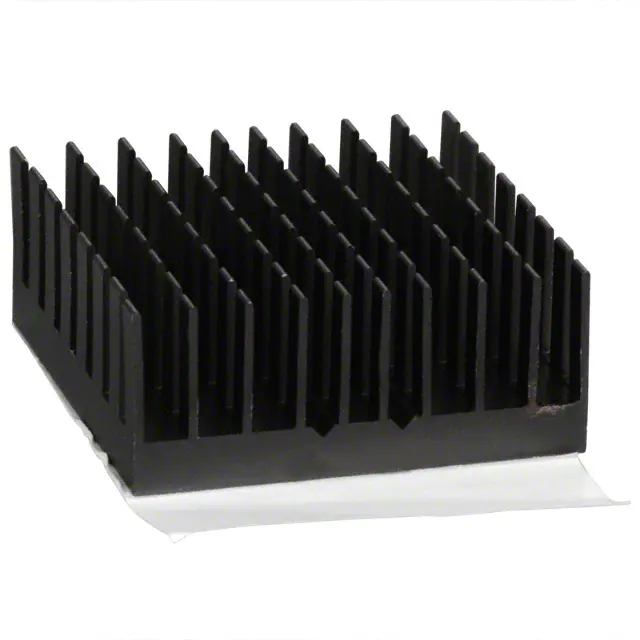

ATS-55350K-C1-R0HEAT SINK 35MM X 35MM X 14.5MM |
673 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.571" (14.50mm) | - | 5.90°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-52150G-C0-R0HEATSINK 15X15X12.5MM W/OUT TIM |
252 |
|
- |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Angled Fins | 0.591" (15.00mm) | 0.591" (15.00mm) | - | 0.492" (12.50mm) | - | 11.70°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-1041-C3-R0HEATSINK 41X45X10MM PEM |
438 |
|
Технический лист |
maxiFLOW | Bulk | Active | Top Mount | BGA | Push Pin | Rectangular, Angled Fins | 1.610" (40.89mm) | 1.772" (45.00mm) | - | 0.394" (10.00mm) | - | 3.90°C/W @ 300 LFM | - | Aluminum | Green Anodized |
|
ATS-52350P-C1-R0HEAT SINK 35MM X 35MM X 17.5MM |
1,451 |
|
Технический лист |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.689" (17.50mm) | - | 2.30°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-52375P-C1-R0HEAT SINK 37.5 X 37.5 X 17.5MM |
2,130 |
|
Технический лист |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 1.476" (37.50mm) | 1.476" (37.50mm) | - | 0.689" (17.50mm) | - | 2.10°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

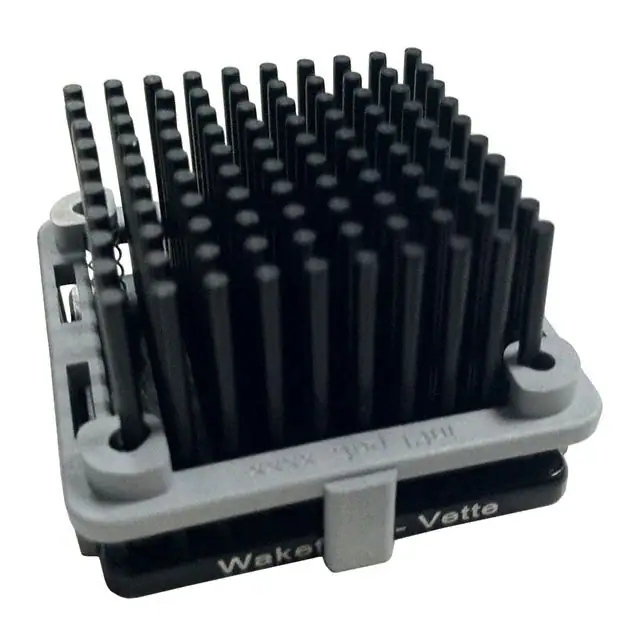

908-35-2-12-2-B-0HEATSINK 35X35X12MM PIN |
424 |
|
Технический лист |
908 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.457" (11.60mm) | - | 3.10°C/W @ 200 LFM | 11.10°C/W | Aluminum | Black Anodized |
|

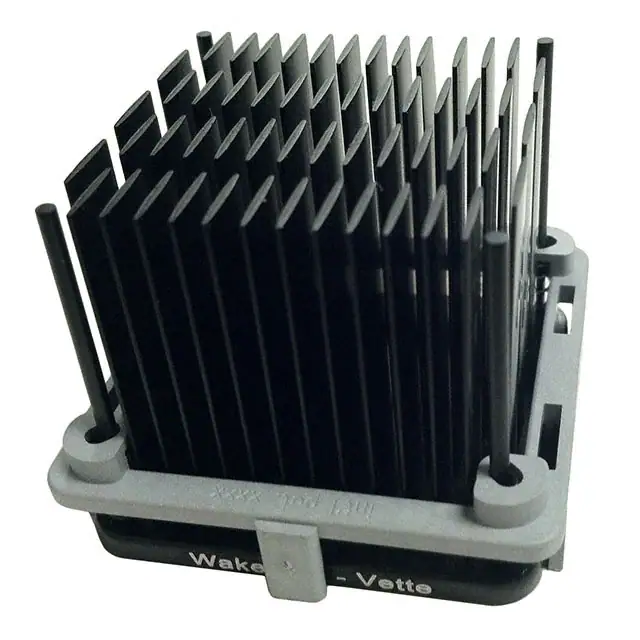

908-35-1-12-2-B-0HEATSINK 35X35X12MM ELLIPTICAL |
356 |
|
Технический лист |
908 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.457" (11.60mm) | - | 3.10°C/W @ 200 LFM | 11.10°C/W | Aluminum | Black Anodized |
|
7024B-MTGHEATSINK TO-220 TAB FOLD 41.15MM |
1,314 |
|
Технический лист |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.620" (41.15mm) | 2.000" (50.80mm) | - | 0.750" (19.05mm) | 9.0W @ 60°C | 4.00°C/W @ 200 LFM | 5.60°C/W | Aluminum | Black Anodized |
|
ATS-53230K-C1-R0HEAT SINK 23MM X 23MM X 14.5MM |
1,165 |
|
Технический лист |
maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 0.900" (23.00mm) | 0.906" (23.01mm) | - | 0.571" (14.50mm) | - | 8.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-55425W-C1-R0HEAT SINK 42.5 X 42.5 X 24.5MM |
123 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.673" (42.50mm) | 1.673" (42.49mm) | - | 0.965" (24.50mm) | - | 2.40°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-52290G-C1-R0HEAT SINK 29MM X 29MM X 12.5MM |
613 |
|
Технический лист |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 1.142" (29.00mm) | 1.142" (29.00mm) | - | 0.492" (12.50mm) | - | 4.50°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-56002-C4-R0HEAT SINK 25MM X 25MM X 4MM |
110 |
|
Технический лист |
maxiFLOW | Bulk | Active | Top Mount | ASIC | Thermal Tape, Adhesive (Not Included) | Square, Angled Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.157" (4.00mm) | - | 9.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-55350R-C1-R0HEAT SINK 35MM X 35MM X 19.5MM |
147 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.768" (19.50mm) | - | 4.20°C/W @ 200 LFM | - | Aluminum | Black Anodized |
