Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
500403B00000GHEATSINK TO-3 12W H=1.25" BLK |
937 |
|
Технический лист |
- | Bag | Active | Board Level | TO-3 | Bolt On | Square, Pin Fins | 1.810" (45.97mm) | 1.810" (45.97mm) | - | 1.250" (31.75mm) | 10.0W @ 50°C | 2.00°C/W @ 400 LFM | 5.00°C/W | Aluminum | Black Anodized |
|
ATS-52350G-C1-R0HEAT SINK 35MM X 35MM X 12.5MM |
162 |
|
Технический лист |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.492" (12.50mm) | - | 3.00°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

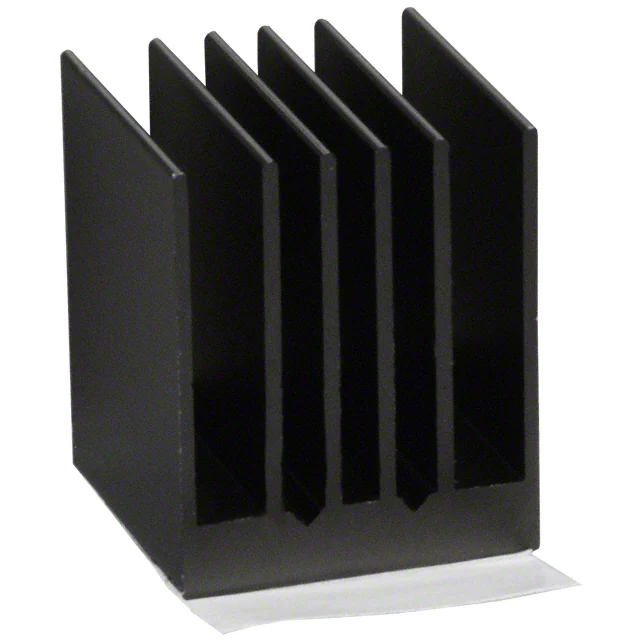

ATS-54210W-C1-R0HEAT SINK 21MM X 21MM X 24.5MM |
155 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.965" (24.50mm) | 0.3W @ 20°C | 6.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

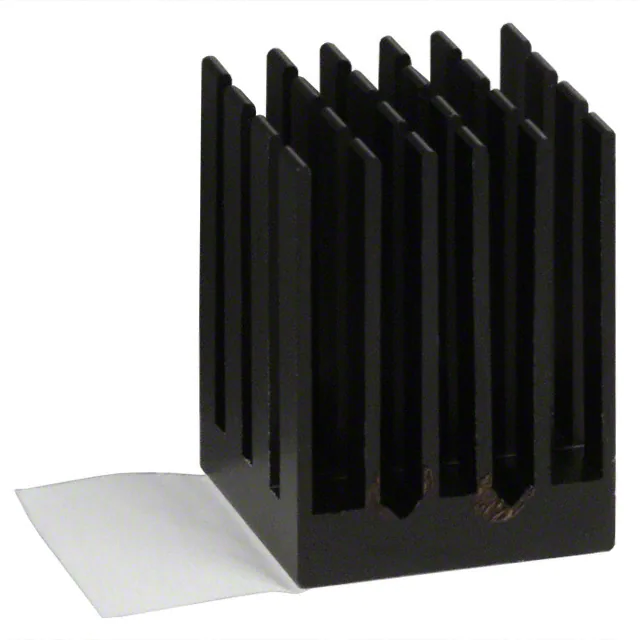

ATS-55190W-C1-R0HEAT SINK 19MM X 19MM X 24.5MM |
534 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.965" (24.50mm) | - | 7.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

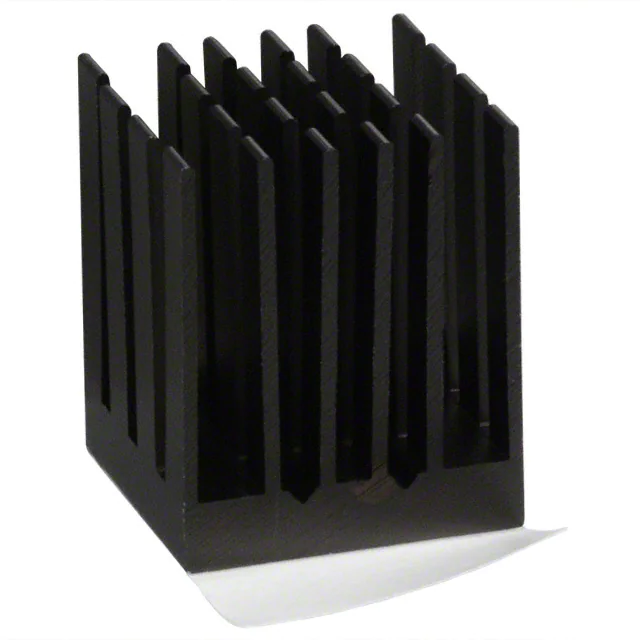

ATS-55210W-C1-R0HEAT SINK 21MM X 21MM X 24.5MM |
121 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.965" (24.50mm) | - | 6.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-50425G-C3-R0MAXIGRIP HS ASSY T766 BLU-ANODIZ |
1,000 |
|
Технический лист |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 1.673" (42.50mm) | 1.673" (42.49mm) | - | 0.492" (12.50mm) | - | 2.40°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
910-40-2-23-2-B-0HEATSINK 40X40X23MM PIN |
351 |
|
Технический лист |
910 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.892" (22.65mm) | - | 2.00°C/W @ 200 LFM | 8.30°C/W | Aluminum | Black Anodized |
|
910-40-2-12-2-B-0HEATSINK 40X40X12MM PIN |
174 |
|
Технический лист |
910 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.457" (11.60mm) | - | 2.80°C/W @ 200 LFM | 9.20°C/W | Aluminum | Black Anodized |
|

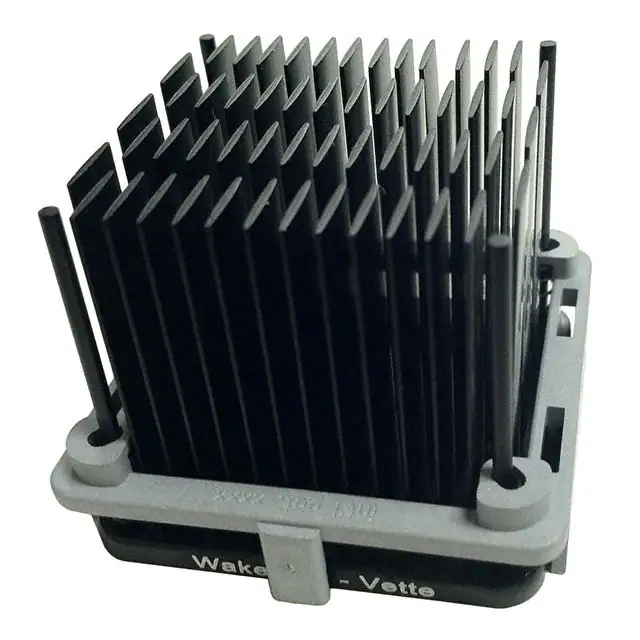

910-40-1-23-2-B-0HEATSINK 40X40X23MM ELLIPTICAL |
114 |
|
Технический лист |
910 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.892" (22.65mm) | - | 2.00°C/W @ 200 LFM | 8.30°C/W | Aluminum | Black Anodized |
|
ATS-51350D-C1-R0HEAT SINK 35MM X 35MM X 9.5MM |
306 |
|
Технический лист |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.374" (9.50mm) | - | 5.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-51350K-C0-R0HEATSINK 35X35X14.5MM W/OUT TIM |
612 |
|
Технический лист |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip | Square, Angled Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.571" (14.50mm) | - | 2.90°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-51170R-C1-R0HEAT SINK 17MM X 17MM X 19.5MM |
3,510 |
|
Технический лист |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.669" (17.00mm) | 0.669" (17.00mm) | - | 0.768" (19.50mm) | - | 8.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-53400R-C1-R0HEAT SINK 40MM X 40MM X 19.5MM |
688 |
|
Технический лист |
maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.768" (19.50mm) | - | 3.20°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

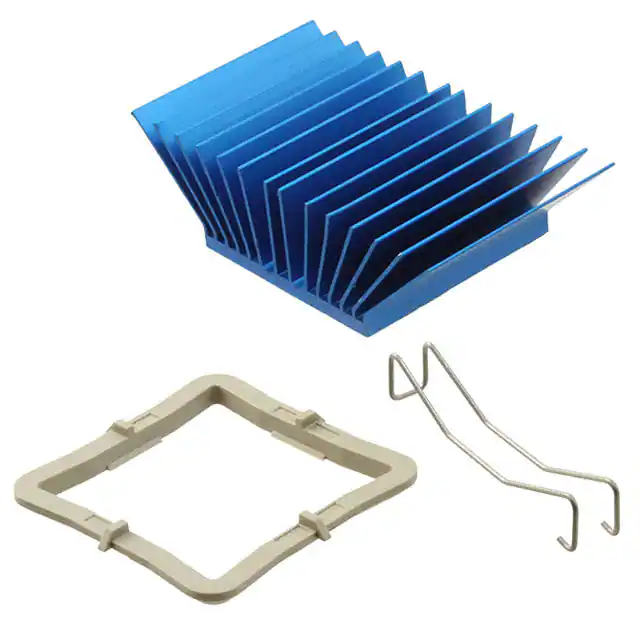

ATS-50350P-C3-R0HEAT SINK 31MM X 31MM X 12.5MM |
353 |
|
- |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.689" (17.50mm) | - | 2.30°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

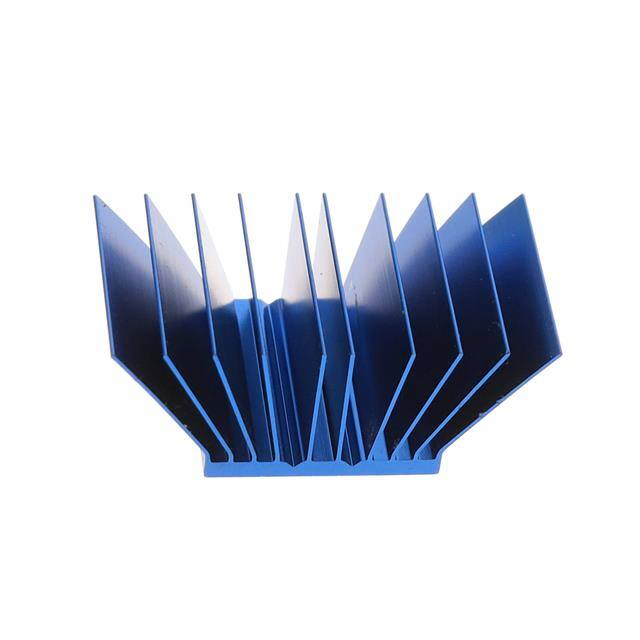

ATS-52250P-C0-R0HEATSINK 25X25X17.5MM W/OUT TIM |
104 |
|
- |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Angled Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.689" (17.50mm) | - | 3.90°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-53230D-C1-R0HEAT SINK 23MM X 23MM X 9.5MM |
726 |
|
Технический лист |
maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 0.900" (23.00mm) | 0.906" (23.01mm) | - | 0.374" (9.50mm) | - | 16.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-56003-C4-R0HEAT SINK 15MM X 15MM X 9MM |
366 |
|
Технический лист |
maxiFLOW | Bulk | Active | Top Mount | ASIC | Thermal Tape, Adhesive (Not Included) | Square, Angled Fins | 0.591" (15.00mm) | 0.591" (15.00mm) | - | 0.354" (9.00mm) | - | 12.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-50190B-C1-R0HEAT SINK 19MM X 19MM X 7.5MM |
139 |
|
Технический лист |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.295" (7.50mm) | - | 16.50°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-53290D-C1-R0HEAT SINK 29MM X 29MM X 9.5MM |
325 |
|
Технический лист |
maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.142" (29.00mm) | 1.142" (29.00mm) | - | 0.374" (9.50mm) | - | 13.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-17H-136-C2-R0HEATSINK 70X70X25MM XCUT T766 |
101 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 2.18°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
