Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-X50250P-C1-R0SUPERGRIP HEATSINK 25X25X17.5MM |
299 |
|
Технический лист |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.689" (17.50mm) | - | 3.90°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X51190R-C1-R0MAXIFLOW 18.25X18.25X19.5MM T766 |
399 |
|
Технический лист |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.768" (19.50mm) | - | 7.50°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

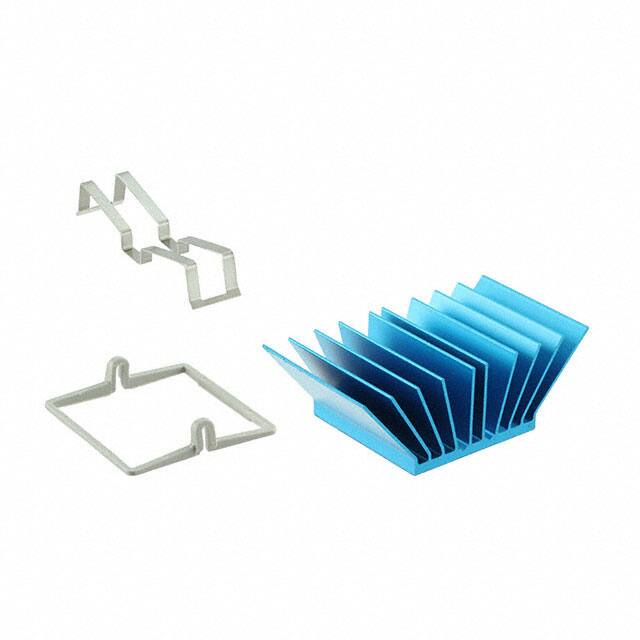

ATS-X50290P-C1-R0SUPERGRIP HEATSINK 29X29X17.5MM |
1,179 |
|
Технический лист |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.142" (29.00mm) | 1.142" (29.00mm) | - | 0.689" (17.50mm) | - | 3.50°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X53400P-C1-R0SUPERGRIP HEATSINK 40X40X17.5MM |
204 |
|
Технический лист |
superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.689" (17.50mm) | - | 3.20°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X50310P-C1-R0SUPERGRIP HEATSINK 31X31X17.5MM |
132 |
|
Технический лист |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.689" (17.50mm) | - | 3.30°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X53450P-C1-R0SUPERGRIP HEATSINK 45X45X17.5MM |
198 |
|
Технический лист |
superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.689" (17.50mm) | - | 2.80°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X50400P-C1-R0SUPERGRIP HEATSINK 40X40X17.5MM |
172 |
|
Технический лист |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.689" (17.50mm) | - | 2.00°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
1277135.53" X 12" FLATBACK HEATSINK 19 |
102 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 5.530" (140.46mm) | - | 0.325" (8.26mm) | - | - | 0.71°C/W | Aluminum | - |
|

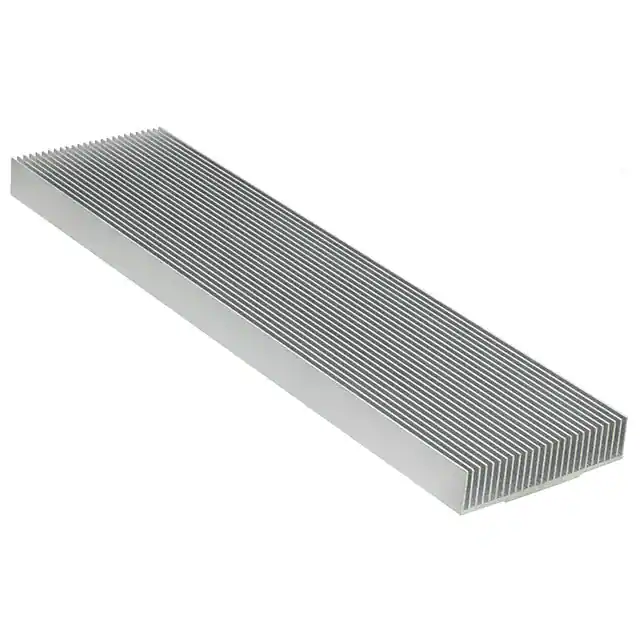

ATS-EXL75-300-R0HEATSINK AL6063 300X76X18.5MM |
112 |
|
Технический лист |
- | Bulk | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 11.811" (300.00mm) | 2.976" (75.60mm) | - | 0.728" (18.50mm) | - | 1.40°C/W @ 200 LFM | 9.70°C/W | Aluminum | Degreased |
|
260-4T5EHEATSINK TO-5 EPOXY INSUL BLK |
635 |
|
Технический лист |
260 | Bulk | Active | Board Level | TO-5 | Bolt On | Cylindrical | 0.370" (9.40mm) | 0.380" (9.65mm) | 0.290" (7.37mm) ID | - | - | - | 14.00°C/W | - | Black Ebonol |
|
ATS-56011-C1-R0HEAT SINK 57.5 X 57.5 X 12.5MM |
184 |
|
Технический лист |
maxiFLOW | Bulk | Active | Top Mount | ASIC | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 2.264" (57.50mm) | 2.264" (57.50mm) | - | 0.492" (12.50mm) | - | 2.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
395-1ABHEATSINK 3X5X2.5" POWER/IGBT |
104 |
|
Технический лист |
395 | Bulk | Active | Board Level | Power Modules | Bolt On | Rectangular, Fins | 3.000" (76.20mm) | 5.000" (127.00mm) | - | 2.500" (63.50mm) | - | 0.50°C/W @ 500 LFM | 1.10°C/W | Aluminum | Black Anodized |
|

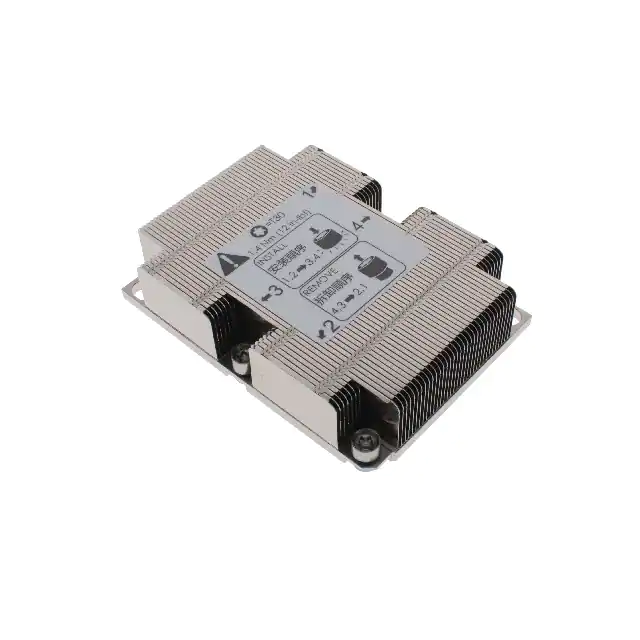

647062INTEL XEON CPU COOLER 1U |
394 |
|
Технический лист |
- | Tray | Active | Top Mount, Zipper Fin | Intel® Xeon® CPU | Bolt On | Rectangular, Fins | 4.252" (108.00mm) | 3.071" (78.00mm) | - | 1.004" (25.50mm) | - | - | - | - | - |
|
1252961.625WX36" EXTRUSIO 16079 XX2014 |
196 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 1.625" (41.28mm) | - | 1.312" (33.32mm) | - | - | 0.80°C/W | Aluminum | - |
|

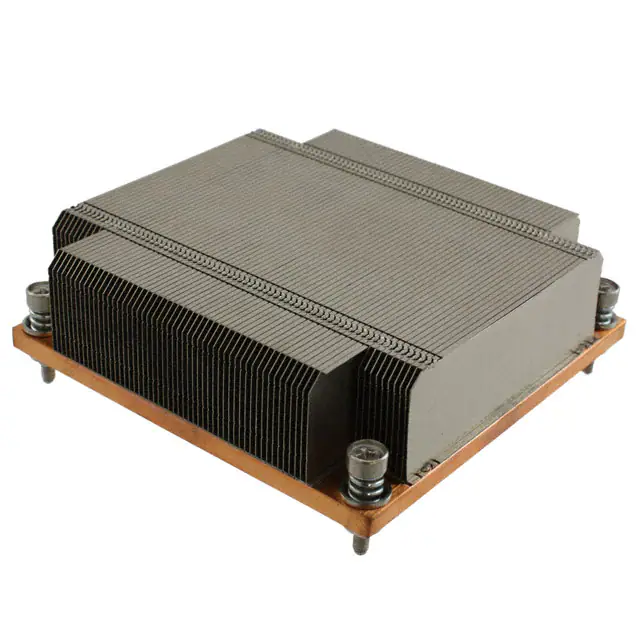

DHS-B9090-11AHEATSINK ASSY INTEL NEHALEM 1366 |
159 |
|
Технический лист |
- | Box | Not For New Designs | Board Level | LGA | Bolt On | Square, Fins | 3.543" (90.00mm) | 3.543" (90.00mm) | - | 1.004" (25.50mm) | - | 0.26°C/W | - | Aluminum | - |
|
ATS-EXL121-300-R0PCIE EXTRUSION PROFILE, AL6063 |
26 |
|
Технический лист |
- | Bulk | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 11.811" (300.00mm) | 2.362" (60.00mm) | - | 0.551" (14.00mm) | - | 3.20°C/W @ 200 LFM | 16.10°C/W | Aluminum | Degreased |
|

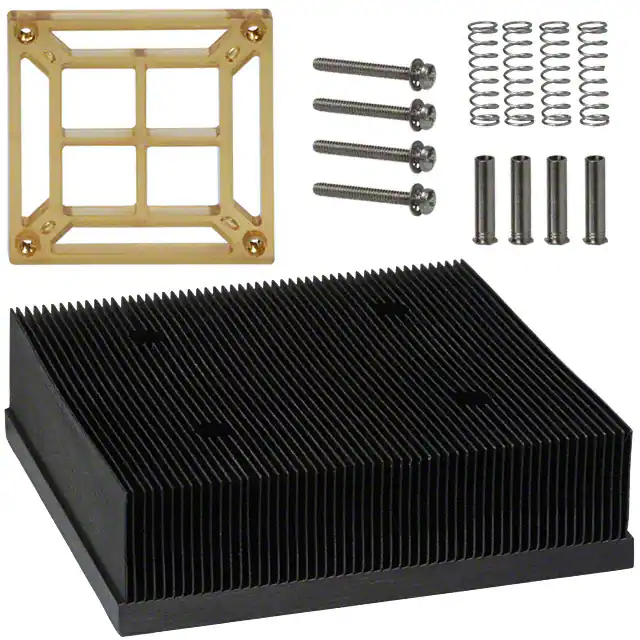

ATS-57003-C1-R0HEAT SINK 94MM X 94MM X 27MM |
34 |
|
Технический лист |
- | Bulk | Active | Top Mount | LGA | Push Pin | Square, Fins | 3.700" (94.00mm) | 3.700" (93.98mm) | - | 1.063" (27.00mm) | - | 1.40°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

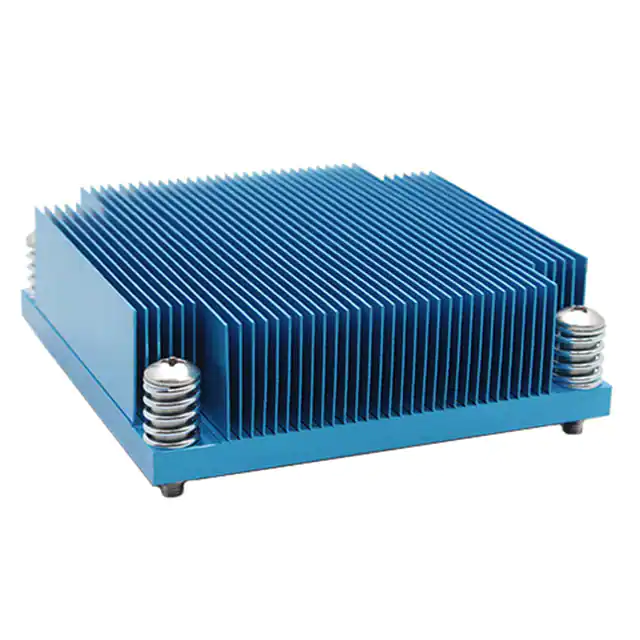

ATS-UC-NF-101CPU HEAT SINK NO FAN ALUMINUM |
89 |
|
Технический лист |
- | Box | Active | Top Mount, Skived | Intel LGA2011 & LGA2066 CPU Cooler | Push Pin | Square, Fins | 3.543" (90.00mm) | 3.543" (90.00mm) | - | 1.102" (28.00mm) | - | - | - | Aluminum | Blue Anodized |
|

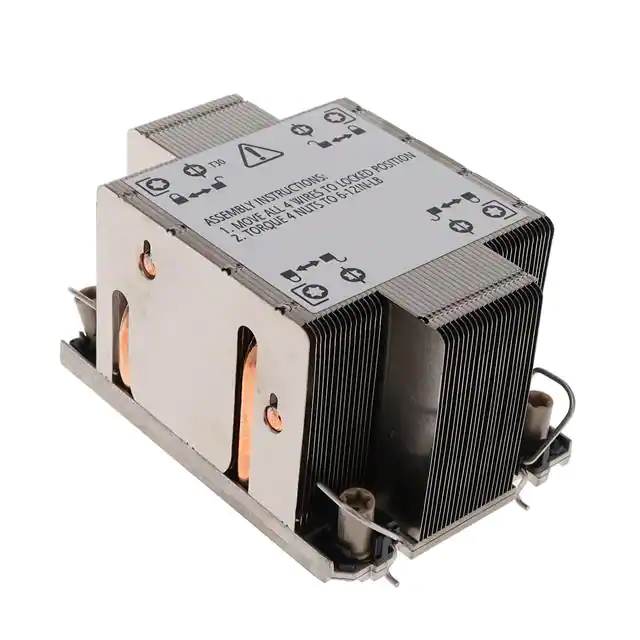

SM420-20001YCOOLING MODULE 113 * 78 *64MM |
155 |
|
Технический лист |
- | Box | Active | Top Mount | Intel LGA4189 2U Passive CPU Cooler | Push Pin | Rectangular, Fins | 4.449" (113.00mm) | 3.071" (78.00mm) | - | 2.519" (64.00mm) | - | - | - | Aluminum, Copper | Nickel |
|
ATS-EXL120-300-R0PCIE EXTRUSION PROFILE, AL6063 |
77 |
|
Технический лист |
- | Bulk | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 11.811" (300.00mm) | 3.150" (80.00mm) | - | 0.551" (14.00mm) | - | 2.40°C/W @ 200 LFM | 13.00°C/W | Aluminum | Degreased |
