Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-03C-96-C1-R1HEATSINK 40X40X35MM R-TAB |
138 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.378" (35.00mm) | - | 5.60°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

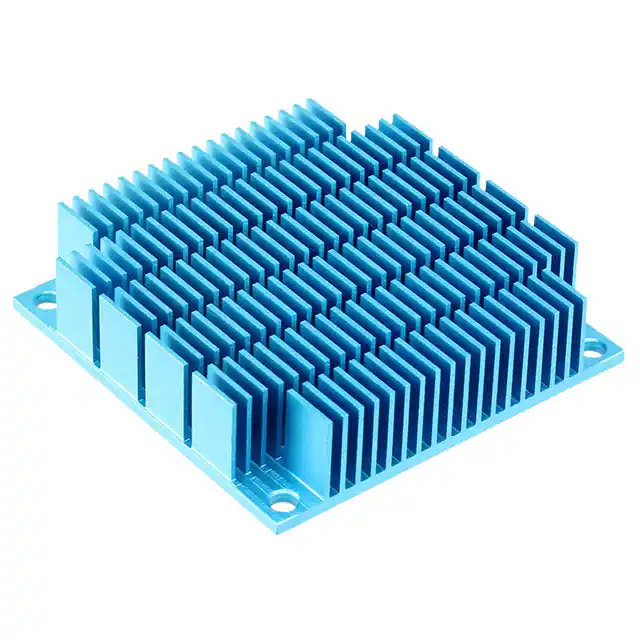

ATS-FPX060060015-23-C2-R0HEATSINK 60X60X15MM XCUT FP |
257 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.590" (15.00mm) | - | 12.01°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
960-19-12-S-AB-0HEATSINK 19X12MM SIDE PUSH PIN |
462 |
|
Технический лист |
960 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.472" (12.00mm) | - | 8.60°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-CPX035035025-150-C2-R0HEATSINK 35X35X25MM L-TAB CP |
172 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.984" (25.00mm) | - | 4.82°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

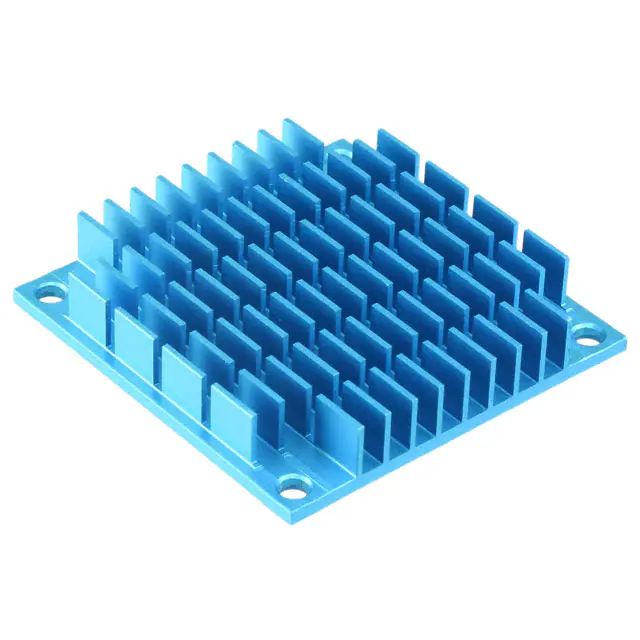

ATS-CPX054054010-125-C2-R0HEATSINK 54X54X10MM XCUT CP |
817 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.394" (10.00mm) | - | 8.92°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX025025010-165-C2-R0HEATSINK 25X25X10MM R-TAB CP |
145 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.394" (10.00mm) | - | 18.36°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

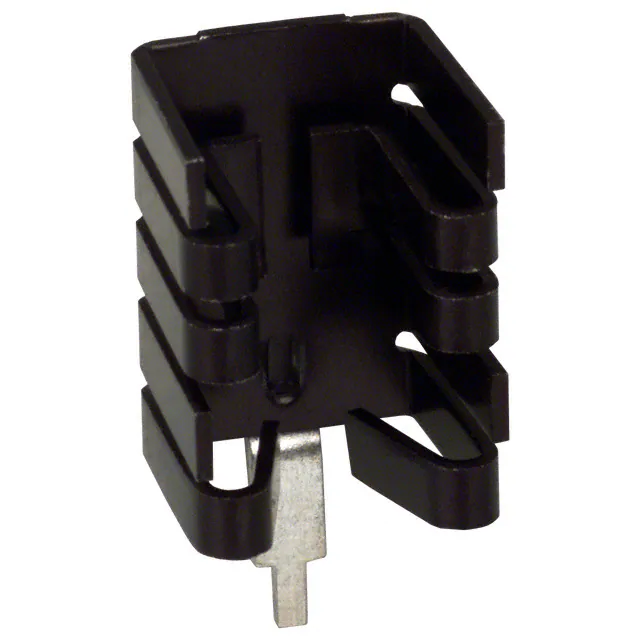

576802B04100GHEATSINK TO220 CLIPON W/TAB.75" |
3,004 |
|
Технический лист |
- | Bulk | Active | Board Level, Vertical | TO-220, TO-262 | Clip and PC Pin | Rectangular, Fins | 0.750" (19.05mm) | 0.500" (12.70mm) | - | 0.500" (12.70mm) | 1.0W @ 30°C | 7.00°C/W @ 400 LFM | 27.30°C/W | Aluminum | Black Anodized |
|
960-19-15-S-AB-0HEATSINK 19X15MM SIDE PUSH PIN |
566 |
|
Технический лист |
960 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.590" (15.00mm) | - | 6.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-CPX060060020-131-C3-R0HEATSINK 60X60X20MM XCUT CP |
145 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.790" (20.00mm) | - | 3.65°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
960-23-18-S-AB-0HEATSINK 23X18MM SIDE PUSH PIN |
282 |
|
Технический лист |
960 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 0.906" (23.00mm) | 0.906" (23.00mm) | - | 0.709" (18.00mm) | - | 4.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
678-39-CHEATSINK TO-220/TO-247 W/CLIP |
442 |
|
Технический лист |
678 | Box | Active | Board Level, Vertical | Assorted (BGA, LGA, CPU, ASIC...) | Clip, Solder Foot | Rectangular, Fins | 2.362" (60.00mm) | 0.984" (25.00mm) | - | 1.520" (38.61mm) | - | 0.60°C/W @ 600 LFM | - | Aluminum | Black Anodized |
|
|
ATS-04C-150-C2-R0HEATSINK 35X35X25MM L-TAB T766 |
350 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.984" (25.00mm) | - | 4.82°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-FPX060060020-24-C1-R0HEATSINK 60X60X20MM XCUT FP |
108 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.790" (20.00mm) | - | 8.36°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-21D-125-C2-R0HEATSINK 54X54X10MM XCUT T766 |
246 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.394" (10.00mm) | - | 8.92°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-FPX060060020-24-C3-R0HEATSINK 60X60X20MM XCUT FP |
569 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.790" (20.00mm) | - | 8.43°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
960-27-12-D-AB-0HEATSINK 27X12MM DIA PUSH PIN |
756 |
|
Технический лист |
960 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.472" (12.00mm) | - | 5.70°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

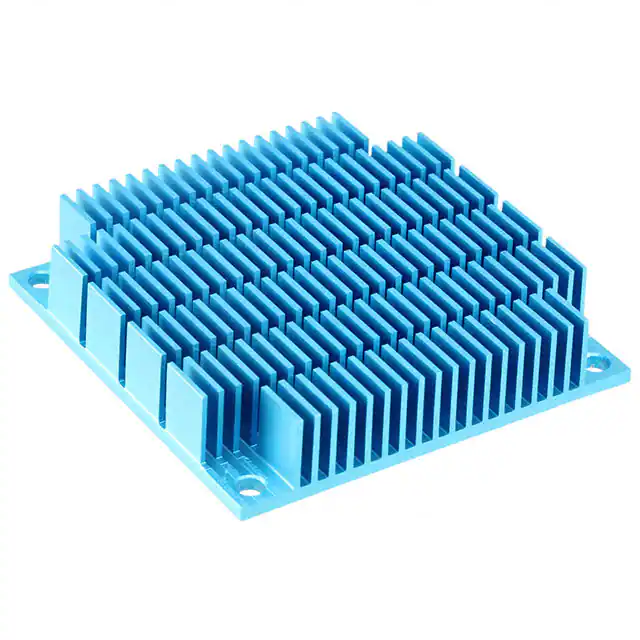

ATS-FPX060060013-22-C2-R0HEATSINK 60X60X12.7MM XCUT FP |
861 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.500" (12.70mm) | - | 13.83°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

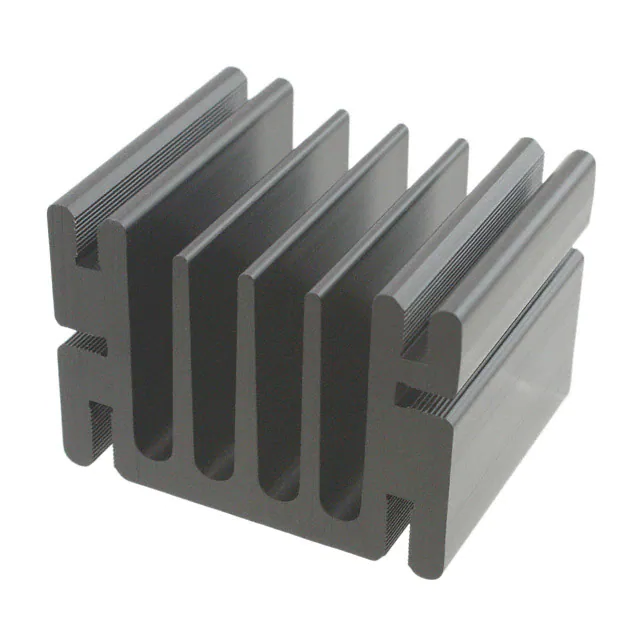

V5583CHEATSINK ALUM ANOD |
134 |
|
Технический лист |
- | Bulk | Active | Top Mount | TO-220 | Bolt On | Rectangular, Fins | 1.476" (37.50mm) | 1.811" (46.00mm) | - | 1.299" (33.00mm) | - | - | 5.85°C/W | Aluminum | Black Anodized |
|
ATS-52350G-C0-R0ALUM HEAT SINK MAXIFLOW |
967 |
|
- |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Angled Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.492" (12.50mm) | - | 3.00°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

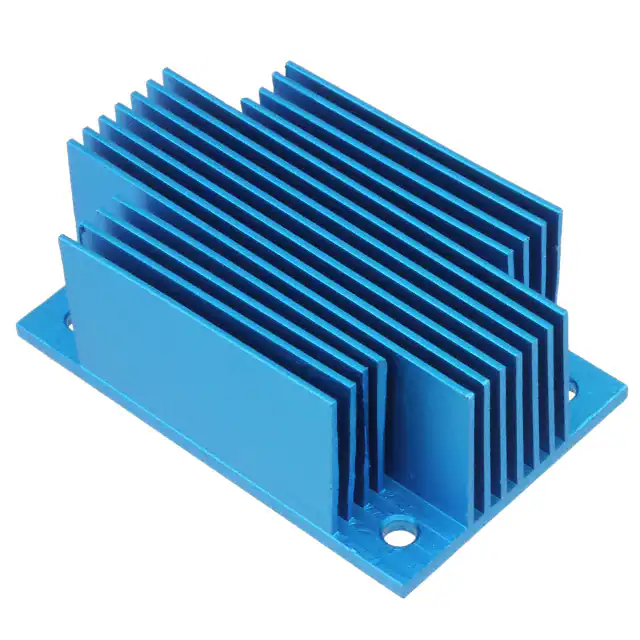

ATS-FPS058037023-34-C2-R0HEATSINK 57.9X36.83X22.86MM FP |
102 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 1.450" (36.83mm) | - | 0.900" (22.86mm) | - | 14.33°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
