Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NDR-480-24AC/DC DIN RAIL SUPPLY 24V 480W |
399 |
|
Технический лист |
NDR-480 (480W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 24V | - | - | - | - | - | 20A | 480W | 3 kV | Industrial, ITE (Commercial) | 92.5% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 5.06" L x 3.37" W x 4.93" H (128.5mm x 85.5mm x 125.2mm) | CB, CE, cULus, TUV | - |
|
DRP048V240W1BNAC/DC DIN RAIL SUPPLY 48V 240W |
504 |
|
Технический лист |
CliQ II (240W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 5A | 240W | 4 kV | ITE (Commercial) | 92% | -25°C ~ 80°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 4.89" L x 3.35" W x 4.76" H (124.1mm x 85.0mm x 121.0mm) | CB Scheme, CE, CSA, EAC, EN, SIQ, UL | 508; 50581; 55011; 55024; 55032; 60950-1; 61000-3-2; 61000-3-3; 61000-6-2; 61204-3 |
|
SVL1024100AC/DC DIN RAIL SUPPLY 24V 240W |
39 |
|
Технический лист |
SVL | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 375V | 24V | - | - | - | - | - | 10A | 240W | 3 kV | Industrial, ITE (Commercial) | 88% | -20°C ~ 70°C (With Derating) | Universal Input | 4.63" L x 2.36" W x 4.87" H (117.6mm x 59.9mm x 123.7mm) | CE, cULus, cURus | - |
|
2903157AC/DC DIN RAIL SUPPLY 12V 60W |
29 |
|
Технический лист |
TRIO | Bulk | Active | AC or DC | 1 | 100 ~ 240 VAC | 110V | 250V | 12V | - | - | - | - | - | 5A | 60W | 3 kV | Industrial, ITE (Commercial) | 85.6% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.53" L x 1.18" W x 5.12" H (115.0mm x 30.0mm x 130.0mm) | CE, UL | - |
|

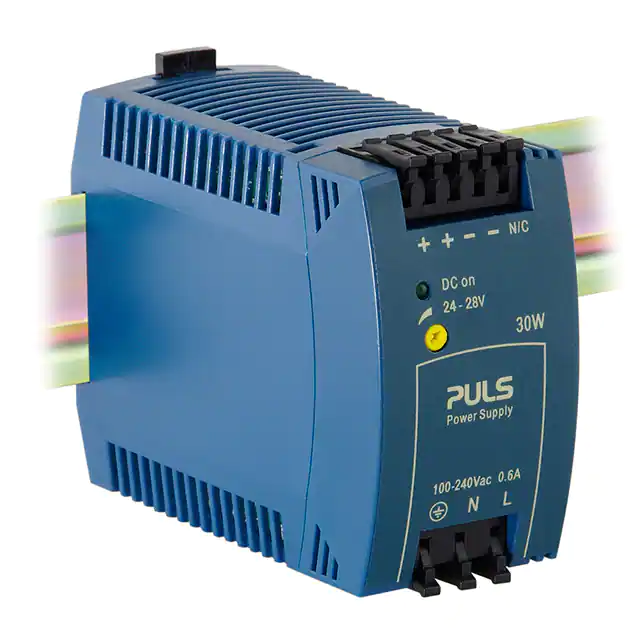

ML30.100AC/DC DIN RAIL SUPPLY 24V 30W |
41 |
|
Технический лист |
MiniLine (30W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 1.3A | 30W | - | ITE (Commercial) | 87.5% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 3.58" L x 1.77" W x 2.95" H (91.0mm x 45.0mm x 75.0mm) | ABS, CSA, DNV GL, EAC, IEC, NEC, UL | Class I Div 2; Class 2; 508; 60950-1; 61010-2-201 |
|
2904596QUINT4-PS/1AC/2X15DC/2/PT |
51 |
|
Технический лист |
- | Bulk | Active | AC or DC | 2 | 85 ~ 264 VAC | 88V | 275V | 15V | -15V | - | - | - | - | 2A | 51W | 3 kV | Laboratory | 89.4% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC | 3.54" L x 1.77" W x 4.17" H (90.0mm x 45.0mm x 106.0mm) | CB, UL | 61010-1 |
|
PS5R-VE24AC/DC DIN RAIL SUPPLY 24V 90W |
109 |
|
Технический лист |
PS5R-V (90W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 100V | 370V | 24V | - | - | - | - | - | 3.75A | 90W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 89% | -25°C ~ 65°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.25" L x 1.42" W x 3.74" H (108.0mm x 36.0mm x 95.0mm) | CE, cULus, TUV | 62368-1 |
|
2904599AC/DC DIN RAIL SUPPLY 24V 91W |
120 |
|
Технический лист |
Quint | Bulk | Active | AC or DC | 1 | 100 ~ 240 VAC | 110V | 250V | 24V | - | - | - | - | - | 3.8A | 91W | 4 kV | ITE (Commercial), Laboratory | 93.7% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, PFC, Universal Input | 3.54" L x 1.77" W x 3.90" H (90.0mm x 45.0mm x 99.0mm) | CB, CE, UL | - |
|
SDP1-24-100TAC/DC DIN RAIL SUPPLY 24V 31W |
37 |
|
Технический лист |
SDP | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 375V | 24V | - | - | - | - | - | 1.3A | 31W | - | Hazardous Locations, Industrial, ITE (Commercial) | 83% | -10°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 3.58" L x 1.77" W x 2.95" H (90.9mm x 45.0mm x 74.9mm) | CE, cULus, cURus | - |
|

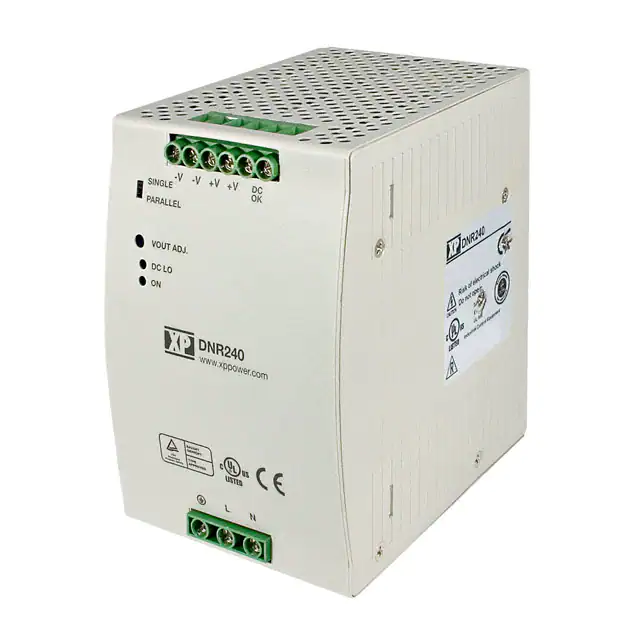

DNR240PS48-IAC/DC DIN RAIL SUPPLY 48V 240W |
616 |
|
Технический лист |
DNR (240W) | Box | Active | AC | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 5A | 240W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 90% | -40°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 4.38" L x 3.27" W x 4.92" H (111.3mm x 83.0mm x 125.0mm) | CE | 62368-1 |
|
|
DNR240PS24-IAC/DC DIN RAIL SUPPLY 24V 240W |
194 |
|
Технический лист |
DNR (240W) | Box | Active | AC | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 89% | -40°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 4.38" L x 3.27" W x 4.92" H (111.3mm x 83.0mm x 125.0mm) | CE | 62368-1 |
|

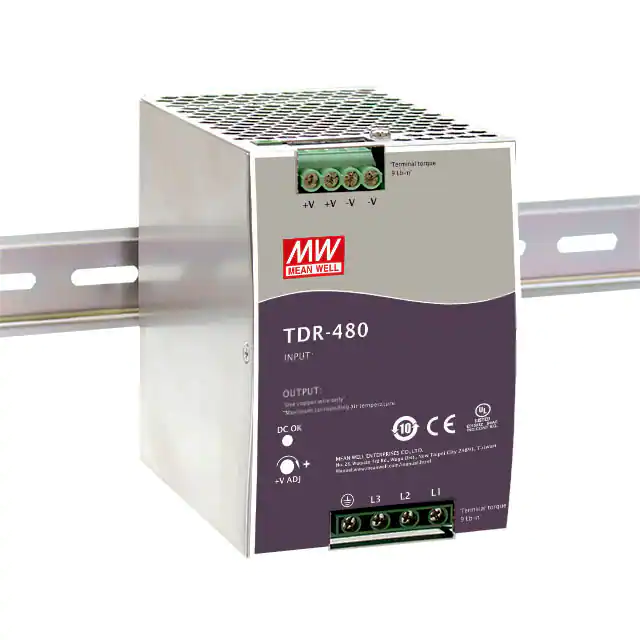

TDR-480-48AC/DC DIN RAIL SUPPLY 48V 480W |
436 |
|
Технический лист |
TDR-480 (480W) | Box | Active | AC | 1 | 340 ~ 550 VAC (3 Phase) | - | - | 48V | - | - | - | - | - | 10A | 480W | 3 kV | Industrial, ITE (Commercial) | 93% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC | 5.06" L x 3.37" W x 4.93" H (128.5mm x 85.5mm x 125.2mm) | CB, CE, cULus | - |
|
2904945AC/DC DIN RAIL SUPPLY 24V 84W |
50 |
|
Технический лист |
TRIO | Bulk | Active | AC | 1 | 85 ~ 305 VAC | - | - | 24V | - | - | - | - | - | 3.5A | 84W | 4 kV | ITE (Commercial) | 88% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.54" L x 2.40" W x 3.54" H (90.0mm x 61.0mm x 90.0mm) | cULus, cURus, EAC | - |
|

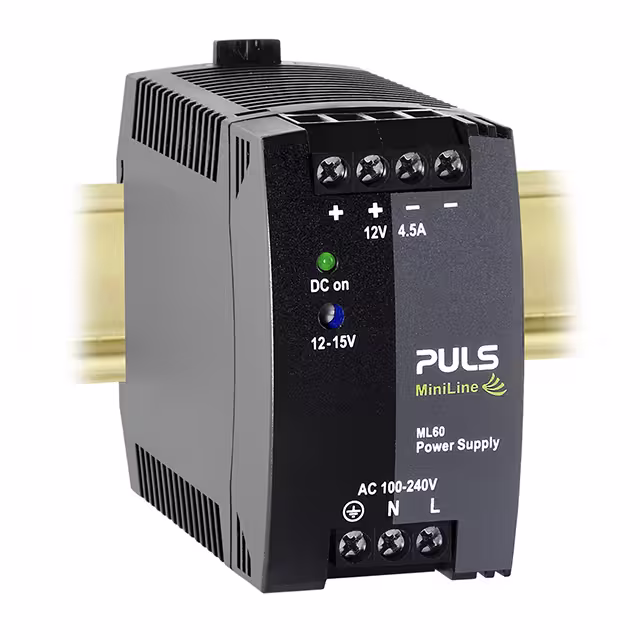

ML60.121AC/DC DIN RAIL SUPPLY 12V 54W |
53 |
|
Технический лист |
MiniLine (54W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 4.5A | 54W | 500 V | ITE (Commercial) | 87.2% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 3.58" L x 1.77" W x 2.95" H (91.0mm x 45.0mm x 75.0mm) | ABS, CSA, DNV GL, EAC, IEC, NEC, UL | Class I Div 2; Class 2; 508; 60950-1; 61010-2-201 |
|

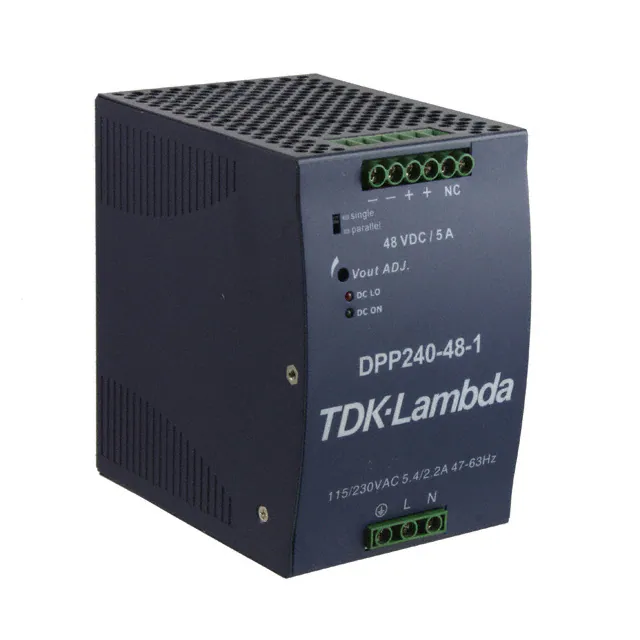

DPP240-48-1AC/DC DIN RAIL SUPPLY 48V 240W |
268 |
|
Технический лист |
DPP (240W) | Bulk | Not For New Designs | AC | 1 | 85 ~ 132 VAC, 176 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 5A | 240W | 3 kV | ITE (Commercial) | 90% | -40°C ~ 71°C (With Derating) | Adjustable Output, Load Sharing | 4.57" L x 3.27" W x 4.92" H (116.0mm x 83.0mm x 125.0mm) | CE | - |
|

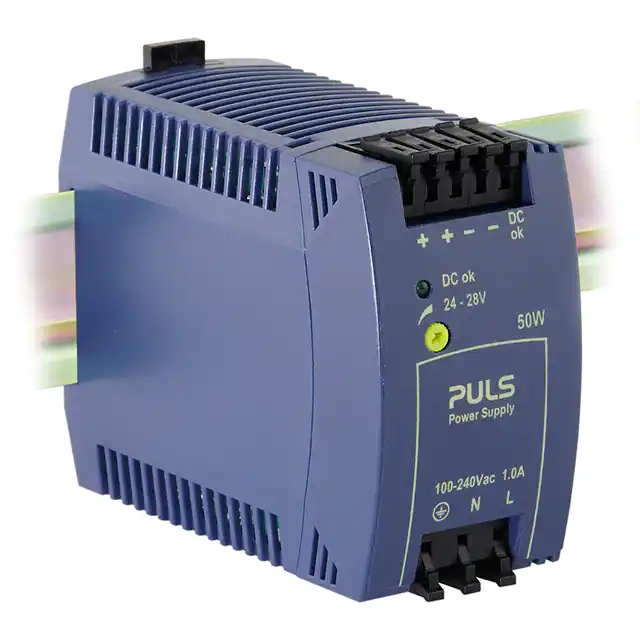

ML50.100AC/DC DIN RAIL SUPPLY 24V 50W |
61 |
|
Технический лист |
MiniLine (50W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.1A | 50W | 500 V | ITE (Commercial) | 89% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 3.58" L x 1.77" W x 2.95" H (91.0mm x 45.0mm x 75.0mm) | ABS, CSA, DNV GL, EAC, IEC, NEC, SEMI, UL | Class I Div 2; Class 2; F47; 508; 60601; 60950-1; 61010-2-201 |
|
|
PS5R-VF24AC/DC DIN RAIL SUPPLY 24V 120W |
54 |
|
Технический лист |
PS5R-V (120W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 100V | 370V | 24V | - | - | - | - | - | 5A | 120W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 89% | -25°C ~ 65°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.76" L x 1.81" W x 4.53" H (121.0mm x 46.0mm x 115.0mm) | CE, cULus, TUV | 62368-1 |
|
|
TDR-480-24AC/DC DIN RAIL SUPPLY 24V 480W |
127 |
|
Технический лист |
TDR-480 (480W) | Box | Active | AC | 1 | 340 ~ 550 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 20A | 480W | 3 kV | Industrial, ITE (Commercial) | 92.5% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC | 5.06" L x 3.37" W x 4.93" H (128.5mm x 85.5mm x 125.2mm) | CB, CE, cULus | - |
|
|
1159038PRIMARY-SWITCHED POWER SUPPLY UN |
47 |
|
Технический лист |
- | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 264V | 24V | - | - | - | - | - | 10A | 240W | 3 kV | Laboratory | 95.5% | -25°C ~ 70°C (With Derating) | PFC, Universal Input | 5.20" L x 1.57" W x 5.31" H (132.0mm x 40.0mm x 135.0mm) | cULus | 61010-1 |
|

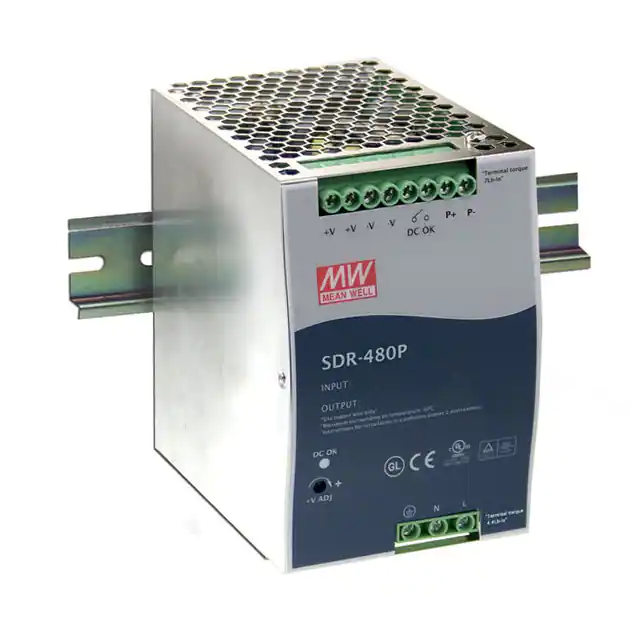

SDR-480P-24AC/DC DIN RAIL SUPPLY 24V 480W |
18 |
|
Технический лист |
SDR-480P (480W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 24V | - | - | - | - | - | 20A | 480W | 3 kV | Industrial, ITE (Commercial) | 94% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 5.06" L x 3.37" W x 4.93" H (128.5mm x 85.5mm x 125.2mm) | CB, CE, cULus, TUV | - |
