Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2904376AC/DC DIN RAIL SUPPLY 24V 150W |
140 |
|
Технический лист |
UNO | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 6.25A | 150W | 3 kV | ITE (Commercial) | 94% | -25°C ~ 70°C (With Derating) | IP20, Load Sharing, Universal Input | 4.92" L x 1.46" W x 5.12" H (125.0mm x 37.0mm x 130.0mm) | CB, cULus, cURus | - |
|
859-802DC/DC DIN RAIL SUPPLY 10V |
71 |
|
Технический лист |
- | Bulk | Active | DC | 1 | - | 15V | 30V | 10V | - | - | - | - | - | 500mA | - | - | Industrial | 85% | -25°C ~ 55°C | Adjustable Output | 3.58" L x 0.24" W x 2.21" H (91.0mm x 6.0mm x 56.0mm) | CE, UL | 508 |
|
S8VK-G06012AC/DC DIN RAIL SUPPLY 12V 60W |
59 |
|
Технический лист |
S8VK-G (60W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 5A | 60W | 3 kV | ITE (Commercial) | 85% | -40°C ~ 75°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 3.54" L x 1.26" W x 3.54" H (90.0mm x 32.0mm x 90.0mm) | CE, cULus, cURus, VDE | - |
|
859-801DC/DC DIN RAIL SUPPLY 5V |
53 |
|
Технический лист |
- | Bulk | Active | DC | 1 | - | 10V | 30V | 5V | - | - | - | - | - | 500mA | - | - | Industrial | 70% | 0°C ~ 40°C | Adjustable Output | 3.58" L x 0.24" W x 2.21" H (91.0mm x 6.0mm x 56.0mm) | CE, UL | 508 |
|

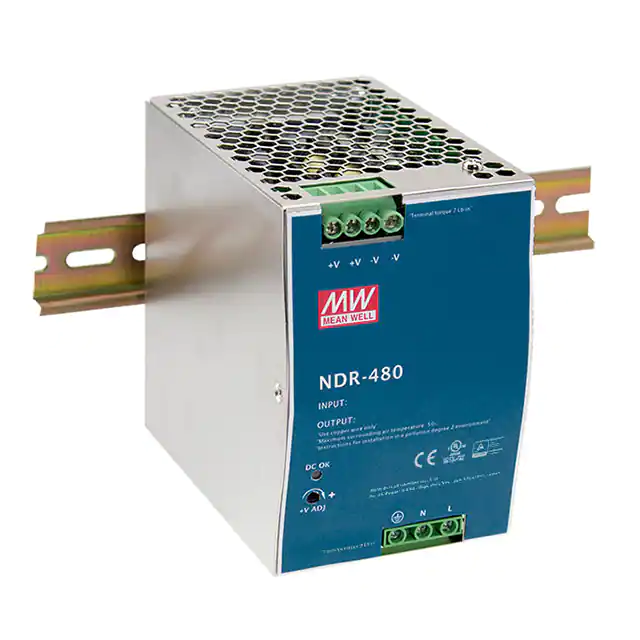

NDR-480-48AC/DC DIN RAIL SUPPLY 48V 480W |
76 |
|
Технический лист |
NDR-480 (480W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 48V | - | - | - | - | - | 10A | 480W | 3 kV | Industrial, ITE (Commercial) | 92.5% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 5.06" L x 3.37" W x 4.93" H (128.5mm x 85.5mm x 125.2mm) | CB, CE, cULus, TUV | - |
|

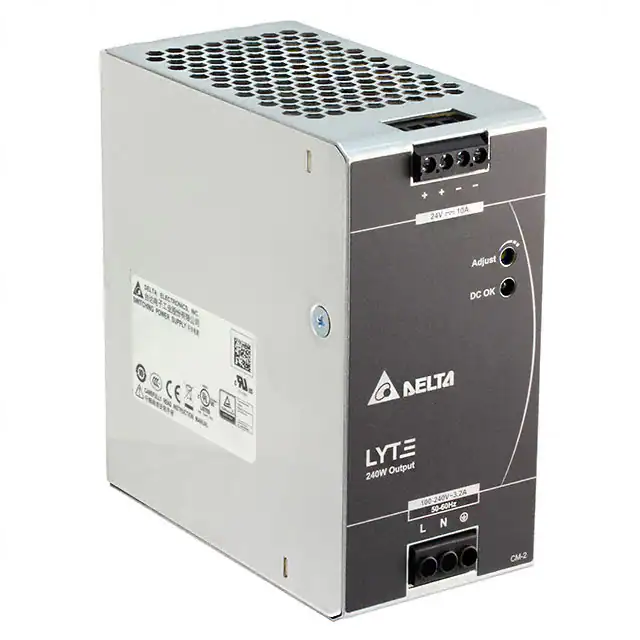

DRL-24V240W1AAAC/DC DIN RAIL SUPPLY 24V 240W |
261 |
|
Технический лист |
LYTE (240W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 3 kV | ITE (Commercial) | 90% | -20°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 4.63" L x 2.36" W x 4.87" H (117.6mm x 60.0mm x 123.6mm) | CB, CCC, CE, cURus, TUV | - |
|
DRP-24V120W1CANAC/DC DIN RAIL SUPPLY 24V 120W |
94 |
|
Технический лист |
CliQ III (120W) | Bulk | Active | AC | 1 | 88 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 4 kV | Industrial, ITE (Commercial) | 91.49% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, PFC, Universal Input | 4.61" L x 1.57" W x 4.88" H (117.0mm x 40.0mm x 124.0mm) | CB, CE, cULus, cURus, EAC, SIQ | - |
|
DDR-240D-48DC/DC DIN RAIL SUPPLY 48V 240W |
198 |
|
Технический лист |
DDR-240 (240W) | Bulk | Active | DC | 1 | - | 67.2V | 154V | 48V | - | - | - | - | - | 5A | 240W | 4 kV | ITE (Commercial), Railway | 92.5% | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off | 4.47" L x 1.57" W x 4.93" H (113.5mm x 40.0mm x 125.2mm) | CE, EAC | - |
|
1096432AC/DC DIN RAIL SUPPLY 24V 240W |
144 |
|
Технический лист |
- | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 4 kV | Hazardous Locations, Laboratory | 93.7% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 5.08" L x 1.77" W x 5.12" H (129.0mm x 45.0mm x 130.0mm) | CB, cUL, EAC, UL | 61010-1 |
|
ECE80US24-SDAC/DC DIN RAIL SUPPLY 24V 80W |
143 |
|
Технический лист |
ECE80 (80W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 3.33A | 80W | 3 kV | ITE (Commercial) | 87% | -40°C ~ 70°C (With Derating) | Universal Input | 4.45" L x 1.87" W x 1.12" H (113.0mm x 47.5mm x 28.5mm) | CB, TUV, UL | 62368-1 |
|
SDR-240-48AC/DC DIN RAIL SUPPLY 48V 240W |
54 |
|
Технический лист |
SDR-240 (240W) | Box | Active | AC or DC | 1 | 88 ~ 264 VAC | 124V | 370V | 48V | - | - | - | - | - | 5A | 240W | 3 kV | Industrial, ITE (Commercial) | 94% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.47" L x 2.48" W x 4.93" H (113.5mm x 63.0mm x 125.2mm) | CB, CE, cULus, TUV | - |
|
|
SDR-240-24AC/DC DIN RAIL SUPPLY 24V 240W |
165 |
|
Технический лист |
SDR-240 (240W) | Box | Active | AC or DC | 1 | 88 ~ 264 VAC | 124V | 370V | 24V | - | - | - | - | - | 10A | 240W | 3 kV | Industrial, ITE (Commercial) | 94% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.47" L x 2.48" W x 4.93" H (113.5mm x 63.0mm x 125.2mm) | CB, CE, cURus, TUV | - |
|

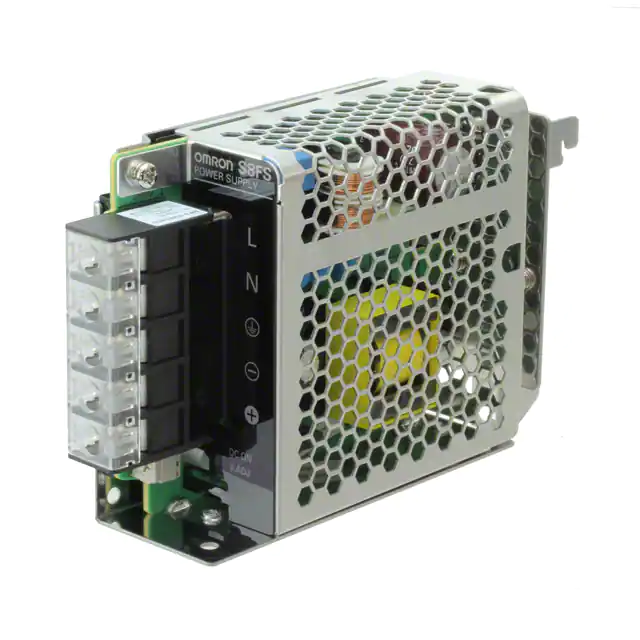

S8FS-G15024CDAC/DC DIN RAIL SUPPLY 24V 150W |
36 |
|
Технический лист |
S8FS-G (150W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 6.5A | 150W | 3 kV | ITE (Commercial) | 90% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 6.26" L x 1.54" W x 3.82" H (159.0mm x 39.2mm x 97.0mm) | CE, cURus, TUV, UL | - |
|

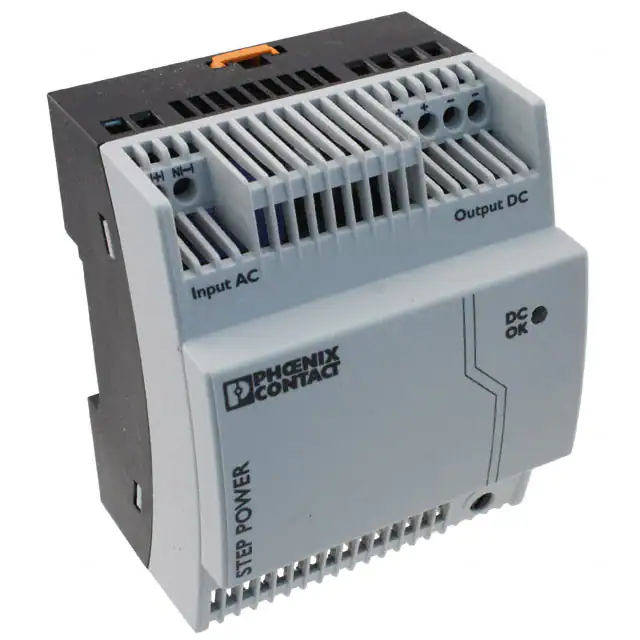

2868651AC/DC DIN RAIL SUPPLY 24V 60W |
32 |
|
Технический лист |
Step | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 95V | 250V | 24V | - | - | - | - | - | 2.5A | 60W | 4 kV | ITE (Commercial) | 86% | -25°C ~ 70°C (With Derating) | IP20, Load Sharing, Universal Input | 2.40" L x 2.83" W x 3.54" H (61.0mm x 72.0mm x 90.0mm) | - | - |
|

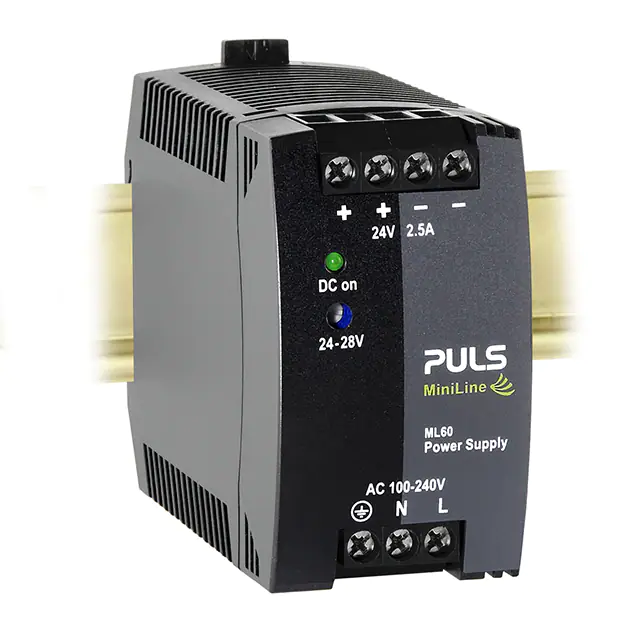

ML60.241AC/DC DIN RAIL SUPPLY 24V 60W |
45 |
|
Технический лист |
MiniLine (60W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | 500 V | ITE (Commercial) | 89.7% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 3.58" L x 1.77" W x 2.95" H (91.0mm x 45.0mm x 75.0mm) | ABS, CSA, DNV GL, EAC, IEC, NEC, UL | Class I Div 2; Class 2; 508; 60950-1; 61010-2-201 |
|
2903148AC/DC DIN RAIL SUPPLY 24V 120W |
346 |
|
Технический лист |
TRIO | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 4 kV | ITE (Commercial) | 90% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 4.53" L x 1.38" W x 5.12" H (115.0mm x 35.0mm x 130.0mm) | cULus, cURus, EAC | - |
|

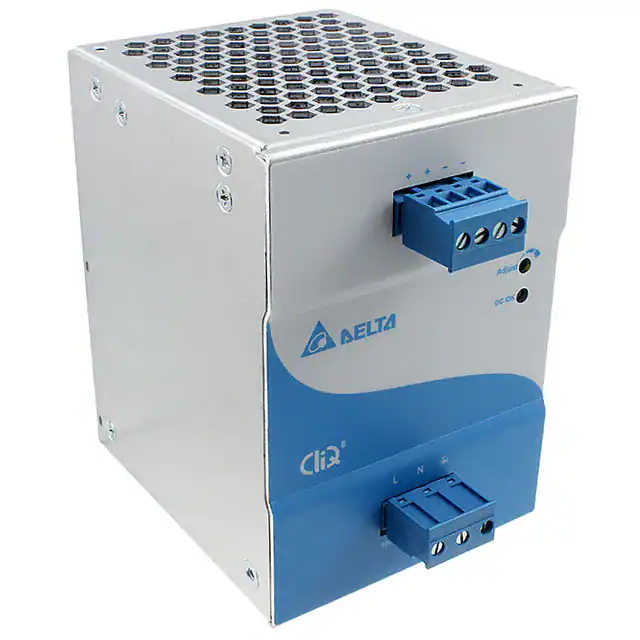

DRP024V240W1BNAC/DC DIN RAIL SUPPLY 24V 240W |
945 |
|
Технический лист |
CliQ II (240W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 4 kV | ITE (Commercial) | 92% | -25°C ~ 80°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 4.89" L x 3.35" W x 4.76" H (124.1mm x 85.0mm x 121.0mm) | CB Scheme, CE, CSA, EAC, EN, SIQ, UL | 107.1-01; 508; 1310; 50581; 55011; 55024; 55032; 60950-1; 61000-3-2; 61000-3-3; 61000-6-2; 61204-3 |
|

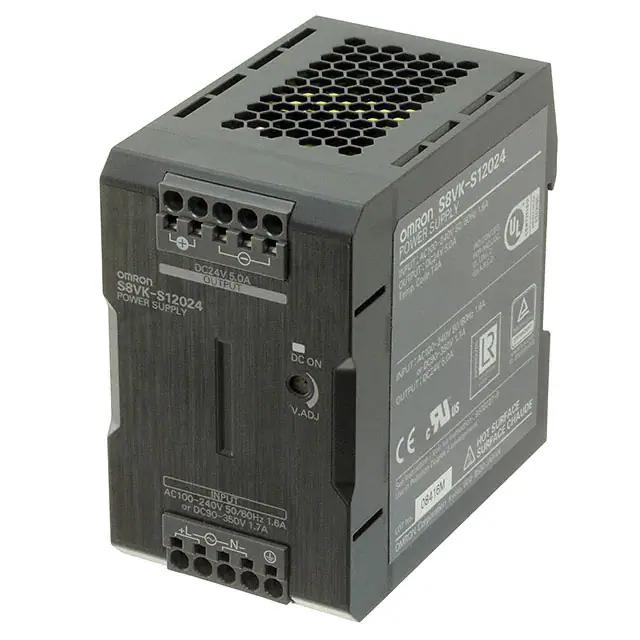

S8VK-S12024AC/DC DIN RAIL SUPPLY 24V 120W |
112 |
|
Технический лист |
S8VK-S (120W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 350V | 24V | - | - | - | - | - | 5A | 120W | 3 kV | ITE (Commercial) | 92% | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 3.54" L x 2.17" W x 3.54" H (90.0mm x 55.0mm x 90.0mm) | CE, cURus, TUV | - |
|

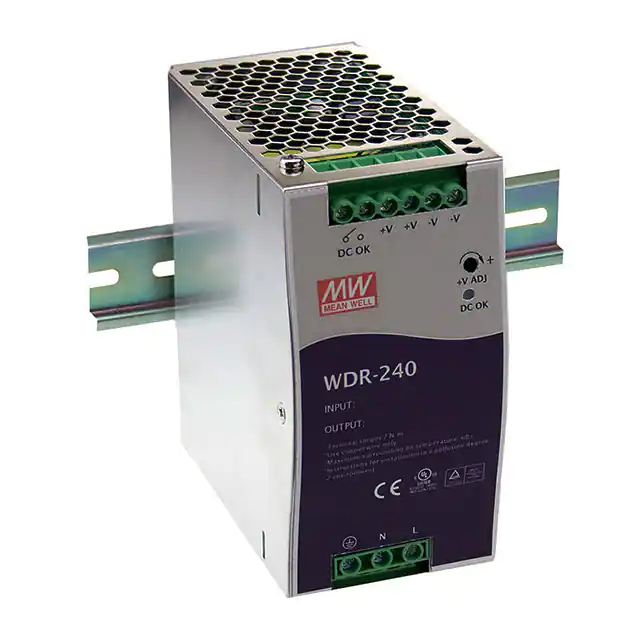

WDR-240-24AC/DC DIN RAIL SUPPLY 24V 240W |
0 |
|
Технический лист |
WDR-240 (240W) | Box | Active | AC or DC | 1 | 180 ~ 550 VAC | 254V | 780V | 24V | - | - | - | - | - | 10A | 240W | 3 kV | Industrial, ITE (Commercial) | 91% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC | 4.47" L x 2.48" W x 4.93" H (113.5mm x 63.0mm x 125.2mm) | CB, CE, UL | - |
|
TIB 120-124AC/DC DIN RAIL SUPPLY 24V 120W |
153 |
|
Технический лист |
TIB 120 (120W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 4.25 kV | Industrial, ITE (Commercial) | 93.5% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.50" L x 1.42" W x 4.89" H (114.2mm x 36.0mm x 124.2mm) | CB, CE, cULus, cURus, SIQ | - |
