Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2903154AC/DC DIN RAIL SUPPLY 24V 240W |
118 |
|
Технический лист |
TRIO | Bulk | Active | AC | 1 | 320 ~ 575 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 10A | 240W | 4 kV | ITE (Commercial) | 92% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 6.30" L x 1.65" W x 5.12" H (160.0mm x 42.0mm x 130.0mm) | cULus, cURus, EAC | - |
|

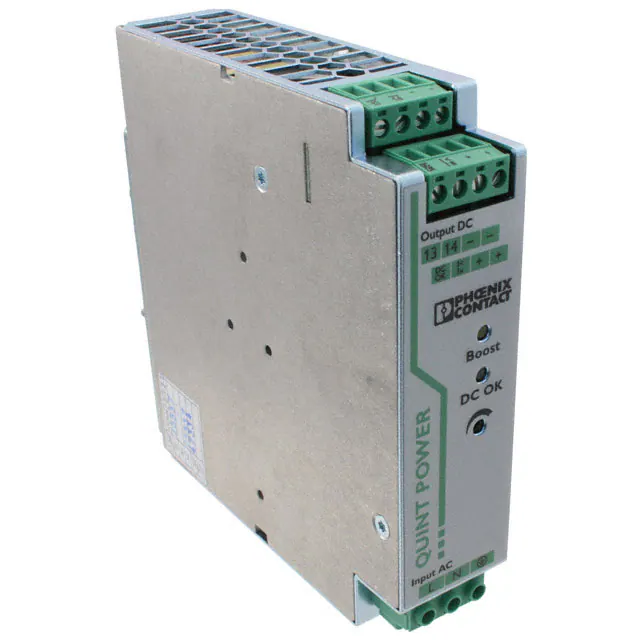

2866747AC/DC DIN RAIL SUPPLY 24V 84W |
34 |
|
Технический лист |
Quint | Box | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 3.5A | 84W | 4 kV | ITE (Commercial) | 88% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 4.92" L x 1.26" W x 5.12" H (125.0mm x 32.0mm x 130.0mm) | CB, cULus, cURus | - |
|
CP5.481AC/DC DIN RAIL SUPPLY 48V 120W |
30 |
|
Технический лист |
DIMENSION CP (120W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 110V | 150V | 48V | - | - | - | - | - | 2.5A | 120W | 500 V | Industrial, ITE (Commercial), Laboratory | 92.6% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 4.02" L x 1.26" W x 4.88" H (102.0mm x 32.0mm x 124.0mm) | CB, CE, cULus, EAC | - |
|
SDN2.5-24-100PAC/DC DIN RAIL SUPPLY 24V 60W |
35 |
|
Технический лист |
SDN-P | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 375V | 24V | - | - | - | - | - | 2.5A | 60W | - | Hazardous Locations, Industrial, ITE (Commercial) | 87.5% | -10°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.55" L x 1.97" W x 4.88" H (115.6mm x 50.0mm x 124.0mm) | CE, cULus, cURus | - |
|

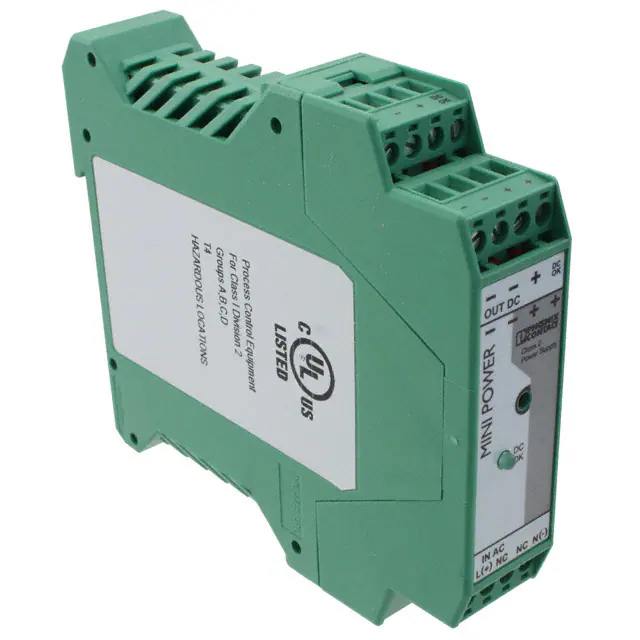

2320018DC/DC DIN RAIL SUPPLY 5-15V |
61 |
|
Технический лист |
MINI (24W) | Bulk | Active | DC | 1 | - | 10V | 32V | 5 ~ 15V | - | - | - | - | - | 2A | - | - | Industrial, ITE (Commercial) | 88% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20 | 4.21" L x 0.89" W x 3.90" H (107.0mm x 22.5mm x 99.0mm) | cUL, EN, UL, VDE | 508; 60950-1 |
|

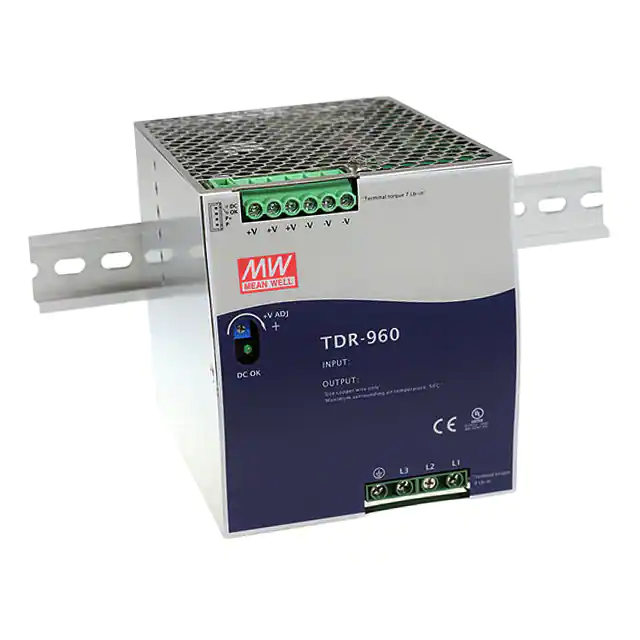

TDR-960-24AC/DC DIN RAIL SUPPLY 24V 960W |
607 |
|
Технический лист |
TDR-960 (960W) | Box | Active | AC or DC | 1 | 340 ~ 550 VAC (3 Phase) | 480V | 780V | 24V | - | - | - | - | - | 40A | 960W | 3 kV | Industrial, ITE (Commercial) | 94% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC | 5.91" L x 4.33" W x 4.93" H (150.0mm x 110.0mm x 125.2mm) | CB, CE, cULus | - |
|
|
TDR-960-48AC/DC DIN RAIL SUPPLY 48V 960W |
0 |
|
Технический лист |
TDR-960 (960W) | Box | Active | AC or DC | 1 | 340 ~ 550 VAC (3 Phase) | 480V | 780V | 48V | - | - | - | - | - | 20A | 960W | 3 kV | Industrial, ITE (Commercial) | 94.5% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC | 5.91" L x 4.33" W x 4.93" H (150.0mm x 110.0mm x 125.2mm) | CB, CE, cULus | - |
|
CP5.121AC/DC DIN RAIL SUPPLY 12V 120W |
154 |
|
Технический лист |
DIMENSION CP (120W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 110V | 150V | 12V | - | - | - | - | - | 10A | 120W | 500 V | Industrial, ITE (Commercial), Laboratory | 93.2% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 4.02" L x 1.26" W x 4.88" H (102.0mm x 32.0mm x 124.0mm) | ATEX, EAC, IEC, IECEx, UL | Class I Div 2; 61010-2-201; 62368-1 |
|

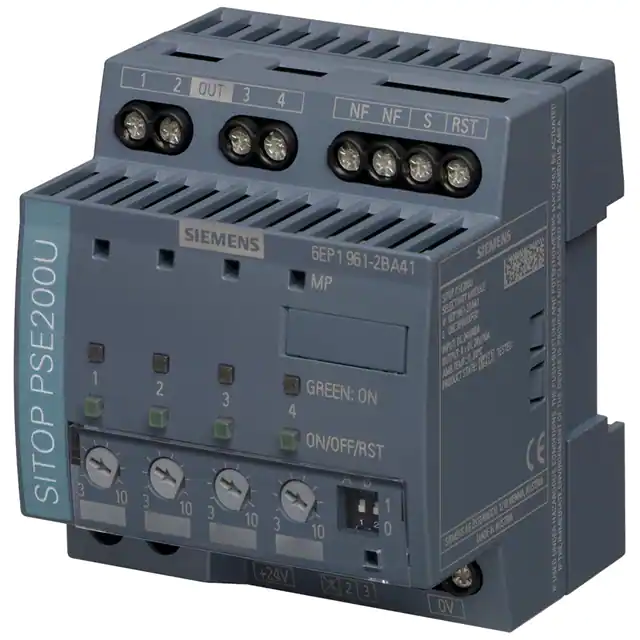

6EP19612BA41DC/DC DIN RAIL SUPPLY 24V |
171 |
|
Технический лист |
6EP1 | Bulk | Active | DC | 1 | - | 22V | 30V | 24V | - | - | - | - | - | 10A | - | - | Hazardous Locations, Industrial, ITE (Commercial) | 99% | -25°C ~ 60°C | Adjustable Output, IP20 | 4.76" L x 2.76" W x 4.92" H (121.0mm x 70.0mm x 125.0mm) | cCSAus, CE, CSA, cUL, cULus, UL | 60950-1; UL 508 |
|
|
2866284DC/DC DIN RAIL SUPPLY 24V 24W |
26 |
|
Технический лист |
MINI (24W) | Box | Active | DC | 1 | - | 12V | 24V | 24V | - | - | - | - | - | 1A | 24W | - | ITE (Commercial) | 83% | -25°C ~ 70°C (With Derating) | - | 4.21" L x 0.89" W x 3.90" H (107.0mm x 22.5mm x 99.0mm) | cUL, EN, UL, VDE | - |
|
SDR-960-48AC/DC DIN RAIL SUPPLY 48V 960W |
126 |
|
Технический лист |
SDR-960 (960W) | Box | Active | AC or DC | 1 | 180 ~ 264 VAC | 254V | 370V | 48V | - | - | - | - | - | 20A | 960W | 3 kV | Industrial, ITE (Commercial) | 94% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC | 5.91" L x 4.33" W x 4.93" H (150.0mm x 110.0mm x 125.2mm) | CB, CE, cURus, TUV | - |
|
|
SDR-960-24AC/DC DIN RAIL SUPPLY 24V 960W |
65 |
|
Технический лист |
SDR-960 (960W) | Box | Active | AC or DC | 1 | 180 ~ 264 VAC | 254V | 370V | 24V | - | - | - | - | - | 40A | 960W | 3 kV | Industrial, ITE (Commercial) | 94% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC | 5.91" L x 4.33" W x 4.93" H (150.0mm x 110.0mm x 125.2mm) | CB, CE, cURus, TUV | - |
|
CP5.241-S1AC/DC DIN RAIL SUPPLY 24V 120W |
58 |
|
Технический лист |
DIMENSION CP (120W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 110V | 150V | 24V | - | - | - | - | - | 5A | 120W | 500 V | Industrial, ITE (Commercial), Laboratory | 93.6% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 4.02" L x 1.26" W x 4.88" H (102.0mm x 32.0mm x 124.0mm) | ATEX, IEC, IECEx, UL | Class I Div 2; 61010-2-201; 62368-1 |
|

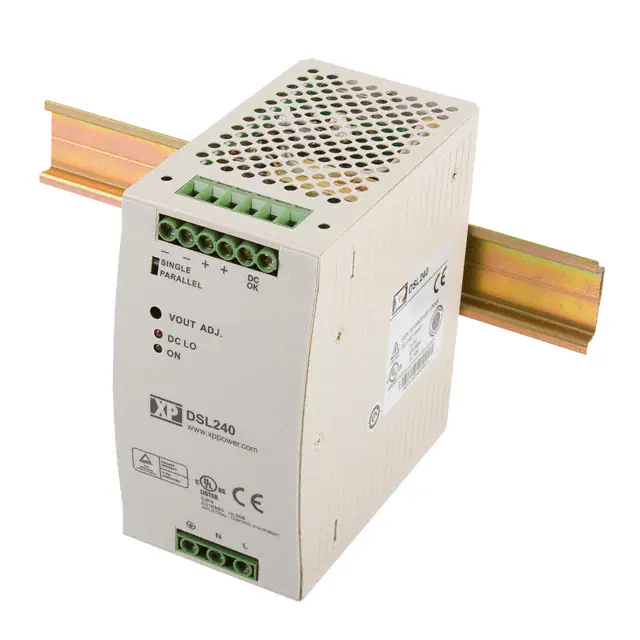

DSL240PS24-IAC/DC DIN RAIL SUPPLY 24V 240W |
155 |
|
Технический лист |
DSL240 (240W) | Box | Active | AC | 1 | 88 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 3 kV | ITE (Commercial) | 93% | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 4.59" L x 2.52" W x 5.65" H (116.6mm x 64.0mm x 143.5mm) | CE, cULus, TUV | 62368-1 |
|
ADN10-24-1PM-CAC/DC DIN RAIL SUPPLY 24V 240W |
94 |
|
Технический лист |
ADN-C (120-960W) | Tray | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 375V | 24V | - | - | - | - | - | 10A | 240W | - | Hazardous Locations, Industrial, ITE (Commercial) | 90% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 4.37" L x 2.36" W x 4.85" H (111.0mm x 60.0mm x 123.0mm) | CE, cULus, UL | Class I Div 2; 508; 60950-1 |
|
TSP 180-124 WRAC/DC DIN RAIL SUPPLY 24V 180W |
26 |
|
Технический лист |
TSP-WR (180-192W) | Box | Active | AC | 1 | 85 ~ 132 VAC, 187 ~ 550 VAC | - | - | 24V | - | - | - | - | - | 7.5A | 180W | - | Hazardous Locations, Industrial, ITE (Commercial) | 88% | -25°C ~ 70°C (With Derating) | Adjustable Output, Hot Swappable, IP20, Remote On/Off | 4.33" L x 2.13" W x 4.33" H (110.0mm x 54.1mm x 110.0mm) | CB, CE, cCSAus, GS | - |
|

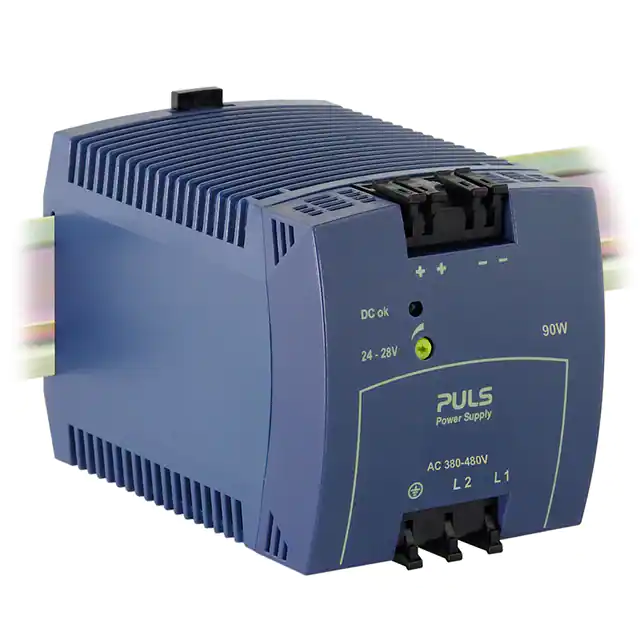

ML90.200AC/DC DIN RAIL SUPPLY 24V 90W |
34 |
|
Технический лист |
MiniLine (90W) | Box | Active | AC | 1 | 380 ~ 480 VAC (2 Phase) | - | - | 24V | - | - | - | - | - | 3.75A | 90W | - | ITE (Commercial) | 89.9% | -10°C ~ 70°C (With Derating) | Adjustable Output, IP20 | 4.06" L x 2.87" W x 2.95" H (103.0mm x 73.0mm x 75.0mm) | ABS, DNV GL, EAC, IEC, NEC, UL | Class 2; 508; 60950-1; 61010-2-201 |
|
6EP13333BA10AC/DC DIN RAIL SUPPLY 24V 120W |
54 |
|
Технический лист |
6EP1 | Bulk | Active | AC | 1 | 85 ~ 264 VAC, 176 ~ 550 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | - | Hazardous Locations, Industrial, ITE (Commercial) | 88% | -25°C ~ 70°C | Adjustable Output, IP20 | 4.76" L x 2.76" W x 4.92" H (121.0mm x 70.0mm x 125.0mm) | CB, cCSAus, CE, CSA, cUL, cULus, UL | 60950-1; UL 508 |
|
2904625AC/DC DIN RAIL SUPPLY 24V 240W |
28 |
|
Технический лист |
Quint | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 90.2V | 350V | 24V | - | - | - | - | - | 10A | 240W | 4 kV | Hazardous Locations, Industrial, ITE (Commercial), Laboratory | 93.4% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, PFC, Universal Input | 4.92" L x 2.76" W x 5.12" H (125.0mm x 70.0mm x 130.0mm) | CB, CSA, CSAus, cUL, cULus, cURus, EAC, SIQ, UL | 60950-1; 61010-1; UL 508 |
|

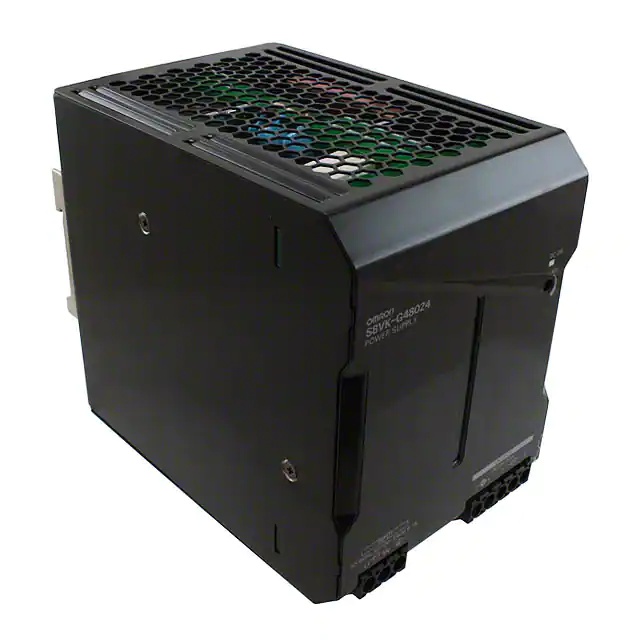

S8VK-G48024AC/DC DIN RAIL SUPPLY 24V 480W |
473 |
|
Технический лист |
S8VK-G (480W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 3 kV | ITE (Commercial) | 93% | -40°C ~ 75°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 5.91" L x 3.74" W x 4.92" H (150.0mm x 95.0mm x 125.0mm) | CE, cULus, cURus, VDE | - |
