Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2902997AC/DC DIN RAIL SUPPLY 12V 100W |
31 |
|
Технический лист |
UNO | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 8.3A | 100W | 4 kV | ITE (Commercial) | 90% | -25°C ~ 70°C (With Derating) | IP20, Universal Input | 3.31" L x 2.17" W x 3.54" H (84.0mm x 55.0mm x 90.0mm) | CB, cUL, cULus, cUR, cURus, UL, UR | - |
|

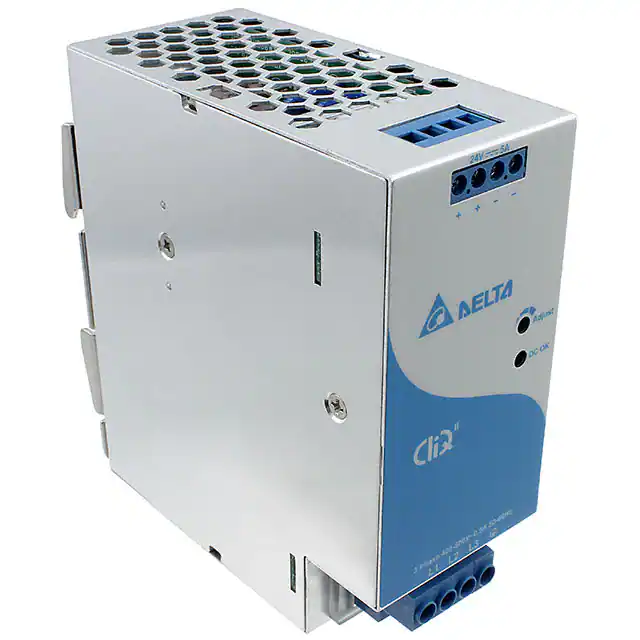

DRP024V060W3BNAC/DC DIN RAIL SUPPLY 24V 60W |
282 |
|
Технический лист |
CliQ II (60W) | Bulk | Active | AC | 1 | 320 ~ 600 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 2.5A | 60W | 4 kV | ITE (Commercial) | 86% | -25°C ~ 80°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 4.62" L x 1.97" W x 4.76" H (117.3mm x 50.0mm x 121.0mm) | CB Scheme, CE, CSA, EAC, EN, SIQ, UL | 107.1-01; 508; 50581; 55011; 55024; 55032; 60950-1; 61000-3-2; 61000-3-3; 61000-6-2; 61204-3; 62368-1 |
|
1159037PRIMARY-SWITCHED POWER SUPPLY UN |
50 |
|
Технический лист |
- | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 264V | 24V | - | - | - | - | - | 5A | 120W | 3 kV | Laboratory | 94% | -25°C ~ 70°C (With Derating) | PFC, Universal Input | 4.72" L x 1.38" W x 4.72" H (120.0mm x 35.0mm x 120.0mm) | cULus | 61010-1 |
|

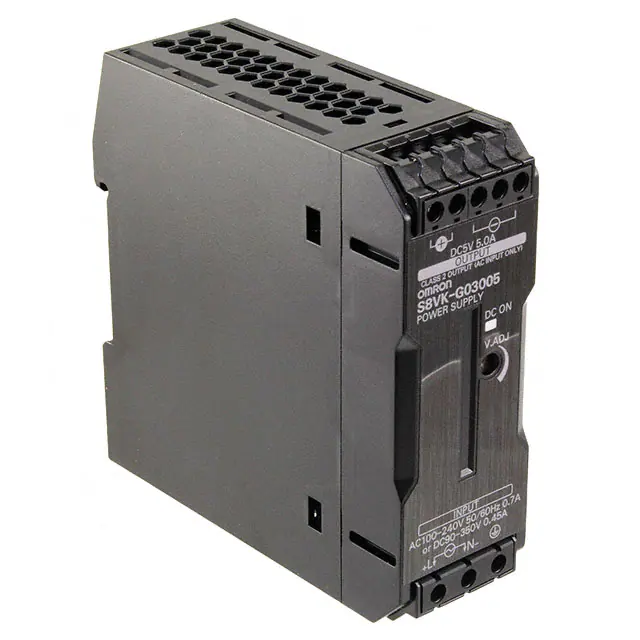

S8VK-G03005AC/DC DIN RAIL SUPPLY 5V 30W |
69 |
|
Технический лист |
S8VK-G (30W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 5A | 30W | 3 kV | ITE (Commercial) | 79% | -40°C ~ 75°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 3.54" L x 1.26" W x 3.54" H (90.0mm x 32.0mm x 90.0mm) | CE, cULus, cURus, VDE | - |
|
2904598AC/DC DIN RAIL SUPPLY 24V 60W |
72 |
|
Технический лист |
Quint | Bulk | Active | AC or DC | 1 | 100 ~ 240 VAC | 110V | 250V | 24V | - | - | - | - | - | 2.5A | 60W | 4 kV | ITE (Commercial), Laboratory | 92.6% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, PFC, Universal Input | 3.54" L x 1.26" W x 3.90" H (90.0mm x 32.0mm x 99.0mm) | CB, CE, UL | - |
|
S8VK-G12024AC/DC DIN RAIL SUPPLY 24V 120W |
2,949 |
|
Технический лист |
S8VK-G (120W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 3 kV | ITE (Commercial) | 89% | -40°C ~ 75°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 4.81" L x 1.57" W x 4.92" H (122.2mm x 40.0mm x 125.0mm) | CE, cULus, cURus, VDE | - |
|
2904371AC/DC DIN RAIL SUPPLY 24V 90W |
54 |
|
Технический лист |
UNO | Bulk | Active | AC | 1 | 264 ~ 575 VAC (2 Phase) | - | - | 24V | - | - | - | - | - | 3.75A | 90W | 4 kV | ITE (Commercial) | 90% | -25°C ~ 70°C (With Derating) | IP20, Universal Input | 3.31" L x 2.17" W x 3.54" H (84.0mm x 55.0mm x 90.0mm) | CB, cUL, cULus, cUR, cURus, UL, UR | - |
|
2904595AC/DC DIN RAIL SUPPLY 5V 25W |
64 |
|
Технический лист |
Quint | Bulk | Active | AC or DC | 1 | 100 ~ 240 VAC | 110V | 250V | 5V | - | - | - | - | - | 5A | 25W | - | ITE (Commercial) | 88.4% | -25°C ~ 70°C (With Derating) | IP20 | 3.54" L x 0.89" W x 4.17" H (90.0mm x 22.5mm x 106.0mm) | CB, cUL, cULus, UL | - |
|
S8VK-C12024AC/DC DIN RAIL SUPPLY 24V 120W |
335 |
|
Технический лист |
S8VK-C (120W) | Box | Active | AC | 1 | 85 ~ 264 VAC | 90V | 350V | 24V | - | - | - | - | - | 5A | 120W | 3 kV | ITE (Commercial) | 88% | -25°C ~ 60°C | Adjustable Output, DC Input Capable, IP20, Universal Input | 4.81" L x 1.57" W x 4.92" H (122.2mm x 40.0mm x 125.0mm) | CE, cURus, TUV | - |
|
DPP120-24-1AC/DC DIN RAIL SUPPLY 24V 120W |
942 |
|
Технический лист |
DPP (120W) | Bulk | Not For New Designs | AC | 1 | 85 ~ 132 VAC, 176 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 3 kV | ITE (Commercial) | 86% | -40°C ~ 71°C (With Derating) | Adjustable Output, Load Sharing | 4.59" L x 2.50" W x 4.92" H (116.6mm x 63.5mm x 125.0mm) | CE | - |
|
DPP120-12-1AC/DC DIN RAIL SUPPLY 12V 120W |
165 |
|
Технический лист |
DPP (120W) | Bulk | Not For New Designs | AC | 1 | 85 ~ 132 VAC, 176 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 10A | 120W | 3 kV | ITE (Commercial) | 84% | -40°C ~ 71°C (With Derating) | Adjustable Output, Load Sharing | 4.59" L x 2.50" W x 4.92" H (116.6mm x 63.5mm x 125.0mm) | CE | - |
|

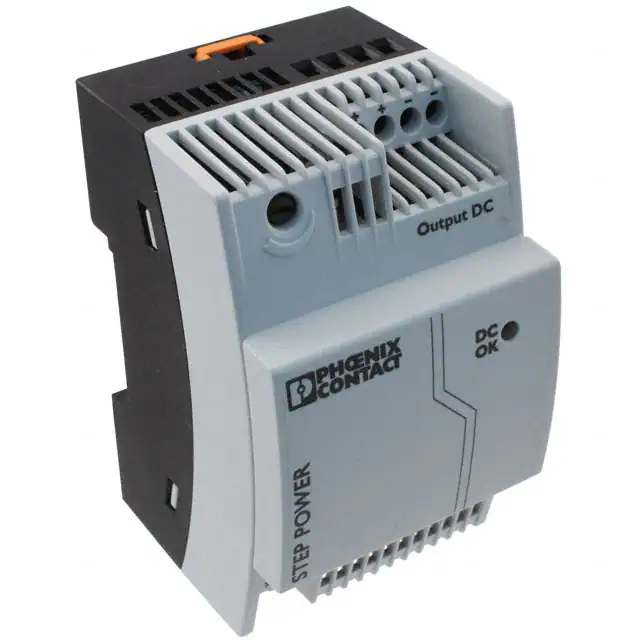

2868648AC/DC DIN RAIL SUPPLY 24V 42W |
107 |
|
Технический лист |
Step | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 95V | 250V | 24V | - | - | - | - | - | 1.75A | 42W | 4 kV | ITE (Commercial) | 89% | -25°C ~ 70°C (With Derating) | IP20, Load Sharing, Universal Input | 2.40" L x 2.13" W x 3.54" H (61.0mm x 54.0mm x 90.0mm) | - | - |
|

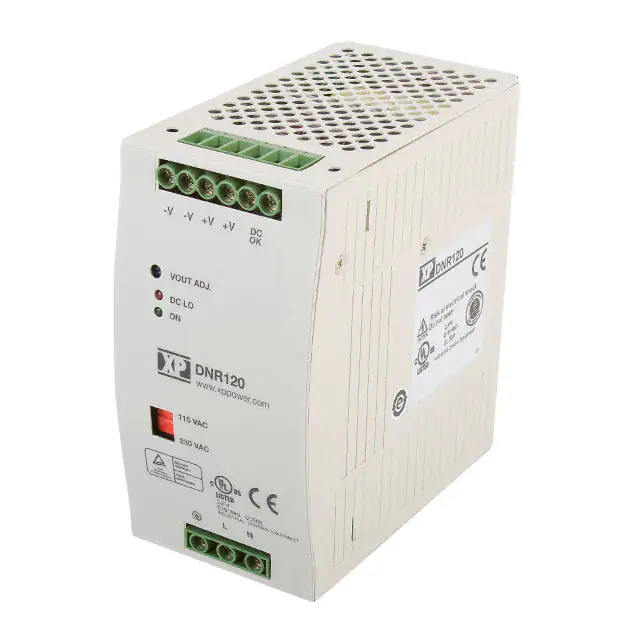

DNR120AS24-IAC/DC DIN RAIL SUPPLY 24V 120W |
242 |
|
Технический лист |
DNR (120W) | Box | Active | AC | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 86% | -35°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 4.57" L x 2.50" W x 4.92" H (116.0mm x 63.5mm x 125.0mm) | CE | 62368-1 |
|
|
DNR120AS12-IAC/DC DIN RAIL SUPPLY 12V 120W |
42 |
|
Технический лист |
DNR (120W) | Box | Active | AC | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 10A | 120W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 72% | -35°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 4.57" L x 2.50" W x 4.92" H (116.0mm x 63.5mm x 125.0mm) | CE | 62368-1 |
|
TCL 024-105 DCDC/DC DIN RAIL SUPPLY 5V 25W |
85 |
|
Технический лист |
TCL-DC (24 ~ 60W) | Box | Active | DC | 1 | - | 18V | 75V | 5V | - | - | - | - | - | 5A | 25W | 1.5 kV | Industrial, ITE (Commercial) | 86% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20 | 3.94" L x 1.06" W x 2.95" H (100.1mm x 26.9mm x 74.9mm) | CB, cULus | - |
|
DDR-240C-24DC/DC DIN RAIL SUPPLY 24V 240W |
100 |
|
Технический лист |
DDR-240 (240W) | Bulk | Active | DC | 1 | - | 33.6V | 67.2V | 24V | - | - | - | - | - | 10A | 240W | 4 kV | ITE (Commercial), Railway | 91% | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off | 4.47" L x 1.57" W x 4.93" H (113.5mm x 40.0mm x 125.2mm) | CE, EAC | - |
|
DDR-240B-24DC/DC DIN RAIL SUPPLY 24V 240W |
38 |
|
Технический лист |
DDR-240 (240W) | Bulk | Active | DC | 1 | - | 16.8V | 33.6V | 24V | - | - | - | - | - | 10A | 240W | 4 kV | ITE (Commercial), Railway | 90% | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off | 4.47" L x 1.57" W x 4.93" H (113.5mm x 40.0mm x 125.2mm) | CE, EAC | - |
|

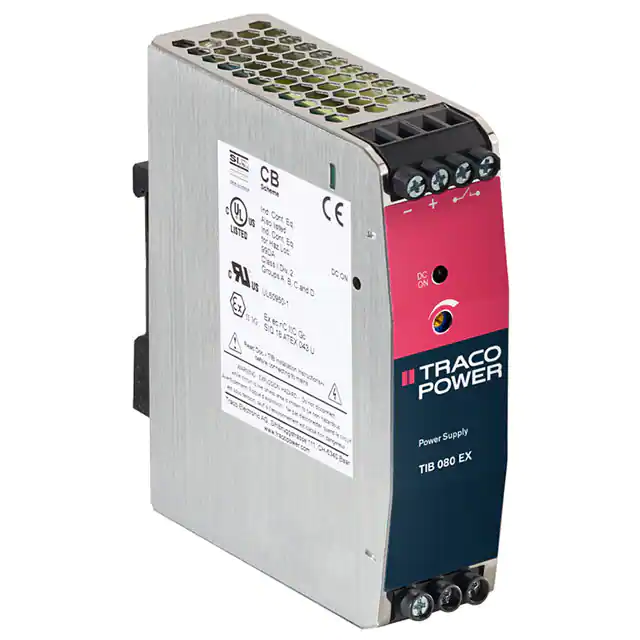

TIB 080-124EXAC/DC DIN RAIL SUPPLY 24V 82W |
119 |
|
Технический лист |
TIB 080EX (80W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 3.4A | 82W | 4.25 kV | Hazardous Locations, Industrial, ITE (Commercial) | 90% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 3.71" L x 1.26" W x 4.50" H (94.2mm x 32.0mm x 114.2mm) | CB, CE, cULus, cURus, SIQ | - |
|
S8VK-G06024AC/DC DIN RAIL SUPPLY 24V 60W |
423 |
|
Технический лист |
S8VK-G (60W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | 3 kV | ITE (Commercial) | 88% | -40°C ~ 75°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 4.33" L x 1.26" W x 3.54" H (110.0mm x 32.0mm x 90.0mm) | CE, cULus, cURus, VDE | - |
|

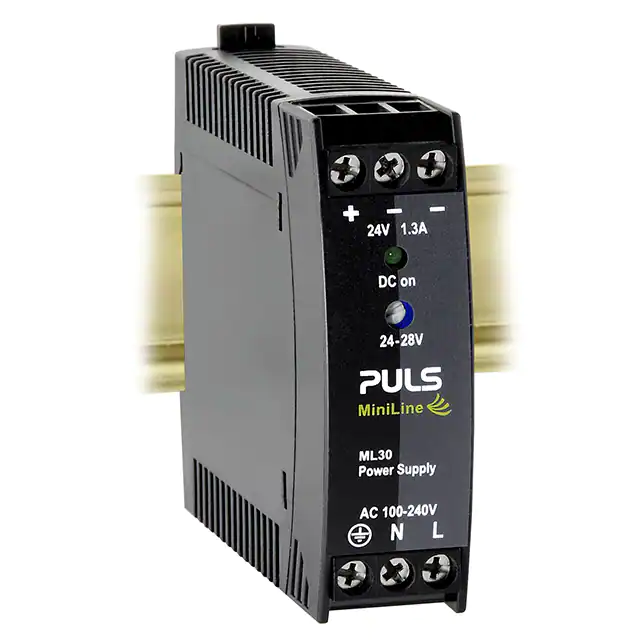

ML30.241AC/DC DIN RAIL SUPPLY 24V 30W |
60 |
|
Технический лист |
MiniLine-2 (30W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 1.3A | 30W | 500 V | ITE (Commercial) | 89.4% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 3.58" L x 1.77" W x 2.95" H (91.0mm x 45.0mm x 75.0mm) | ABS, CSA, DNV GL, EAC, IEC, NEC, UL | Class I Div 2; Class 2; 508; 60950-1; 61010-2-201 |
