Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DRC-100BAC/DC DIN RAIL SUP 2X27.6V 97W |
268 |
|
Технический лист |
DRC-100 (100W) | Box | Active | AC or DC | 2 | 90 ~ 264 VAC | 127V | 370V | 27.6V | 27.6V | - | - | - | - | 2.25A, 1.25A | 97W | 3 kV | ITE (Commercial) | 89% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.94" L x 2.17" W x 3.54" H (100.0mm x 55.0mm x 90.0mm) | CB, CE, cURus, TUV | - |
|

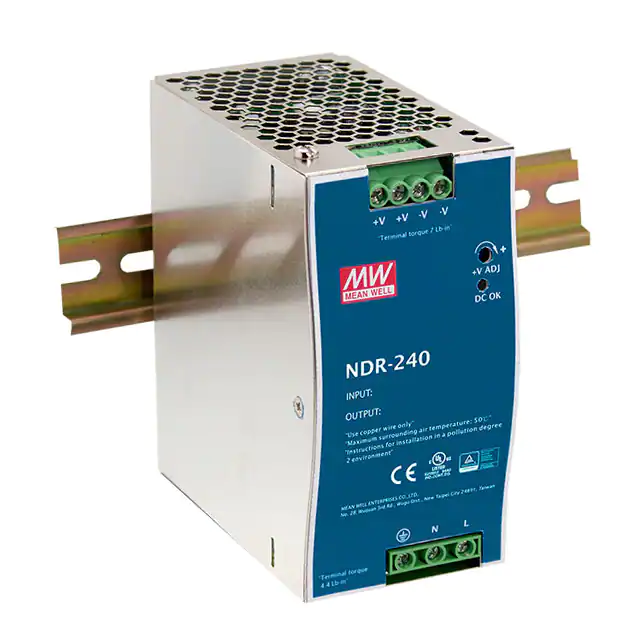

NDR-240-24AC/DC DIN RAIL SUPPLY 24V 240W |
56 |
|
Технический лист |
NDR-240 (240W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 24V | - | - | - | - | - | 10A | 240W | 3 kV | Industrial, ITE (Commercial) | 88.5% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.47" L x 2.48" W x 4.93" H (113.5mm x 63.0mm x 125.2mm) | CB, CE, cULus, TUV | - |
|

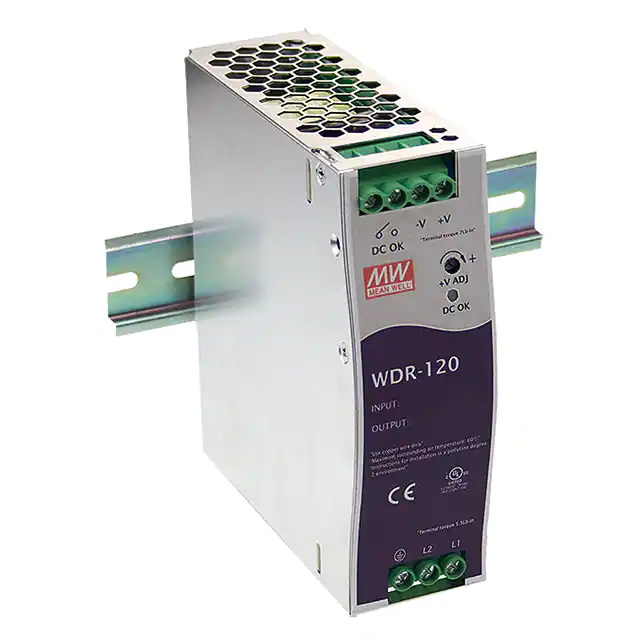

WDR-120-24AC/DC DIN RAIL SUPPLY 24V 120W |
0 |
|
Технический лист |
WDR-120 (120W) | Box | Active | AC or DC | 1 | 180 ~ 550 VAC (2 Phase) | 254V | 780V | 24V | - | - | - | - | - | 5A | 120W | 3 kV | Industrial, ITE (Commercial) | 91% | -25°C ~ 70°C (With Derating) | Adjustable Output | 4.47" L x 1.57" W x 4.93" H (113.5mm x 40.0mm x 125.2mm) | CB, CE, cULus | - |
|
DPP50-48AC/DC DIN RAIL SUPPLY 48V 50W |
524 |
|
Технический лист |
DPP (15-100W) | Bulk | Not For New Designs | AC | 1 | 85 ~ 132 VAC, 176 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 1.05A | 50W | 3 kV | ITE (Commercial) | 87% | -10°C ~ 71°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 3.58" L x 1.77" W x 2.95" H (90.9mm x 45.0mm x 74.9mm) | CE | - |
|
|
DPP50-24AC/DC DIN RAIL SUPPLY 24V 50W |
248 |
|
Технический лист |
DPP (15-100W) | Bulk | Not For New Designs | AC | 1 | 85 ~ 132 VAC, 176 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.1A | 50W | 3 kV | ITE (Commercial) | 86% | -10°C ~ 71°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 3.58" L x 1.77" W x 2.95" H (90.9mm x 45.0mm x 74.9mm) | CE | - |
|
|
DPP50-15AC/DC DIN RAIL SUPPLY 15V 50W |
118 |
|
Технический лист |
DPP (15-100W) | Bulk | Not For New Designs | AC | 1 | 85 ~ 132 VAC, 176 ~ 264 VAC | - | - | 15V | - | - | - | - | - | 3.4A | 50W | 3 kV | ITE (Commercial) | 85% | -10°C ~ 71°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 3.58" L x 1.77" W x 2.95" H (90.9mm x 45.0mm x 74.9mm) | CE | - |
|

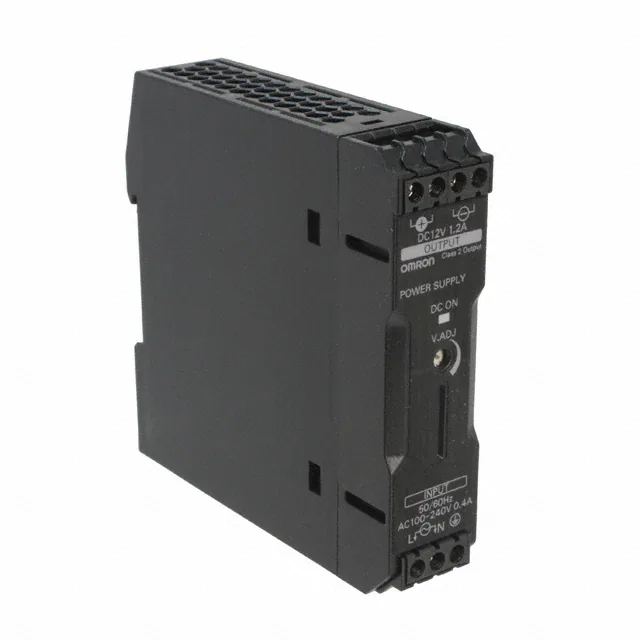

S8VK-G01512AC/DC DIN RAIL SUPPLY 12V 15W |
574 |
|
Технический лист |
S8VK-G (15W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 1.2A | 15W | 3 kV | ITE (Commercial) | 77% | -40°C ~ 75°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 3.54" L x 0.89" W x 3.54" H (90.0mm x 22.5mm x 90.0mm) | CE, cULus, cURus, VDE | - |
|

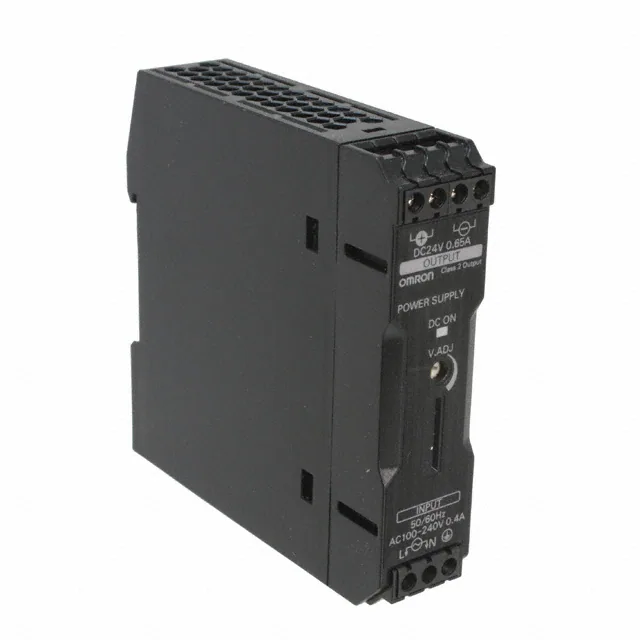

S8VK-G01524AC/DC DIN RAIL SUPPLY 24V 15W |
108 |
|
Технический лист |
S8VK-G (15W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 650mA | 15W | 3 kV | ITE (Commercial) | 80% | -40°C ~ 75°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 3.54" L x 0.89" W x 3.54" H (90.0mm x 22.5mm x 90.0mm) | CE, cULus, cURus, VDE | - |
|
DDR-120A-24DC/DC DIN RAIL SUPPLY 24V 101W |
0 |
|
Технический лист |
DDR-120 (120W) | Box | Active | DC | 1 | - | 9V | 18V | 24V | - | - | - | - | - | 4.2A | 101W | 4 kV | Industrial, ITE (Commercial), Railway | 88.5% | -40°C ~ 70°C (With Derating) | Adjustable Output | 4.02" L x 1.26" W x 4.93" H (102.0mm x 32.0mm x 125.2mm) | CE, EAC | - |
|
S8VK-G01505AC/DC DIN RAIL SUPPLY 5V 15W |
40 |
|
Технический лист |
S8VK-G (15W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 3A | 15W | 3 kV | ITE (Commercial) | 77% | -40°C ~ 75°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 3.54" L x 0.89" W x 3.54" H (90.0mm x 22.5mm x 90.0mm) | CE, cULus, cURus, VDE | - |
|
SDR-120-24AC/DC DIN RAIL SUPPLY 24V 120W |
349 |
|
Технический лист |
SDR-120 (120W) | Box | Active | AC or DC | 1 | 88 ~ 264 VAC | 124V | 370V | 24V | - | - | - | - | - | 5A | 120W | 3 kV | Industrial, ITE (Commercial) | 91% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.47" L x 1.57" W x 4.93" H (113.5mm x 40.0mm x 125.2mm) | CB, CE, cURus, TUV | - |
|
2909575AC/DC DIN RAIL SUPPLY 24V 31W |
33 |
|
Технический лист |
Quint | Bulk | Active | AC or DC | 1 | 100 ~ 240 VAC | 110V | 250V | 24V | - | - | - | - | - | 1.3A | 31W | 4 kV | ITE (Commercial), Laboratory | 90.7% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, PFC, Universal Input | 3.54" L x 0.89" W x 4.17" H (90.0mm x 22.5mm x 106.0mm) | CB, CE, UL | - |
|
PS5R-VC12AC/DC DIN RAIL SUPPLY 12V 30W |
26 |
|
Технический лист |
PS5R-V (30W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 100V | 370V | 12V | - | - | - | - | - | 2.5A | 30W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 85% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 3.74" L x 0.89" W x 3.54" H (95.0mm x 22.5mm x 90.0mm) | CE, cULus, TUV | 62368-1 |
|
DSP100-24AC/DC DIN RAIL SUPPLY 24V 100W |
539 |
|
Технический лист |
DSP (7.5-100W) | Bulk | Not For New Designs | AC or DC | 1 | 90 ~ 264 VAC | 120V | 370V | 24V | - | - | - | - | - | 4.20A | 100W | 3 kV | ITE (Commercial) | 85% | -25°C ~ 71°C (With Derating) | Adjustable Output, Universal Input | 2.19" L x 3.54" W x 3.58" H (55.6mm x 89.9mm x 90.9mm) | CE | - |
|
|
DSP100-12AC/DC DIN RAIL SUPPLY 12V 100W |
105 |
|
Технический лист |
DSP (7.5-100W) | Bulk | Not For New Designs | AC or DC | 1 | 90 ~ 264 VAC | 120V | 370V | 12V | - | - | - | - | - | 6A | 100W | 3 kV | ITE (Commercial) | 82% | -25°C ~ 71°C (With Derating) | Adjustable Output, Universal Input | 2.19" L x 3.54" W x 3.58" H (55.6mm x 89.9mm x 90.9mm) | CE | - |
|
|
SDR-120-12AC/DC DIN RAIL SUPPLY 12V 120W |
31 |
|
Технический лист |
SDR-120 (120W) | Box | Active | AC or DC | 1 | 88 ~ 264 VAC | 124V | 370V | 12V | - | - | - | - | - | 10A | 120W | 3 kV | Industrial, ITE (Commercial) | 89% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.47" L x 1.57" W x 4.93" H (113.5mm x 40.0mm x 125.2mm) | CB, CE, cURus, TUV | - |
|
2904597AC/DC DIN RAIL SUPPLY 24V 31W |
55 |
|
Технический лист |
Quint | Bulk | Active | AC or DC | 1 | 100 ~ 240 VAC | 110V | 250V | 24V | - | - | - | - | - | 1.3A | 31W | 4 kV | ITE (Commercial), Laboratory | 90.7% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, PFC, Universal Input | 3.54" L x 0.89" W x 3.90" H (90.0mm x 22.5mm x 99.0mm) | CB, CE, UL | - |
|
|
WDR-120-12AC/DC DIN RAIL SUPPLY 12V 120W |
220 |
|
Технический лист |
WDR-120 (120W) | Box | Active | AC or DC | 1 | 180 ~ 550 VAC (2 Phase) | 254V | 780V | 12V | - | - | - | - | - | 10A | 120W | 3 kV | Industrial, ITE (Commercial) | 89.5% | -25°C ~ 70°C (With Derating) | Adjustable Output | 4.47" L x 1.57" W x 4.93" H (113.5mm x 40.0mm x 125.2mm) | CB, CE, cULus | - |
|
|
DDR-120C-24DC/DC DIN RAIL SUPPLY 24V 120W |
490 |
|
Технический лист |
DDR-120 (120W) | Box | Active | DC | 1 | - | 33.6V | 67.2V | 24V | - | - | - | - | - | 5A | 120W | 4 kV | Industrial, ITE (Commercial), Railway | 91% | -40°C ~ 70°C (With Derating) | Adjustable Output | 4.02" L x 1.26" W x 4.93" H (102.0mm x 32.0mm x 125.2mm) | CE, EAC | - |
|
|
DDR-120A-12DC/DC DIN RAIL SUPPLY 12V 100W |
103 |
|
Технический лист |
DDR-120 (120W) | Box | Active | DC | 1 | - | 9V | 18V | 12V | - | - | - | - | - | 8.3A | 100W | 4 kV | Industrial, ITE (Commercial), Railway | 88.5% | -40°C ~ 70°C (With Derating) | Adjustable Output | 4.02" L x 1.26" W x 4.93" H (102.0mm x 32.0mm x 125.2mm) | CE, EAC | - |
