Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DDR-120B-48DC/DC DIN RAIL SUPPLY 48V 120W |
92 |
|
Технический лист |
DDR-120 (120W) | Box | Active | DC | 1 | - | 16.8V | 33.6V | 48V | - | - | - | - | - | 2.5A | 120W | 4 kV | Industrial, ITE (Commercial), Railway | 91% | -40°C ~ 70°C (With Derating) | Adjustable Output | 4.02" L x 1.26" W x 4.93" H (102.0mm x 32.0mm x 125.2mm) | CE, EAC | - |
|
|
DDR-120B-24DC/DC DIN RAIL SUPPLY 24V 120W |
81 |
|
Технический лист |
DDR-120 (120W) | Box | Active | DC | 1 | - | 16.8V | 33.6V | 24V | - | - | - | - | - | 5A | 120W | 4 kV | Industrial, ITE (Commercial), Railway | 89.5% | -40°C ~ 70°C (With Derating) | Adjustable Output | 4.02" L x 1.26" W x 4.93" H (102.0mm x 32.0mm x 125.2mm) | CE, EAC | - |
|
|
DDR-120B-12DC/DC DIN RAIL SUPPLY 12V 120W |
49 |
|
Технический лист |
DDR-120 (120W) | Box | Active | DC | 1 | - | 16.8V | 33.6V | 12V | - | - | - | - | - | 10A | 120W | 4 kV | Industrial, ITE (Commercial), Railway | 89% | -40°C ~ 70°C (With Derating) | Adjustable Output | 4.02" L x 1.26" W x 4.93" H (102.0mm x 32.0mm x 125.2mm) | CE, EAC | - |
|
|
DDR-120C-48DC/DC DIN RAIL SUPPLY 48V 120W |
42 |
|
Технический лист |
DDR-120 (120W) | Box | Active | DC | 1 | - | 33.6V | 67.2V | 48V | - | - | - | - | - | 2.5A | 120W | 4 kV | Industrial, ITE (Commercial), Railway | 92% | -40°C ~ 70°C (With Derating) | Adjustable Output | 4.02" L x 1.26" W x 4.93" H (102.0mm x 32.0mm x 125.2mm) | CE, EAC | - |
|
|
DDR-120C-12DC/DC DIN RAIL SUPPLY 12V 120W |
133 |
|
Технический лист |
DDR-120 (120W) | Box | Active | DC | 1 | - | 33.6V | 67.2V | 12V | - | - | - | - | - | 10A | 120W | 4 kV | Industrial, ITE (Commercial), Railway | 89.5% | -40°C ~ 70°C (With Derating) | Adjustable Output | 4.02" L x 1.26" W x 4.93" H (102.0mm x 32.0mm x 125.2mm) | CE, EAC | - |
|
SDR-120-48AC/DC DIN RAIL SUPPLY 48V 120W |
329 |
|
Технический лист |
SDR-120 (120W) | Box | Active | AC or DC | 1 | 88 ~ 264 VAC | 124V | 370V | 48V | - | - | - | - | - | 2.5A | 120W | 3 kV | Industrial, ITE (Commercial) | 90.5% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.47" L x 1.57" W x 4.93" H (113.5mm x 40.0mm x 125.2mm) | CB, CE, cURus, TUV | - |
|

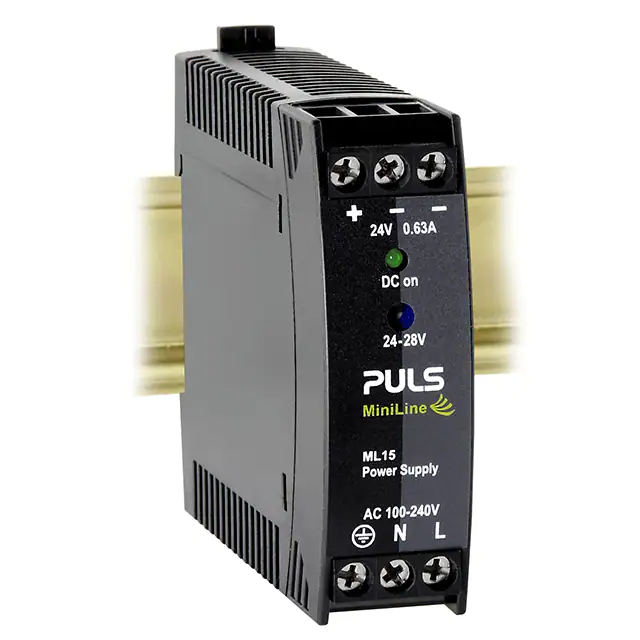

ML15.241AC/DC DIN RAIL SUPPLY 24V 15W |
47 |
|
Технический лист |
MiniLine (15W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 630mA | 15W | 500 V | ITE (Commercial) | 86.1% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | 3.58" L x 0.91" W x 2.95" H (91.0mm x 23.0mm x 75.0mm) | ABS, CSA, DNV GL, EAC, IEC, NEC, UL | Class I Div 2; Class 2; 508; 60950-1; 61010-2-201 |
|
6EP33316SB000AY0AC/DC DIN RAIL SUPPLY 24V 31W |
618 |
|
Технический лист |
6EP3 | Bulk | Active | AC or DC | 1 | 100 ~ 240 VAC, 85 ~ 264 VAC | 110V | 300V | 24V | - | - | - | - | - | 1.3A | 31W | - | Hazardous Locations, Industrial, ITE (Commercial) | 86% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 2.09" L x 1.42" W x 3.54" H (53.0mm x 36.0mm x 90.0mm) | CB, cCSAus, CE, CSA, cUL, cULus, UL | 60950-1; UL 508 |
|
PS5R-VD24AC/DC DIN RAIL SUPPLY 24V 60W |
324 |
|
Технический лист |
PS5R-V (60W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 100V | 370V | 24V | - | - | - | - | - | 2.5A | 60W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 86% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.25" L x 1.42" W x 3.74" H (108.0mm x 36.0mm x 95.0mm) | CE, cULus, TUV | 62368-1 |
|

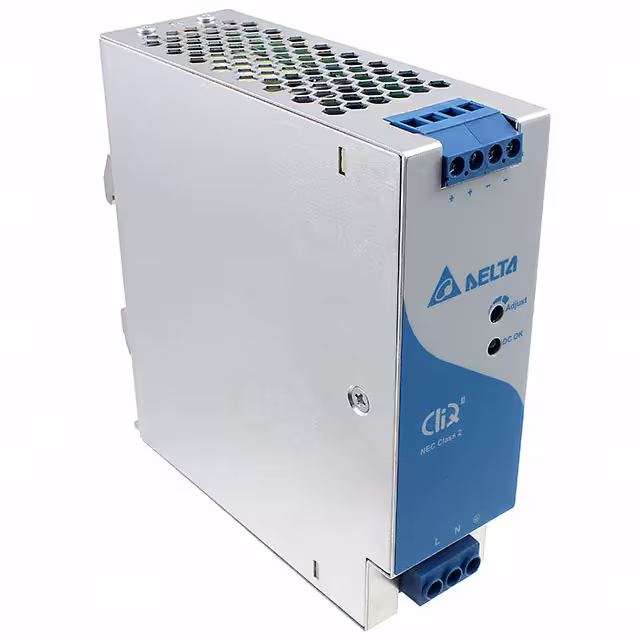

DRP-24V100W1NNAC/DC DIN RAIL SUPPLY 24V 100W |
43 |
|
Технический лист |
CliQ II (100W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 3.8A | 100W | 4 kV | ITE (Commercial) | 89% | -25°C ~ 80°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 4.88" L x 1.57" W x 4.88" H (124.0mm x 40.0mm x 124.0mm) | CB Scheme, CE, CSA, EAC, EN, NEC Class 2, SIQ, UL | 107.1-01; 508; 50581; 55011; 55024; 55032; 60950-1; 61000-3-2; 61000-3-3; 61000-6-2; 61204-3; 62368-1 |
|
S8VK-C06024AC/DC DIN RAIL SUPPLY 24V 60W |
69 |
|
Технический лист |
S8VK-C (60W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | 3 kV | ITE (Commercial) | 88% | -25°C ~ 60°C | Adjustable Output, IP20, Universal Input | 4.33" L x 1.26" W x 3.54" H (110.0mm x 32.0mm x 90.0mm) | CE, cURus, TUV | - |
|
2903147AC/DC DIN RAIL SUPPLY 24V 72W |
39 |
|
Технический лист |
TRIO | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 3A | 72W | 4 kV | ITE (Commercial) | 89% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 4.53" L x 1.18" W x 5.12" H (115.0mm x 30.0mm x 130.0mm) | cULus, cURus, EAC | - |
|
2902993AC/DC DIN RAIL SUPPLY 24V 100W |
99 |
|
Технический лист |
UNO | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 4.2A | 100W | 4 kV | ITE (Commercial) | 90% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 3.54" L x 2.17" W x 3.54" H (90.0mm x 55.0mm x 90.0mm) | CB | - |
|
2902994AC/DC DIN RAIL SUPPLY 24V 90W |
50 |
|
Технический лист |
UNO | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 3.75A | 90W | 4 kV | ITE (Commercial) | 86% | -25°C ~ 70°C (With Derating) | IP20, Universal Input | 3.31" L x 2.17" W x 3.54" H (84.0mm x 55.0mm x 90.0mm) | CB, cUL, cULus, cUR, cURus, UL, UR | - |
|
RPS480-24-CUAC/DC DIN RAIL SUPPLY 24V 480W |
471 |
|
Технический лист |
RPS480 (480W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 24V | - | - | - | - | - | 20A | 480W | 4 kV | Industrial, ITE (Commercial) | 93.5% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 6.05" L x 2.36" W x 6.06" H (153.7mm x 60.0mm x 154.0mm) | CE, cULus | 62368-1; UL 508 |
|

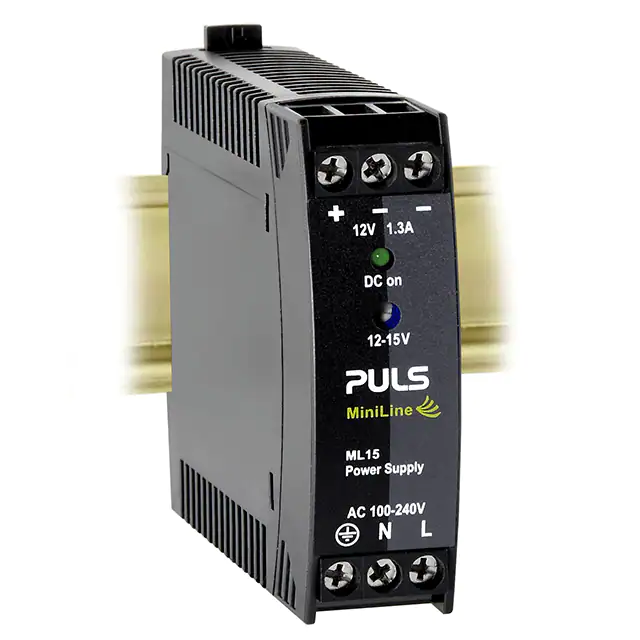

ML15.121AC/DC DIN RAIL SUPPLY 12V 15W |
56 |
|
Технический лист |
MiniLine (15W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 1.3A | 15W | 500 V | ITE (Commercial) | 83% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | 3.58" L x 0.91" W x 2.95" H (91.0mm x 23.0mm x 75.0mm) | ABS, CSA, DNV GL, EAC, IEC, NEC, UL | Class I Div 2; Class 2; 508; 60950-1; 61010-2-201 |
|

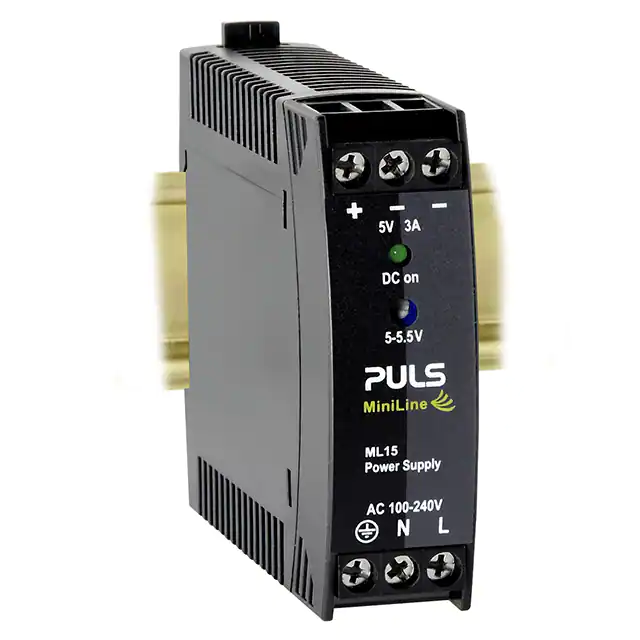

ML15.051AC/DC DIN RAIL SUPPLY 5V 15W |
48 |
|
Технический лист |
MiniLine (15W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 3A | 15W | 500 V | ITE (Commercial) | 77.2% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | 3.58" L x 0.91" W x 2.95" H (91.0mm x 23.0mm x 75.0mm) | ABS, CSA, DNV GL, EAC, IEC, NEC, UL | Class I Div 2; Class 2; 508; 60950-1; 61010-2-201 |
|
TDR-240-24AC/DC DIN RAIL SUPPLY 24V 240W |
0 |
|
Технический лист |
TDR-240 (240W) | Box | Active | AC or DC | 1 | 340 ~ 550 VAC (3 Phase) | 480V | 780V | 24V | - | - | - | - | - | 10A | 240W | 4.87 kV | Laboratory | 92% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC | 4.47" L x 2.48" W x 4.93" H (113.5mm x 63.0mm x 125.2mm) | CE, EAC, TUV, UL | - |
|
1234308AC/DC DIN RAIL SUPPLY 24V 480W |
66 |
|
Технический лист |
- | Box | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 4 kV | Laboratory | 93% | -20°C ~ 70°C (With Derating) | Adjustable Output, IP20, PFC, Remote On/Off | 4.92" L x 3.39" W x 4.88" H (125.0mm x 86.0mm x 124.0mm) | CB, cUL, cULus, UL | 61010-1, 61010-2-201 |
|
S8VK-G03024AC/DC DIN RAIL SUPPLY 24V 30W |
86 |
|
Технический лист |
S8VK-G (30W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 1.3A | 30W | 3 kV | ITE (Commercial) | 86% | -40°C ~ 75°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 3.54" L x 1.26" W x 3.54" H (90.0mm x 32.0mm x 90.0mm) | CE, cULus, cURus, VDE | - |
