Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

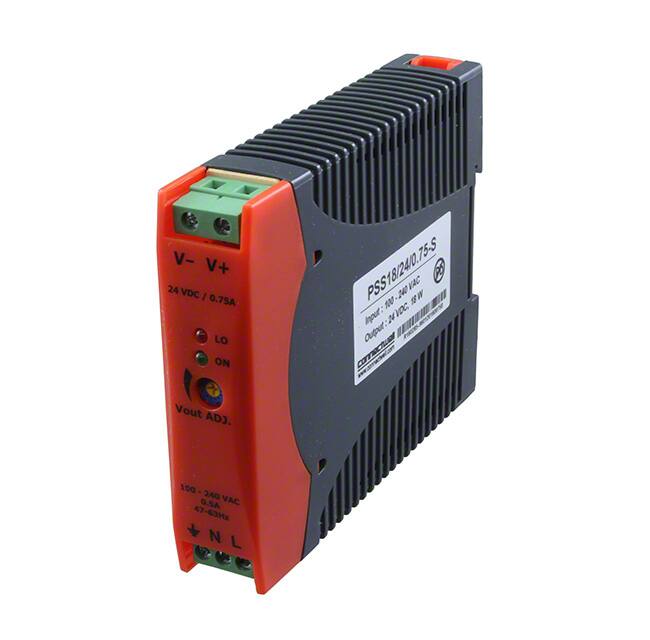

PSS18/24/0.75AC/DC DIN RAIL SUPPLY 24V 18W |
5 |
|
Технический лист |
PSS18 (18W) | Bulk | Active | AC or DC | 1 | 90 ~ 264 VAC | 120V | 375V | 24V | - | - | - | - | - | 750mA | 18W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 75% | -20°C ~ 71°C (With Derating) | Adjustable Output, Universal Input | 4.49" L x 0.89" W x 3.54" H (114.0mm x 22.5mm x 90.0mm) | CE, cULus, cURus | 508; 60950-1 |
|
29029928UNO power supply for DIN rail |
2 |
|
Технический лист |
- | Retail Package | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | 4 kV | Industrial, ITE (Commercial) | 90% | -25°C ~ 70°C (With Derating) | IP20, Universal Input | 3.31" L x 1.38" W x 3.54" H (84.0mm x 35.0mm x 90.0mm) | CB, cUL, cULus, EAC, UL | 60950-1; UL 508 |
|
|
DR-75-48AC/DC DIN RAIL SUPPLY 48V 77W |
0 |
|
Технический лист |
DR-75 (75W) | Box | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 48V | - | - | - | - | - | 1.6A | 77W | 3 kV | Industrial, ITE (Commercial) | 81% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 3.94" L x 2.19" W x 4.93" H (100.0mm x 55.5mm x 125.2mm) | CB, CE, cULus, TUV | - |
|
PSC-24148AC/DC DIN RAIL SUPPLY 48V 240W |
11 |
|
Технический лист |
PSC-241 (240W) | Box | Obsolete | AC or DC | 1 | 88 ~ 264 VAC | 124V | 373V | 48V | - | - | - | - | - | 5A | 240W | 4.242 kV | Industrial, ITE (Commercial) | 92% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | 4.63" L x 2.59" W x 4.93" H (117.7mm x 65.8mm x 125.2mm) | CE, cULus, TUV | 508; 60950-1 |
|
HDR-60-24AC/DC CONVERTER 24V 60W |
22 |
|
Технический лист |
HDR-60 | Retail Package | Active | - | 1 | - | - | - | 24V | - | - | - | - | - | - | 60W | 4 kV | Industrial, ITE (Commercial) | 90% | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | 2.15" L x 2.07" W x 3.54" H (54.5mm x 52.5mm x 90.0mm) | CB, CE, cULus, cURus, EAC, TUV, UKCA | 60950-1; 62368-1; UL 508 |
|
|
400583-17-5AC/DC CONVERTER 48V 100W |
5 |
|
Технический лист |
XS125 (125W) | Bulk | Active | - | 1 | - | - | - | 48V | - | - | - | - | - | - | 100W (125W Forced Air) | 4 kV | ITE (Commercial) | 92% | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, Standby Output, Universal Input | - | CB, CE, cURus, FCC | 62368-1 |
|
|
400583-11-8AC/DC CONVERTER 12V 100W |
5 |
|
Технический лист |
XS125 (125W) | Bulk | Active | - | 1 | - | - | - | 12V | - | - | - | - | - | - | 100W (125W Forced Air) | 4 kV | ITE (Commercial) | 92% | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, Standby Output, Universal Input | - | CB, CE, cURus, FCC | 62368-1 |
|
|
SPD12051BAC/DC DIN RAIL SUPPLY 12V 10W |
0 |
|
- |
SPD (5W) | Bulk | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 120V | 375V | 12V | - | - | - | - | - | 840mA | 10W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 75% | -20°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.49" L x 0.89" W x 3.60" H (114.0mm x 22.6mm x 91.4mm) | CE, cULus, cURus, TUV | - |
|
|
LDN85-24PAC/DC DIN RAIL SUPPLY 24V 84W |
0 |
|
Технический лист |
LDN85 (85W) | Bulk | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 3.5A | 84W | 4.2 kV | ITE (Commercial) | 87% | -40°C ~ 70°C | Adjustable Output, IP20, Universal Input | 4.33" L x 1.57" W x 4.53" H (110.0mm x 40.0mm x 115.0mm) | - | - |
|
JVA151500S24-DDC/DC DIN RAIL SUPPLY 24V 15W |
4 |
|
Технический лист |
JVA15 (15W) | Bulk | Obsolete | DC | 1 | - | 200V | 1500V | 24V | - | - | - | - | - | 625mA | 15W | 4 kV | ITE (Commercial) | 72% | -40°C ~ 70°C (With Derating) | Remote On/Off | 5.07" L x 4.01" W x 1.92" H (128.8mm x 101.9mm x 48.8mm) | UL | - |
|
|
JVA151500S12-DDC/DC DIN RAIL SUPPLY 12V 15W |
3 |
|
Технический лист |
JVA15 (15W) | Bulk | Obsolete | DC | 1 | - | 200V | 1500V | 12V | - | - | - | - | - | 1.25A | 15W | 4 kV | ITE (Commercial) | 72% | -40°C ~ 70°C (With Derating) | Remote On/Off | 5.07" L x 4.01" W x 1.92" H (128.8mm x 101.9mm x 48.8mm) | UL | - |
|
RISH FLEX 48024AAC/DC DIN RAIL SUPPLY 24V |
3 |
|
Технический лист |
- | Bulk | Active | AC | 1 | 90 ~ 135 VAC, 170 ~ 280 VAC | - | - | 24V | - | - | - | - | - | 20A | - | 3 kV | ITE (Commercial) | 92% | -25°C ~ 70°C (With Derating) | Adjustable Output | 5.51" L x 3.35" W x 4.72" H (140.0mm x 85.0mm x 120.0mm) | CE | 60950-1 |
|
DNR120TS12AC/DC DIN RAIL SUPPLY 12V 120W |
23 |
|
Технический лист |
DNR-TS (120W) | Box | Obsolete | AC | 1 | 340 ~ 575 VAC (3 Phase) | - | - | 12V | - | - | - | - | - | 10A | 120W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 87% | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | 4.39" L x 2.93" W x 4.87" H (111.3mm x 74.3mm x 123.6mm) | - | 62368-1 |
|
NDR-75-48AC/DC CONVERTER 2X48V 76W |
3 |
|
Технический лист |
NDR-75 (75W) | Retail Package | Active | - | 2 | - | - | - | 48V | 48V | - | - | - | - | - | 76W | 3 kV | Industrial, ITE (Commercial) | 89% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | 4.02" L x 1.26" W x 4.93" H (102.0mm x 32.0mm x 125.2mm) | CB, CE, cULus, EAC, TUV, UKCA | 62368-1; UL 508 |
|
|
AMED120-48S480NZAC/DC DIN RAIL SUPPLY 2X48V 120W |
7 |
|
Технический лист |
AMED120-480NZ (120W) | Case | Obsolete | - | 1 | 180 ~ 600 VAC | 254V | 848V | 48V | - | - | - | - | - | 2.5A | 120W | - | Industrial | 92% | -20°C ~ 70°C | - | 4.33" L x 1.61" W x 4.88" H (110.0mm x 40.9mm x 124.0mm) | CE | - |
|
|
AMED120-12S480NZAC/DC DIN RAIL SUPPLY 2X12V 120W |
7 |
|
Технический лист |
AMED120-480NZ (120W) | Case | Obsolete | - | 1 | 180 ~ 600 VAC | 254V | 848V | 12V | - | - | - | - | - | 10A | 120W | - | Industrial | 89% | -25°C ~ 70°C | - | 4.33" L x 1.61" W x 4.88" H (110.0mm x 40.9mm x 124.0mm) | CE | - |
|
|
AMED120-24S480NZAC/DC DIN RAIL SUPPLY 2X24V 120W |
5 |
|
Технический лист |
AMED120-480NZ (120W) | Case | Obsolete | - | 1 | 180 ~ 600 VAC | 254V | 848V | 24V | - | - | - | - | - | 5A | 120W | - | Industrial | 91% | -20°C ~ 70°C | - | 4.33" L x 1.61" W x 4.88" H (110.0mm x 40.9mm x 124.0mm) | CE | - |
|
SPDM24751BAC/DC DIN RAIL SUPPLY 24V 72W |
2 |
|
Технический лист |
SPDM (75W) | Box | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 120V | 375V | 24V | - | - | - | - | - | 3A | 72W | 3 kV | Industrial, ITE (Commercial) | 89% | -25°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 3.94" L x 1.59" W x 3.60" H (100.0mm x 40.5mm x 90.0mm) | CE, cULus, TUV | - |
|
|
LIMF120-23B12DIN-RAIL ACDC POWER SUPPLY 120W |
24 |
|
Технический лист |
LIMF120-23Bxx (120W) | Box | Not For New Designs | AC or DC | 1 | 85 ~ 277 VAC | 120V | 390V | 12V | - | - | - | - | - | 10A | 120W | 4 kV | Industrial, ITE (Commercial), Laboratory | 93% | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.76" L x 1.34" W x 4.88" H (121.0mm x 34.0mm x 124.0mm) | - | 61010-1; 62368-1; UL 508 |
|
|
LIMF120-23B48DIN-RAIL ACDC POWER SUPPLY 120W |
24 |
|
Технический лист |
LIMF120-23Bxx (120W) | Box | Not For New Designs | AC or DC | 1 | 85 ~ 277 VAC | 120V | 390V | 48V | - | - | - | - | - | 2.5A | 120W | 4 kV | Industrial, ITE (Commercial), Laboratory | 94.5% | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.76" L x 1.34" W x 4.88" H (121.0mm x 34.0mm x 124.0mm) | - | 61010-1; 62368-1; UL 508 |
