Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LIT240-26B48DIN-RAIL ACDC POWER SUPPLY 240W |
21 |
|
Технический лист |
LIT240-26Bxx (240W) | Box | Not For New Designs | AC or DC | 1 | 320 ~ 600 VAC | 450V | 850V | 48V | - | - | - | - | - | 5A | 240W | 4 kV | ITE (Commercial), Laboratory | 92% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 4.33" L x 2.13" W x 4.88" H (110.0mm x 54.0mm x 124.0mm) | - | 61010-1; 62368-1 |
|
|
LIT240-26B24DIN-RAIL ACDC POWER SUPPLY 240W |
10 |
|
Технический лист |
LIT240-26Bxx (240W) | Box | Not For New Designs | AC or DC | 1 | 320 ~ 600 VAC | 450V | 850V | 24V | - | - | - | - | - | 10A | 240W | 4 kV | ITE (Commercial), Laboratory | 92% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 4.33" L x 2.13" W x 4.88" H (110.0mm x 54.0mm x 124.0mm) | - | 61010-1; 62368-1 |
|
SPDM12301AC/DC DIN RAIL SUPPLY 12V 24W |
17 |
|
Технический лист |
SPDM (30W) | Box | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 120V | 375V | 12V | - | - | - | - | - | 2A | 24W | 3 kV | Industrial, ITE (Commercial) | 85% | -25°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 3.94" L x 0.89" W x 3.60" H (100.0mm x 22.5mm x 90.0mm) | CE, cULus, TUV | - |
|
DSR120PS48AC/DC DIN RAIL SUPPLY 48V 120W |
16 |
|
Технический лист |
DSR120 (120W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 2.5A | 120W | 3 kV | Industrial, ITE (Commercial) | 92% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 4.47" L x 1.26" W x 4.88" H (113.5mm x 32.0mm x 124.0mm) | CB, CE, cURus, cULus, TUV | 62368-1 |
|
|
DSR120PS24AC/DC DIN RAIL SUPPLY 24V 120W |
2 |
|
Технический лист |
DSR120 (120W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 3 kV | Industrial, ITE (Commercial) | 91% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 4.47" L x 1.26" W x 4.88" H (113.5mm x 32.0mm x 124.0mm) | CB, CE, cURus, cULus, TUV | 62368-1 |
|

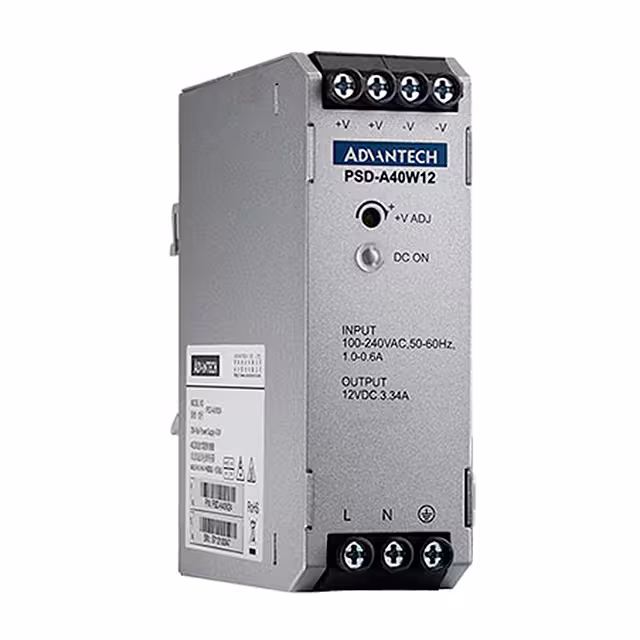

PSD-A40W12AC/DC DIN RAIL SUPPLY 12V 40W |
5 |
|
- |
PSD-A40W (40W) | Bulk | Discontinued | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 3.34A | 40W | 1.5 V | ITE (Commercial) | 88% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.55" L x 1.26" W x 3.94" H (90.2mm x 32.0mm x 100.0mm) | CB, CCC, CE, TUV, UL | - |
|

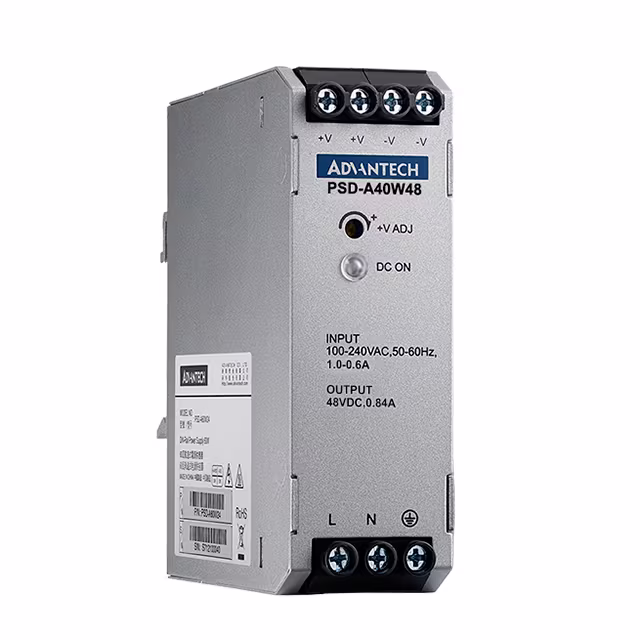

PSD-A40W48AC/DC DIN RAIL SUPPLY 48V 40W |
5 |
|
- |
PSD-A40W (40W) | Bulk | Discontinued | AC | 1 | 85 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 840mA | 40W | 1.5 V | ITE (Commercial) | 89% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.55" L x 1.26" W x 3.94" H (90.2mm x 32.0mm x 100.0mm) | CB, CCC, CE, TUV, UL | - |
|
AMED150-24SNZAC/DC CONVERTER 21.6V 29V 150W |
2 |
|
Технический лист |
AMED150-NZ (150W) | Case | Active | - | 2 | - | - | - | 21.6V | 29V | - | - | - | - | - | 150W | - | Industrial | 92% | -30°C ~ 70°C | - | 4.13" L x 2.28" W x 3.54" H (104.9mm x 57.9mm x 89.9mm) | - | - |
|
PDRB-18-24AC/DC DIN RAIL SUPPLY 24V 18W |
0 |
|
Технический лист |
PDRB-18 (18W) | Bulk | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 120V | 375V | 24V | - | - | - | - | - | 750mA | 18W | 3 kV | Industrial, ITE (Commercial) | 77% | -20°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.49" L x 0.89" W x 3.54" H (114.0mm x 22.5mm x 90.0mm) | EN, SIQ, TUV, UL | 508; 1310; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61000-6-2; 61000-6-3; 61204-3; 62368-1 |
|
HDR-30-12AC/DC CONVERTER 2X12V 24W |
20 |
|
Технический лист |
HDR-30 (30W) | Retail Package | Active | - | 2 | - | - | - | 12V | 12V | - | - | - | - | - | 24W | 4 kV | Industrial, ITE (Commercial) | 88% | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | 2.15" L x 1.38" W x 3.54" H (54.5mm x 35.0mm x 90.0mm) | CB, CE, cULus, cURus, EAC, TUV, UKCA | 62368-1; UL 508 |
|
SPD12101BAC/DC DIN RAIL SUPPLY 12V 10W |
3 |
|
Технический лист |
SPD (10W) | Bulk | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 120V | 375V | 12V | - | - | - | - | - | 840mA | 10W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 75% | -20°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.49" L x 0.89" W x 3.54" H (114.0mm x 22.5mm x 90.0mm) | CCC, CE, cULus, cURus, TUV | - |
|

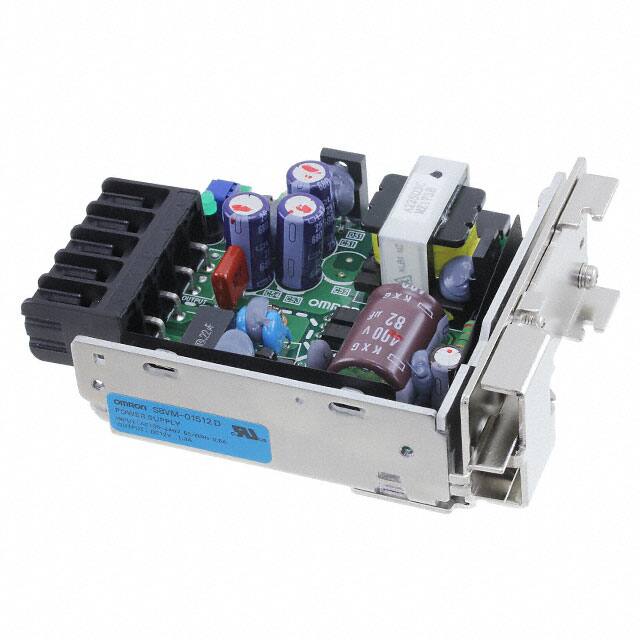

S8VM-01512DAC/DC DIN RAIL SUPPLY 12V 15W |
4 |
|
Технический лист |
S8VM (15W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 1.3A | 15W | 3 kV | ITE (Commercial) | 78% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.17" L x 1.30" W x 3.21" H (80.5mm x 33.0mm x 81.5mm) | CE, cULus, cURus, VDE | - |
|
MDR-40-12AC/DC CONVERTER 2X12V 40W |
21 |
|
Технический лист |
MDR-40 | Retail Package | Active | - | 2 | - | - | - | 12V | 12V | - | - | - | - | - | 40W | 3 kV | Industrial, ITE (Commercial) | 86% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | 3.94" L x 1.57" W x 3.54" H (100.0mm x 40.0mm x 90.0mm) | CB, CE, cULus, cURus, EAC, TUV, UKCA | 62368-1; UL 508 |
|

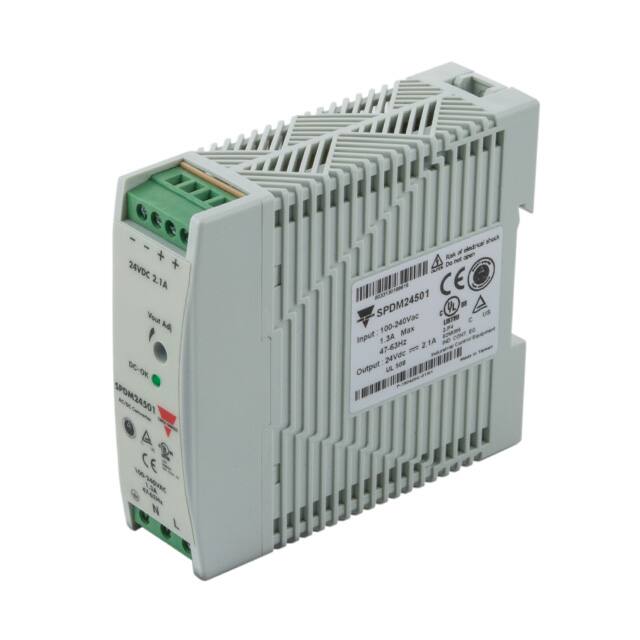

SPDM24501AC/DC DIN RAIL SUPPLY 24V 50W |
9 |
|
Технический лист |
SPDM (50W) | Box | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 120V | 375V | 24V | - | - | - | - | - | 2.1A | 50W | 3 kV | Industrial, ITE (Commercial) | 87% | -25°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 3.94" L x 1.18" W x 3.60" H (100.0mm x 30.0mm x 90.0mm) | CE, cULus, TUV | - |
|
SPDM24501BAC/DC DIN RAIL SUPPLY 24V 50W |
4 |
|
Технический лист |
SPDM (50W) | Box | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 120V | 375V | 24V | - | - | - | - | - | 2.1A | 50W | 3 kV | Industrial, ITE (Commercial) | 87% | -25°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 3.94" L x 1.18" W x 3.60" H (100.0mm x 30.0mm x 90.0mm) | CE, cULus, TUV | - |
|
|
SPD12051AC/DC DIN RAIL SUPPLY 12V 5W |
0 |
|
- |
SPD (5W) | Bulk | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 120V | 370V | 12V | - | - | - | - | - | 420mA | 5W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 86% | -20°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.49" L x 0.89" W x 3.60" H (114.0mm x 22.5mm x 91.4mm) | CE, cULus, cURus, TUV | - |
|
LDN40-24AC/DC DIN RAIL SUPPLY 24V 40W |
7 |
|
- |
LDN40 (40W) | Box | Obsolete | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2A | 40W | 4.2 kV | ITE (Commercial) | 85% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 2.42" L x 2.83" W x 3.54" H (61.5mm x 72.0mm x 90.0mm) | - | - |
|
|
TCL 024-124CPRODUCT TYPE: AC/DC; PACKAGE STY |
17 |
|
Технический лист |
TCL (24W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 85V | 375V | 24V | - | - | - | - | - | 1A | 24W | 3 kV | Industrial, ITE (Commercial) | 88% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.94" L x 1.06" W x 2.95" H (100.1mm x 26.9mm x 74.9mm) | CB, CE, cCSAus, cULus, cURus | - |
|
LEC120-24AC/DC DIN RAIL SUPPLY 24V 120W |
22 |
|
Технический лист |
LEC120 (120W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 24V | - | - | - | - | - | 5A | 120W | 3 kV | Industrial, ITE (Commercial), Laboratory | 94% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.33" L x 1.26" W x 4.88" H (110.0mm x 32.0mm x 124.0mm) | CE | 61010-1; 62368-1; UL 508 |
|

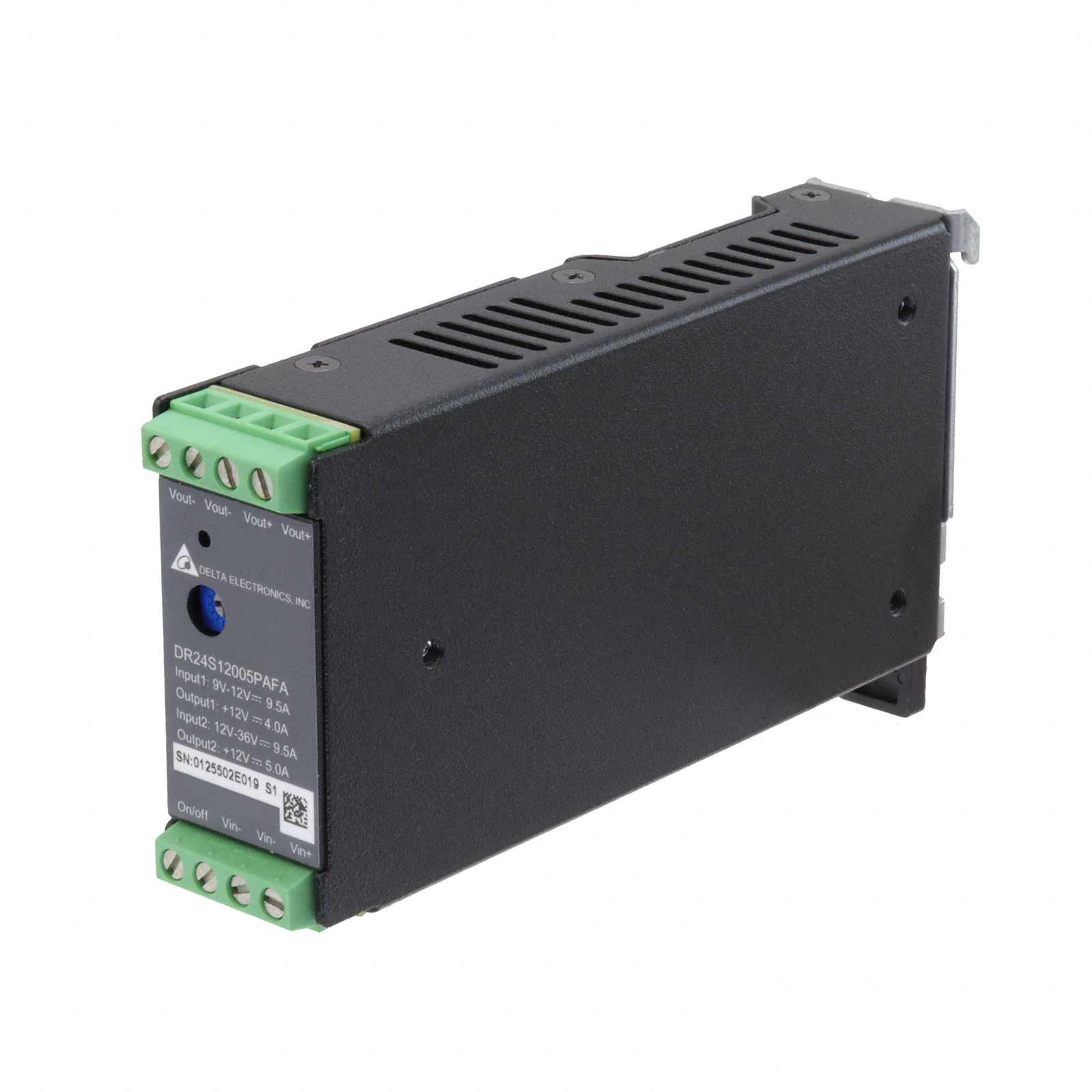

DR24S12005PAFADC/DC DIN RAIL SUPPLY 12V 60W |
7 |
|
Технический лист |
DR24S (60W) | Bulk | Obsolete | DC | 1 | - | 9V | 36V | 12V | - | - | - | - | - | 5A | 60W | 1.5 kV | ITE (Commercial), Railway | 92.3% | -40°C ~ 85°C (With Derating) | Adjustable Output, Remote On/Off | 4.67" L x 2.64" W x 0.93" H (118.6mm x 67.1mm x 23.6mm) | CE | - |
