Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0165N-24V120W1ACQAC/DC DIN RAIL SUPPLY 24V 120W |
85 |
|
Технический лист |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
4010-0011AC/DC DIN RAIL SUPPLY 24V 60W |
5 |
|
Технический лист |
- | Retail Package | Active | - | - | 115 ~ 230 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | - | - | 88% | -20°C ~ 70°C | - | - | - | - |
|

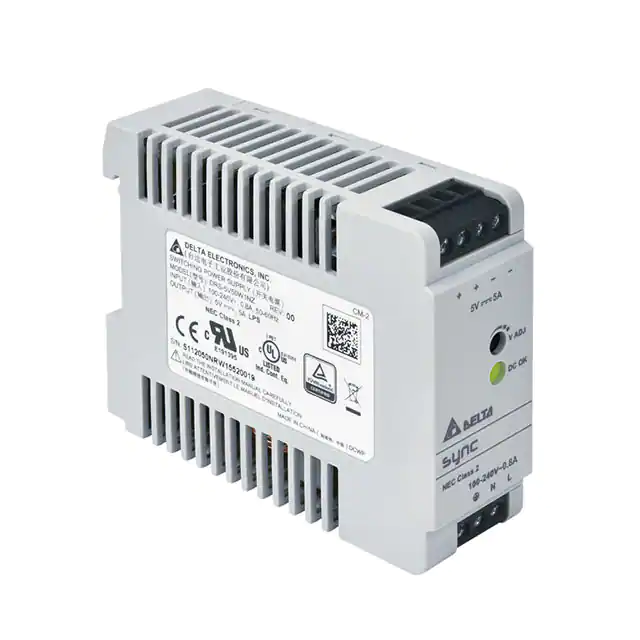

DRS-5V50W1NZAC/DC DIN RAIL SUPPLY 5V 50W |
11 |
|
Технический лист |
Sync (50W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 5A | 50W | 3 kV | ITE (Commercial) | 82% | -20°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 3.74" L x 1.18" W x 2.95" H (95.0mm x 30.0mm x 75.0mm) | CB, CE, cULus, cURus, TUV | - |
|
|
PDRD-120-24AC-DC, 120W, 24 VDC, SINGLE OUTP |
19 |
|
Технический лист |
PDRD-120 (120W) | Box | Not For New Designs | AC or DC | 1 | 85 ~ 305 VAC | 120V | 430V | 24V | - | - | - | - | - | 5A | 120W | 4 kV | Household Appliances, ITE (Commercial) | 90% | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | 3.45" L x 1.26" W x 5.11" H (87.5mm x 32.0mm x 129.8mm) | CE, cURus, UKCA | 60335-1; 62368-1 |
|
PYBE20-Q48-D15-DINDC/DC DIN RAIL SUPPLY +/-15V 20W |
20 |
|
Технический лист |
PYBE20 (20W) | Tray | Not For New Designs | DC | 2 | - | 18V | 75V | 15V | -15V | - | - | - | - | 667mA, 667mA | 20W | 1.5 kV | ITE (Commercial) | 89% | -40°C ~ 85°C (With Derating) | Adjustable Output, Remote On/Off | 2.99" L x 1.24" W x 0.87" H (76.0mm x 31.5mm x 22.2mm) | CE, cURus | - |
|
|
PYBE20-Q48-D12-DINDC/DC DIN RAIL SUPPLY +/-12V 20W |
16 |
|
Технический лист |
PYBE20 (20W) | Tray | Not For New Designs | DC | 2 | - | 18V | 75V | 12V | -12V | - | - | - | - | 834mA, 834mA | 20W | 1.5 kV | ITE (Commercial) | 88% | -40°C ~ 85°C (With Derating) | Adjustable Output, Remote On/Off | 2.99" L x 1.24" W x 0.87" H (76.0mm x 31.5mm x 22.2mm) | CE, cURus | - |
|
PDQE10-Q48-D5-DINDC/DC DIN RAIL SUPPLY +/-5V 10W |
0 |
|
Технический лист |
PDQE10 (10W) | Tray | Not For New Designs | DC | 2 | - | 18V | 75V | 5V | -5V | - | - | - | - | 1A, 1A | 10W | 1.5 kV | ITE (Commercial) | 83% | -40°C ~ 85°C (With Derating) | Remote On/Off | 2.99" L x 1.24" W x 0.87" H (76.0mm x 31.5mm x 22.2mm) | CE, cURus | - |
|
AMED30-12SNZAC/DC DIN RAIL SUPPLY 12V 24W |
2 |
|
Технический лист |
AMED30-NZ | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 12V | - | - | - | - | - | 2A | 24W | 4 kV | ITE (Commercial) | 88% | -40°C ~ 70°C | Universal Input | 2.28" L x 1.38" W x 3.65" H (58.0mm x 35.0mm x 92.7mm) | - | - |
|
AMED30-48SNZAC/DC DIN RAIL SUPPLY 2X48V 36W |
2 |
|
Технический лист |
AMED30-NZ (30W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 85V | 264V | 48V | - | - | - | - | - | 750mA | 36W | 4 kV | ITE (Commercial) | 90% | -40°C ~ 70°C | Adjustable Output, Universal Input | 2.28" L x 1.38" W x 3.65" H (57.9mm x 35.1mm x 92.7mm) | - | 62368-1 |
|
RISH FLEX 9024BAC/DC DIN RAIL SUPPLY 24V |
4 |
|
Технический лист |
- | Bulk | Active | AC | 1 | 187 ~ 264 VAC, 330 ~ 550 VAC | - | - | 24V | - | - | - | - | - | 5A | - | 3 kV | Industrial, ITE (Commercial) | 91% | -25°C ~ 70°C (With Derating) | Adjustable Output | 4.13" L x 2.17" W x 4.33" H (105.0mm x 55.0mm x 110.0mm) | CE | 60950-1; UL 508 |
|
REDIN120-12AC/DC DIN RAIL SUPPLY 12V 120W |
9 |
|
Технический лист |
POWERLINE REDIN120 (120W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 8.33A | 120W | 3 kV | ITE (Commercial) | 89.5% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 4.51" L x 1.30" W x 4.90" H (114.5mm x 33.0mm x 124.4mm) | CE, cURus | - |
|
|
LI120-26B48AC/DC DIN RAIL SUPPLY 120W 1 OUT |
8 |
|
Технический лист |
LI120-26Bxx (120W) | Box | Not For New Designs | AC or DC | 1 | 180 ~ 600 VAC | 254V | 848V | 48V | - | - | - | - | - | 2.5A | 120W | 4 kV | Industrial, ITE (Commercial), Laboratory | 92% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 4.33" L x 1.61" W x 4.88" H (110.0mm x 41.0mm x 124.0mm) | CE, UKCA | 61010-1; 62368-1; UL 508 |
|
|
LI120-26B12AC/DC DIN RAIL SUPPLY 120W 1 OUT |
7 |
|
Технический лист |
LI120-26Bxx (120W) | Box | Not For New Designs | AC or DC | 1 | 180 ~ 600 VAC | 254V | 848V | 12V | - | - | - | - | - | 10A | 120W | 4 kV | Industrial, ITE (Commercial), Laboratory | 89.5% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 4.33" L x 1.61" W x 4.88" H (110.0mm x 41.0mm x 124.0mm) | CE, UKCA | 61010-1; 62368-1; UL 508 |
|
PSC-9648AC/DC DIN RAIL SUPPLY 48V 96W |
7 |
|
Технический лист |
PSC-96 (96W) | Box | Obsolete | AC or DC | 1 | 88 ~ 264 VAC | 124V | 370V | 48V | - | - | - | - | - | 2A | 96W | 4.242 kV | Industrial, ITE (Commercial) | 87% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.90" L x 2.17" W x 3.54" H (99.0mm x 55.0mm x 90.0mm) | CE, cULus, TUV, UR | 508; 60950-1 |
|

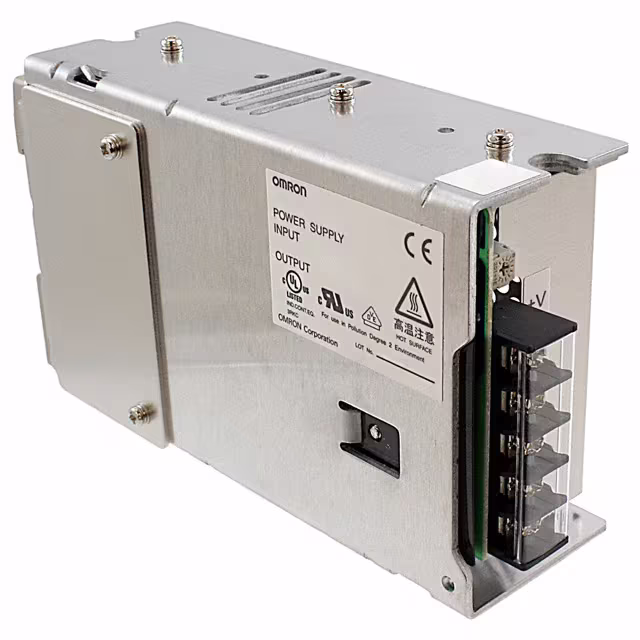

S8JXG10012DAC/DC DIN RAIL SUPPLY 12V 100W |
3 |
|
Технический лист |
S8JX-G (100W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 8.5A | 100W | - | ITE (Commercial) | 81% | -10°C ~ 60°C | Load Sharing, Universal Input | 6.87" L x 1.97" W x 3.82" H (174.5mm x 50.0mm x 97.0mm) | CE | - |
|
DDC3024S05DC/DC DIN RAIL SUPPLY 5V 30W |
18 |
|
Технический лист |
DDC30 (30W) | Box | Active | DC | 1 | - | 9V | 36V | 5V | - | - | - | - | - | 4.5A | 30W | - | ITE (Commercial) | 81% | -40°C ~ 70°C | - | 2.22" L x 1.38" W x 3.58" H (56.4mm x 35.0mm x 91.0mm) | CB | 62368-1 |
|
PYB20-Q24-D15-H-DINDC/DC DIN RAIL SUPPLY +/-15V 20W |
0 |
|
Технический лист |
PYB20-DIN (20W) | Bulk | Obsolete | DC | 2 | - | 9V | 36V | 15V | -15V | - | - | - | - | 667mA, 667mA | 20W | - | - | 86% | -40°C ~ 85°C | - | 2.99" L x 1.24" W x 1.17" H (76.0mm x 31.5mm x 29.7mm) | EN, IEC | - |
|
|
PYB20-Q24-S24-H-DINDC/DC DIN RAIL SUPPLY 24V 20W |
0 |
|
Технический лист |
PYB20-DIN (20W) | Bulk | Obsolete | DC | 1 | - | 9V | 36V | 24V | - | - | - | - | - | 834mA | 20W | - | - | 88% | -40°C ~ 85°C | - | 2.99" L x 1.24" W x 1.17" H (76.0mm x 31.5mm x 29.7mm) | EN, IEC | - |
|
|
PYB20-Q48-S5-H-DINDC/DC DIN RAIL SUPPLY 5V 20W |
0 |
|
Технический лист |
PYB20-DIN (20W) | Bulk | Obsolete | DC | 1 | - | 18V | 75V | 5V | - | - | - | - | - | 4A | 20W | - | - | 88% | -40°C ~ 85°C | - | 2.99" L x 1.24" W x 1.17" H (76.0mm x 31.5mm x 29.7mm) | EN, IEC | - |
|
|
PYB20-Q48-S12-H-DINDC/DC DIN RAIL SUPPLY 12V 20W |
0 |
|
Технический лист |
PYB20-DIN (20W) | Bulk | Obsolete | DC | 1 | - | 18V | 75V | 12V | - | - | - | - | - | 1.67A | 20W | - | - | 87% | -40°C ~ 85°C | - | 2.99" L x 1.24" W x 1.17" H (76.0mm x 31.5mm x 29.7mm) | EN, IEC | - |
