Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AC2250AS-I INPUT MODULE, SMARTL25 4DI |
3 |
|
Технический лист |
- | Box | Active | DC | 1 | - | 18V | 30V | - | - | - | - | - | - | - | - | - | ITE (Commercial) | - | -25°C ~ 70°C | - | 4.13" L x 0.98" W x 4.25" H (105.0mm x 25.0mm x 108.0mm) | CE, cURus, EAC | - |
|
MDR-100-24AC/DC CONVERTER 24V 96W |
22 |
|
Технический лист |
MDR-100 (96W) | Retail Package | Active | - | 1 | - | - | - | 24V | - | - | - | - | - | - | 96W | 3 kV | Industrial, ITE (Commercial) | 86% | -10°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | 3.94" L x 2.17" W x 3.54" H (100.0mm x 55.0mm x 90.0mm) | CE, cULus, EAC, TUV, UKCA | 60950-1; 62368-1; UL 508 |
|

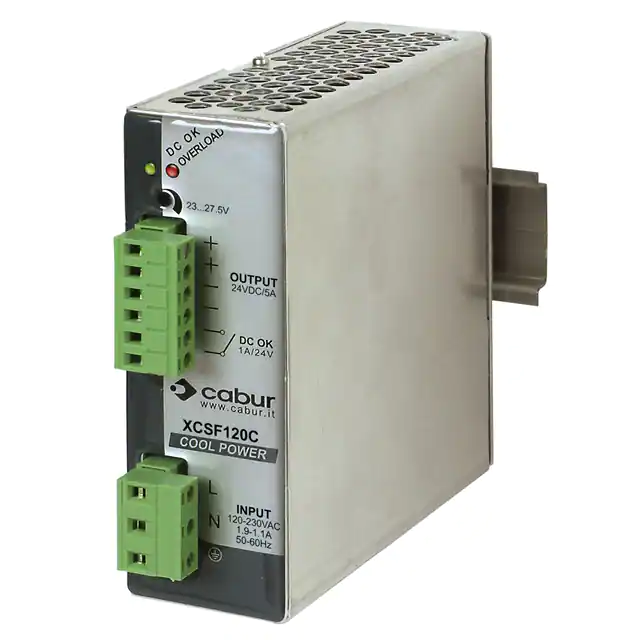

XCSF120CAC/DC DIN RAIL SUPPLY 24V 120W |
21 |
|
Технический лист |
- | Box | Active | AC or DC | 1 | 120 ~ 230 VAC | 100V | 345V | 24V | - | - | - | - | - | 5A | 120W | - | Industrial | 90% | - | - | - | CB, CE | - |
|
XCSF85BA compact Single-Phase DIN Rail |
2 |
|
Технический лист |
- | Box | Active | AC or DC | 1 | 120 ~ 230 VAC | 100V | 370V | 12 ~ 15V | - | - | - | - | - | 6A | 85W | - | Industrial | 86% | - | Adjustable Output | - | CB, CE, UL | - |
|
JVA151500S12-DFDC/DC DIN RAIL SUPPLY 12V 15W |
5 |
|
Технический лист |
JVA15 (15W) | Bulk | Obsolete | DC | 1 | - | 200V | 1500V | 12V | - | - | - | - | - | 1.25A | 15W | 4 kV | ITE (Commercial) | 72% | -40°C ~ 70°C (With Derating) | Remote On/Off | 5.78" L x 5.43" W x 5.43" H (146.8mm x 137.9mm x 137.9mm) | UL | - |
|
|
JVA151500S24-DFDC/DC DIN RAIL SUPPLY 24V 15W |
5 |
|
Технический лист |
JVA15 (15W) | Bulk | Obsolete | DC | 1 | - | 200V | 1500V | 24V | - | - | - | - | - | 625mA | 15W | 4 kV | ITE (Commercial) | 72% | -40°C ~ 70°C (With Derating) | Remote On/Off | 5.78" L x 5.43" W x 5.43" H (146.8mm x 137.9mm x 137.9mm) | UL | - |
|

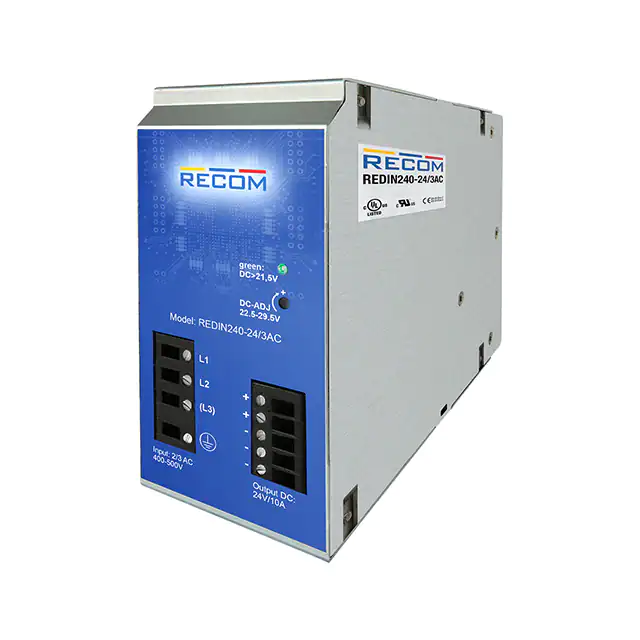

REDIN240-24/3ACAC/DC DIN RAIL SUPPLY 24V 240W |
5 |
|
Технический лист |
REDIN240/3AC (240W) | Box | Obsolete | AC | 1 | 320 ~ 575 VAC (3 Phase), 360 ~ 575 VAC (2 Phase) | - | - | 24V | - | - | - | - | - | 10A | 240W | 4.242 kV | Hazardous Locations, ITE (Commercial) | 88.5% | -25°C ~ 55°C | Adjustable Output | 6.03" L x 2.36" W x 5.20" H (153.2mm x 60.0mm x 132.0mm) | CE, cULus, cURus | - |
|
|
LITF480-26B36DIN-RAIL ACDC POWER SUPPLY 480W |
24 |
|
Технический лист |
LITF480-26Bxx (480W) | Box | Not For New Designs | AC or DC | 1 | 320 ~ 600 VAC | 450V | 800V | 36V | - | - | - | - | - | 13.3A | 479W | 4 kV | Industrial, ITE (Commercial), Laboratory | 95.3% | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Universal Input | 5.00" L x 3.15" W x 4.88" H (127.0mm x 80.0mm x 124.0mm) | CE, cULus, UKCA | 61010-1; 62368-1; UL 508 |
|
|
LITF480-26B48DIN-RAIL ACDC POWER SUPPLY 480W |
15 |
|
Технический лист |
LITF480-26Bxx (480W) | Box | Not For New Designs | AC or DC | 1 | 320 ~ 600 VAC | 450V | 800V | 48V | - | - | - | - | - | 10A | 480W | 4 kV | Industrial, ITE (Commercial), Laboratory | 95.6% | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Universal Input | 5.00" L x 3.15" W x 4.88" H (127.0mm x 80.0mm x 124.0mm) | CE, cULus, UKCA | 61010-1; 62368-1; UL 508 |
|
|
LITF480-26B24DIN-RAIL ACDC POWER SUPPLY 480W |
7 |
|
Технический лист |
LITF480-26Bxx (480W) | Box | Not For New Designs | AC or DC | 1 | 320 ~ 600 VAC | 450V | 800V | 24V | - | - | - | - | - | 20A | 480W | 4 kV | Industrial, ITE (Commercial), Laboratory | 95% | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Universal Input | 5.00" L x 3.15" W x 4.88" H (127.0mm x 80.0mm x 124.0mm) | CE, cULus, UKCA | 61010-1; 62368-1; UL 508 |
|
|
LIMF480-23B48DIN-RAIL ACDC POWER SUPPLY 480W |
15 |
|
Технический лист |
LIMF480-23Bxx (480W) | Box | Not For New Designs | AC or DC | 1 | 85 ~ 277 VAC | 120V | 390V | 48V | - | - | - | - | - | 10A | 480W | 4 kV | Industrial, ITE (Commercial), Laboratory | 95.5% | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.88" L x 2.17" W x 4.88" H (124.0mm x 55.0mm x 124.0mm) | - | 61010-1; 62368-1; UL 508 |
|
|
LIMF480-23B24DIN-RAIL ACDC POWER SUPPLY 480W |
15 |
|
Технический лист |
LIMF480-23Bxx (480W) | Box | Not For New Designs | AC or DC | 1 | 85 ~ 277 VAC | 120V | 390V | 24V | - | - | - | - | - | 20A | 480W | 4 kV | Industrial, ITE (Commercial), Laboratory | 95% | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.88" L x 2.17" W x 4.88" H (124.0mm x 55.0mm x 124.0mm) | - | 61010-1; 62368-1; UL 508 |
|
|
LIHF240-23B48DIN-RAIL ACDC POWER SUPPLY 240W |
16 |
|
Технический лист |
LIHF240-23Bxx (240W) | Box | Not For New Designs | AC or DC | 1 | 85 ~ 277 VAC | 120V | 390V | 48V | - | - | - | - | - | 5A | 240W | 4 kV | ITE (Commercial), Laboratory | 95% | -40°C ~ 85°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Universal Input | 4.80" L x 1.97" W x 5.12" H (122.0mm x 50.0mm x 130.0mm) | - | 61010-1; 62368-1 |
|
|
LIHF240-23B24DIN-RAIL ACDC POWER SUPPLY 240W |
7 |
|
Технический лист |
LIHF240-23Bxx (240W) | Box | Not For New Designs | AC or DC | 1 | 85 ~ 277 VAC | 120V | 390V | 24V | - | - | - | - | - | 10A | 240W | 4 kV | ITE (Commercial), Laboratory | 94.5% | -40°C ~ 85°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Universal Input | 4.80" L x 1.97" W x 5.12" H (122.0mm x 50.0mm x 130.0mm) | - | 61010-1; 62368-1 |
|
PSC-48124AC/DC DIN RAIL SUPPLY 24V 480W |
20 |
|
Технический лист |
PSC-481 (480W) | Box | Obsolete | AC or DC | 1 | 88 ~ 264 VAC | 124V | 373V | 24V | - | - | - | - | - | 20A | 480W | 4.242 kV | Industrial, ITE (Commercial) | 93% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | 4.86" L x 3.40" W x 4.91" H (123.4mm x 86.3mm x 124.8mm) | CE, cULus, TUV | 508; 60950-1 |
|
|
PSC-48148AC/DC DIN RAIL SUPPLY 48V 480W |
6 |
|
Технический лист |
PSC-481 (480W) | Box | Obsolete | AC or DC | 1 | 88 ~ 264 VAC | 124V | 373V | 48V | - | - | - | - | - | 10A | 480W | 4.242 kV | Industrial, ITE (Commercial) | 94% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | 4.86" L x 3.40" W x 4.91" H (123.4mm x 86.3mm x 124.8mm) | CE, cULus, TUV | 508; 60950-1 |
|
SPB-240-24AC/DC DIN RAIL SUPPLY 24V 60W |
13 |
|
Технический лист |
SPB | Box | Active | AC | 1 | 100 ~ 240 VAC, 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | - | ITE (Commercial) | 75% | -10°C ~ 50°C (With Derating) | Adjustable Output, IP20, Universal Input | 3.15" L x 1.97" W x 5.20" H (80.0mm x 50.0mm x 132.0mm) | CE, cULus, EAC | 60950-1 |
|
REDIN480-48AC/DC DIN RAIL SUPPLY 48V 480W |
2 |
|
Технический лист |
REDIN480 (480W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 10A | 480W | 3 kV | Hazardous Locations, ITE (Commercial) | 93.5% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 4.81" L x 2.80" W x 4.89" H (122.3mm x 71.0mm x 124.2mm) | CE, cURus | - |
|
|
SPM3241AC/DC CONVERTER 24V 31W |
7 |
|
Технический лист |
SPM3 (30W) | Box | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 120V | 370V | 24V | - | - | - | - | - | 1.3A | 31W | 3 kV | Industrial, ITE (Commercial) | 83% | -25°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 2.19" L x 2.05" W x 3.58" H (55.5mm x 52.0mm x 91.0mm) | CE, cULus, TUV | - |
|
AE40-EW-S15-DINDC/DC DIN RAIL SUPPLY 15V 40W |
0 |
|
Технический лист |
AE40-EW-DIN (40W) | Tray | Obsolete | DC | 1 | - | 200V | 1200V | 15V | - | - | - | - | - | 2.67A | 40W | 4 kV | - | 84% | -25°C ~ 70°C (With Derating) | - | 5.32" L x 2.76" W x 1.54" H (135.0mm x 70.0mm x 39.0mm) | - | - |
