Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
REDIN120-24/3ACAC/DC DIN RAIL SUPPLY 24V 120W |
3 |
|
Технический лист |
REDIN120/3AC (120W) | Box | Obsolete | AC | 1 | 320 ~ 575 VAC (3 Phase), 360 ~ 575 VAC (2 Phase) | - | - | 24V | - | - | - | - | - | 5A | 120W | 4.242 kV | Hazardous Locations, ITE (Commercial) | 89% | -25°C ~ 55°C | Adjustable Output | 4.53" L x 1.57" W x 5.12" H (115.0mm x 40.0mm x 130.0mm) | CE, cULus, cURus | - |
|
AE10-EW-S9-DINDC/DC DIN RAIL SUPPLY 9V 10W |
0 |
|
Технический лист |
AE10-EW-DIN (10W) | Tray | Not For New Designs | DC | 1 | - | 100V | 1000V | 9V | - | - | - | - | - | 1.11A | 10W | 4 kV | - | 76% | -40°C ~ 70°C (With Derating) | - | 3.78" L x 2.13" W x 1.44" H (96.1mm x 54.0mm x 36.6mm) | CE | - |
|

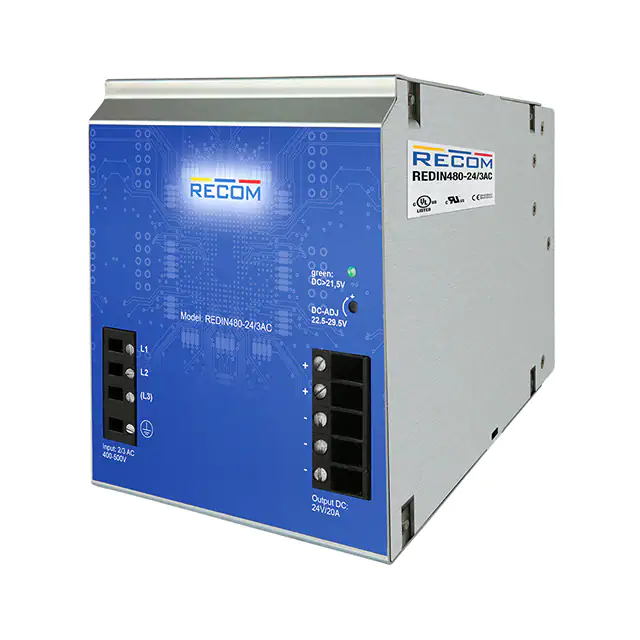

REDIN480-24/3ACAC/DC DIN RAIL SUPPLY 24V 480W |
9 |
|
Технический лист |
REDIN480/3AC (480W) | Box | Obsolete | AC | 1 | 320 ~ 575 VAC (3 Phase), 360 ~ 575 VAC (2 Phase) | - | - | 24V | - | - | - | - | - | 20A | 480W | 4.242 kV | Hazardous Locations, ITE (Commercial) | 91% | -25°C ~ 55°C | Adjustable Output | 6.00" L x 4.53" W x 5.12" H (152.5mm x 115.0mm x 130.0mm) | CE, cULus, cURus | - |
|
S8VM-15012DAC/DC DIN RAIL SUPPLY 12V 150W |
4 |
|
Технический лист |
S8VM (150W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 12.5A | 150W | 3 kV | ITE (Commercial) | 81% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 6.32" L x 1.54" W x 3.25" H (160.5mm x 39.1mm x 82.5mm) | CE, cULus, cURus, VDE | - |
|
KNX-40E-1280AC/DC DIN RAIL SUPPLY 30V 38W |
0 |
|
Технический лист |
KNX-40E (40W) | Box | Active | AC or DC | 1 | 180 ~ 264 VAC | 176V | 280V | 30V | - | - | - | - | - | 1.28A | 38W | 4.2 kV | ITE (Commercial) | 86% | -30°C ~ 70°C (With Derating) | IP20 | 2.83" L x 2.30" W x 3.54" H (72.0mm x 58.5mm x 90.0mm) | CE | - |
|
|
AMEDP480-24SNZAC/DC DIN RAIL SUPPLY 24V 480W |
2 |
|
Технический лист |
AMEDP480-NZ (480W) | Bulk | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 24V | - | - | - | - | - | 20A | 480W | 3 kV | Industrial, ITE (Commercial), Laboratory | 94% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 5.18" L x 1.89" W x 4.92" H (131.5mm x 48.0mm x 125.0mm) | CE | 61010-1; 62368-1; UL 508 |
|
|
AMEDP480-48SNZAC/DC DIN RAIL SUPPLY 48V 480W |
2 |
|
Технический лист |
AMEDP480-NZ (480W) | Bulk | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 48V | - | - | - | - | - | 10A | 480W | 3 kV | Industrial, ITE (Commercial), Laboratory | 94% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 5.18" L x 1.89" W x 4.92" H (131.5mm x 48.0mm x 125.0mm) | CE | 61010-1; 62368-1; UL 508 |
|
FP-PS24-060EAC/DC DIN RAIL SUPPLY 24V 60W |
8 |
|
Технический лист |
FP-PS24 | Box | Discontinued | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | - | ITE (Commercial) | 91.5% | -10°C ~ 70°C | - | 4.11" L x 1.76" W x 2.95" H (104.5mm x 44.8mm x 75.0mm) | CSA | - |
|
VDRS-150-48AC/DC DIN RAIL SUPPLY 48V 150W |
7 |
|
Технический лист |
VDRS-150 (150W) | Bulk | Obsolete | AC | 1 | 88 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 3.2A | 150W | 4.242 kV | ITE (Commercial) | 87% | -10°C ~ 70°C | Adjustable Output, PFC, Remote On/Off, Universal Input | 3.93" L x 2.19" W x 4.92" H (99.8mm x 55.5mm x 125.0mm) | CE, cULus, cURus, TUV | - |
|
|
LIMF240-23B48DIN-RAIL ACDC POWER SUPPLY 240W |
16 |
|
Технический лист |
LIMF240-23Bxx (240W) | Box | Not For New Designs | AC or DC | 1 | 85 ~ 277 VAC | 120V | 390V | 48V | - | - | - | - | - | 5A | 240W | 4 kV | Industrial, ITE (Commercial) | 95.5% | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.76" L x 1.89" W x 4.88" H (121.0mm x 48.0mm x 124.0mm) | CE, cULus, UKCA | 62368-1; UL 508 |
|
|
LIMF240-23B24DIN-RAIL ACDC POWER SUPPLY 240W |
7 |
|
Технический лист |
LIMF240-23Bxx (240W) | Box | Not For New Designs | AC or DC | 1 | 85 ~ 277 VAC | 120V | 390V | 24V | - | - | - | - | - | 10A | 240W | 4 kV | Industrial, ITE (Commercial) | 95.5% | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.76" L x 1.89" W x 4.88" H (121.0mm x 48.0mm x 124.0mm) | CE, cULus, UKCA | 62368-1; UL 508 |
|
|
LIMF240-23B12DIN-RAIL ACDC POWER SUPPLY 192W |
2 |
|
Технический лист |
LIMF240-23Bxx (240W) | Box | Not For New Designs | AC or DC | 1 | 85 ~ 277 VAC | 120V | 390V | 12V | - | - | - | - | - | 16A | 192W | 4 kV | Industrial, ITE (Commercial) | 94% | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.76" L x 1.89" W x 4.88" H (121.0mm x 48.0mm x 124.0mm) | CE, cULus, UKCA | 62368-1; UL 508 |
|

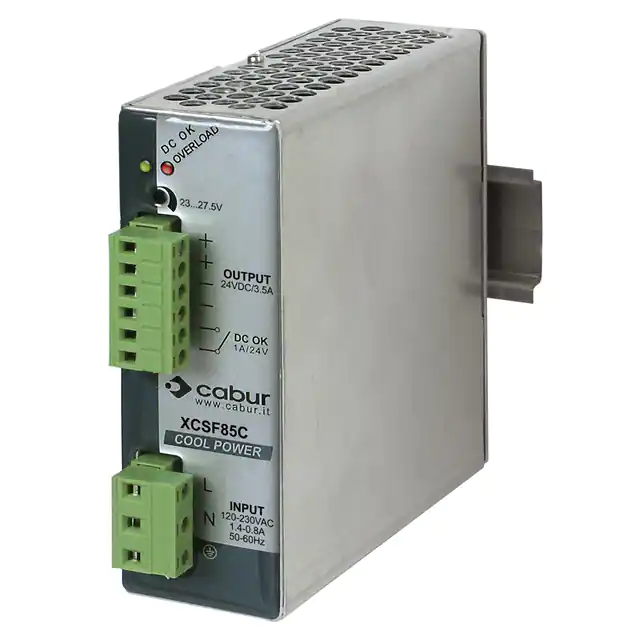

XCSF85CAC/DC DIN RAIL SUPPLY 24V 85W |
20 |
|
Технический лист |
- | Box | Active | AC or DC | 1 | 120 ~ 230 VAC | 100V | 370V | 24V | - | - | - | - | - | 3.5A | 85W | - | Industrial | 90% | - | - | - | CB, CE | - |
|
SPDM12501BAC/DC DIN RAIL SUPPLY 12V 48W |
2 |
|
Технический лист |
SPDM (50W) | Box | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 120V | 375V | 12V | - | - | - | - | - | 4A | 48W | 3 kV | Industrial, ITE (Commercial) | 86% | -25°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 3.94" L x 1.18" W x 3.60" H (100.0mm x 30.0mm x 90.0mm) | CE, cULus, TUV | - |
|
SPB-180-24AC/DC DIN RAIL SUPPLY 24V 60W |
25 |
|
Технический лист |
SPB | Box | Active | AC | 1 | 100 ~ 240 VAC, 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | - | ITE (Commercial) | 75% | -10°C ~ 50°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.33" L x 1.97" W x 5.20" H (110.0mm x 50.0mm x 132.0mm) | CE, cULus, EAC | 60950-1 |
|

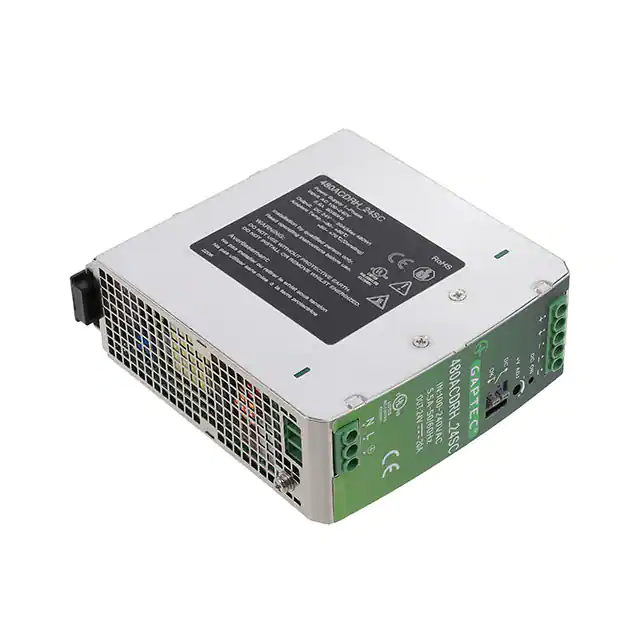

480ACDRH_24SCAC/DC DIN RAIL SUPPLY 24V 480W |
13 |
|
Технический лист |
480ACDRH_SC | Retail Package | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 24V | - | - | - | - | - | 20A | 480W | 3 kV | Industrial, ITE (Commercial), Laboratory | 94% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 5.18" L x 1.89" W x 4.92" H (131.5mm x 48.0mm x 125.0mm) | cURus | 61010-1; 62368-1;UL 508 |
|

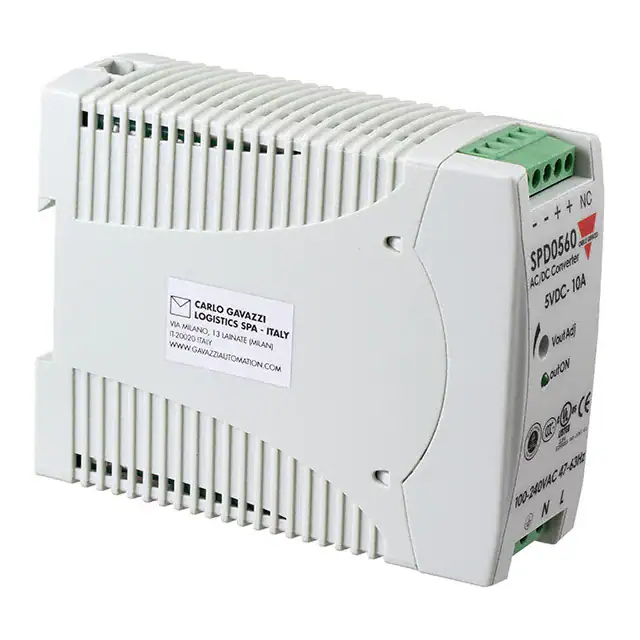

SPD05601AC/DC DIN RAIL SUPPLY 5V 50W |
10 |
|
Технический лист |
SPD (60W) | Box | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 90V | 375V | 5V | - | - | - | - | - | 10A | 50W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 79% | -40°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.49" L x 1.59" W x 3.54" H (114.0mm x 40.5mm x 90.0mm) | CCC, CE, cULus, TUV | - |
|
SPD12601AC/DC DIN RAIL SUPPLY 12V 60W |
4 |
|
Технический лист |
SPD (60W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 5A | 60W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 86% | -40°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.49" L x 1.59" W x 3.54" H (114.0mm x 40.5mm x 90.0mm) | CCC, CE, cULus, TUV | - |
|
|
SPM3121AC/DC CONVERTER 12V 25W |
19 |
|
Технический лист |
SPM3 (30W) | Bulk | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 120V | 370V | 12V | - | - | - | - | - | 2.1A | 25W | 3 kV | Industrial, ITE (Commercial) | 82% | -25°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 2.19" L x 2.05" W x 3.58" H (55.5mm x 52.0mm x 91.0mm) | CE, cULus, TUV | - |
|
DRP-480S-48AC/DC DIN RAIL SUPPLY 48V 480W |
8 |
|
Технический лист |
DRP-480S (480W) | Box | Obsolete | AC or DC | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | 254V | 370V | 48V | - | - | - | - | - | 10A | 480W | 3 kV | Industrial, ITE (Commercial) | 89% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 3.94" L x 8.94" W x 4.93" H (100.0mm x 227.0mm x 125.2mm) | CB, CE, cULus, cURus, TUV | - |
