Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

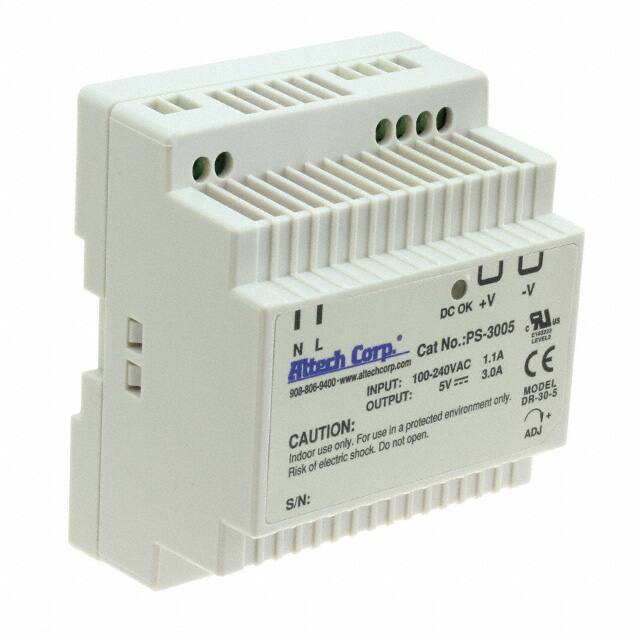

PS-3005AC/DC DIN RAIL SUPPLY 5V 15W |
6 |
|
- |
PS-30 (30W) | Bulk | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 5V | - | - | - | - | - | 3A | 15W | 3 kV | ITE (Commercial) | 74% | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 2.20" L x 3.07" W x 3.66" H (56.0mm x 78.0mm x 93.0mm) | CE, cURus | 60950-1 |
|
PQAE50-D48-S3-DINDC/DC DIN RAIL SUPPLY 3.3V 33W |
22 |
|
Технический лист |
PQAE50 (50W) | Tray | Not For New Designs | DC | 1 | - | 36V | 75V | 3.3V | - | - | - | - | - | 10A | 33W | 1.5 kV | ITE (Commercial) | 91% | -40°C ~ 105°C (With Derating) | Adjustable Output, Remote On/Off | 2.99" L x 1.24" W x 1.02" H (76.0mm x 31.5mm x 25.8mm) | CE | 62368-1 |
|
PDRB-10-12AC/DC DIN RAIL SUPPLY 12V 10W |
0 |
|
Технический лист |
PDRB-10 (10W) | Bulk | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 120V | 375V | 12V | - | - | - | - | - | 840mA | 10W | 3 kV | Industrial, ITE (Commercial) | 75% | -20°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.49" L x 0.89" W x 3.54" H (114.0mm x 22.5mm x 90.0mm) | EN, SIQ, TUV, UL | 508; 1310; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61000-6-2; 61000-6-3; 61204-3; 62368-1 |
|
|
PDRB-10-24AC/DC DIN RAIL SUPPLY 24V 10W |
29 |
|
Технический лист |
PDRB-10 (10W) | Bulk | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 120V | 375V | 24V | - | - | - | - | - | 420mA | 10W | 3 kV | Industrial, ITE (Commercial) | 76% | -20°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.49" L x 0.89" W x 3.54" H (114.0mm x 22.5mm x 90.0mm) | EN, SIQ, TUV, UL | 508; 1310; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61000-6-2; 61000-6-3; 61204-3; 62368-1 |
|
PYB15-Q48-S5-H-DINDC/DC DIN RAIL SUPPLY 5V 15W |
36 |
|
Технический лист |
PYB15-DIN (15W) | Bulk | Obsolete | DC | 1 | - | 18V | 75V | 5V | - | - | - | - | - | 3A | 15W | - | - | 87% | -40°C ~ 85°C | - | 2.99" L x 1.24" W x 1.03" H (76.0mm x 31.5mm x 26.1mm) | EN, IEC | - |
|
|
PYB15-Q24-S24-H-DINDC/DC DIN RAIL SUPPLY 24V 15W |
25 |
|
Технический лист |
PYB15-DIN (15W) | Bulk | Obsolete | DC | 1 | - | 9V | 36V | 24V | - | - | - | - | - | 625mA | 15W | - | - | 88% | -40°C ~ 85°C | - | 2.99" L x 1.24" W x 1.03" H (76.0mm x 31.5mm x 26.1mm) | EN, IEC | - |
|
PDRD-75-24AC/DC DIN RAIL SUPPLY 24V 77W |
97 |
|
Технический лист |
PDRD-75 (75W) | Box | Not For New Designs | AC or DC | 1 | 85 ~ 305 VAC | 120V | 430V | 24V | - | - | - | - | - | 3.2A | 77W | 4 kV | ITE (Commercial), Laboratory | 90% | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | 3.44" L x 1.26" W x 4.33" H (87.5mm x 32.0mm x 110.0mm) | CE, cURus, UKCA | 61010-1; 62368-1 |
|
DNR30US48AC/DC DIN RAIL SUPPLY 48V 30W |
9 |
|
Технический лист |
DNR (30W) | Box | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 90V | 375V | 48V | - | - | - | - | - | 625mA | 30W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 86% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 4.53" L x 1.59" W x 3.54" H (115.0mm x 40.5mm x 90.0mm) | CE | 62368-1 |
|
WDR-60-48AC/DC DIN RAIL SUPPLY 48V 60W |
0 |
|
Технический лист |
WDR-60 (60W) | Box | Active | AC or DC | 1 | 180 ~ 550 VAC | 254V | 780V | 48V | - | - | - | - | - | 1.25A | 60W | 4.7 kV | Laboratory | 90.5% | -30°C ~ 85°C (With Derating) | Adjustable Output | 4.02" L x 1.26" W x 4.93" H (102.0mm x 32.0mm x 125.2mm) | CE, EAC, TUV, UL | - |
|
LIF240-10B12R2SAC/DC DIN RAIL SUPPLY 12V 192W |
12 |
|
Технический лист |
LIF240-10BxxR2S (240W) | Bulk | Not For New Designs | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 12V | - | - | - | - | - | 16A | 192W | 3 kV | Industrial, ITE (Commercial), Laboratory | 93% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.33" L x 2.13" W x 4.88" H (110.0mm x 54.0mm x 124.0mm) | CE, EN | 61010-1; 62368-1; UL 508 |
|
|
LIF240-10B24R2SAC/DC DIN RAIL SUPPLY 24V 240W |
9 |
|
Технический лист |
LIF240-10BxxR2S (240W) | Bulk | Not For New Designs | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 24V | - | - | - | - | - | 10A | 240W | 3 kV | Industrial, ITE (Commercial), Laboratory | 94% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.33" L x 2.13" W x 4.88" H (110.0mm x 54.0mm x 124.0mm) | CE, EN | 61010-1; 62368-1; UL 508 |
|
|
LIF240-10B48R2SAC/DC DIN RAIL SUPPLY 48V 240W |
6 |
|
Технический лист |
LIF240-10BxxR2S (240W) | Bulk | Not For New Designs | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 48V | - | - | - | - | - | 5A | 240W | 3 kV | Industrial, ITE (Commercial), Laboratory | 94% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.33" L x 2.13" W x 4.88" H (110.0mm x 54.0mm x 124.0mm) | CE, EN | 61010-1; 62368-1; UL 508 |
|
PDRC-24-12AC/DC DIN RAIL SUPPLY 12V 24W |
0 |
|
Технический лист |
PDRC-24 (24W) | Bulk | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 120V | 375V | 12V | - | - | - | - | - | 2A | 24W | 3 kV | Industrial, ITE (Commercial) | 84% | -40°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 2.22" L x 1.38" W x 3.58" H (56.5mm x 35.0mm x 91.0mm) | EN, SIQ, TUV, UL | 1310; 8750; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61000-6-2; 61204-3; 62368-1 |
|
PS-3012AC/DC DIN RAIL SUPPLY 12V 24W |
9 |
|
- |
PS-30 (30W) | Bulk | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 12V | - | - | - | - | - | 2A | 24W | 3 kV | ITE (Commercial) | 81% | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 2.20" L x 3.07" W x 3.66" H (56.0mm x 78.0mm x 93.0mm) | CE, cURus | 60950-1 |
|

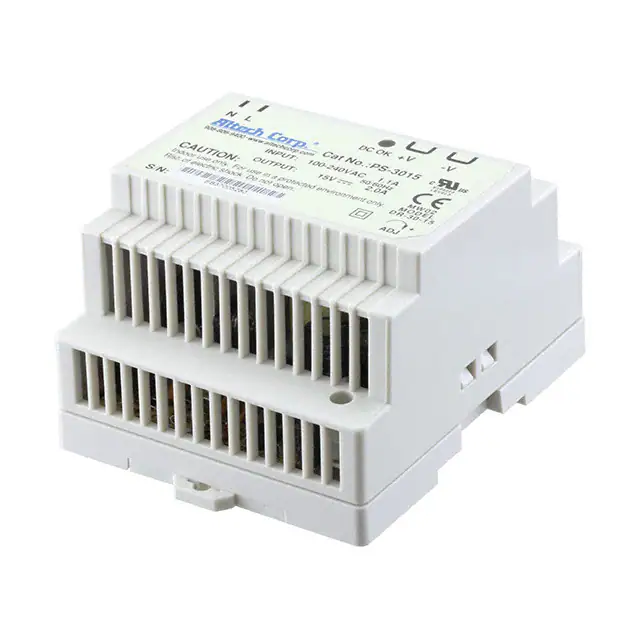

PS-3015AC/DC DIN RAIL SUPPLY 15V 30W |
7 |
|
- |
PS-30 (30W) | Bulk | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 15V | - | - | - | - | - | 2A | 30W | 3 kV | ITE (Commercial) | 82% | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 2.20" L x 3.07" W x 3.66" H (56.0mm x 78.0mm x 93.0mm) | CE, cURus | 60950-1 |
|
DDC1524S03DC/DC DIN RAIL SUPPLY 3.3V 11.5W |
23 |
|
Технический лист |
DDC15 (15W) | Box | Active | DC | 1 | - | 9V | 36V | 3.3V | - | - | - | - | - | 3.5A | 11.5W | - | ITE (Commercial) | 79% | -40°C ~ 70°C | - | 2.22" L x 0.71" W x 3.58" H (56.4mm x 18.0mm x 91.0mm) | CB | 62368-1 |
|
PDRB-18-12AC/DC DIN RAIL SUPPLY 12V 18W |
0 |
|
Технический лист |
PDRB-18 (18W) | Bulk | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 120V | 375V | 12V | - | - | - | - | - | 1.5A | 18W | 3 kV | Industrial, ITE (Commercial) | 77% | -20°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.49" L x 0.89" W x 3.54" H (114.0mm x 22.5mm x 90.0mm) | EN, SIQ, TUV, UL | 508; 1310; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61000-6-2; 61000-6-3; 61204-3; 62368-1 |
|
SPB-015-05AC/DC DIN RAIL SUPPLY 5V 15W |
17 |
|
Технический лист |
SPB | Box | Active | AC | 1 | 100 ~ 240 VAC, 85 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 3A | 15W | - | ITE (Commercial) | 77% | -10°C ~ 50°C (With Derating) | Adjustable Output, IP20, Universal Input | 3.54" L x 0.89" W x 4.21" H (90.0mm x 22.5mm x 107.0mm) | CE, cULus, EAC | 60950-1 |
|
VDRS-60-12AC/DC DIN RAIL SUPPLY 12V 60W |
0 |
|
Технический лист |
VDRS-60 (60W) | Bulk | Obsolete | AC | 1 | 88 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 5A | 60W | 3 kV | ITE (Commercial) | 86% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.90" L x 1.57" W x 3.54" H (99.0mm x 40.0mm x 90.0mm) | CE, cULus, cURus, TUV | - |
|
PYBE30-Q24-S15-DINDC/DC DIN RAIL SUPPLY 15V 30W |
85 |
|
Технический лист |
PYBE30 (30W) | Tray | Not For New Designs | DC | 1 | - | 9V | 36V | 15V | - | - | - | - | - | 2A | 30W | 1.5 kV | ITE (Commercial) | 90% | -40°C ~ 80°C (With Derating) | Adjustable Output, Remote On/Off | 2.99" L x 1.24" W x 0.87" H (76.0mm x 31.5mm x 22.2mm) | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
