Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RAC05-24SA-STAC/DC DIN RAIL SUPPLY 24V 5W |
0 |
|
Технический лист |
POWERLINE RAC05-A (5W) | Box | Obsolete | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 200mA | 5W | 3 kV | ITE (Commercial) | 71% | -25°C ~ 70°C (With Derating) | Universal Input | 3.78" L x 2.12" W x 0.83" H (96.0mm x 53.9mm x 21.0mm) | CE, cURus | - |
|
|
RAC05-24SB-E-STAC/DC DIN RAIL SUPPLY 24V 5W |
0 |
|
Технический лист |
POWERLINE RAC05-A (5W) | Tube | Obsolete | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 230mA | 5W | 3 kV | ITE (Commercial) | 76% | -40°C ~ 70°C (With Derating) | Universal Input | 3.78" L x 2.12" W x 0.83" H (96.0mm x 53.9mm x 21.0mm) | CE, cURus | - |
|
|
RAC05-3.3SA-E-STAC/DC DIN RAIL SUPPLY 3.3V 5W |
0 |
|
Технический лист |
POWERLINE RAC05-A (5W) | Box | Obsolete | AC | 1 | 90 ~ 264 VAC | - | - | 3.3V | - | - | - | - | - | 1.5A | 5W | 3 kV | ITE (Commercial) | 62% | -40°C ~ 70°C (With Derating) | Universal Input | 3.78" L x 2.12" W x 0.83" H (96.0mm x 53.9mm x 21.0mm) | CE, cURus | - |
|
|
RAC05-3.3SA-STAC/DC DIN RAIL SUPPLY 3.3V 5W |
0 |
|
Технический лист |
POWERLINE RAC05-A (5W) | Box | Obsolete | AC | 1 | 90 ~ 264 VAC | - | - | 3.3V | - | - | - | - | - | 1.5A | 5W | 3 kV | ITE (Commercial) | 62% | -25°C ~ 70°C (With Derating) | Universal Input | 3.78" L x 2.12" W x 0.83" H (96.0mm x 53.9mm x 21.0mm) | CE, cURus | - |
|
|
RAC05-3.3SB-E-STAC/DC DIN RAIL SUPPLY 3.3V 5W |
0 |
|
Технический лист |
POWERLINE RAC05-A (5W) | Tube | Obsolete | AC | 1 | 90 ~ 264 VAC | - | - | 3.3V | - | - | - | - | - | 1.25A | 5W | 3 kV | ITE (Commercial) | 65% | -40°C ~ 70°C (With Derating) | Universal Input | 3.78" L x 2.12" W x 0.83" H (96.0mm x 53.9mm x 21.0mm) | CE, cURus | - |
|
|
RAC05-3.3SB-STAC/DC DIN RAIL SUPPLY 3.3V 5W |
0 |
|
Технический лист |
POWERLINE RAC05-A (5W) | Tube | Obsolete | AC | 1 | 90 ~ 264 VAC | - | - | 3.3V | - | - | - | - | - | 1.25A | 5W | 3 kV | ITE (Commercial) | 65% | -25°C ~ 70°C (With Derating) | Universal Input | 3.78" L x 2.12" W x 0.83" H (96.0mm x 53.9mm x 21.0mm) | CE, cURus | - |
|

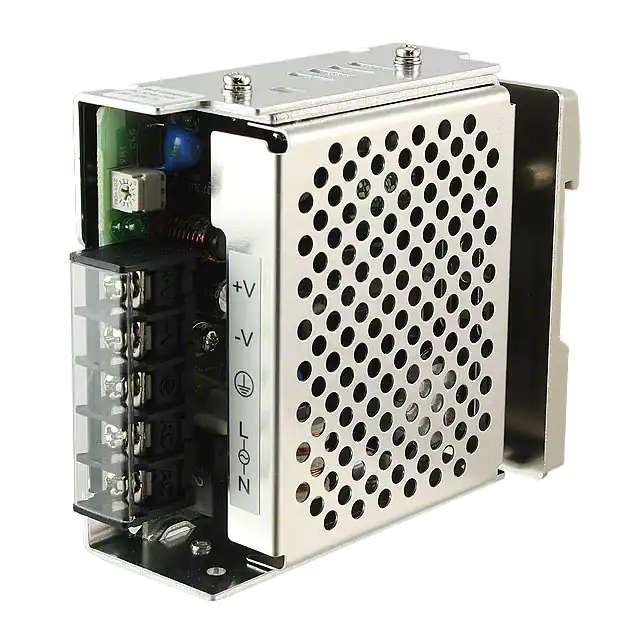

S8JX-G01524CDAC/DC DIN RAIL SUPPLY 24V 15W |
0 |
|
Технический лист |
S8JX-G (15W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 650mA | 15W | - | ITE (Commercial) | 68% | -10°C ~ 60°C | Load Sharing, Universal Input | 4.51" L x 1.56" W x 3.78" H (114.5mm x 39.5mm x 96.0mm) | CE | - |
|
|
S8JX-G03512CDAC/DC DIN RAIL SUPPLY 12V 35W |
0 |
|
Технический лист |
S8JX-G (35W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 3A | 35W | - | ITE (Commercial) | 73% | -10°C ~ 60°C | Load Sharing, Universal Input | 4.51" L x 1.56" W x 3.78" H (114.5mm x 39.5mm x 96.0mm) | CE | - |
|
|
S8JX-G03524CDAC/DC DIN RAIL SUPPLY 24V 35W |
0 |
|
Технический лист |
S8JX-G (35W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 1.5A | 35W | - | ITE (Commercial) | 73% | -10°C ~ 60°C | Load Sharing, Universal Input | 4.51" L x 1.56" W x 3.78" H (114.5mm x 39.5mm x 96.0mm) | CE | - |
|
S8JX-G30024CDAC/DC DIN RAIL SUPPLY 24V 300W |
0 |
|
Технический лист |
S8JX-G (300W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 14A | 300W | - | ITE (Commercial) | 82% | -10°C ~ 60°C | Load Sharing, Universal Input | 8.06" L x 4.33" W x 3.78" H (204.8mm x 110.0mm x 96.0mm) | CE | - |
|

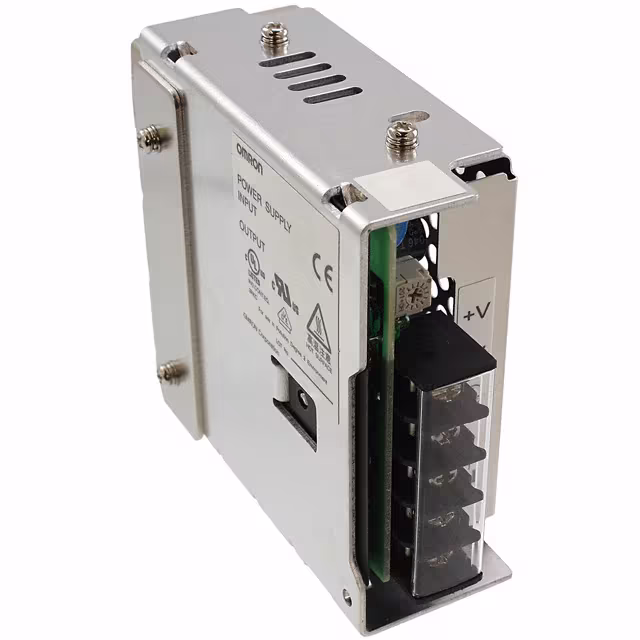

S8JX-G01505CDAC/DC DIN RAIL SUPPLY 5V 15W |
0 |
|
Технический лист |
S8JX-G (15W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 3A | 15W | - | ITE (Commercial) | 68% | -10°C ~ 60°C | Load Sharing, Universal Input | 4.51" L x 1.56" W x 3.78" H (114.5mm x 39.5mm x 96.0mm) | CE | - |
|
S8JXG01505DAC/DC DIN RAIL SUPPLY 5V 15W |
0 |
|
Технический лист |
S8JX-G (15W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 3A | 15W | - | ITE (Commercial) | 68% | -10°C ~ 60°C | Load Sharing, Universal Input | 4.51" L x 1.56" W x 3.78" H (114.5mm x 39.5mm x 96.0mm) | CE | - |
|
|
S8JXG01512DAC/DC DIN RAIL SUPPLY 12V 15W |
0 |
|
Технический лист |
S8JX-G (15W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 1.3A | 15W | - | ITE (Commercial) | 68% | -10°C ~ 60°C | Load Sharing, Universal Input | 4.51" L x 1.56" W x 3.78" H (114.5mm x 39.5mm x 96.0mm) | CE | - |
|
|
S8JXG01524DAC/DC DIN RAIL SUPPLY 24V 15W |
0 |
|
Технический лист |
S8JX-G (15W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 650mA | 15W | - | ITE (Commercial) | 68% | -10°C ~ 60°C | Load Sharing, Universal Input | 4.51" L x 1.56" W x 3.78" H (114.5mm x 39.5mm x 96.0mm) | CE | - |
|
|
S8JXG03505CDAC/DC DIN RAIL SUPPLY 5V 35W |
0 |
|
Технический лист |
S8JX-G (35W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 7A | 35W | - | ITE (Commercial) | 73% | -10°C ~ 60°C | Load Sharing, Universal Input | 4.51" L x 1.56" W x 3.78" H (114.5mm x 39.5mm x 96.0mm) | CE | - |
|
|
S8JXG03505DAC/DC DIN RAIL SUPPLY 5V 35W |
0 |
|
Технический лист |
S8JX-G (35W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 7A | 35W | - | ITE (Commercial) | 73% | -10°C ~ 60°C | Load Sharing, Universal Input | 4.51" L x 1.56" W x 3.78" H (114.5mm x 39.5mm x 96.0mm) | CE | - |
|
|
S8JXG03512DAC/DC DIN RAIL SUPPLY 12V 35W |
0 |
|
Технический лист |
S8JX-G (35W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 3A | 35W | - | ITE (Commercial) | 73% | -10°C ~ 60°C | Load Sharing, Universal Input | 4.51" L x 1.56" W x 3.78" H (114.5mm x 39.5mm x 96.0mm) | CE | - |
|
|
S8JXG03524DAC/DC DIN RAIL SUPPLY 24V 35W |
0 |
|
Технический лист |
S8JX-G (35W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 1.5A | 35W | - | ITE (Commercial) | 73% | -10°C ~ 60°C | Load Sharing, Universal Input | 4.51" L x 1.56" W x 3.78" H (114.5mm x 39.5mm x 96.0mm) | CE | - |
|
|
S8JXG05005CAC/DC DIN RAIL SUPPLY 5V 50W |
0 |
|
Технический лист |
S8JX-G (50W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 10A | 50W | - | ITE (Commercial) | 76% | -10°C ~ 60°C | Load Sharing, Universal Input | 4.90" L x 1.57" W x 3.82" H (124.5mm x 40.0mm x 97.0mm) | CE | - |
|
S8JXG05005CDAC/DC DIN RAIL SUPPLY 5V 50W |
0 |
|
Технический лист |
S8JX-G (50W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 10A | 50W | - | ITE (Commercial) | 76% | -10°C ~ 60°C | Load Sharing, Universal Input | 4.90" L x 1.57" W x 3.82" H (124.5mm x 40.0mm x 97.0mm) | CE | - |
