Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VDRS-100-48AC/DC DIN RAIL SUPPLY 48V 100W |
0 |
|
Технический лист |
VDRS-100 (96W) | Box | Obsolete | AC | 1 | 88 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 2A | 100W | 3 kV | ITE (Commercial) | 87% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.90" L x 2.17" W x 3.54" H (99.0mm x 55.0mm x 90.0mm) | CE, cULus, cURus, TUV | - |
|
2866653AC/DC DIN RAIL SUPPLY 24V 36W |
0 |
|
Технический лист |
MINI | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 1.5A | 36W | 4 kV | ITE (Commercial) | 84% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Universal Input | 3.74" L x 1.38" W x 3.90" H (95.0mm x 35.0mm x 99.0mm) | cULus, cURus | - |
|
2938633AC/DC DIN RAIL SUPPLY 24V 720W |
0 |
|
Технический лист |
Quint | Box | Obsolete | AC or DC | 1 | 320 ~ 575 VAC (3 Phase) | 450V | 800V | 24V | - | - | - | - | - | 30A | 720W | 4 kV | ITE (Commercial) | 92% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 5.12" L x 9.45" W x 5.12" H (130.0mm x 240.0mm x 130.0mm) | CB, cULus, cURus | - |
|

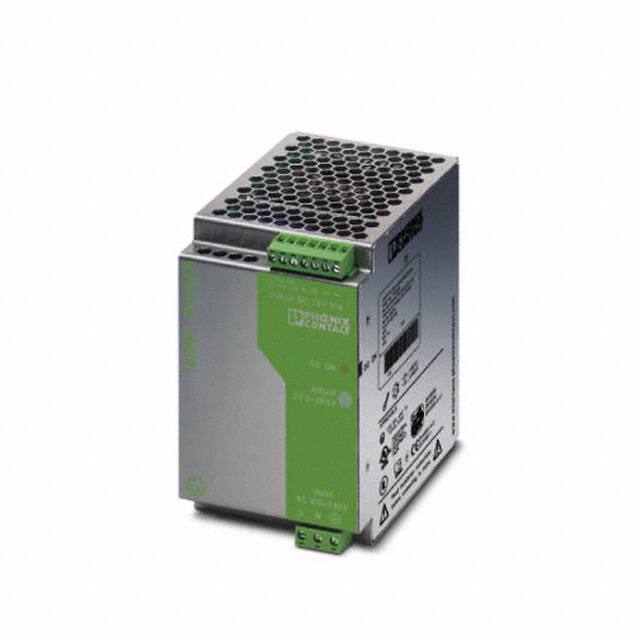

2938866AC/DC DIN RAIL SUPPLY 24V 240W |
0 |
|
Технический лист |
Quint | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 4 kV | ITE (Commercial) | 88% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 4.92" L x 3.35" W x 5.12" H (125.0mm x 85.0mm x 130.0mm) | CB, cULus, cURus | - |
|

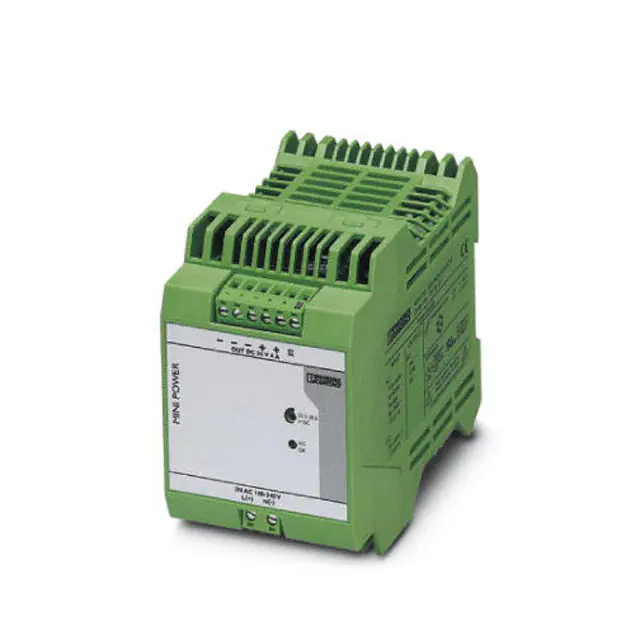

2938837AC/DC DIN RAIL SUPPLY 24V 96W |
0 |
|
Технический лист |
MINI | Box | Obsolete | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 4A | 96W | 4 kV | ITE (Commercial) | 88% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Universal Input | 4.21" L x 2.66" W x 3.90" H (107.0mm x 67.5mm x 99.0mm) | cULus, cURus | - |
|
2736699AC/DC DIN RAIL SUPPLY 30.1V 181W |
0 |
|
Технический лист |
Quint | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 30.1V | - | - | - | - | - | 6A | 181W | 4 kV | ITE (Commercial) | 89% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 4.92" L x 2.76" W x 5.70" H (125.0mm x 70.0mm x 145.0mm) | CB, cULus, cURus | - |
|
2940618AC/DC DIN RAIL SUPPLY 24V 3W |
0 |
|
Технический лист |
EG 45 | Bulk | Obsolete | AC | 1 | 230VAC | - | - | 24V | - | - | - | - | - | 250mA | 3W | 4 kV | ITE (Commercial) | - | 0°C ~ 60°C | Adjustable Output, IP20 | 4.21" L x 1.77" H x 3.03" W (107.0mm x 77.0mm x 45.0mm) | - | - |
|
|
2943916AC/DC DIN RAIL SUPPLY 12V 6W |
0 |
|
Технический лист |
EMG 30 | Bulk | Obsolete | AC | 1 | 16 ~ 21 VAC | - | - | 12V | - | - | - | - | - | 500mA | 6W | - | ITE (Commercial) | - | 0°C ~ 60°C (With Derating) | Adjustable Output, IP20 | 2.95" L x 1.26" W x 2.64" H (75.0mm x 32.0mm x 67.1mm) | GOST | - |
|
|
2943932AC/DC DIN RAIL SUPPLY 24V 12W |
0 |
|
Технический лист |
EMG 30 | Bulk | Obsolete | AC | 1 | 24 ~ 29 VAC | - | - | 24V | - | - | - | - | - | 500mA | 12W | - | ITE (Commercial) | - | 0°C ~ 55°C (With Derating) | Adjustable Output, IP20 | 2.95" L x 1.26" W x 2.64" H (75.0mm x 32.0mm x 67.1mm) | GOST | - |
|

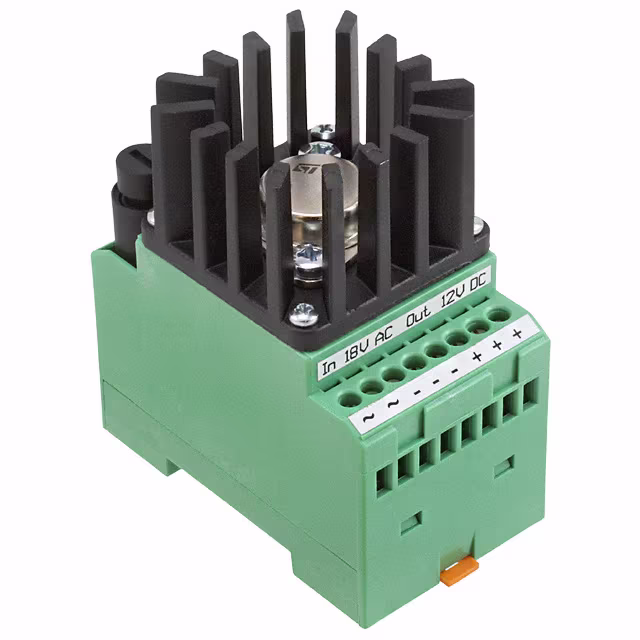

2954976AC/DC DIN RAIL SUPPLY 12V 12W |
0 |
|
Технический лист |
EMG 45 | Bulk | Obsolete | AC | 1 | 16 ~ 21 VAC | - | - | 12V | - | - | - | - | - | 500mA | 12W | - | ITE (Commercial) | - | 0°C ~ 55°C | - | 2.95" L x 1.77" W x 3.39" H (75.0mm x 45.0mm x 86.0mm) | GOST | - |
|
|
2941060AC/DC DIN RAIL SUPPLY 5.1V 10W |
0 |
|
Технический лист |
EMG 75 | Bulk | Obsolete | AC | 1 | 10 ~ 29 VAC | - | - | 5.1V | - | - | - | - | - | 2A | 10W | - | ITE (Commercial) | - | 0°C ~ 60°C (With Derating) | Adjustable Output, IP20 | 2.95" L x 2.95" W x 2.78" H (75.0mm x 75.0mm x 70.5mm) | GOST | - |
|
2941057AC/DC DIN RAIL SUPPLY 12V 24W |
0 |
|
Технический лист |
EMG 75 | Bulk | Obsolete | AC | 1 | 17 ~ 29 VAC | - | - | 12V | - | - | - | - | - | 2A | 24W | - | ITE (Commercial) | - | 0°C ~ 60°C (With Derating) | Adjustable Output | 2.95" L x 2.95" W x 2.78" H (75.0mm x 75.0mm x 70.5mm) | GOST | - |
|
|
2941044AC/DC DIN RAIL SUPPLY 15V 30W |
0 |
|
Технический лист |
EMG 75 | Bulk | Obsolete | AC | 1 | 19.5 ~ 29 VAC | - | - | 15V | - | - | - | - | - | 2A | 30W | - | ITE (Commercial) | - | 0°C ~ 60°C (With Derating) | Adjustable Output, IP20 | 2.95" L x 2.95" W x 2.78" H (75.0mm x 75.0mm x 70.5mm) | GOST | - |
|
2316035DC/DC DIN RAIL SUPPLY 25V 9W |
0 |
|
Технический лист |
FOUNDATION Fieldbus™ (13.5W) | Bulk | Obsolete | DC | 1 | - | 19.2V | 35V | 25V | - | - | - | - | - | 360mA | 9W | - | - | - | -40°C ~ 60°C | - | 4.26" L x 1.57" W x 3.74" H (108.3mm x 40.0mm x 95.0mm) | cULus | - |
|
2938853AC/DC DIN RAIL SUPPLY 24V 120W |
0 |
|
Технический лист |
Quint | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 4 kV | ITE (Commercial) | 87% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 5.12" L x 2.17" W x 4.92" H (130.0mm x 55.0mm x 125.0mm) | CB, cULus, cURus | - |
|

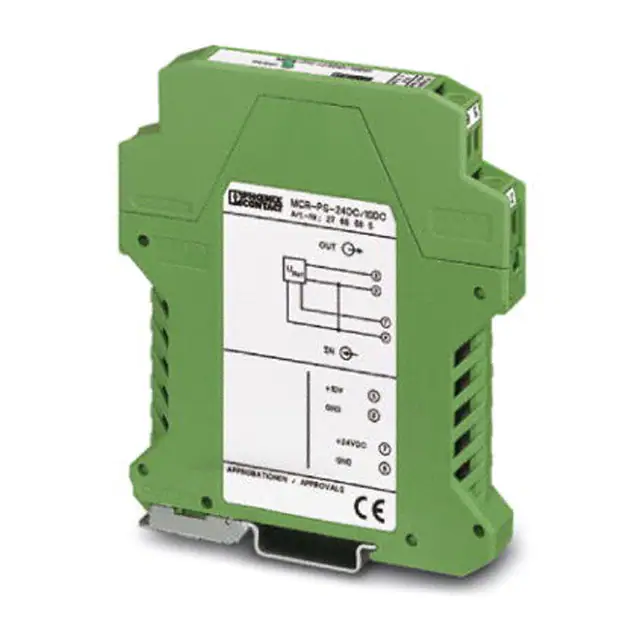

2766685DC/DC DIN RAIL SUPPLY 10V 300MW |
0 |
|
- |
- | Bulk | Obsolete | DC | 1 | - | 18V | 30V | 10V | - | - | - | - | - | 30mA | 300mW | - | - | - | -20°C ~ 65°C | - | 4.51" L x 0.49" W x 3.90" H (114.5mm x 12.5mm x 99.0mm) | CE | - |
|
2766821DC/DC DIN RAIL SUPPLY 24V 4.8W |
0 |
|
- |
- | Bulk | Obsolete | DC | 1 | - | 20V | 30V | 24V | - | - | - | - | - | 200mA | 4.8W | - | - | - | 0°C ~ 55°C | - | 3.37" L x 0.98" W x 3.11" H (85.5mm x 25.0mm x 79.0mm) | CE | - |
|
|
2786047AC/DC DIN RAIL SUPPLY 24V 2W |
0 |
|
Технический лист |
MCR | Bulk | Obsolete | AC | 1 | 120VAC | - | - | 24V | - | - | - | - | - | 100mA | 2W | - | ITE (Commercial) | - | -20°C ~ 70°C (With Derating) | - | - | CE, GOST | - |
|

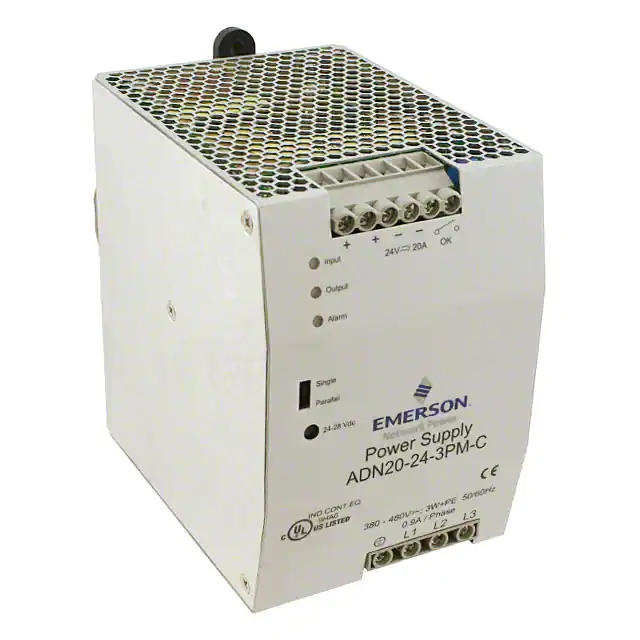

ADN20-24-3PM-CAC/DC DIN RAIL SUPPLY 24V 480W |
0 |
|
Технический лист |
ADN-C (120-960W) | Bulk | Active | AC or DC | 1 | 320 ~ 540 VAC (3 Phase) | 450V | 760V | 24V | - | - | - | - | - | 20A | 480W | - | Hazardous Locations, Industrial, ITE (Commercial) | 93% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 4.68" L x 3.34" W x 4.85" H (119.0mm x 85.0mm x 123.0mm) | CE | - |
|
|
S8VE-12024AC/DC DIN RAIL SUPPLY 24V 120W |
0 |
|
- |
S8VE (120W) | Bulk | Obsolete | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 3 kV | ITE (Commercial) | 80% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 4.77" L x 1.97" W x 4.53" H (121.2mm x 50.0mm x 115.0mm) | CE, cULus, cURus, VDE | - |
