Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

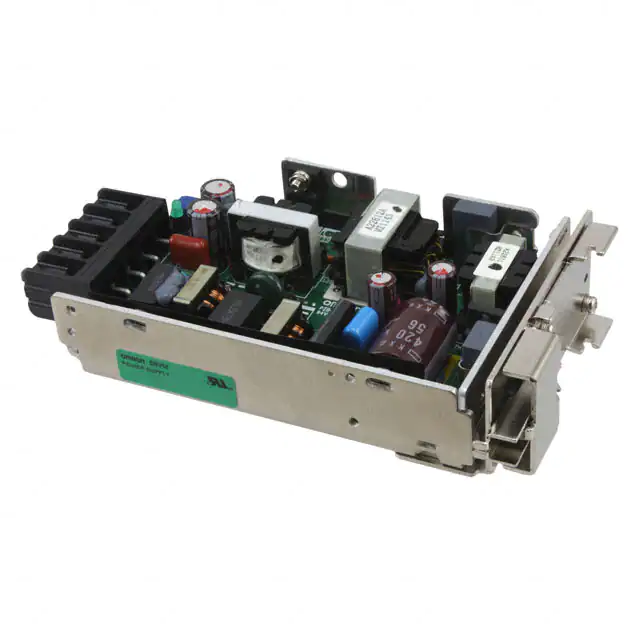

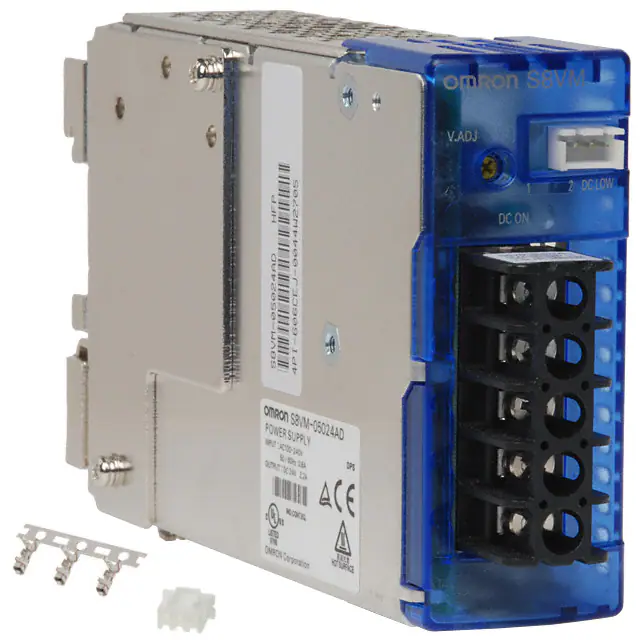

S8VM-05024ADAC/DC DIN RAIL SUPPLY 24V 50W |
0 |
|
Технический лист |
S8VM (50W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.2A | 50W | 3 kV | ITE (Commercial) | 80% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 4.90" L x 1.38" W x 3.33" H (124.5mm x 35.1mm x 84.5mm) | CE, cULus, cURus, VDE | - |
|
S8VM-05024CDAC/DC DIN RAIL SUPPLY 24V 50W |
0 |
|
Технический лист |
S8VM (50W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.2A | 50W | 3 kV | ITE (Commercial) | 80% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 4.74" L x 1.30" W x 3.25" H (120.5mm x 33.0mm x 82.5mm) | CE, cULus, cURus, VDE | - |
|

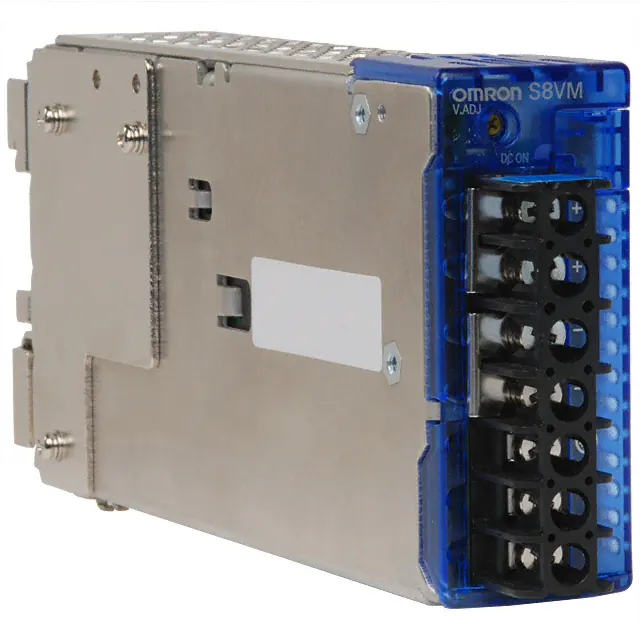

S8VM-10005CDAC/DC DIN RAIL SUPPLY 5V 100W |
0 |
|
Технический лист |
S8VM (100W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 20A | 100W | 3 kV | ITE (Commercial) | 81% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 6.32" L x 1.30" W x 3.25" H (160.5mm x 33.0mm x 82.5mm) | CE, cULus, cURus, VDE | - |
|
|
S8VM-10012CDAC/DC DIN RAIL SUPPLY 12V 100W |
0 |
|
Технический лист |
S8VM (100W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 8.5A | 100W | 3 kV | ITE (Commercial) | 81% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 6.32" L x 1.30" W x 3.25" H (160.5mm x 33.0mm x 82.5mm) | CE, cULus, cURus, VDE | - |
|
|
S8VM-10024CDAC/DC DIN RAIL SUPPLY 24V 100W |
0 |
|
Технический лист |
S8VM (100W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 4.5A | 100W | 3 kV | ITE (Commercial) | 82% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 6.32" L x 1.30" W x 3.25" H (160.5mm x 33.0mm x 82.5mm) | CE, cULus, cURus, VDE | - |
|
S8VM-15005CDAC/DC DIN RAIL SUPPLY 5V 150W |
0 |
|
Технический лист |
S8VM (150W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 27A | 150W | 3 kV | ITE (Commercial) | 81% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 6.32" L x 1.54" W x 3.25" H (160.5mm x 39.1mm x 82.5mm) | CE, cULus, cURus, VDE | - |
|
|
S8VM-15012CDAC/DC DIN RAIL SUPPLY 12V 150W |
0 |
|
Технический лист |
S8VM (150W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 12.5A | 150W | 3 kV | ITE (Commercial) | 81% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 6.32" L x 1.54" W x 3.25" H (160.5mm x 39.1mm x 82.5mm) | CE, cULus, cURus, VDE | - |
|

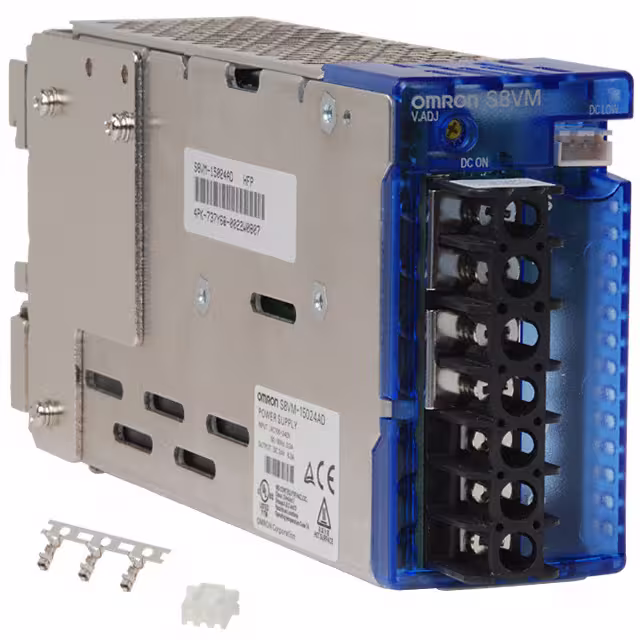

S8VM-15024ADAC/DC DIN RAIL SUPPLY 24V 150W |
0 |
|
Технический лист |
S8VM (150W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 7A | 150W | 3 kV | ITE (Commercial) | 83% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 6.48" L x 1.80" W x 3.33" H (164.5mm x 45.6mm x 84.5mm) | CE, cULus, cURus, VDE | - |
|
|

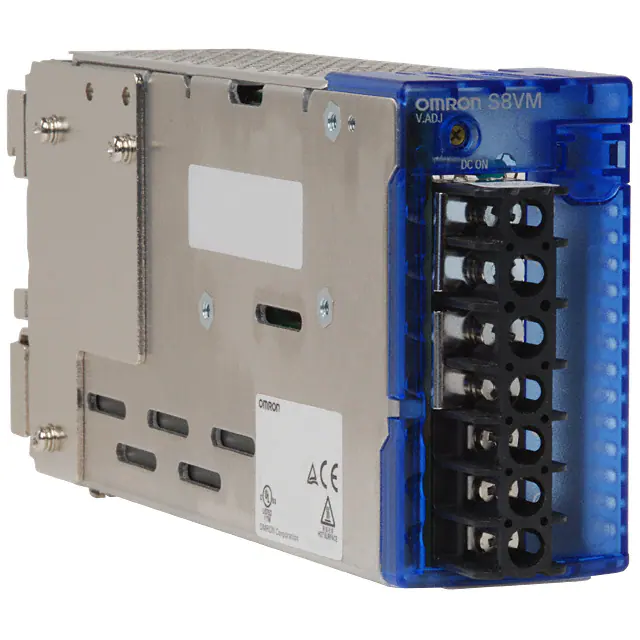

S8VM-15024CDAC/DC DIN RAIL SUPPLY 24V 150W |
0 |
|
Технический лист |
S8VM (150W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 7A | 150W | 3 kV | ITE (Commercial) | 83% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 6.32" L x 1.54" W x 3.25" H (160.5mm x 39.1mm x 82.5mm) | CE, cULus, cURus, VDE | - |
|
S8VM-01505DAC/DC DIN RAIL SUPPLY 5V 15W |
0 |
|
Технический лист |
S8VM (15W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 3A | 15W | 3 kV | ITE (Commercial) | 75% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.17" L x 1.30" W x 3.21" H (80.5mm x 33.0mm x 81.5mm) | CE, cULus, cURus, VDE | - |
|

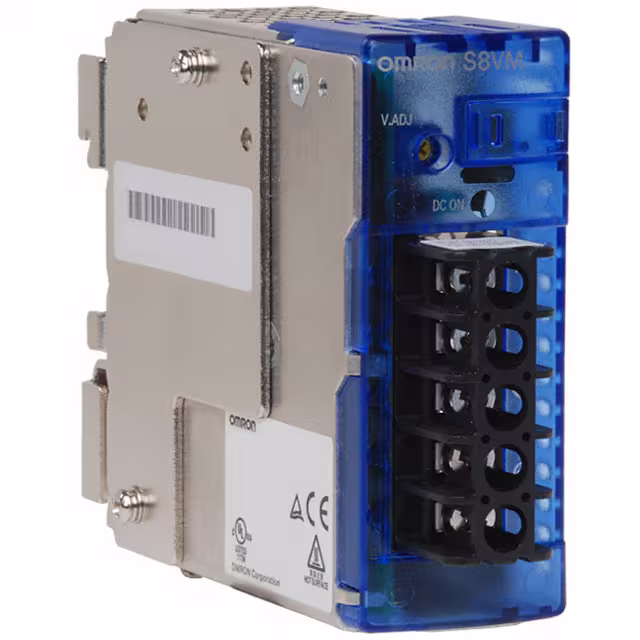

S8VM-01515CDAC/DC DIN RAIL SUPPLY 15V 15W |
0 |
|
Технический лист |
S8VM (15W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 15V | - | - | - | - | - | 1A | 15W | 3 kV | ITE (Commercial) | 78% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.17" L x 1.30" W x 3.21" H (80.5mm x 33.0mm x 81.5mm) | CE, cULus, cURus, VDE | - |
|
|
S8VM-01515DAC/DC DIN RAIL SUPPLY 15V 15W |
0 |
|
Технический лист |
S8VM (15W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 15V | - | - | - | - | - | 1A | 15W | 3 kV | ITE (Commercial) | 78% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.17" L x 1.30" W x 3.21" H (80.5mm x 33.0mm x 81.5mm) | CE, cULus, cURus, VDE | - |
|
|
S8VM-01524DAC/DC DIN RAIL SUPPLY 24V 15W |
0 |
|
Технический лист |
S8VM (15W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 650mA | 15W | 3 kV | ITE (Commercial) | 80% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.17" L x 1.30" W x 3.21" H (80.5mm x 33.0mm x 81.5mm) | CE, cULus, cURus, VDE | - |
|
|
S8VM-03005DAC/DC DIN RAIL SUPPLY 5V 30W |
0 |
|
Технический лист |
S8VM (30W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 6A | 30W | 3 kV | ITE (Commercial) | 75% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.76" L x 1.30" W x 3.23" H (95.5mm x 33.0mm x 82.0mm) | CE, cULus, cURus, VDE | - |
|
|
S8VM-03012DAC/DC DIN RAIL SUPPLY 12V 30W |
0 |
|
Технический лист |
S8VM (30W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 2.5A | 30W | 3 kV | ITE (Commercial) | 79% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.76" L x 1.30" W x 3.23" H (95.5mm x 33.0mm x 82.0mm) | CE, cULus, cURus, VDE | - |
|
|
S8VM-03015DAC/DC DIN RAIL SUPPLY 15V 30W |
0 |
|
Технический лист |
S8VM (30W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 15V | - | - | - | - | - | 2A | 30W | 3 kV | ITE (Commercial) | 79% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.76" L x 1.30" W x 3.23" H (95.5mm x 33.0mm x 82.0mm) | CE, cULus, cURus, VDE | - |
|
|
S8VM-03024DAC/DC DIN RAIL SUPPLY 24V 30W |
0 |
|
Технический лист |
S8VM (30W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 1.3A | 30W | 3 kV | ITE (Commercial) | 81% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.76" L x 1.30" W x 3.23" H (95.5mm x 33.0mm x 82.0mm) | CE, cULus, cURus, VDE | - |
|
|
S8VM-05012DAC/DC DIN RAIL SUPPLY 12V 50W |
0 |
|
Технический лист |
S8VM (50W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 4.3A | 50W | 3 kV | ITE (Commercial) | 79% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 4.74" L x 1.30" W x 3.25" H (120.5mm x 33.0mm x 82.5mm) | CE, cULus, cURus, VDE | - |
|

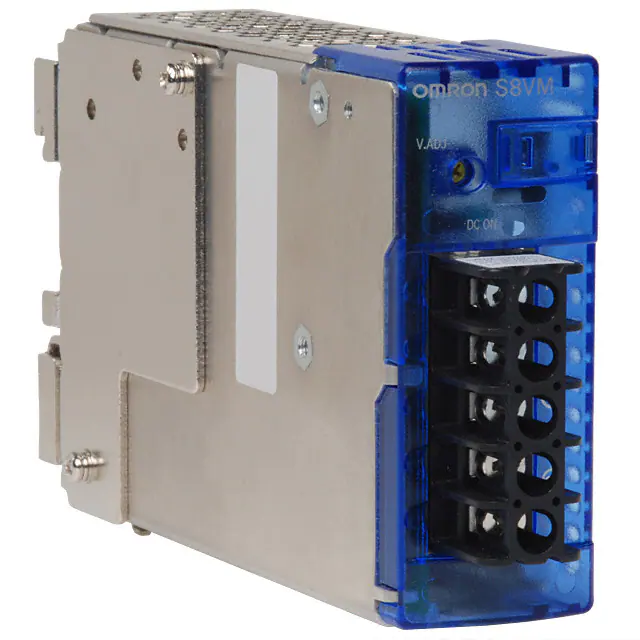

S8VM-05015CDAC/DC DIN RAIL SUPPLY 15V 50W |
0 |
|
Технический лист |
S8VM (50W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 15V | - | - | - | - | - | 3.5A | 50W | 3 kV | ITE (Commercial) | 79% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 4.74" L x 1.30" W x 3.25" H (120.5mm x 33.0mm x 82.5mm) | CE, cULus, cURus, VDE | - |
|
|
S8VM-05015DAC/DC DIN RAIL SUPPLY 15V 50W |
0 |
|
Технический лист |
S8VM (50W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 15V | - | - | - | - | - | 3.5A | 50W | 3 kV | ITE (Commercial) | 79% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 4.74" L x 1.30" W x 3.25" H (120.5mm x 33.0mm x 82.5mm) | CE, cULus, cURus, VDE | - |
