Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S8VS-01524AC/DC DIN RAIL SUPPLY 24V 15W |
0 |
|
Технический лист |
S8VS (15W) | Bulk | Obsolete | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 650mA | 15W | 3 kV | ITE (Commercial) | 77% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 3.79" L x 0.89" W x 3.35" H (96.4mm x 22.5mm x 85.0mm) | CE, cULus, cURus, VDE | - |
|
|
S8VS-03005AC/DC DIN RAIL SUPPLY 5V 30W |
0 |
|
Технический лист |
S8VS (30W) | Bulk | Obsolete | AC | 1 | 100 ~ 240 VAC | - | - | 5V | - | - | - | - | - | 4A | 30W | 3 kV | ITE (Commercial) | 70% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 3.79" L x 0.89" W x 3.35" H (96.4mm x 22.5mm x 85.0mm) | CE, cULus, cURus, VDE | - |
|
|
S8VS-03012AC/DC DIN RAIL SUPPLY 12V 30W |
0 |
|
Технический лист |
S8VS (30W) | Bulk | Obsolete | AC | 1 | 100 ~ 240 VAC | - | - | 12V | - | - | - | - | - | 2.5A | 30W | 3 kV | ITE (Commercial) | 76% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 3.79" L x 0.89" W x 3.35" H (96.4mm x 22.5mm x 85.0mm) | CE, cULus, cURus, VDE | - |
|
|
S8VS-03024AC/DC DIN RAIL SUPPLY 24V 30W |
0 |
|
Технический лист |
S8VS (30W) | Bulk | Obsolete | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 1.3A | 30W | 3 kV | ITE (Commercial) | 80% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 3.79" L x 0.89" W x 3.35" H (96.4mm x 22.5mm x 85.0mm) | CE, cULus, cURus, VDE | - |
|
S8VS-12024AC/DC DIN RAIL SUPPLY 24V 120W |
0 |
|
Технический лист |
S8VS (120W) | Bulk | Obsolete | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 3 kV | ITE (Commercial) | 80% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 4.78" L x 1.97" W x 4.53" H (121.3mm x 50.0mm x 115.0mm) | CE, cULus, cURus, VDE | - |
|

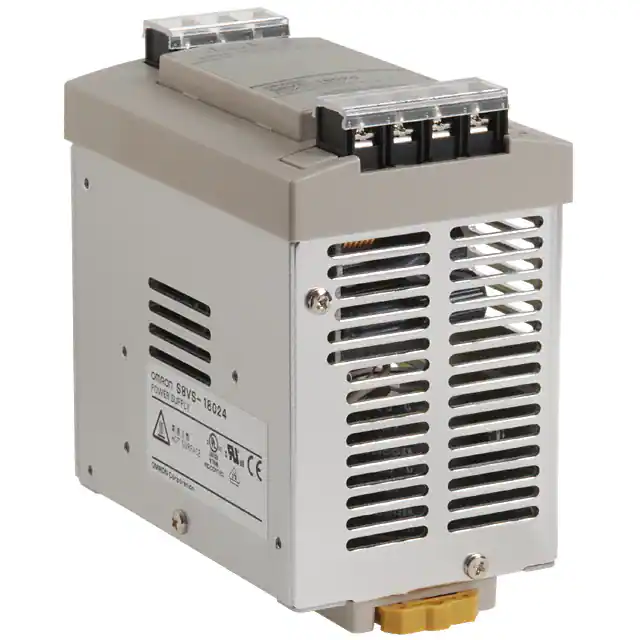

S8VS-18024AC/DC DIN RAIL SUPPLY 24V 180W |
0 |
|
Технический лист |
S8VS (180W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 7.5A | 180W | 3 kV | ITE (Commercial) | 80% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 4.93" L x 2.95" W x 4.53" H (125.3mm x 75.0mm x 115.0mm) | CE, cULus, cURus, VDE | - |
|
2866255AC/DC DIN RAIL SUPPLY 48V 240W |
0 |
|
Технический лист |
Quint | Box | Obsolete | AC | 1 | 100 ~ 240 VAC | - | - | 48V | - | - | - | - | - | 5A | 240W | 4 kV | ITE (Commercial) | 91% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 4.92" L x 3.35" W x 5.12" H (125.0mm x 85.0mm x 130.0mm) | CB, cULus, cURus | - |
|

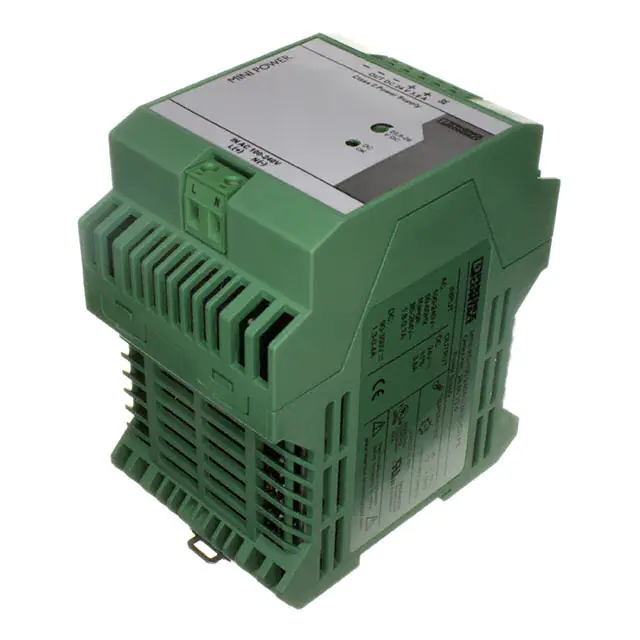

2866336AC/DC DIN RAIL SUPPLY 24V 100W |
0 |
|
Технический лист |
MINI | Box | Obsolete | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 3.8A | 100W | 4 kV | ITE (Commercial) | 88% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Universal Input | 4.21" L x 2.66" W x 3.90" H (107.0mm x 67.5mm x 99.0mm) | cULus, cURus | - |
|
2866297AC/DC DIN RAIL SUPPLY 12V 120W |
0 |
|
Технический лист |
MINI | Box | Obsolete | AC | 1 | 100 ~ 240 VAC | - | - | 12V | - | - | - | - | - | 8A | 120W | 4 kV | ITE (Commercial) | 88% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Universal Input | 4.21" L x 2.66" W x 3.90" H (107.0mm x 67.5mm x 99.0mm) | cULus, cURus | - |
|

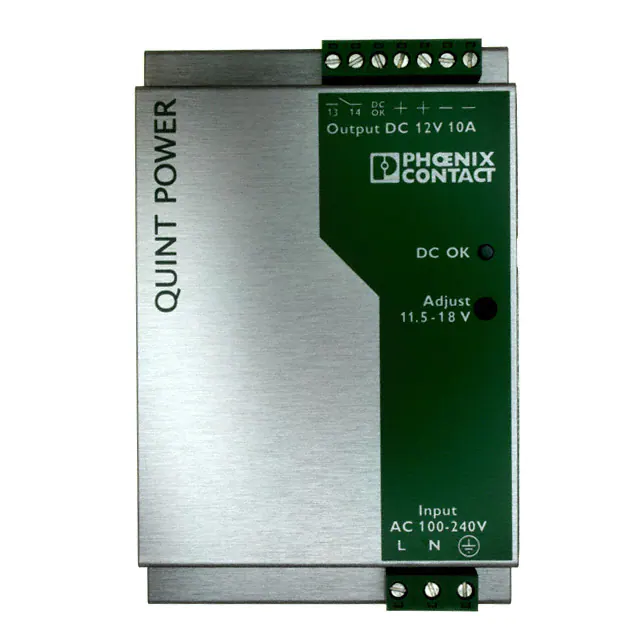

2938811AC/DC DIN RAIL SUPPLY 12V 120W |
0 |
|
Технический лист |
Quint | Box | Obsolete | AC | 1 | 100 ~ 240 VAC | - | - | 12V | - | - | - | - | - | 10A | 120W | 4 kV | ITE (Commercial) | 92% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 5.12" L x 3.35" W x 5.12" H (130.0mm x 85.0mm x 130.0mm) | CB, cULus, cURus | - |
|
S8VM-01505CDAC/DC DIN RAIL SUPPLY 5V 15W |
0 |
|
Технический лист |
S8VM (15W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 3A | 15W | 3 kV | ITE (Commercial) | 75% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.17" L x 1.30" W x 3.21" H (80.5mm x 33.0mm x 81.5mm) | CE, cULus, cURus, VDE | - |
|
|
S8VM-01512CDAC/DC DIN RAIL SUPPLY 12V 15W |
0 |
|
Технический лист |
S8VM (15W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 1.3A | 15W | 3 kV | ITE (Commercial) | 78% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.17" L x 1.30" W x 3.21" H (80.5mm x 33.0mm x 81.5mm) | CE, cULus, cURus, VDE | - |
|
|
S8VM-01524CDAC/DC DIN RAIL SUPPLY 24V 15W |
0 |
|
Технический лист |
S8VM (15W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 650mA | 15W | 3 kV | ITE (Commercial) | 80% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.17" L x 1.30" W x 3.21" H (80.5mm x 33.0mm x 81.5mm) | CE, cULus, cURus, VDE | - |
|

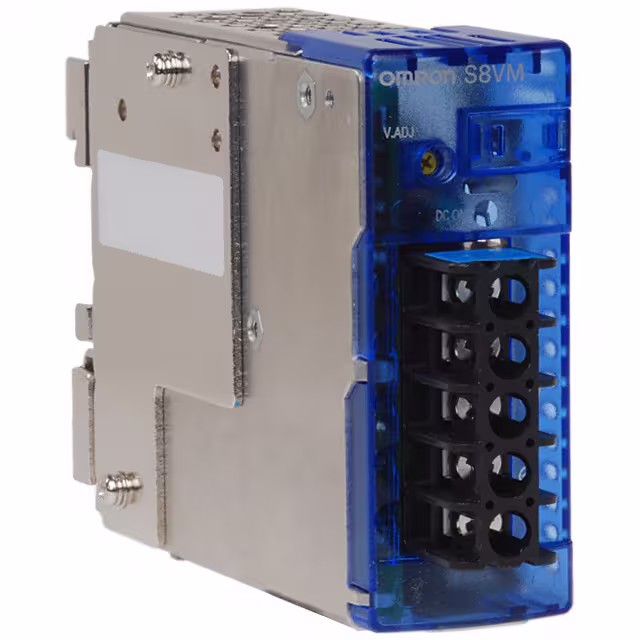

S8VM-03005CDAC/DC DIN RAIL SUPPLY 5V 30W |
0 |
|
Технический лист |
S8VM (30W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 6A | 30W | 3 kV | ITE (Commercial) | 75% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.76" L x 1.30" W x 3.23" H (95.5mm x 33.0mm x 82.0mm) | CE, cULus, cURus, VDE | - |
|
|
S8VM-03012CDAC/DC DIN RAIL SUPPLY 12V 30W |
0 |
|
Технический лист |
S8VM (30W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 2.5A | 30W | 3 kV | ITE (Commercial) | 79% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.76" L x 1.30" W x 3.23" H (95.5mm x 33.0mm x 82.0mm) | CE, cULus, cURus, VDE | - |
|

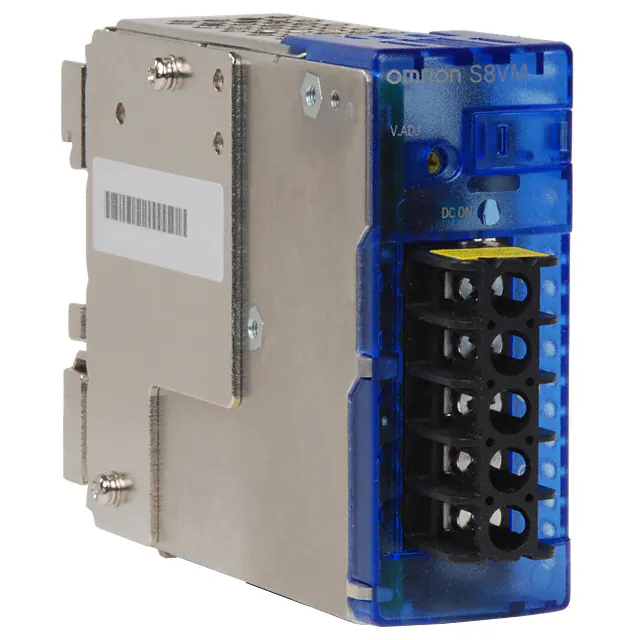

S8VM-03015CDAC/DC DIN RAIL SUPPLY 15V 30W |
0 |
|
Технический лист |
S8VM (30W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 15V | - | - | - | - | - | 2A | 30W | 3 kV | ITE (Commercial) | 79% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.76" L x 1.30" W x 3.23" H (95.5mm x 33.0mm x 82.0mm) | CE, cULus, cURus, VDE | - |
|
|
S8VM-03024ADAC/DC DIN RAIL SUPPLY 24V 30W |
0 |
|
Технический лист |
S8VM (30W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 1.3A | 30W | 3 kV | ITE (Commercial) | 81% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.76" L x 1.38" W x 3.33" H (99.5mm x 35.1mm x 84.5mm) | CE, cULus, cURus, VDE | - |
|
|
S8VM-03024CDAC/DC DIN RAIL SUPPLY 24V 30W |
0 |
|
Технический лист |
S8VM (30W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 1.3A | 30W | 3 kV | ITE (Commercial) | 81% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.76" L x 1.30" W x 3.23" H (95.5mm x 33.0mm x 82.0mm) | CE, cULus, cURus, VDE | - |
|
S8VM-05005CDAC/DC DIN RAIL SUPPLY 5V 50W |
0 |
|
Технический лист |
S8VM (50W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 10A | 50W | 3 kV | ITE (Commercial) | 80% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 4.74" L x 1.30" W x 3.25" H (120.5mm x 33.0mm x 82.5mm) | CE, cULus, cURus, VDE | - |
|
|
S8VM-05012CDAC/DC DIN RAIL SUPPLY 12V 50W |
0 |
|
Технический лист |
S8VM (50W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 4.3A | 50W | 3 kV | ITE (Commercial) | 79% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 4.74" L x 1.30" W x 3.25" H (120.5mm x 33.0mm x 82.5mm) | CE, cULus, cURus, VDE | - |
