Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

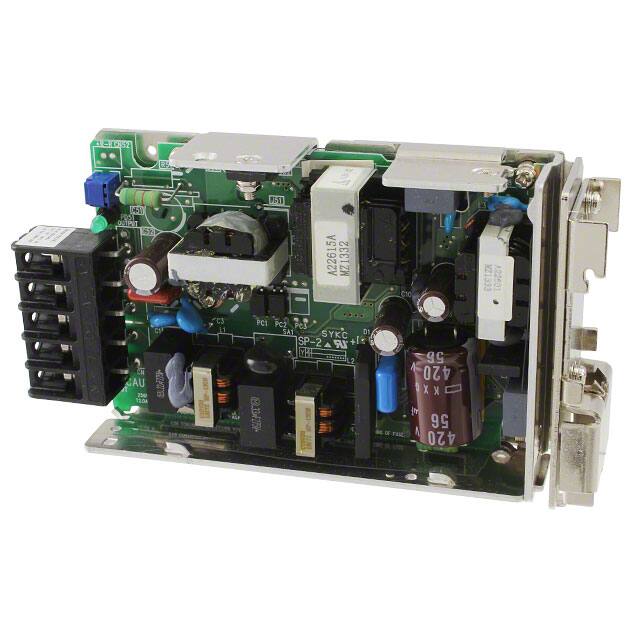

S8VM-05024DAC/DC DIN RAIL SUPPLY 24V 50W |
0 |
|
Технический лист |
S8VM (50W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.2A | 50W | 3 kV | ITE (Commercial) | 79% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 4.74" L x 1.30" W x 3.25" H (120.5mm x 33.0mm x 82.5mm) | CE, cULus, cURus, VDE | - |
|
S8VM-10005DAC/DC DIN RAIL SUPPLY 5V 100W |
0 |
|
Технический лист |
S8VM (100W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 20A | 100W | 3 kV | ITE (Commercial) | 81% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 6.32" L x 1.30" W x 3.25" H (160.5mm x 33.0mm x 82.5mm) | CE, cULus, cURus, VDE | - |
|
|
S8VM-10012DAC/DC DIN RAIL SUPPLY 12V 100W |
0 |
|
Технический лист |
S8VM (100W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 8.5A | 100W | 3 kV | ITE (Commercial) | 81% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 6.32" L x 1.30" W x 3.25" H (160.5mm x 33.0mm x 82.5mm) | CE, cULus, cURus, VDE | - |
|
S8VM-10015CDAC/DC DIN RAIL SUPPLY 15V 100W |
0 |
|
Технический лист |
S8VM (100W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 15V | - | - | - | - | - | 7A | 100W | 3 kV | ITE (Commercial) | 81% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 6.32" L x 1.30" W x 3.25" H (160.5mm x 33.0mm x 82.5mm) | CE, cULus, cURus, VDE | - |
|
|
S8VM-10015DAC/DC DIN RAIL SUPPLY 15V 100W |
0 |
|
Технический лист |
S8VM (100W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 15V | - | - | - | - | - | 7A | 100W | 3 kV | ITE (Commercial) | 81% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 6.32" L x 1.30" W x 3.25" H (160.5mm x 33.0mm x 82.5mm) | CE, cULus, cURus, VDE | - |
|
|
S8VM-10024DAC/DC DIN RAIL SUPPLY 24V 100W |
0 |
|
Технический лист |
S8VM (100W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 4.5A | 100W | 3 kV | ITE (Commercial) | 82% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 6.32" L x 1.30" W x 3.25" H (160.5mm x 33.0mm x 82.5mm) | CE, cULus, cURus, VDE | - |
|
S8VM-15005DAC/DC DIN RAIL SUPPLY 5V 150W |
0 |
|
Технический лист |
S8VM (150W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 27A | 150W | 3 kV | ITE (Commercial) | 81% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 6.32" L x 1.54" W x 3.25" H (160.5mm x 39.1mm x 82.5mm) | CE, cULus, cURus, VDE | - |
|
S8VM-15015CDAC/DC DIN RAIL SUPPLY 15V 150W |
0 |
|
Технический лист |
S8VM (150W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 15V | - | - | - | - | - | 10A | 150W | 3 kV | ITE (Commercial) | 81% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 6.32" L x 1.54" W x 3.25" H (160.5mm x 39.1mm x 82.5mm) | CE, cULus, cURus, VDE | - |
|
|
S8VM-15015DAC/DC DIN RAIL SUPPLY 15V 150W |
0 |
|
Технический лист |
S8VM (150W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 15V | - | - | - | - | - | 10A | 150W | 3 kV | ITE (Commercial) | 81% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 6.32" L x 1.54" W x 3.25" H (160.5mm x 39.1mm x 82.5mm) | CE, cULus, cURus, VDE | - |
|
|
S8VM-15024DAC/DC DIN RAIL SUPPLY 24V 150W |
0 |
|
Технический лист |
S8VM (150W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 7A | 150W | 3 kV | ITE (Commercial) | 81% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 6.32" L x 1.54" W x 3.25" H (160.5mm x 39.1mm x 82.5mm) | CE, cULus, cURus, VDE | - |
|
2938879AC/DC DIN RAIL SUPPLY 24V 960W |
0 |
|
Технический лист |
Quint | Box | Obsolete | AC | 1 | 110 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 40A | 960W | 4 kV | ITE (Commercial) | 92% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 4.92" L x 9.45" W x 5.12" H (125.0mm x 240.0mm x 130.0mm) | CB, cULus, cURus | - |
|
2938976AC/DC DIN RAIL SUPPLY 48V 960W |
0 |
|
Технический лист |
Quint | Box | Obsolete | AC | 1 | 110 ~ 240 VAC | - | - | 48V | - | - | - | - | - | 20A | 960W | 4 kV | ITE (Commercial) | 92% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 4.92" L x 9.45" W x 5.12" H (125.0mm x 240.0mm x 130.0mm) | CB, cULus, cURus | - |
|
2938594AC/DC DIN RAIL SUPPLY 24V 120W |
0 |
|
Технический лист |
Quint | Box | Obsolete | AC | 1 | 400 ~ 500 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 5A | 120W | 4 kV | ITE (Commercial) | 88% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 4.92" L x 2.76" W x 5.12" H (125.0mm x 70.0mm x 130.0mm) | CB, cULus, cURus | - |
|

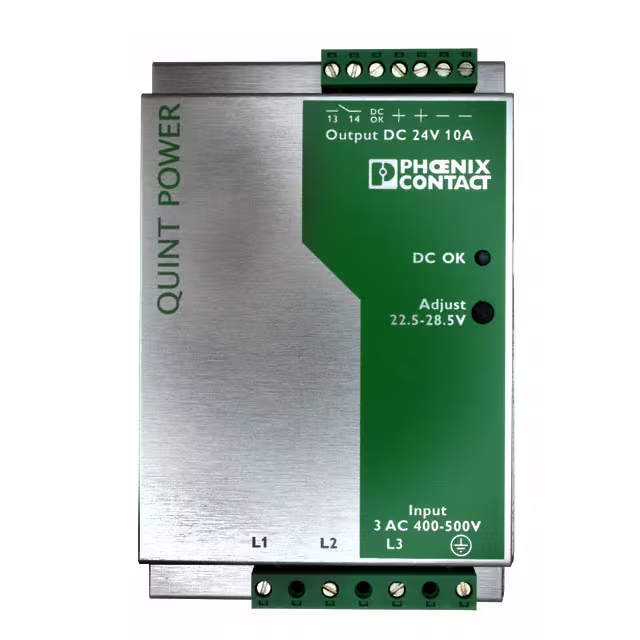

2938617AC/DC DIN RAIL SUPPLY 24V 240W |
0 |
|
Технический лист |
Quint | Box | Obsolete | AC | 1 | 400 ~ 500 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 10A | 240W | 4 kV | ITE (Commercial) | 90% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 4.92" L x 3.35" W x 5.12" H (125.0mm x 85.0mm x 130.0mm) | CB, cULus, cURus | - |
|

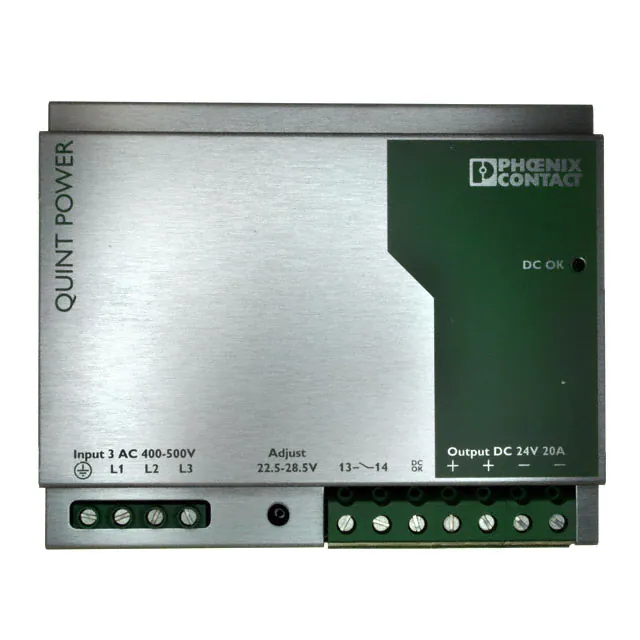

2938727AC/DC DIN RAIL SUPPLY 24V 480W |
0 |
|
Технический лист |
Quint | Box | Obsolete | AC | 1 | 400 ~ 500 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 20A | 480W | 4 kV | ITE (Commercial) | 91% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 4.92" L x 6.30" W x 5.12" H (125.0mm x 160.0mm x 130.0mm) | CB, cULus, cURus | - |
|
2938646AC/DC DIN RAIL SUPPLY 24V 960W |
0 |
|
Технический лист |
Quint | Box | Obsolete | AC | 1 | 400 ~ 500 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 40A | 960W | 4 kV | ITE (Commercial) | 91% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 4.92" L x 9.45" W x 5.12" H (125.0mm x 240.0mm x 130.0mm) | CB, cULus, cURus | - |
|
2938219AC/DC DIN RAIL SUPPLY 48V 480W |
0 |
|
Технический лист |
Quint | Box | Obsolete | AC | 1 | 400 ~ 500 VAC (3 Phase) | - | - | 48V | - | - | - | - | - | 10A | 480W | 4 kV | ITE (Commercial) | 90% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 5.12" L x 6.30" W x 5.12" H (130.0mm x 160.0mm x 130.0mm) | CB, cULus, cURus | - |
|
2938222AC/DC DIN RAIL SUPPLY 48V 960W |
0 |
|
Технический лист |
Quint | Box | Obsolete | AC | 1 | 400 ~ 500 VAC (3 Phase) | - | - | 48V | - | - | - | - | - | 20A | 960W | 4 kV | ITE (Commercial) | 90% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 5.12" L x 9.45" W x 5.12" H (130.0mm x 240.0mm x 130.0mm) | CB, cULus, cURus | - |
|
2866446AC/DC DIN RAIL SUPPLY 24V 31W |
0 |
|
Технический лист |
MINI | Box | Obsolete | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 1.3A | 31W | 4 kV | ITE (Commercial) | 85% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Universal Input | 4.21" L x 0.89" W x 3.90" H (107.0mm x 22.5mm x 99.0mm) | cULus, cURus | - |
|
DLP100-24-1/EAC/DC DIN RAIL SUPPLY 24V 100W |
0 |
|
Технический лист |
DLP100 (98.4W) | Bulk | Obsolete | AC | 1 | 85 ~ 132 VAC, 170 ~ 265 VAC | - | - | 24V | - | - | - | - | - | 4.1A | 100W | 3 kV | ITE (Commercial) | 85% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 4.33" L x 2.36" W x 3.82" H (110.0mm x 60.0mm x 97.0mm) | CE | - |
