Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S8VE-24024AC/DC DIN RAIL SUPPLY 24V 240W |
0 |
|
- |
S8VE (240W) | Bulk | Obsolete | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 3 kV | ITE (Commercial) | 80% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 4.93" L x 3.94" W x 4.53" H (125.2mm x 100.0mm x 115.0mm) | CE, cULus, cURus, VDE | - |
|
S8VS-06024-FAC/DC DIN RAIL SUPPLY 24V 60W |
0 |
|
Технический лист |
S8VS (60W) | Bulk | Obsolete | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | 3 kV | ITE (Commercial) | 78% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 4.26" L x 1.57" W x 3.74" H (108.3mm x 40.0mm x 95.0mm) | CE, cULus, cURus, VDE | - |
|
|
S8VS-09024-FAC/DC DIN RAIL SUPPLY 24V 90W |
0 |
|
Технический лист |
S8VS (90W) | Bulk | Obsolete | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 3.75A | 90W | 3 kV | ITE (Commercial) | 80% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 4.78" L x 1.97" W x 4.53" H (121.3mm x 50.0mm x 115.0mm) | CE, cULus, cURus, VDE | - |
|
|
S8VS-12024-FAC/DC DIN RAIL SUPPLY 24V 120W |
0 |
|
Технический лист |
S8VS (120W) | Bulk | Obsolete | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 3 kV | ITE (Commercial) | 80% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 4.78" L x 1.97" W x 4.53" H (121.3mm x 50.0mm x 115.0mm) | CE, cULus, cURus, VDE | - |
|
|
S8JX-G30012CDAC/DC DIN RAIL SUPPLY 12V 300W |
0 |
|
Технический лист |
S8JX-G (300W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 27A | 300W | - | ITE (Commercial) | 75% | -10°C ~ 60°C | Load Sharing, Universal Input | 8.06" L x 4.33" W x 3.78" H (204.8mm x 110.0mm x 96.0mm) | CE | - |
|
|
S8JX-G30048CDAC/DC DIN RAIL SUPPLY 48V 300W |
0 |
|
Технический лист |
S8JX-G (300W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 7A | 300W | - | ITE (Commercial) | 82% | -10°C ~ 60°C | Load Sharing, Universal Input | 8.06" L x 4.33" W x 3.78" H (204.8mm x 110.0mm x 96.0mm) | CE | - |
|
|
S8JX-G15005DAC/DC DIN RAIL SUPPLY 5V 150W |
0 |
|
- |
S8JX-G (150W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 30A | 150W | - | ITE (Commercial) | 78% | -10°C ~ 60°C | Load Sharing, Universal Input | 6.87" L x 1.97" W x 3.82" H (174.5mm x 50.0mm x 97.0mm) | CE | - |
|

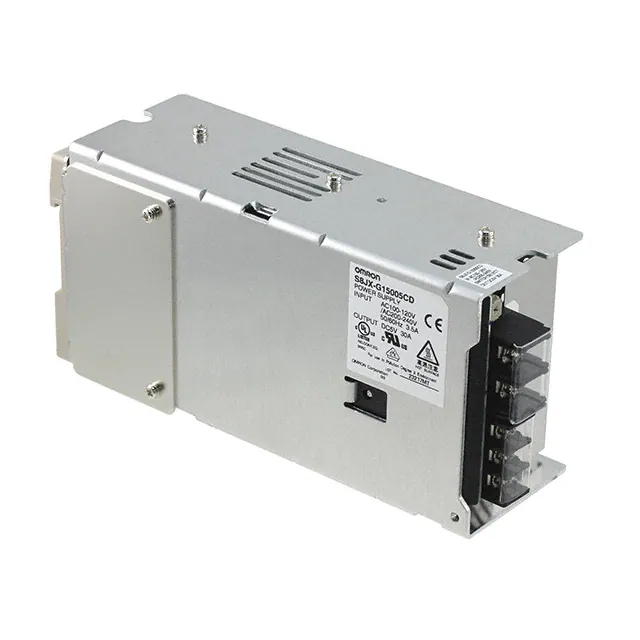

S8JX-G15005CDAC/DC DIN RAIL SUPPLY 5V 150W |
0 |
|
- |
S8JX-G (150W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 30A | 150W | - | ITE (Commercial) | 78% | -10°C ~ 60°C | Load Sharing, Universal Input | 6.87" L x 1.97" W x 3.82" H (174.5mm x 50.0mm x 97.0mm) | CE | - |
|
|
S8JX-G10048CDAC/DC DIN RAIL SUPPLY 48V 100W |
0 |
|
- |
S8JX-G (100W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 2.1A | 100W | - | ITE (Commercial) | 83% | -10°C ~ 60°C | Load Sharing, Universal Input | 6.87" L x 1.97" W x 3.82" H (174.5mm x 50.0mm x 97.0mm) | CE | - |
|
|
S8JX-G03548CDAC/DC DIN RAIL SUPPLY 48V 35W |
0 |
|
- |
S8JX-G (35W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 750mA | 35W | - | ITE (Commercial) | 73% | -10°C ~ 60°C | Load Sharing, Universal Input | 4.51" L x 1.56" W x 3.78" H (114.5mm x 39.5mm x 96.0mm) | CE | - |
|
|
S8JX-G15012DAC/DC DIN RAIL SUPPLY 12V 150W |
0 |
|
- |
S8JX-G (150W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 13A | 150W | - | ITE (Commercial) | 79% | -10°C ~ 60°C | Load Sharing, Universal Input | 6.87" L x 1.97" W x 3.82" H (174.5mm x 50.0mm x 97.0mm) | CE | - |
|
S8JX-G15012CDAC/DC DIN RAIL SUPPLY 12V 150W |
0 |
|
- |
S8JX-G (150W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 13A | 150W | - | ITE (Commercial) | 79% | -10°C ~ 60°C | Load Sharing, Universal Input | 6.87" L x 1.97" W x 3.82" H (174.5mm x 50.0mm x 97.0mm) | CE | - |
|
LOK4140-2RLDAC/DC DIN RAIL SUPPLY 12.84V 50W |
0 |
|
Технический лист |
Melcher LOK4 (50W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12.84V | - | - | - | - | - | 3.6A | 50W | 4.3 kV | ITE (Commercial) | 82% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 4.47" L x 1.50" W x 3.54" H (113.6mm x 38.0mm x 90.0mm) | cCSAus, CE, cULus, NEMKO, TUV | - |
|
|
LOK4240-2RLDAC/DC DIN RAIL SUPPLY 25.7V 50W |
0 |
|
Технический лист |
Melcher LOK4 (50W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 25.7V | - | - | - | - | - | 1.8A | 50W | 4.3 kV | ITE (Commercial) | 82% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 4.47" L x 1.50" W x 3.54" H (113.6mm x 38.0mm x 90.0mm) | cCSAus, CE, cULus, NEMKO, TUV | - |
|
|
LOK4740-2RLDAC/DC DIN RAIL SUPPLY 51.4V 50W |
0 |
|
Технический лист |
Melcher LOK4 (50W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 51.4V | - | - | - | - | - | 900mA | 50W | 4.3 kV | ITE (Commercial) | 81% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 4.47" L x 1.50" W x 3.54" H (113.6mm x 38.0mm x 90.0mm) | cCSAus, CE, cULus, NEMKO, TUV | - |
|
|
LOK4001-2RLDAC/DC DIN RAIL SUPPLY 5.1V 50W |
0 |
|
Технический лист |
Melcher LOK4 (50W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 5.1V | - | - | - | - | - | 5.2A | 50W | 4.3 kV | ITE (Commercial) | 70% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 4.47" L x 1.50" W x 3.54" H (113.6mm x 38.0mm x 90.0mm) | cCSAus, CE, cULus, NEMKO, TUV | - |
|
LXR1601-6AC/DC DIN RAIL SUPPLY 24.7V 375W |
0 |
|
Технический лист |
Melcher X (375W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24.7V | - | - | - | - | - | 15A | 375W | 2.8 kV | ITE (Commercial) | 88% | -40°C ~ 60°C | Adjustable Output, Load Sharing, PFC, Universal Input | 7.64" L x 4.47" W x 5.43" H (194.0mm x 106.6mm x 138.0mm) | cCSAus, CE | - |
|
|
LXR1701-6AC/DC DIN RAIL SUPPLY 37V 375W |
0 |
|
Технический лист |
Melcher X (375W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 37V | - | - | - | - | - | 10A | 375W | 2.8 kV | ITE (Commercial) | 88% | -40°C ~ 60°C | Adjustable Output, Load Sharing, PFC, Universal Input | 7.64" L x 4.47" W x 5.43" H (194.0mm x 106.6mm x 138.0mm) | cCSAus, CE | - |
|
|
LXR1801-6AC/DC DIN RAIL SUPPLY 49.4V 375W |
0 |
|
Технический лист |
Melcher X (375W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 49.4V | - | - | - | - | - | 7.5A | 375W | 2.8 kV | ITE (Commercial) | 88% | -40°C ~ 60°C | Adjustable Output, Load Sharing, PFC, Universal Input | 7.64" L x 4.47" W x 5.43" H (194.0mm x 106.6mm x 138.0mm) | cCSAus, CE | - |
|
LWN1701-6EAC/DC DIN RAIL SUPPLY 37V 250W |
0 |
|
Технический лист |
Melcher W (250W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 37V | - | - | - | - | - | 6.6A | 250W | 2.8 kV | ITE (Commercial) | 88% | -40°C ~ 60°C | Adjustable Output, PFC, Universal Input | 4.47" L x 4.05" W x 5.43" H (113.6mm x 103.0mm x 138.0mm) | cCSAus, CE, cULus, NEMKO, TUV | - |
