Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1011278CHGRN-80-1002 CH |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 16 A | - | - | - | - | - | 80W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011277CHGRN-80-1001 CH |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 3.3V | - | - | - | - | - | 16 A | - | - | - | - | - | 53W | ITE (Commercial), Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011280CHGRN-80-1004 CH |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 5.3 A | - | - | - | - | - | 80W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011281CHGRN-80-1005 CH |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 3.3 A | - | - | - | - | - | 80W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011279CHGRN-80-1003 CH |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 6.7 A | - | - | - | - | - | 80W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
TB110S48KAC/DC CONVERTER 48V 80W |
0 |
|
Технический лист |
TB110S (110W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 1.6 A | - | - | - | - | - | 80W (110W Forced Air) | ITE (Commercial) | 3 kV | 89% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.32" H (101.6mm x 50.8mm x 33.6mm) | CE, cURus, DEMKO |
|

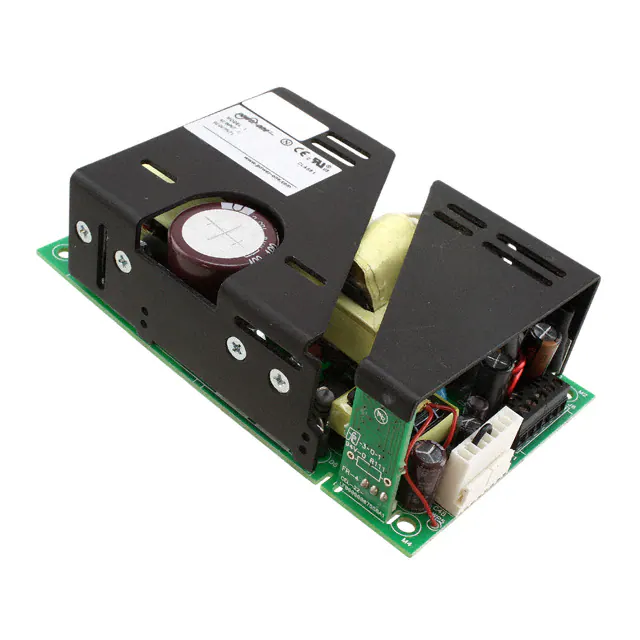

MBC201-1T12G-2AC/DC CONVERTER 12V 160/200W |
42 |
|
Технический лист |
MBC201 (200W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 13.33 A | - | - | - | - | - | 160W (200W Forced Air) | Medical | 4.242 kV | - | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) | CE |
|
|
MBC201-1024G-2AC/DC CONVERTER 24V 160/200W |
41 |
|
Технический лист |
MBC201 (200W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 6.66 A | - | - | - | - | - | 160W (200W Forced Air) | Medical | 4.242 kV | - | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) | CE |
|
|
MBC201-1012G-2AC/DC CONVERTER 12V 160/200W |
40 |
|
Технический лист |
MBC201 (200W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 13.33 A | - | - | - | - | - | 160W (200W Forced Air) | Medical | 4.242 kV | - | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) | CE |
|
GSC25DGAC/DC CNVRTR 5.1V 24V -12V 25W |
0 |
|
Технический лист |
GSC25 (25W) | Bulk | Obsolete | Open Frame | 3 | 90 ~ 264 VAC | 5.1V | 24V | -12V | - | - | - | 2.5 A | 1.5 A | 200 mA | - | - | - | 25W | ITE (Commercial) | - | 70% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 0.86" H (108.0mm x 63.5mm x 21.8mm) | CE, cURus, TUV |
|

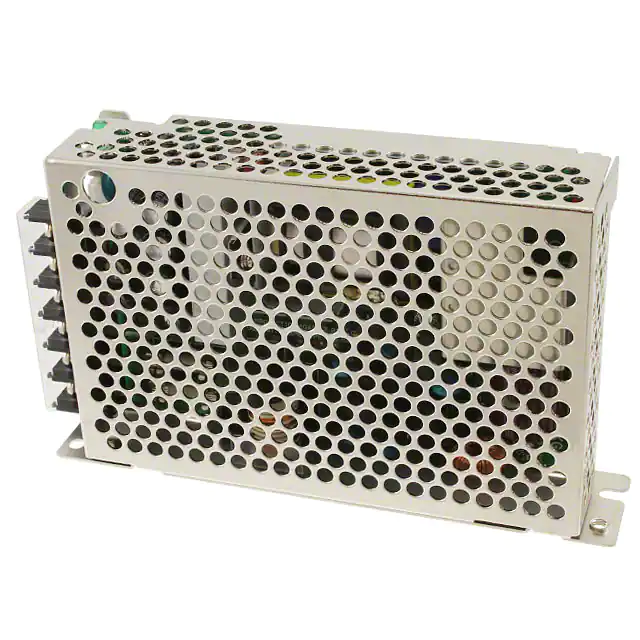

HWB030S-12-M-CAC/DC CONVERTER 12V 30W |
39 |
|
Технический лист |
HWB (30W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 3 A | - | - | - | - | - | 30W | ITE (Commercial), Medical | - | 77% | -10°C ~ 60°C | Load Sharing, Universal Input | Chassis Mount | 5.35" L x 3.62" W x 1.38" H (136.0mm x 92.0mm x 35.0mm) | CE, cURus, GS |
|
VOF-85-5AC/DC CONVERTER 5V 53W |
0 |
|
Технический лист |
VOF-85 (85W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 277 VAC | 5V | - | - | - | - | - | 10.6 A | - | - | - | - | - | 53W | ITE (Commercial) | 3 kV | 78% | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.32" H (101.6mm x 50.8mm x 33.6mm) | CB Scheme, EN, FCC, IEC, SIQ, TUV, UL |
|
1011266CHCOGRN-45-3002 CHCO |
50 |
|
Технический лист |
GRN-45 (45W) | Box | Active | Enclosed | 3 | 85 ~ 264 VAC | 5V | 15V | -15V | - | - | - | 5 A | 1 A | 1 A | - | - | - | 45W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011265CHCOGRN-45-3001 CHCO |
50 |
|
Технический лист |
GRN-45 (45W) | Box | Active | Enclosed | 3 | 85 ~ 264 VAC | 5V | 12V | -12V | - | - | - | 5 A | 1 A | 1 A | - | - | - | 45W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
1011395CHGRN-45-3001 OVP CH |
50 |
|
Технический лист |
GRN-45 (45W) | Box | Active | Chassis | 3 | 85 ~ 264 VAC | 5V | 12V | -12V | - | - | - | 5 A | 1 A | 1 A | - | - | - | 45W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011396CHGRN-45-3002 OVP CH |
50 |
|
Технический лист |
GRN-45 (45W) | Box | Active | Chassis | 3 | 85 ~ 264 VAC | 5V | 15V | -15V | - | - | - | 5 A | 1 A | 1 A | - | - | - | 45W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
MB120S18K01AC/DC CONVERTER 18V 99W |
0 |
|
Технический лист |
MB120S (120W) | Bulk | Active | Open Frame | 1 | 80 ~ 264 VAC | 18V | - | - | - | - | - | 5.5 A | - | - | - | - | - | 99W (119W Forced Air) | Medical | 4000 V | 94% | -10°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.25" H (101.6mm x 50.8mm x 31.8mm) | CE |
|
|
MB120S24K01AC/DC CONVERTER 24V 98W |
0 |
|
Технический лист |
MB120S (120W) | Bulk | Obsolete | Open Frame | 1 | 80 ~ 264 VAC | 24V | - | - | - | - | - | 4.1 A | - | - | - | - | - | 98W (120W Forced Air) | Medical | 4000 V | 94% | -10°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.25" H (101.6mm x 50.8mm x 31.8mm) | CE |
|
MULP275-1348AC/DC CONVERTER 48V 160W |
34 |
|
Технический лист |
MULP275 (275W) | Bulk | Active | Open Frame | 1 | 80 ~ 264 VAC, 390VDC | 48V | - | - | - | - | - | 3.33 A | - | - | - | - | - | 160W (275W Forced Air) | Medical | 4 kV | 92% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.1mm) | CB, CE, cUL, NEMKO, UL |
|

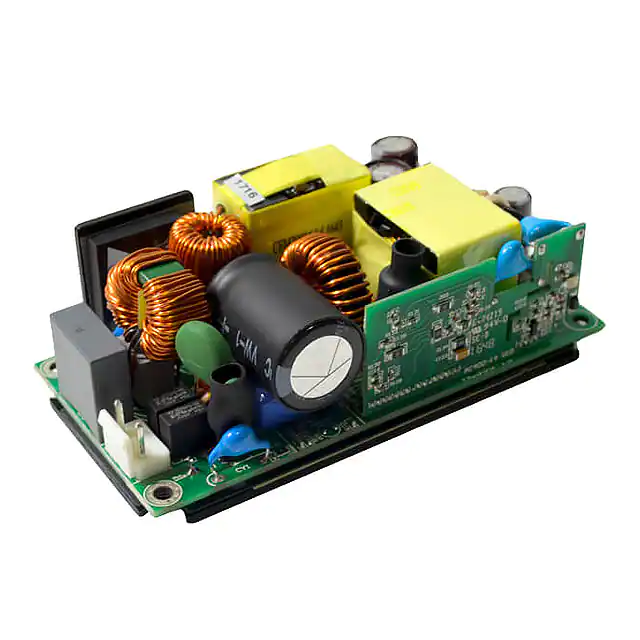

VMS-200-12AC/DC CONVERTER 12V 200W |
40 |
|
Технический лист |
VMS-200 (200W) | Tray | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 16.67 A | - | - | - | - | - | 200W | Medical | 4 kV | 92% | -20°C ~ 80°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.48" H (101.6mm x 50.8mm x 37.6mm) | CB Scheme, EN, IEC, TUV, UL |
