Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1010385CHSRP-40A-3001 CH |
50 |
|
Технический лист |
SRP-40A (40W) | Box | Active | Chassis | 3 | 100 ~ 240 VAC | 5V | 12V | -12V | - | - | - | 5 A | 2 A | 700 mA | - | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 73% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.45" L x 2.81" W x 1.70" H (113.0mm x 71.4mm x 43.2mm) | CE, cURus, TUV, UKCA |
|
|
1010524CHSRP-40A-3004 CH |
50 |
|
Технический лист |
SRP-40A (40W) | Box | Active | Chassis | 3 | 100 ~ 240 VAC | 14.5V | -14.5V | 5V | - | - | - | 1.5 A | 1.5 A | 1 A | - | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 73% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.45" L x 2.81" W x 1.70" H (113.0mm x 71.4mm x 43.2mm) | CE, cURus, TUV, UKCA |
|
|
1010386CHSRP-40A-3002 CH |
50 |
|
Технический лист |
SRP-40A (40W) | Box | Active | Chassis | 3 | 100 ~ 240 VAC | 5V | 15V | -15V | - | - | - | 5 A | 2 A | 700 mA | - | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 73% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.45" L x 2.81" W x 1.70" H (113.0mm x 71.4mm x 43.2mm) | CE, cURus, TUV, UKCA |
|

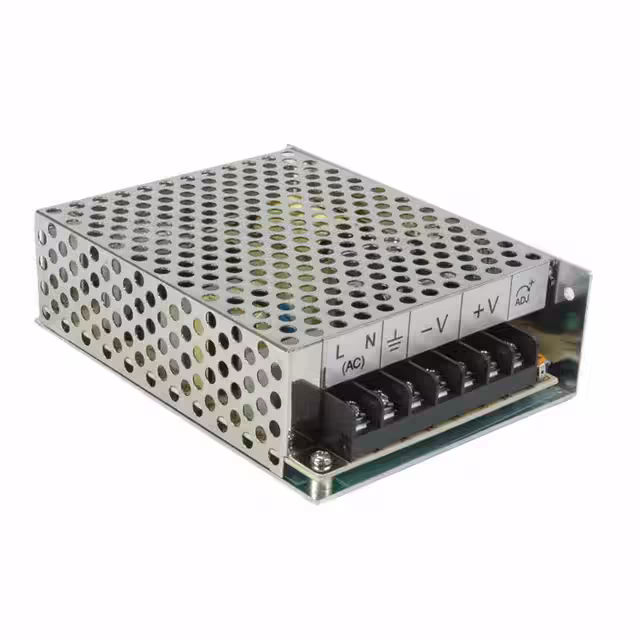

VGS-75-12AC/DC CONVERTER 12V 75W |
0 |
|
Технический лист |
VGS-75 (76.8W) | Bulk | Obsolete | Enclosed | 1 | 88 ~ 264 VAC | 12V | - | - | - | - | - | 6 A | - | - | - | - | - | 75W | ITE (Commercial) | 4.242 kV | 87% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.10" L x 3.84" W x 1.48" H (129.5mm x 97.5mm x 37.5mm) | CB Scheme, EN, IEC, SIQ, TUV, UL |
|
MB115S56KAC/DC CONVERTER 56V 75W |
0 |
|
- |
MB115 (115W) | Bulk | Not For New Designs | Open Frame | 1 | 90 ~ 264 VAC | 56V | - | - | - | - | - | 1.34 A | - | - | - | - | - | 75W (115W Forced Air) | Medical | 4 kV | 90% | -20°C ~ 70°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.26" H (101.6mm x 50.8mm x 32.1mm) | CE, cURus, TUV |
|
|
OFM-0208AC/DC CONVERTER 3.3V 6V 19W |
1,051 |
|
Технический лист |
OFM20 (20W) | Bulk | Active | Open Frame | 2 | 90 ~ 264 VAC | 3.3V | 6V | - | - | - | - | 3 A | 1.5 A | - | - | - | - | 19W | ITE (Commercial) | 3 kV | 78% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | - | CB, cURus, UL |
|
1010389CHCOSRP-40A-2003 CHCO |
50 |
|
Технический лист |
SRP-40A (40W) | Box | Active | Enclosed | 2 | 100 ~ 240 VAC | 5V | -5V | - | - | - | - | 5 A | 4 A | - | - | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 73% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.45" L x 2.81" W x 1.70" H (113.0mm x 71.4mm x 43.2mm) | CE, cURus, TUV, UKCA |
|
|
1010391CHCOSRP-40A-2005 CHCO |
50 |
|
Технический лист |
SRP-40A (40W) | Box | Active | Enclosed | 2 | 100 ~ 240 VAC | 15V | -15V | - | - | - | - | 2.5 A | 2 A | - | - | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 73% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.45" L x 2.81" W x 1.70" H (113.0mm x 71.4mm x 43.2mm) | CE, cURus, TUV, UKCA |
|
|
1010388CHCOSRP-40A-2002 CHCO |
50 |
|
Технический лист |
SRP-40A (40W) | Box | Active | Enclosed | 2 | 100 ~ 240 VAC | 5V | 12V | - | - | - | - | 5 A | 3 A | - | - | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 73% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.45" L x 2.81" W x 1.70" H (113.0mm x 71.4mm x 43.2mm) | CE, cURus, TUV, UKCA |
|
|
1010390CHCOSRP-40A-2004 CHCO |
50 |
|
Технический лист |
SRP-40A (40W) | Box | Active | Enclosed | 2 | 100 ~ 240 VAC | 12V | -12V | - | - | - | - | 3 A | 3 A | - | - | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 73% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.45" L x 2.81" W x 1.70" H (113.0mm x 71.4mm x 43.2mm) | CE, cURus, TUV, UKCA |
|
|
1010828CHCOSRP-40A-2008 CHCO |
50 |
|
Технический лист |
SRP-40A (40W) | Box | Active | Enclosed | 2 | 100 ~ 240 VAC | 6V | 9V | - | - | - | - | 5 A | 1.1 A | - | - | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 73% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.45" L x 2.81" W x 1.70" H (113.0mm x 71.4mm x 43.2mm) | CE, cURus, TUV, UKCA |
|
|
1010387CHCOSRP-40A-2001 CHCO |
50 |
|
Технический лист |
SRP-40A (40W) | Box | Active | Enclosed | 2 | 100 ~ 240 VAC | 5V | 24V | - | - | - | - | 5 A | 1.5 A | - | - | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 73% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.45" L x 2.81" W x 1.70" H (113.0mm x 71.4mm x 43.2mm) | CE, cURus, TUV, UKCA |
|
|
1010494CHCOSRP-40A-2006 CHCO |
50 |
|
Технический лист |
SRP-40A (40W) | Box | Active | Enclosed | 2 | 100 ~ 240 VAC | 30V | - | - | - | - | - | 1.2 A | 700 mA | - | - | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 73% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.45" L x 2.81" W x 1.70" H (113.0mm x 71.4mm x 43.2mm) | CE, cURus, TUV, UKCA |
|
|
1010820CHCOSRP-40A-2007 CHCO |
50 |
|
Технический лист |
SRP-40A (40W) | Box | Active | Enclosed | 2 | 100 ~ 240 VAC | 3.3V | - | - | - | - | - | 5 A | 700 mA | - | - | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 73% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.45" L x 2.81" W x 1.70" H (113.0mm x 71.4mm x 43.2mm) | CE, cURus, TUV, UKCA |
|
|
1010830CHCOSRP-40A-2009 CHCO |
50 |
|
Технический лист |
SRP-40A (40W) | Box | Active | Enclosed | 2 | 100 ~ 240 VAC | 30V | -30V | - | - | - | - | 500 mA | 500 mA | - | - | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 73% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.45" L x 2.81" W x 1.70" H (113.0mm x 71.4mm x 43.2mm) | CE, cURus, TUV, UKCA |
|
1011264GRN-45-4004 |
50 |
|
Технический лист |
GRN-45 (45W) | Box | Active | Open Frame | 4 | 85 ~ 264 VAC | 5V | 24V | 15V | -15V | - | - | 5 A | 1 A | 1 A | 1 A | - | - | 45W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 0.83" H (108.0mm x 63.5mm x 21.1mm) | CE, cURus, TUV, UKCA |
|

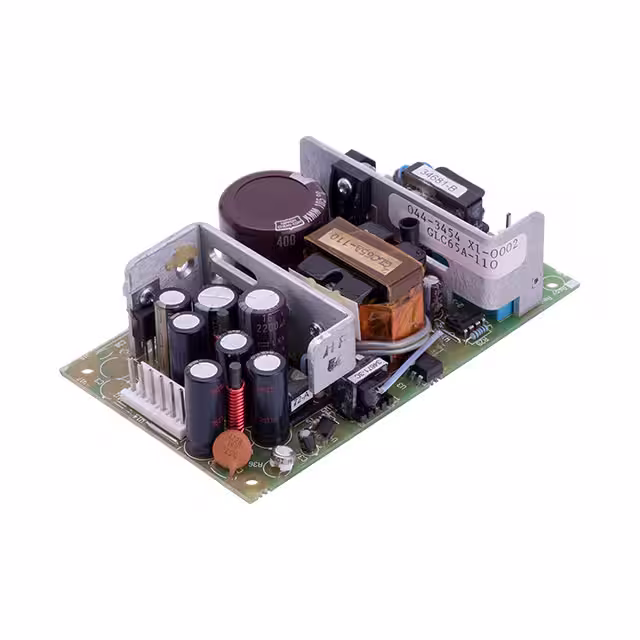

GLC65-24GAC/DC CONVERTER 24V 65W |
0 |
|
Технический лист |
GLC65 (65W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 2.7 A | - | - | - | - | - | 65W | ITE (Commercial) | - | 80% | 0°C ~ 50°C | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.8mm) | CE, cURus, TUV |
|

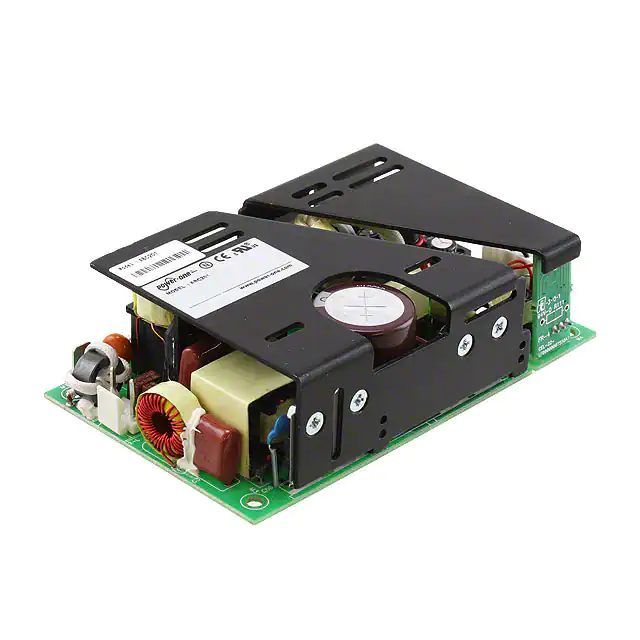

ABC201-1T24GAC/DC CONVERTER 24V 160/200W |
5 |
|
Технический лист |
ABC201 (200W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 6.66 A | - | - | - | - | - | 160W (200W Forced Air) | ITE (Commercial) | 4.242 kV | - | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) | CE |
|

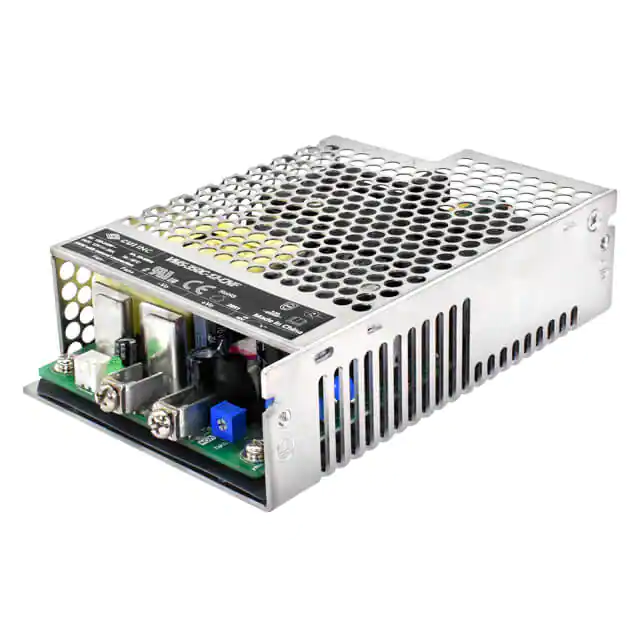

VMS-350C-36-CNFAC/DC CONVERTER 36V 350W |
29 |
|
Технический лист |
VMS-350C-CNF (350W) | Box | Not For New Designs | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 36V | - | - | - | - | - | 9.73 A | - | - | - | - | - | 350W | Household Appliances, Medical | 4 kV | 93% | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 5.12" L x 3.39" W x 1.38" H (130.0mm x 86.0mm x 35.0mm) | CE, cURus |
|
1011398CHGRN-45-2002 OVP CH |
50 |
|
Технический лист |
GRN-45 (45W) | Box | Active | Chassis | 2 | 85 ~ 264 VAC | 5V | 12V | - | - | - | - | 5 A | 2 A | - | - | - | - | 45W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
