Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

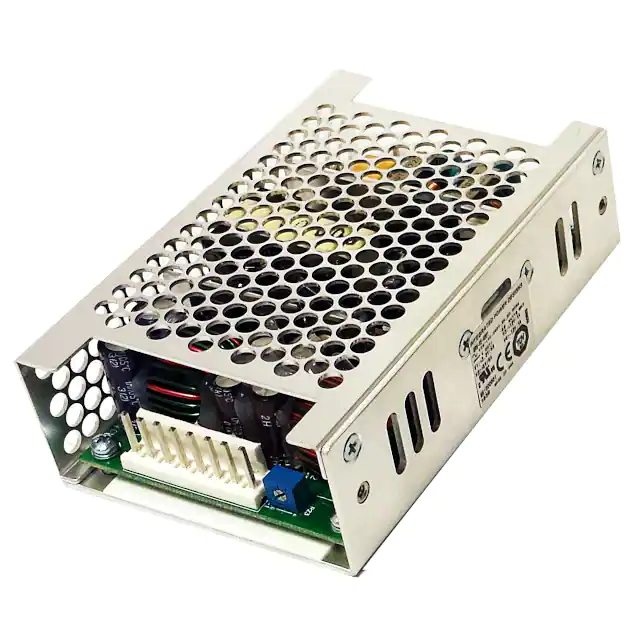

1011267CHCOGRN-45-2001 CHCO |
50 |
|
Технический лист |
GRN-45 (45W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 5V | 24V | - | - | - | - | 5 A | 1 A | - | - | - | - | 45W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
1011399CHGRN-45-2003 OVP CH |
50 |
|
Технический лист |
GRN-45 (45W) | Box | Active | Chassis | 2 | 85 ~ 264 VAC | 12V | -12V | - | - | - | - | 2 A | 2 A | - | - | - | - | 45W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011268CHCOGRN-45-2002 CHCO |
50 |
|
Технический лист |
GRN-45 (45W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 5V | 12V | - | - | - | - | 5 A | 2 A | - | - | - | - | 45W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011270CHCOGRN-45-2004 CHCO |
50 |
|
Технический лист |
GRN-45 (45W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 15V | -15V | - | - | - | - | 2 A | 2 A | - | - | - | - | 45W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011400CHGRN-45-2004 OVP CH |
50 |
|
Технический лист |
GRN-45 (45W) | Box | Active | Chassis | 2 | 85 ~ 264 VAC | 15V | -15V | - | - | - | - | 2 A | 2 A | - | - | - | - | 45W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011269CHCOGRN-45-2003 CHCO |
50 |
|
Технический лист |
GRN-45 (45W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 12V | -12V | - | - | - | - | 2 A | 2 A | - | - | - | - | 45W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011397CHGRN-45-2001 OVP CH |
50 |
|
Технический лист |
GRN-45 (45W) | Box | Active | Chassis | 2 | 85 ~ 264 VAC | 5V | 24V | - | - | - | - | 5 A | 1 A | - | - | - | - | 45W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|

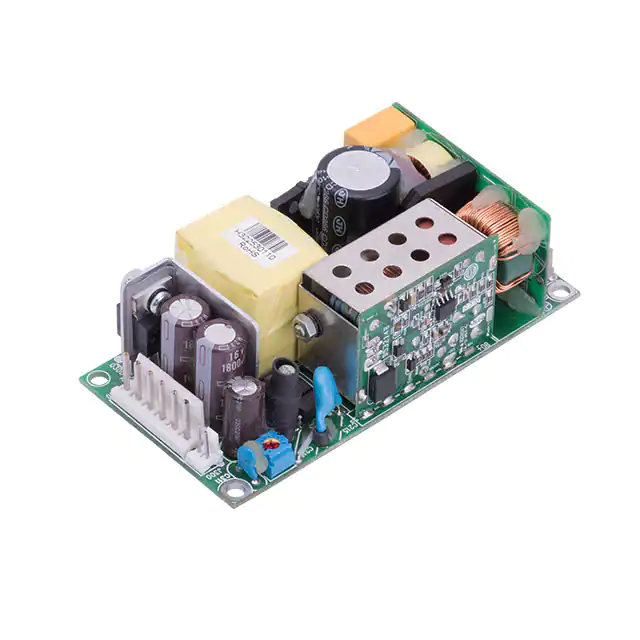

CINT1150A2406K01AC/DC CONVERTER 24V 100W |
0 |
|
Технический лист |
CINT1150 (150W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 4.17 A | - | - | - | - | - | 100W (150W Forced Air) | ITE (Commercial) | 4 kV | 88% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.30" H (101.6mm x 50.8mm x 33.0mm) | CE |
|
|
CINT1150A1206K01AC/DC CONVERTER 12V 100W |
0 |
|
Технический лист |
CINT1150 (150W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 8.33 A | - | - | - | - | - | 100W (150W Forced Air) | ITE (Commercial) | 4 kV | 88% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.30" H (101.6mm x 50.8mm x 33.0mm) | CE |
|
|
CINT1150A4806K01AC/DC CONVERTER 48V 100W |
0 |
|
Технический лист |
CINT1150 (150W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 2.08 A | - | - | - | - | - | 100W (150W Forced Air) | ITE (Commercial) | 4 kV | 88% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.30" H (101.6mm x 50.8mm x 33.0mm) | CE |
|
|
CINT1150A5606K01AC/DC CONVERTER 56V 100W |
0 |
|
Технический лист |
CINT1150 (150W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 56V | - | - | - | - | - | 1.79 A | - | - | - | - | - | 100W (150W Forced Air) | ITE (Commercial) | 4 kV | 88% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.30" H (101.6mm x 50.8mm x 33.0mm) | CE |
|

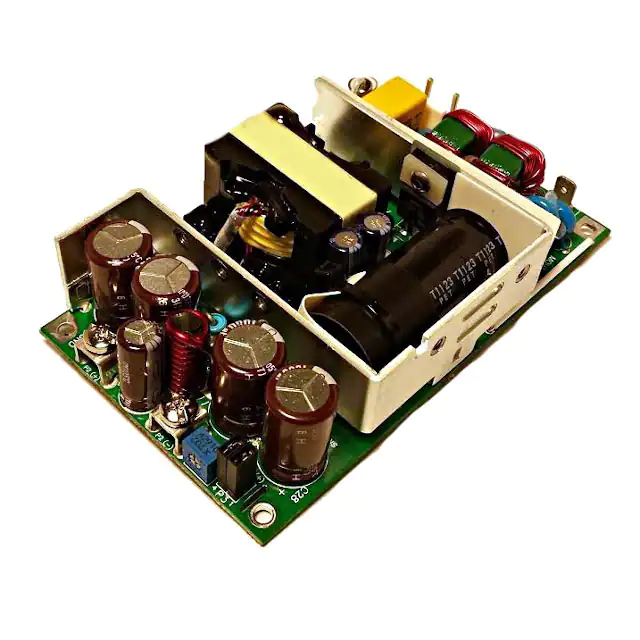

1011278GRN-80-1002 |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 16 A | - | - | - | - | - | 80W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 0.83" H (108.0mm x 63.5mm x 21.1mm) | CE, cURus, TUV, UKCA |
|
|
1011280GRN-80-1004 |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 5.3 A | - | - | - | - | - | 80W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 0.83" H (108.0mm x 63.5mm x 21.1mm) | CE, cURus, TUV, UKCA |
|
OFM-0103AC/DC CONVERTER 15V 10W |
124 |
|
Технический лист |
OFM10 (10W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 670 mA | - | - | - | - | - | 10W | ITE (Commercial) | 3 kV | 81% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 2.56" L x 1.77" W x 0.96" H (65.0mm x 45.0mm x 24.5mm) | cURus |
|
|
GSM15-12GAC/DC CONVERTER 12V 15W |
111 |
|
Технический лист |
GSM15 (15W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 15W | Medical | - | 85% | 0°C ~ 50°C | Universal Input | Chassis Mount | 3.00" L x 2.10" W x 0.92" H (76.2mm x 53.3mm x 23.4mm) | CE, cURus, TUV |
|
|
OFM-0107AC/DC CONVERTER +/-15V 10W |
61 |
|
Технический лист |
OFM10 (10W) | Bulk | Active | Open Frame | 2 | 90 ~ 264 VAC | 15V | -15V | - | - | - | - | 340 mA | 340 mA | - | - | - | - | 10W | ITE (Commercial) | 3 kV | 81% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 2.56" L x 1.77" W x 0.94" H (65.0mm x 45.0mm x 23.8mm) | cURus |
|
|
OFM-0100AC/DC CONVERTER 3.3V 8.25W |
51 |
|
Технический лист |
OFM10 (10W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 3.3V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 8.25W | ITE (Commercial) | 3 kV | 67% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 2.56" L x 1.77" W x 0.96" H (65.0mm x 45.0mm x 24.5mm) | cURus |
|
|
OFM-0101/MAC/DC CONVERTER 5V 10W |
47 |
|
Технический лист |
OFM10/M (10W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 5V | - | - | - | - | - | 2 A | - | - | - | - | - | 10W | ITE (Commercial) | 3 kV | 71% | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | - | cURus |
|
MINT1150A4806K01AC/DC CONVERTER 48V 100W |
0 |
|
Технический лист |
MINT1150 (150W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 2.08 A | - | - | - | - | - | 100W (150W Forced Air) | Medical | 4 kV | 89% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.30" H (101.6mm x 50.8mm x 33.0mm) | CE |
|

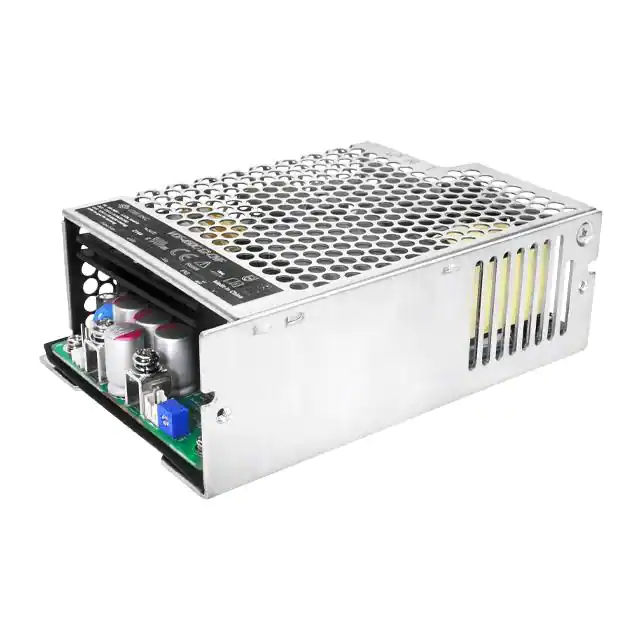

VOF-450C-24-CNFAC/DC CONVERTER 24V 450W |
26 |
|
Технический лист |
VOF-450C-CNF (450W) | Box | Not For New Designs | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 24V | - | - | - | - | - | 18.75 A | - | - | - | - | - | 450W | Household Appliances, ITE (Commercial) | 4 kV | 93% | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.12" L x 3.39" W x 1.69" H (130.0mm x 86.0mm x 43.0mm) | CE, cURus, UKCA |
