Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1011392CHGRN-45-4002 OVP CH |
50 |
|
Технический лист |
GRN-45 (45W) | Box | Active | Chassis | 4 | 85 ~ 264 VAC | 5V | -5V | 12V | -12V | - | - | 5 A | 5 A | 1 A | 1 A | - | - | 45W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011394CHGRN-45-4004 OVP CH |
50 |
|
Технический лист |
GRN-45 (45W) | Box | Active | Chassis | 4 | 85 ~ 264 VAC | 5V | 24V | 15V | -15V | - | - | 5 A | 1 A | 1 A | 1 A | - | - | 45W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
LOF450-20B24AC/DC CONVERTER 24V 252W |
55 |
|
Технический лист |
LOF450-20Bxx (450W) | Tray | Not For New Designs | Open Frame, Conformal Coated | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 24V | - | - | - | - | - | 18.75 A | - | - | - | - | - | 252W (450W Forced Air) | Household Appliances, ITE (Commercial), Laboratory | 4 kV | 93% | -40°C ~ 70°C (With Derating) | Adjustable Output, Baseplate, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.52" H (127.0mm x 76.2mm x 38.5mm) | CE, cURus, UL |
|
|
LOF450-20B12AC/DC CONVERTER 12V 250W |
48 |
|
Технический лист |
LOF450-20Bxx (450W) | Tray | Not For New Designs | Open Frame, Conformal Coated | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | - | - | - | - | - | 33.3 A | - | - | - | - | - | 250W (400W Forced Air) | Household Appliances, ITE (Commercial), Laboratory | 4 kV | 91% | -40°C ~ 70°C (With Derating) | Adjustable Output, Baseplate, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.52" H (127.0mm x 76.2mm x 38.5mm) | CE, cURus, UL |
|
|
LOF450-20B48AC/DC CONVERTER 48V 254W |
39 |
|
Технический лист |
LOF450-20Bxx (450W) | Tray | Not For New Designs | Open Frame, Conformal Coated | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 48V | - | - | - | - | - | 9.4 A | - | - | - | - | - | 254W (451W Forced Air) | Household Appliances, ITE (Commercial), Laboratory | 4 kV | 94% | -40°C ~ 70°C (With Derating) | Adjustable Output, Baseplate, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.52" H (127.0mm x 76.2mm x 38.5mm) | CE, cURus, UL |
|
1011363CHGRN-80-1002 OVP CH |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 16 A | - | - | - | - | - | 80W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|

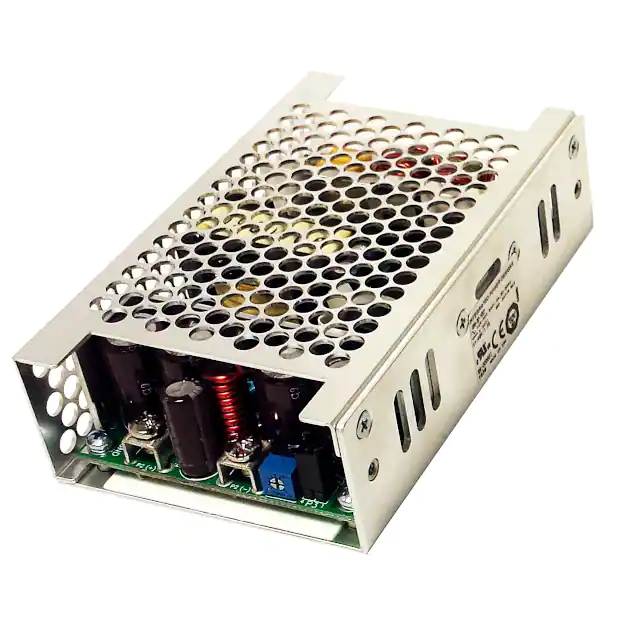

1011283CHCOGRN-80-1007 CHCO |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 1.7 A | - | - | - | - | - | 80W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011282CHCOGRN-80-1006 CHCO |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 28V | - | - | - | - | - | 2.9 A | - | - | - | - | - | 80W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011365CHGRN-80-1004 OVP CH |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 5.3 A | - | - | - | - | - | 80W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011368CHGRN-80-1007 OVP CH |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 1.7 A | - | - | - | - | - | 80W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011279CHCOGRN-80-1003 CHCO |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 6.7 A | - | - | - | - | - | 80W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011281CHCOGRN-80-1005 CHCO |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 3.3 A | - | - | - | - | - | 80W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011278CHCOGRN-80-1002 CHCO |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 16 A | - | - | - | - | - | 80W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011364CHGRN-80-1003 OVP CH |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 6.7 A | - | - | - | - | - | 80W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011277CHCOGRN-80-1001 CHCO |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 3.3V | - | - | - | - | - | 16 A | - | - | - | - | - | 53W | ITE (Commercial), Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011367CHGRN-80-1006 OVP CH |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 28V | - | - | - | - | - | 2.9 A | - | - | - | - | - | 80W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011366CHGRN-80-1005 OVP CH |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 3.3 A | - | - | - | - | - | 80W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011280CHCOGRN-80-1004 CHCO |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 5.3 A | - | - | - | - | - | 80W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011362CHGRN-80-1001 OVP CH |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 3.3V | - | - | - | - | - | 16 A | - | - | - | - | - | 53W | ITE (Commercial), Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|

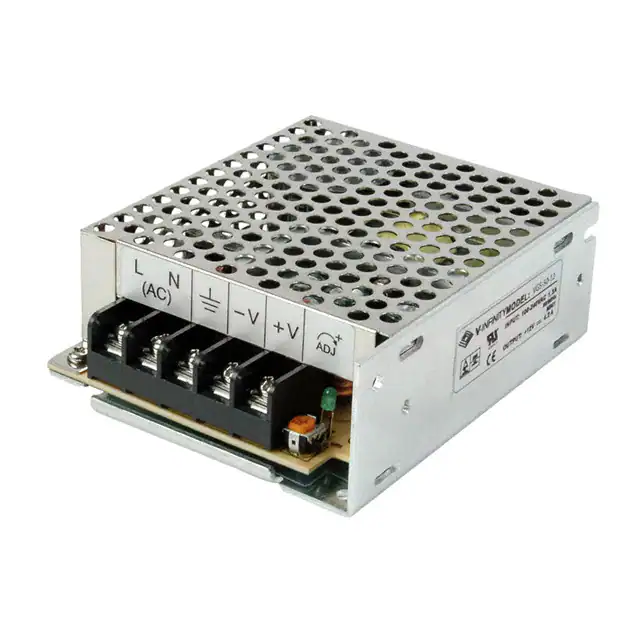

VGS-50-24AC/DC CONVERTER 24V 50W |
0 |
|
Технический лист |
VGS-50 (53W) | Bulk | Obsolete | Enclosed | 1 | 88 ~ 264 VAC | 24V | - | - | - | - | - | 2.2 A | - | - | - | - | - | 50W | ITE (Commercial) | 4.242 kV | 90% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.21" W x 1.40" H (99.0mm x 81.5mm x 35.5mm) | CB Scheme, EN, IEC, SIQ, TUV, UL |
