Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPM-706HATX PSU, 60W convection, 80W wit |
50 |
|
Технический лист |
MPM-706H (60W) | Bulk | Active | Open Frame | 4 | 90 ~ 264 VAC | 5V | 12V | -12V | 3.3V | - | - | 500 mA | 3 A | 6 A | 8 A | - | - | 62W (96W Forced Air) | Medical | 3 kV | 76% | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 6.69" L x 2.05" W x 1.54" H (170.0mm x 52.0mm x 39.0mm) | CB, TUV |
|
|
ENP-7025B-BAC/DC CNVT 3.3V 5V 2X12V -12V |
398 |
|
Технический лист |
B | Bulk | Active | Enclosed | 5 | 90 ~ 264 VAC | 3.3V | 5V | 12V | 12V | -12V | - | 13 A | 14 A | 18 A | 18 A | 300 mA | - | 549W | ITE (Commercial) | - | 83.56% | 0°C ~ 60°C | PFC, Universal Input | Chassis Mount | 5.91" L x 3.21" W x 1.59" H (150.0mm x 81.5mm x 40.5mm) | CB, CCC, cUL, cURus, FCC, NEMKO |
|
ENP-7025DAC/DC CNVT 3.3V 5V 2X12V -12V |
199 |
|
Технический лист |
- | Bulk | Active | Enclosed | 5 | 90 ~ 264 VAC | 3.3V | 5V | 12V | 12V | -12V | - | 13 A | 14 A | 18 A | 18 A | 300 mA | - | 549W | ITE (Commercial) | - | 83.56% | 0°C ~ 40°C | PFC, Standby Output, Universal Input | Chassis Mount | 7.09" L x 7.09" W x 1.59" H (180.1mm x 180.1mm x 40.4mm) | CB, CCC, CE, cUL, cURus, FCC, Nemko |
|
1011391GRN-45-4001 OVP |
50 |
|
Технический лист |
GRN-45 (45W) | Box | Active | Open Frame | 4 | 85 ~ 264 VAC | 3.3V | 5V | 12V | -12V | - | - | 5 A | 5 A | 1 A | 1 A | - | - | 45W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 0.83" H (108.0mm x 63.5mm x 21.1mm) | CE, cURus, TUV, UKCA |
|
|
1011393GRN-45-4003 OVP |
50 |
|
Технический лист |
GRN-45 (45W) | Box | Active | Open Frame | 4 | 85 ~ 264 VAC | 5V | 24V | 12V | -12V | - | - | 5 A | 1 A | 1 A | 1 A | - | - | 45W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 0.83" H (108.0mm x 63.5mm x 21.1mm) | CE, cURus, TUV, UKCA |
|
1011263CHGRN-45-4003 CH |
50 |
|
Технический лист |
GRN-45 (45W) | Box | Active | Chassis | 4 | 85 ~ 264 VAC | 5V | 24V | 12V | -12V | - | - | 5 A | 1 A | 1 A | 1 A | - | - | 45W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011262CHGRN-45-4002 CH |
50 |
|
Технический лист |
GRN-45 (45W) | Box | Active | Chassis | 4 | 85 ~ 264 VAC | 5V | -5V | 12V | -12V | - | - | 5 A | 5 A | 1 A | 1 A | - | - | 45W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011261CHGRN-45-4001 CH |
50 |
|
Технический лист |
GRN-45 (45W) | Box | Active | Chassis | 4 | 85 ~ 264 VAC | 3.3V | 5V | 12V | -12V | - | - | 5 A | 5 A | 1 A | 1 A | - | - | 45W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011264CHGRN-45-4004 CH |
50 |
|
Технический лист |
GRN-45 (45W) | Box | Active | Chassis | 4 | 85 ~ 264 VAC | 5V | 24V | 15V | -15V | - | - | 5 A | 1 A | 1 A | 1 A | - | - | 45W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
LFA150F-12-GAC/DC CONVERTER 12V |
300 |
|
Технический лист |
LFA (150W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | 85% | -10°C ~ 70°C | - | Chassis Mount | 6.30" L x 2.95" W x 1.46" H (160.0mm x 74.9mm x 37.1mm) | CE, CSA, cURus, TUV, UL |
|
1011399CHCOGRN-45-2003 OVP CHCO |
50 |
|
Технический лист |
GRN-45 (45W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 12V | -12V | - | - | - | - | 2 A | 2 A | - | - | - | - | 48W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011400CHCOGRN-45-2004 OVP CHCO |
50 |
|
Технический лист |
GRN-45 (45W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 15V | -15V | - | - | - | - | 2 A | 2 A | - | - | - | - | 45W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011398CHCOGRN-45-2002 OVP CHCO |
50 |
|
Технический лист |
GRN-45 (45W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 5V | 12V | - | - | - | - | 5 A | 2 A | - | - | - | - | 49W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011397CHCOGRN-45-2001 OVP CHCO |
50 |
|
Технический лист |
GRN-45 (45W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 5V | 24V | - | - | - | - | 5 A | 1 A | - | - | - | - | 49W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
1011363GRN-80-1002 OVP |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 16 A | - | - | - | - | - | 80W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 0.83" H (108.0mm x 63.5mm x 21.1mm) | CE, cURus, TUV, UKCA |
|
|
1011365GRN-80-1004 OVP |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 5.3 A | - | - | - | - | - | 80W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 0.83" H (108.0mm x 63.5mm x 21.1mm) | CE, cURus, TUV, UKCA |
|
|
1011362GRN-80-1001 OVP |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 3.3V | - | - | - | - | - | 16 A | - | - | - | - | - | 80W | ITE (Commercial), Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 0.83" H (108.0mm x 63.5mm x 21.1mm) | CE, cURus, TUV, UKCA |
|
|
1011367GRN-80-1006 OVP |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 28V | - | - | - | - | - | 2.9 A | - | - | - | - | - | 80W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 0.83" H (108.0mm x 63.5mm x 21.1mm) | CE, cURus, TUV, UKCA |
|

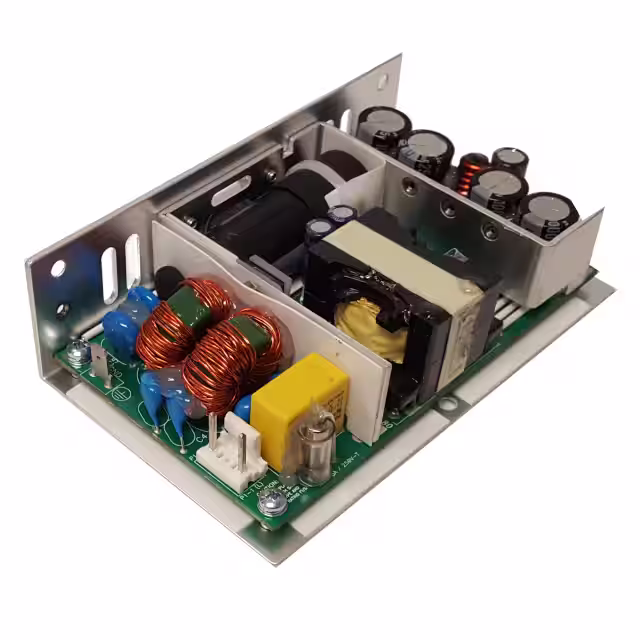

1011282CHGRN-80-1006 CH |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 28V | - | - | - | - | - | 2.9 A | - | - | - | - | - | 80W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011283CHGRN-80-1007 CH |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 1.7 A | - | - | - | - | - | 80W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
