Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VMS-180-48AC/DC CONVERTER 48V 120W |
1 |
|
Технический лист |
VMS-180 (180W) | Bulk | Active | Open Frame | 1 | 80 ~ 264 VAC | 48V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 120W (180W Forced Air) | Medical | 4.2 kV | 92% | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.75" H (101.6mm x 50.8mm x 19.1mm) | CB Scheme, EN, FCC, IEC, TUV, UL |
|
EFM-0112/MAC/DC CONVERTER 12V 10W |
219 |
|
Технический лист |
EFM10/M (10W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 850 mA | - | - | - | - | - | 10W | Medical | 4 kV | 75% | 0°C ~ 40°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | - | CB, cURus, UL |
|
1010383CHCOSRP-40A-4005 CHCO |
50 |
|
Технический лист |
SRP-40A (40W) | Box | Active | Enclosed | 4 | 100 ~ 240 VAC | 5V | 24V | 12V | -12V | - | - | 5 A | 1.5 A | 700 mA | 700 mA | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 73% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.45" L x 2.81" W x 1.70" H (113.0mm x 71.4mm x 43.2mm) | CE, cURus, TUV, UKCA |
|
|
1010379CHCOSRP-40A-4001 CHCO |
50 |
|
Технический лист |
SRP-40A (40W) | Box | Active | Enclosed | 4 | 100 ~ 240 VAC | 3.3V | 5V | 12V | -12V | - | - | 5 A | 3 A | 700 mA | 700 mA | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 73% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.45" L x 2.81" W x 1.70" H (113.0mm x 71.4mm x 43.2mm) | CE, cURus, TUV, UKCA |
|
|
1010382CHCOSRP-40A-4004 CHCO |
50 |
|
Технический лист |
SRP-40A (40W) | Box | Active | Enclosed | 4 | 100 ~ 240 VAC | 5V | -5V | 15V | -15V | - | - | 5 A | 3 A | 700 mA | 700 mA | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 73% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.45" L x 2.81" W x 1.70" H (113.0mm x 71.4mm x 43.2mm) | CE, cURus, TUV, UKCA |
|
|
1010384CHCOSRP-40A-4006 CHCO |
50 |
|
Технический лист |
SRP-40A (40W) | Box | Active | Enclosed | 4 | 100 ~ 240 VAC | 5V | 24V | 15V | -15V | - | - | 5 A | 1.5 A | 700 mA | 700 mA | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 73% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.45" L x 2.81" W x 1.70" H (113.0mm x 71.4mm x 43.2mm) | CE, cURus, TUV, UKCA |
|
|
1010380CHCOSRP-40A-4002 CHCO |
50 |
|
Технический лист |
SRP-40A (40W) | Box | Active | Enclosed | 4 | 100 ~ 240 VAC | 5V | 3.3V | 12V | -12V | - | - | 5 A | 3 A | 700 mA | 700 mA | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 73% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.45" L x 2.81" W x 1.70" H (113.0mm x 71.4mm x 43.2mm) | CE, cURus, TUV, UKCA |
|
|
1010381CHCOSRP-40A-4003 CHCO |
50 |
|
Технический лист |
SRP-40A (40W) | Box | Active | Enclosed | 4 | 100 ~ 240 VAC | 5V | -5V | 12V | -12V | - | - | 5 A | 3 A | 700 mA | 700 mA | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 73% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.45" L x 2.81" W x 1.70" H (113.0mm x 71.4mm x 43.2mm) | CE, cURus, TUV, UKCA |
|
|
1010455CHCOSRP-40A-4007 CHCO |
50 |
|
Технический лист |
SRP-40A (40W) | Box | Active | Enclosed | 4 | 100 ~ 240 VAC | 3.3V | 5V | -24V | -51.6V | - | - | 3.1 A | 1.25 A | 270 mA | 250 mA | - | - | 36W | Industrial, ITE (Commercial), Medical | - | 73% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.45" L x 2.81" W x 1.70" H (113.0mm x 71.4mm x 43.2mm) | CE, cURus, TUV, UKCA |
|

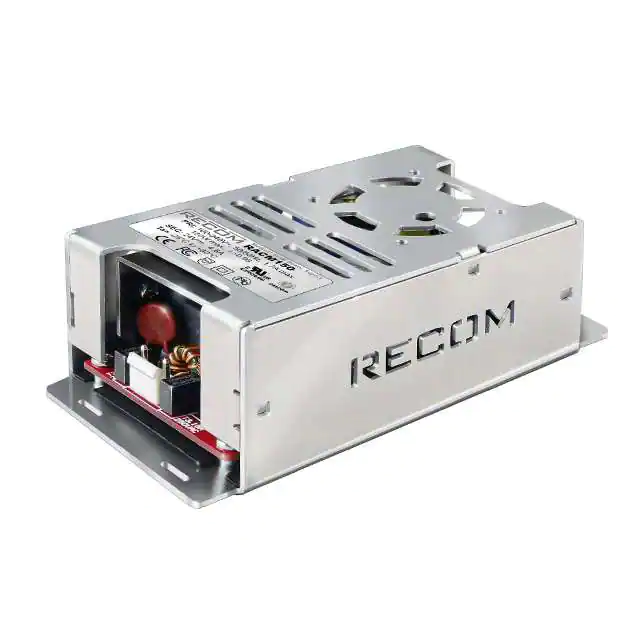

RACM150-12S/FAC/DC CONVERTER 12V 150W |
400 |
|
Технический лист |
MEDLINE RACM150 (150W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W | Medical | 4 kV | 91% | -25°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 4.60" L x 2.44" W x 1.94" H (116.8mm x 62.0mm x 49.2mm) | CE, cURus |
|
|
MSMC-5005AC/DC CONVERTER 24V 5.52W |
47 |
|
Технический лист |
MMA-5 (5.52W) | Bulk | Active | Enclosed | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 230 mA | - | - | - | - | - | 5.52W | Medical | 4 kV | 72% | 0°C ~ 50°C | Adjustable Output, Remote On/Off, Universal Input | Chassis Mount | 3.77" L x 2.16" W x 1.00" H (95.8mm x 54.9mm x 25.4mm) | CB, cURus, UL |
|
|
MSCC-0101AC/DC CONVERTER 5V 10W |
267 |
|
Технический лист |
MCA-10 (10W) | Bulk | Active | Enclosed | 1 | 90 ~ 264 VAC | 5V | - | - | - | - | - | 2 A | - | - | - | - | - | 10W | ITE (Commercial) | 3 kV | 72% | 0°C ~ 50°C | Adjustable Output | Chassis Mount | 3.77" L x 2.16" W x 1.00" H (95.8mm x 54.9mm x 25.4mm) | CB, CE, cURus, UL |
|

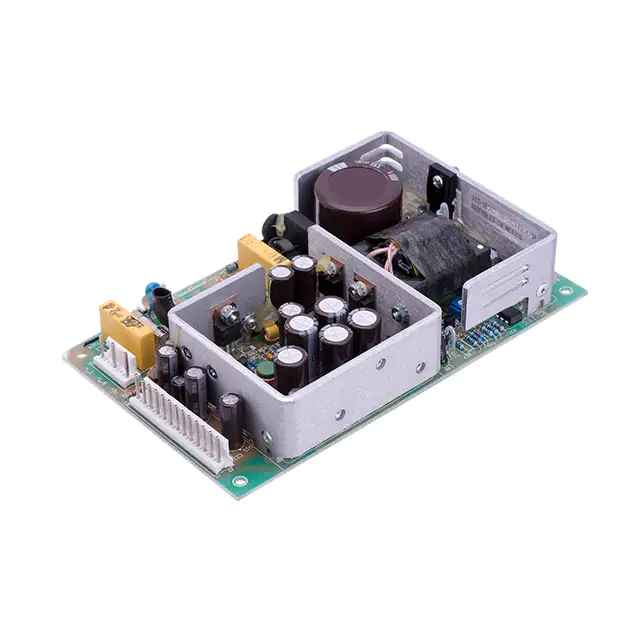

GLM75-24AC/DC CONVERTER 24V 75W |
0 |
|
Технический лист |
GLM75 (75W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 3.1 A | - | - | - | - | - | 75W | Medical | - | 78% | 0°C ~ 50°C | Universal Input | Chassis Mount | 7.00" L x 4.25" W x 1.30" H (177.8mm x 108.0mm x 33.0mm) | CE, cURus, TUV |
|
ARF-2015-00AC/DC CNVRT 24V 12V 5V 3.3V 200W |
657 |
|
Технический лист |
- | Box | Active | Open Frame | 4 | 90 ~ 264 VAC | 24V | 12V | 5V | 3.3V | - | - | 7 A | 2 A | 11 A | 4.5 A | - | - | 200W | ITE (Commercial) | 1.5 kV | 80% | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 6.00" L x 3.50" W x 1.57" H (152.4mm x 88.9mm x 40.0mm) | CB, CE |
|
1011264CHCOGRN-45-4004 CHCO |
50 |
|
Технический лист |
GRN-45 (45W) | Box | Active | Enclosed | 4 | 85 ~ 264 VAC | 5V | 24V | 15V | -15V | - | - | 5 A | 1 A | 1 A | 1 A | - | - | 45W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
1011391CHGRN-45-4001 OVP CH |
50 |
|
Технический лист |
GRN-45 (45W) | Box | Active | Chassis | 4 | 85 ~ 264 VAC | 3.3V | 5V | 12V | -12V | - | - | 5 A | 5 A | 1 A | 1 A | - | - | 45W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011263CHCOGRN-45-4003 CHCO |
50 |
|
Технический лист |
GRN-45 (45W) | Box | Active | Enclosed | 4 | 85 ~ 264 VAC | 5V | 24V | 12V | -12V | - | - | 5 A | 1 A | 1 A | 1 A | - | - | 45W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011261CHCOGRN-45-4001 CHCO |
50 |
|
Технический лист |
GRN-45 (45W) | Box | Active | Enclosed | 4 | 85 ~ 264 VAC | 3.3V | 5V | 12V | -12V | - | - | 5 A | 5 A | 1 A | 1 A | - | - | 66W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011262CHCOGRN-45-4002 CHCO |
50 |
|
Технический лист |
GRN-45 (45W) | Box | Active | Enclosed | 4 | 85 ~ 264 VAC | 5V | -5V | 12V | -12V | - | - | 5 A | 5 A | 1 A | 1 A | - | - | 45W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011393CHGRN-45-4003 OVP CH |
50 |
|
Технический лист |
GRN-45 (45W) | Box | Active | Chassis | 4 | 85 ~ 264 VAC | 5V | 24V | 12V | -12V | - | - | 5 A | 1 A | 1 A | 1 A | - | - | 45W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
