Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1010524SRP-40A-3004 |
50 |
|
Технический лист |
SRP-40A (40W) | Box | Active | Open Frame | 3 | 100 ~ 240 VAC | 14.5V | -14.5V | 5V | - | - | - | 1.5 A | 1.5 A | 1 A | - | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 73% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 1.20" H (107.9mm x 63.5mm x 30.5mm) | CE, cURus, TUV, UKCA |
|
ABC150-1005GAC/DC CONVERTER 5V 110/150W |
0 |
|
Технический лист |
ABC150 (150W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 5V | - | - | - | - | - | 16 A | - | - | - | - | - | 110W (150W Forced Air) | ITE (Commercial) | 4.242 kV | 86% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.32" H (101.6mm x 50.8mm x 33.6mm) | CE |
|
LPT64AC/DC CONVERTER 5V 12V -5V 60W |
37 |
|
Технический лист |
LPT60 (60W) | Bulk | Obsolete | Open Frame | 3 | 85 ~ 264 VAC | 5V | 12V | -5V | - | - | - | 7 A | 3 A | 700 mA | - | - | - | 60W (80W Forced Air) | ITE (Commercial) | - | 60% | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.69" H (127.0mm x 76.2mm x 42.9mm) | CB, CE |
|

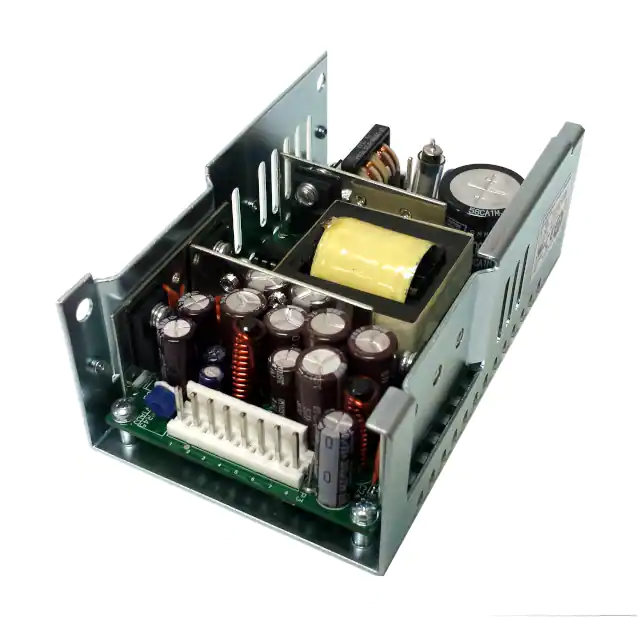

1010389CHSRP-40A-2003 CH |
50 |
|
Технический лист |
SRP-40A (40W) | Box | Active | Chassis | 2 | 100 ~ 240 VAC | 5V | -5V | - | - | - | - | 5 A | 4 A | - | - | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 73% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.45" L x 2.81" W x 1.70" H (113.0mm x 71.4mm x 43.2mm) | CE, cURus, TUV, UKCA |
|
|
1010391CHSRP-40A-2005 CH |
50 |
|
Технический лист |
SRP-40A (40W) | Box | Active | Chassis | 2 | 100 ~ 240 VAC | 15V | -15V | - | - | - | - | 2.5 A | 2 A | - | - | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 73% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.45" L x 2.81" W x 1.70" H (113.0mm x 71.4mm x 43.2mm) | CE, cURus, TUV, UKCA |
|
|
1010388CHSRP-40A-2002 CH |
50 |
|
Технический лист |
SRP-40A (40W) | Box | Active | Chassis | 2 | 100 ~ 240 VAC | 5V | 12V | - | - | - | - | 5 A | 3 A | - | - | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 73% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.45" L x 2.81" W x 1.70" H (113.0mm x 71.4mm x 43.2mm) | CE, cURus, TUV, UKCA |
|
|
1010494CHSRP-40A-2006 CH |
50 |
|
Технический лист |
SRP-40A (40W) | Box | Active | Chassis | 2 | 100 ~ 240 VAC | 30V | - | - | - | - | - | 1.2 A | 700 mA | - | - | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 73% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.45" L x 2.81" W x 1.70" H (113.0mm x 71.4mm x 43.2mm) | CE, cURus, TUV, UKCA |
|
|
1010820CHSRP-40A-2007 CH |
50 |
|
Технический лист |
SRP-40A (40W) | Box | Active | Chassis | 2 | 100 ~ 240 VAC | 3.3V | - | - | - | - | - | 5 A | 700 mA | - | - | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 73% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.45" L x 2.81" W x 1.70" H (113.0mm x 71.4mm x 43.2mm) | CE, cURus, TUV, UKCA |
|
|
1010828CHSRP-40A-2008 CH |
50 |
|
Технический лист |
SRP-40A (40W) | Box | Active | Chassis | 2 | 100 ~ 240 VAC | 6V | 9V | - | - | - | - | 5 A | 1.1 A | - | - | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 73% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.45" L x 2.81" W x 1.70" H (113.0mm x 71.4mm x 43.2mm) | CE, cURus, TUV, UKCA |
|
|
1010387CHSRP-40A-2001 CH |
50 |
|
Технический лист |
SRP-40A (40W) | Box | Active | Chassis | 2 | 100 ~ 240 VAC | 5V | 24V | - | - | - | - | 5 A | 1.5 A | - | - | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 73% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.45" L x 2.81" W x 1.70" H (113.0mm x 71.4mm x 43.2mm) | CE, cURus, TUV, UKCA |
|
|
1010390CHSRP-40A-2004 CH |
50 |
|
Технический лист |
SRP-40A (40W) | Box | Active | Chassis | 2 | 100 ~ 240 VAC | 12V | -12V | - | - | - | - | 3 A | 3 A | - | - | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 73% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.45" L x 2.81" W x 1.70" H (113.0mm x 71.4mm x 43.2mm) | CE, cURus, TUV, UKCA |
|
|
1010830CHSRP-40A-2009 CH |
50 |
|
Технический лист |
SRP-40A (40W) | Box | Active | Chassis | 2 | 100 ~ 240 VAC | 30V | -30V | - | - | - | - | 500 mA | 500 mA | - | - | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 73% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.45" L x 2.81" W x 1.70" H (113.0mm x 71.4mm x 43.2mm) | CE, cURus, TUV, UKCA |
|
MINT1045A4875K01AC/DC CONVERTER 48V 45W |
57 |
|
Технический лист |
MINT1045 (45W) | Bulk | Obsolete | Open Frame | 1 | 80 ~ 270 VAC | 48V | - | - | - | - | - | 950 mA | - | - | - | - | - | 45W | Medical | 4.5 kV | 88% | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.00" H (76.2mm x 50.8mm x 25.4mm) | CB, CE, cURus, DEMKO |
|

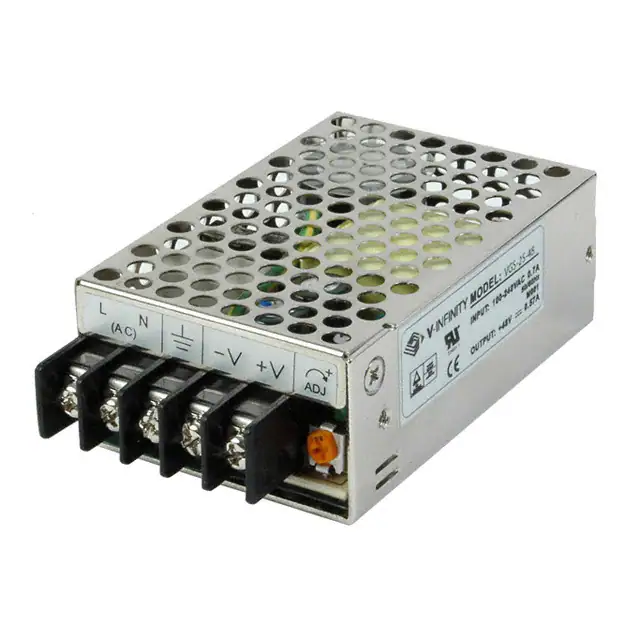

VGS-25-24AC/DC CONVERTER 24V 25W |
0 |
|
Технический лист |
VGS-25 (27W) | Bulk | Obsolete | Enclosed | 1 | 88 ~ 264 VAC | 24V | - | - | - | - | - | 1.1 A | - | - | - | - | - | 25W | ITE (Commercial) | 4.242 kV | 87% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.09" L x 2.01" W x 1.11" H (78.5mm x 51.0mm x 28.3mm) | CB Scheme, EN, IEC, SIQ, TUV, UL |
|
|
VGS-25-3.3AC/DC CONVERTER 3.3V 25W |
0 |
|
Технический лист |
VGS-25 (27W) | Bulk | Obsolete | Enclosed | 1 | 88 ~ 264 VAC | 3.3V | - | - | - | - | - | 6 A | - | - | - | - | - | 25W | ITE (Commercial) | 4.242 kV | 74% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.09" L x 2.01" W x 1.11" H (78.5mm x 51.0mm x 28.3mm) | CB Scheme, EN, IEC, SIQ, TUV, UL |
|

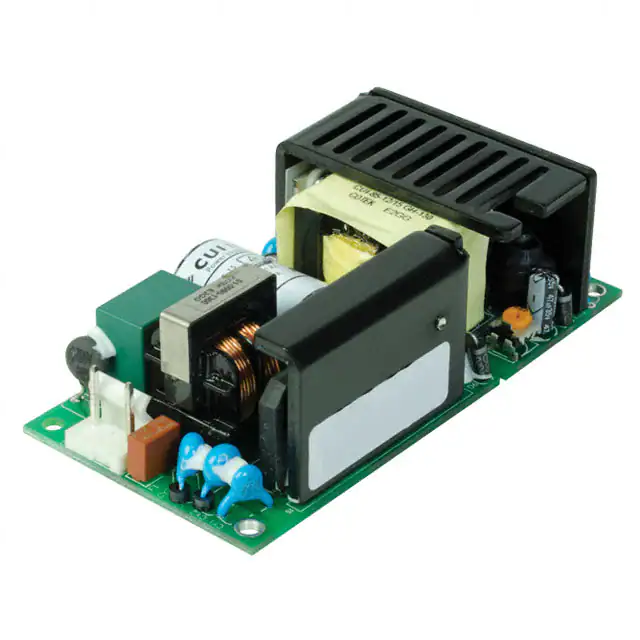

VOF-85-15AC/DC CONVERTER 15V 85W |
0 |
|
Технический лист |
VOF-85 (85W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 277 VAC | 15V | - | - | - | - | - | 5.7 A | - | - | - | - | - | 85W | ITE (Commercial) | 3 kV | 88% | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.32" H (101.6mm x 50.8mm x 33.6mm) | CB Scheme, EN, FCC, IEC, SIQ, TUV, UL |
|
1011398GRN-45-2002 OVP |
50 |
|
Технический лист |
GRN-45 (45W) | Box | Active | Open Frame | 2 | 85 ~ 264 VAC | 5V | 12V | - | - | - | - | 5 A | 2 A | - | - | - | - | 45W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 0.83" H (108.0mm x 63.5mm x 21.1mm) | CE, cURus, TUV, UKCA |
|
|
1011397GRN-45-2001 OVP |
50 |
|
Технический лист |
GRN-45 (45W) | Box | Active | Open Frame | 2 | 85 ~ 264 VAC | 5V | 24V | - | - | - | - | 5 A | 1 A | - | - | - | - | 45W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 0.83" H (108.0mm x 63.5mm x 21.1mm) | CE, cURus, TUV, UKCA |
|

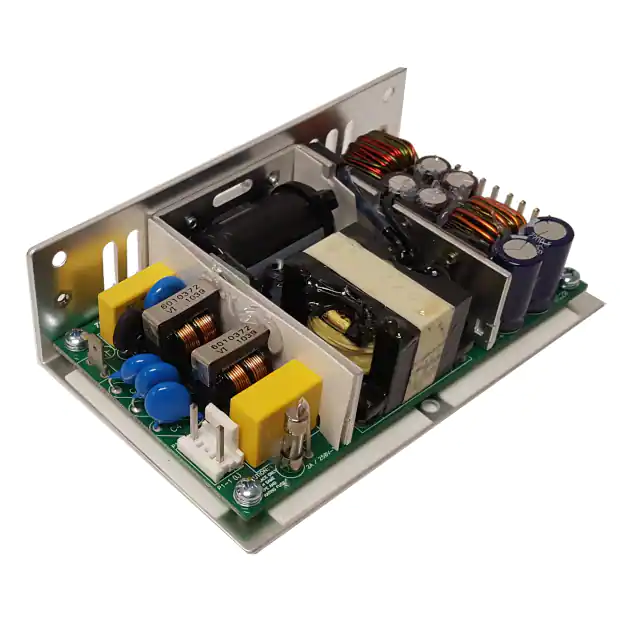

1011267CHGRN-45-2001 CH |
50 |
|
Технический лист |
GRN-45 (45W) | Box | Active | Chassis | 2 | 85 ~ 264 VAC | 5V | 24V | - | - | - | - | 5 A | 1 A | - | - | - | - | 45W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011270CHGRN-45-2004 CH |
50 |
|
Технический лист |
GRN-45 (45W) | Box | Active | Chassis | 2 | 85 ~ 264 VAC | 15V | -15V | - | - | - | - | 2 A | 2 A | - | - | - | - | 45W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
