Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1011268CHGRN-45-2002 CH |
50 |
|
Технический лист |
GRN-45 (45W) | Box | Active | Chassis | 2 | 85 ~ 264 VAC | 5V | 12V | - | - | - | - | 5 A | 2 A | - | - | - | - | 45W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011269CHGRN-45-2003 CH |
50 |
|
Технический лист |
GRN-45 (45W) | Box | Active | Chassis | 2 | 85 ~ 264 VAC | 12V | -12V | - | - | - | - | 2 A | 2 A | - | - | - | - | 45W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
1011402CHCOGRN-60-1002 OVP CHCO |
50 |
|
Технический лист |
GRN-60 (60W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 9 A | - | - | - | - | - | 45W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 3.20" L x 2.43" W x 1.28" H (81.3mm x 61.7mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011403CHCOGRN-60-1003 OVP CHCO |
50 |
|
Технический лист |
GRN-60 (60W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 5 A | - | - | - | - | - | 60W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 3.20" L x 2.43" W x 1.28" H (81.3mm x 61.7mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011401CHCOGRN-60-1001 OVP CHCO |
50 |
|
Технический лист |
GRN-60 (60W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 3.3V | - | - | - | - | - | 9 A | - | - | - | - | - | 30W | ITE (Commercial), Medical | - | 80% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 3.20" L x 2.43" W x 1.28" H (81.3mm x 61.7mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011404CHCOGRN-60-1004 OVP CHCO |
50 |
|
Технический лист |
GRN-60 (60W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 4 A | - | - | - | - | - | 60W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 3.20" L x 2.43" W x 1.28" H (81.3mm x 61.7mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011405CHCOGRN-60-1005 OVP CHCO |
50 |
|
Технический лист |
GRN-60 (60W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 60W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 3.20" L x 2.43" W x 1.28" H (81.3mm x 61.7mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011408CHCOGRN-60-1008 OVP CHCO |
50 |
|
Технический лист |
GRN-60 (60W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 19V | - | - | - | - | - | 3.1 A | - | - | - | - | - | 60W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 3.20" L x 2.43" W x 1.28" H (81.3mm x 61.7mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011407CHCOGRN-60-1007 OVP CHCO |
50 |
|
Технический лист |
GRN-60 (60W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 1.3 A | - | - | - | - | - | 60W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 3.20" L x 2.43" W x 1.28" H (81.3mm x 61.7mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011406CHCOGRN-60-1006 OVP CHCO |
50 |
|
Технический лист |
GRN-60 (60W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 28V | - | - | - | - | - | 2.2 A | - | - | - | - | - | 60W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 3.20" L x 2.43" W x 1.28" H (81.3mm x 61.7mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
MK40S-24AC/DC CONVERTER 24V 43W |
79 |
|
Технический лист |
MK40S (40W) | Bulk | Active | Enclosed | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 1.8 A | - | - | - | - | - | 43W | ITE (Commercial), Laboratory | 4.242 kV | 80% | 0°C ~ 60°C | - | Chassis Mount | 4.74" L x 2.50" W x 1.50" H (120.5mm x 63.5mm x 38.1mm) | CB, cURus, UL |
|
|
VGS-200E-36AC-DC, 200 W, 36 VDC, SINGLE OUT |
52 |
|
Технический лист |
VGS-200E (200W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 36V | - | - | - | - | - | 5.6 A | - | - | - | - | - | 202W | Household Appliances, ITE (Commercial) | 4 kV | 94% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC | Chassis Mount | 7.64" L x 2.17" W x 1.02" H (194.0mm x 55.0mm x 26.0mm) | CE, cURus, UKCA |
|
|
VGS-200E-24AC-DC, 200 W, 24 VDC, SINGLE OUT |
50 |
|
Технический лист |
VGS-200E (200W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 24V | - | - | - | - | - | 8.4 A | - | - | - | - | - | 202W | Household Appliances, ITE (Commercial) | 4 kV | 94% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC | Chassis Mount | 7.64" L x 2.17" W x 1.02" H (194.0mm x 55.0mm x 26.0mm) | CE, cURus, UKCA |
|
|
MB115S48KAC/DC CONVERTER 48V 75W |
79 |
|
- |
MB115 (115W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 1.56 A | - | - | - | - | - | 75W (115W Forced Air) | Medical | 4 kV | 90% | -20°C ~ 70°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.26" H (101.6mm x 50.8mm x 32.1mm) | CE, cURus, TUV |
|
TB65S15KAC/DC CONVERTER 15V 65W |
59 |
|
Технический лист |
TB65 (65W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 4.3 A | - | - | - | - | - | 65W | ITE (Commercial) | 3 kV | 88% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.50" L x 2.00" W x 1.30" H (88.9mm x 50.8mm x 33.1mm) | CE, cURus, DEMKO |
|
|
TB65S24KAC/DC CONVERTER 24V 65W |
43 |
|
Технический лист |
TB65 (65W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 2.7 A | - | - | - | - | - | 65W | ITE (Commercial) | 3 kV | 90% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.50" L x 2.00" W x 1.30" H (88.9mm x 50.8mm x 33.1mm) | CE, cURus, DEMKO |
|

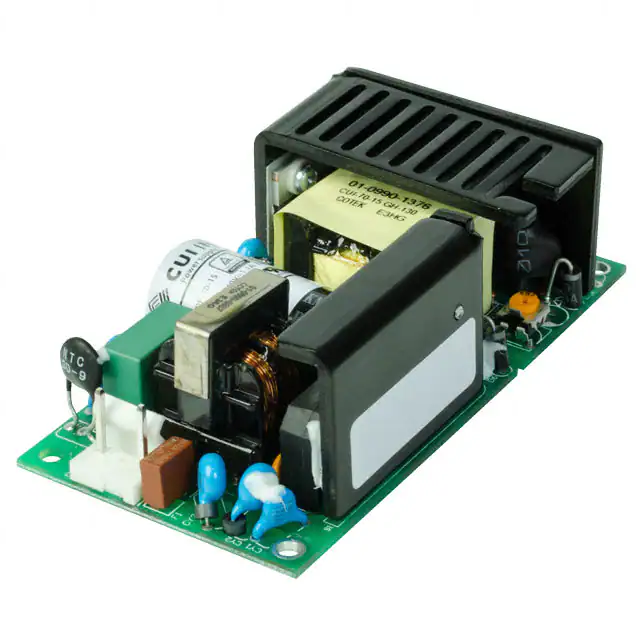

VOF-70-5AC/DC CONVERTER 5V 43W |
0 |
|
Технический лист |
VOF-70 (70W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 277 VAC | 5V | - | - | - | - | - | 8.61 A | - | - | - | - | - | 43W | ITE (Commercial) | 3 kV | 81% | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.32" H (101.6mm x 50.8mm x 33.6mm) | CB Scheme, EN, FCC, IEC, SIQ, TUV, UL |
|
1011266GRN-45-3002 |
50 |
|
Технический лист |
GRN-45 (45W) | Box | Active | Open Frame | 3 | 85 ~ 264 VAC | 5V | 15V | -15V | - | - | - | 5 A | 1 A | 1 A | - | - | - | 45W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 0.83" H (108.0mm x 63.5mm x 21.1mm) | CE, cURus, TUV, UKCA |
|
|
1011265GRN-45-3001 |
50 |
|
Технический лист |
GRN-45 (45W) | Box | Active | Open Frame | 3 | 85 ~ 264 VAC | 5V | 12V | -12V | - | - | - | 5 A | 1 A | 1 A | - | - | - | 45W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 0.83" H (108.0mm x 63.5mm x 21.1mm) | CE, cURus, TUV, UKCA |
|
|
VGS-200E-48AC-DC, 200 W, 48 VDC, SINGLE OUT |
50 |
|
Технический лист |
VGS-200E (200W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 48V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 202W | Household Appliances, ITE (Commercial) | 4 kV | 94% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC | Chassis Mount | 7.64" L x 2.17" W x 1.02" H (194.0mm x 55.0mm x 26.0mm) | CE, cURus, UKCA |
