Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-EXL69-1220-R0HEATSINK AL6063 1220X36X28.09MM |
8 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 1.417" (36.00mm) | - | 1.122" (28.50mm) | - | 5.40°C/W @ 200 LFM | 12.10°C/W | Aluminum | Degreased |
|
1277989.00" WIDE X 36" FLATBACK W/ MOU |
12 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Bolt On | Rectangular, Fins | 36.000" (914.40mm) | 9.000" (228.60mm) | - | 1.020" (25.91mm) | - | - | 0.53°C/W | Aluminum | - |
|
|
ATS-EXL68-1220-R0HEATSINK AL6063 1220X35X25MM |
12 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 2.010" (51.00mm) | - | 0.984" (25.00mm) | - | 3.00°C/W @ 200 LFM | 9.60°C/W | Aluminum | Degreased |
|
|
ATS-EXL70-1220-R0HEATSINK AL6063 1220X36X35.6MM |
9 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 1.417" (36.00mm) | - | 1.402" (35.60mm) | - | 4.20°C/W @ 200 LFM | 9.70°C/W | Aluminum | Degreased |
|

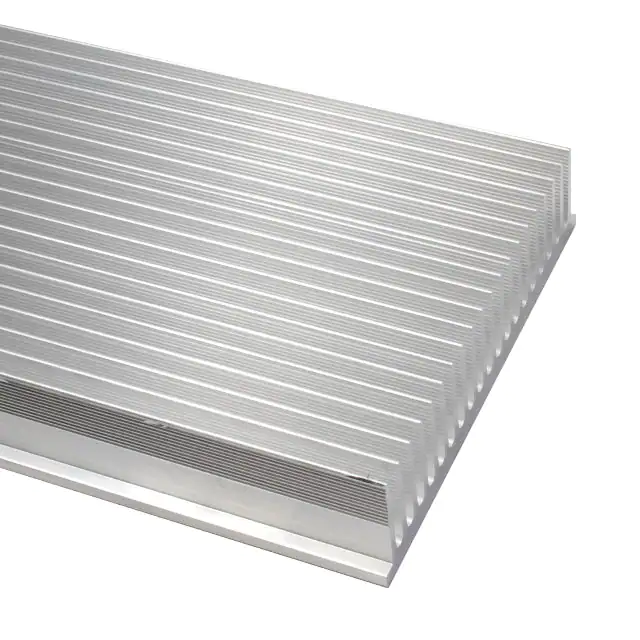

1277967.62" WIDE X 36" FLATBACK W/MOUN |
8 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Bolt On | Rectangular, Fins | 36.000" (914.40mm) | 7.620" (193.55mm) | - | 1.655" (42.04mm) | - | - | 0.31°C/W | Aluminum | - |
|

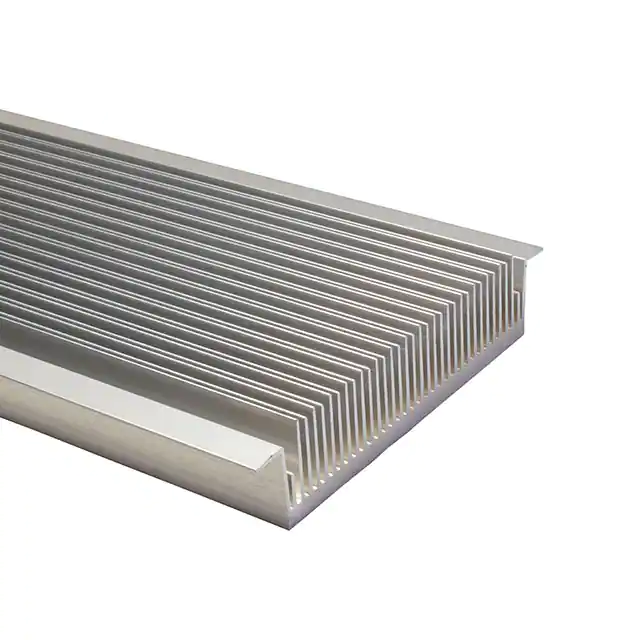

1277957.13" WIDE X 36" FLATBACK W/MOUN |
19 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Bolt On | Rectangular, Fins | 36.000" (914.40mm) | 7.130" (181.10mm) | - | 1.550" (39.37mm) | - | - | 0.19°C/W | Aluminum | - |
|
1255397WX36" EXTRUSION 16348 XX3559-2 |
13 |
|
Технический лист |
- | Box | Active | Board Level, Extrusion | SCR | Press Fit | Rectangular, Fins | 36.000" (914.40mm) | 7.000" (177.80mm) | - | 3.125" (79.38mm) | - | - | 0.21°C/W | Aluminum | - |
|
ATS-EXL7-1220-R0HEATSINK AL6063 1220X101X14MM |
8 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 3.976" (101.00mm) | - | 0.551" (14.00mm) | - | 1.80°C/W @ 200 LFM | 14.70°C/W | Aluminum | Degreased |
|

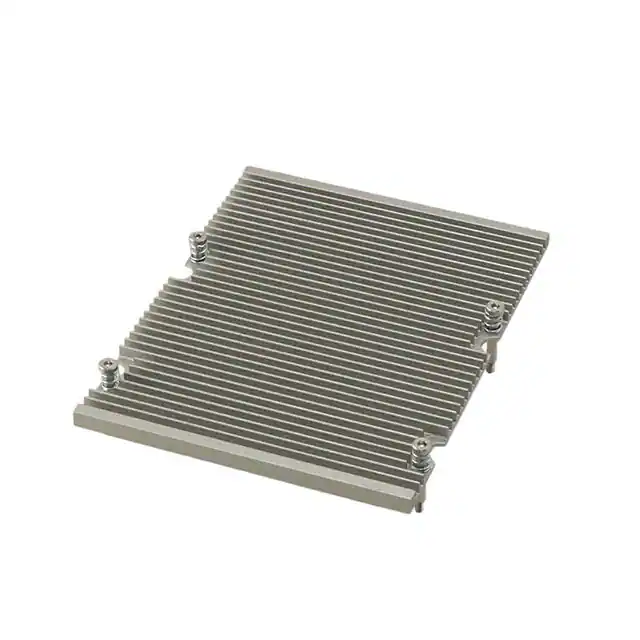

2274283-1HEATSINK ASSEMBLY CFP |
18 |
|
Технический лист |
- | Bulk | Active | Board Level | - | Push Pin | Rectangular, Fins | 0.453" (11.51mm) | 3.370" (85.60mm) | - | 0.197" (5.00mm) | - | - | - | Aluminum | - |
|
1277928.5" WIDE X 36" MULTI CHANNEL XX |
20 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 8.500" (215.90mm) | - | 1.500" (38.10mm) | - | - | 0.22°C/W | Aluminum | - |
|
ATS-EXL115-1220-R0PCIE EXTRUSION PROFILE, AL6063 |
5 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 4.724" (120.00mm) | - | 1.181" (30.00mm) | - | 1.70°C/W @ 200 LFM | 4.60°C/W | Aluminum | Degreased |
|
1277676.50" X 36" FLATBACK HEATSINK XX |
8 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 6.500" (165.10mm) | - | 0.800" (20.32mm) | - | - | 0.54°C/W | Aluminum | - |
|
|
ATS-EXL118-1220-R0PCIE EXTRUSION PROFILE, AL6063 |
8 |
|
Технический лист |
- | Bulk | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 1.996" (50.70mm) | - | 0.484" (12.30mm) | - | 4.00°C/W @ 200 LFM | 19.90°C/W | Aluminum | Degreased |
|
1277666.50" X 36" FLATBACK HEATSINK 16 |
10 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 6.500" (165.10mm) | - | 2.190" (55.63mm) | - | - | 0.35°C/W | Aluminum | - |
|
1277625.86" X 36" FLATBACK HEATSINK 19 |
3 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 5.860" (148.84mm) | - | 1.988" (50.50mm) | - | - | 0.24°C/W | Aluminum | - |
|
|
ATS-EXL78-1220-R0HEATSINK AL6063 1220X139X7.6MM |
7 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 5.748" (146.00mm) | - | 0.299" (7.60mm) | - | 4.40°C/W @ 200 LFM | 12.00°C/W | Aluminum | Degreased |
|
ATS-UC-DFLOW-VC-200DUALFLOW HEATSINK 1U VAPOR |
10 |
|
Технический лист |
dualFLOW™ | Box | Active | Top Mount, Zipper Fin | Intel LGA2011 & LGA2066 CPU Cooler | Push Pin | Square, Fins | 3.637" (92.38mm) | 3.626" (92.11mm) | - | 1.142" (29.00mm) | - | - | - | Copper | Nickel |
|
12545510.5WX36" EXTRUSION 16990 XX2904 |
11 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 10.500" (266.70mm) | - | 1.265" (32.13mm) | - | - | 0.33°C/W | Aluminum | - |
|
|
ATS-EXL99-1220-R0HEATSINK AL6063 1220X100X34.5MM |
19 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 3.937" (100.00mm) | - | 1.358" (34.50mm) | - | 1.14°C/W @ 200 LFM | 4.34°C/W | Aluminum | Degreased |
|
|
ATS-EXL104-1220-R0HEATSINK AL6063 1220X108X34.3MM |
7 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 4.245" (107.82mm) | - | 1.350" (34.29mm) | - | 1.03°C/W @ 200 LFM | 5.09°C/W | Aluminum | Degreased |
