Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-X53325P-C1-R0SUPERGRIP HEATSINK 32X32X17.5MM |
122 |
|
Технический лист |
superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.260" (32.00mm) | 1.260" (32.00mm) | - | 0.689" (17.50mm) | - | 4.10°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

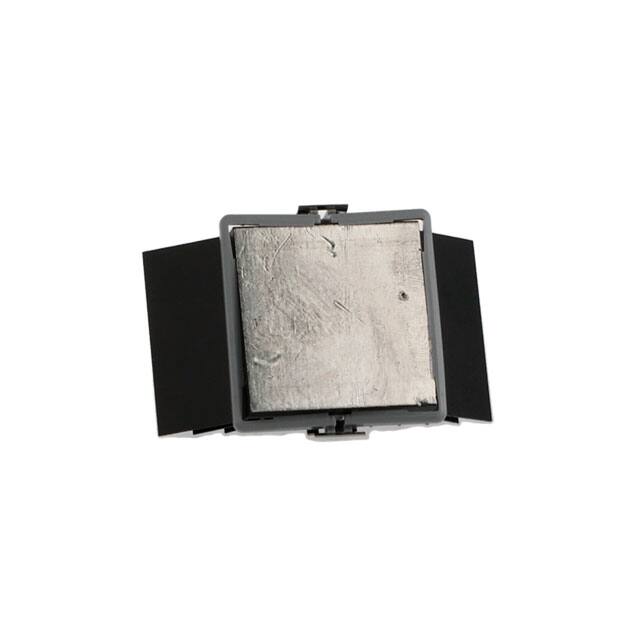

ATS-X51325K-C1-R0MAXIFLOW 31.75X31.75X14.5MM T766 |
99 |
|
Технический лист |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.279" (32.50mm) | 1.279" (32.50mm) | - | 0.571" (14.50mm) | - | 3.5°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X50425G-C1-R0SUPERGRIP HEATSINK 42X42X12.5MM |
56 |
|
Технический лист |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.654" (42.00mm) | 1.654" (42.00mm) | - | 0.492" (12.50mm) | - | 2.40°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X50450G-C1-R0SUPERGRIP HEATSINK 45X45X12.5MM |
102 |
|
Технический лист |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.492" (12.50mm) | - | 2.10°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X53375P-C1-R0SUPERGRIP HEATSINK 37X37X17.5MM |
89 |
|
Технический лист |
superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.457" (37.00mm) | 1.457" (37.00mm) | - | 0.689" (17.50mm) | - | 3.50°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X50375P-C1-R0SUPERGRIP HEATSINK 37X37X17.5MM |
29 |
|
Технический лист |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.457" (37.00mm) | 1.457" (37.00mm) | - | 0.689" (17.50mm) | - | 2.10°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-61700R-C2-R0FANSINK ASSEMBLY W/ MOUNTING HAR |
56 |
|
Технический лист |
fanSINK™ | Bulk | Active | Top Mount | BGA | Push Pin, Thermal Material | Square, Pin Fins | 2.913" (74.00mm) | 2.913" (74.00mm) | - | 0.768" (19.50mm) | - | - | - | - | - |
|
1276904.000" X 12" H STYLE HEATSINK XX |
47 |
|
Технический лист |
- | Box | Active | Board Level, Extrusion | - | Bolt On | Rectangular, Fins | 12.000" (304.80mm) | 4.000" (101.60mm) | - | 1.250" (31.75mm) | - | - | 0.58°C/W | Aluminum | - |
|
1254874.75X12" EXTRUSION 4530 XX1024 |
29 |
|
Технический лист |
- | Box | Active | Board Level, Extrusion | - | Bolt On | Rectangular, Fins | 12.000" (304.80mm) | 4.750" (120.65mm) | - | 1.245" (31.62mm) | - | - | 0.50°C/W | Aluminum | - |
|
ATS-59006-C1-R0HEAT SINK 29MM X 37MM X 11MM |
66 |
|
Технический лист |
maxiGRIP | Bulk | Active | Top Mount | Flip Chip Processors | Clip | Rectangular, Angled Fins | 1.457" (37.00mm) | 1.142" (29.00mm) | - | 0.433" (11.00mm) | - | 6.20°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-59002-C1-R0HEAT SINK 25MM X 32MM X 13MM |
77 |
|
Технический лист |
maxiGRIP | Bulk | Active | Top Mount | Flip Chip Processors | Clip | Rectangular, Angled Fins | 0.984" (25.00mm) | 1.260" (32.00mm) | - | 0.512" (13.00mm) | - | 6.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
1277871.625" WIDE X 36" CENTER CHANNEL |
23 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 1.625" (41.28mm) | - | 1.200" (30.50mm) | - | - | 1.16°C/W | Aluminum | - |
|
ATS-59001-C1-R0HEAT SINK 28MM X 45MM X 11MM |
94 |
|
Технический лист |
maxiGRIP | Bulk | Active | Top Mount | Flip Chip Processors | Clip | Rectangular, Angled Fins | 1.772" (45.00mm) | 1.102" (28.00mm) | - | 0.433" (11.00mm) | - | 4.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

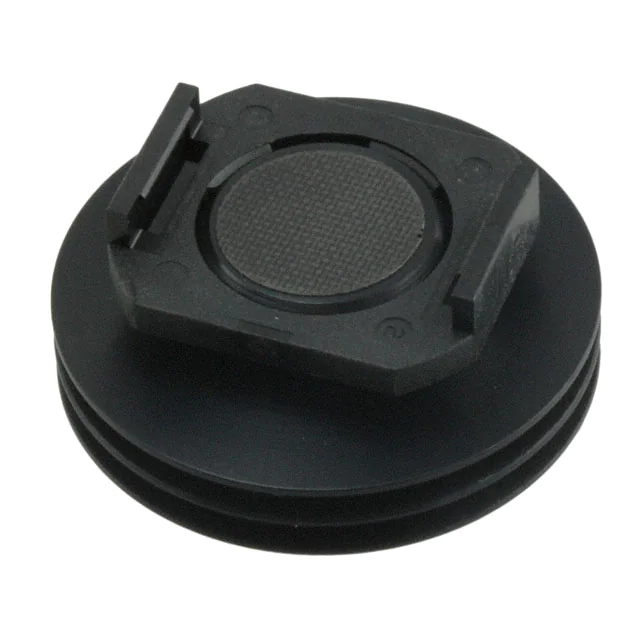

5-1542004-4HEAT SINK BGA 21MM 3FIN RADIAL |
9 |
|
Технический лист |
- | Box | Active | - | BGA | Clip | Cylindrical | - | - | 1.375" (34.92mm) OD | 0.467" (11.86mm) | - | 6.00°C/W @ 200 LFM | 13.20°C/W | Aluminum | Black Anodized |
|
1277335.64" WIDE X 12" MULTI CHANNEL 7 |
38 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 5.640" (143.26mm) | - | 1.000" (25.40mm) | - | - | 0.57°C/W | Aluminum | - |
|
1277431.66" WIDE X 36" BGA HEATSINK EX |
16 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | BGA | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 1.660" (42.16mm) | - | 1.175" (29.85mm) | - | - | 0.90°C/W | Aluminum | - |
|
1277992.5" WIDE X 12" T STYLE EXTRUSIO |
24 |
|
Технический лист |
- | Box | Active | Board Level, Extrusion | - | Bolt On | Rectangular, Fins | 36.000" (914.40mm) | 2.500" (63.50mm) | - | 1.500" (38.10mm) | - | - | 0.87°C/W | Aluminum | - |
|
1253442.22WX36" EXTRUSION 14192 |
41 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | DC/DC Converter | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 2.220" (56.39mm) | - | 0.931" (23.65mm) | - | - | 0.15°C/W | Aluminum | - |
|
ATS-59000-C1-R0HEAT SINK 21MM X 45MM X 9MM |
74 |
|
Технический лист |
maxiGRIP | Bulk | Active | Top Mount | Flip Chip Processors | Clip | Rectangular, Angled Fins | 0.827" (21.00mm) | 1.772" (45.00mm) | - | 0.354" (9.00mm) | - | 6.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
1277114.461" WIDE X 12" FLATBACK HEATS |
24 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 4.461" (113.31mm) | - | 1.310" (33.27mm) | - | - | 0.45°C/W | Aluminum | - |
