Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

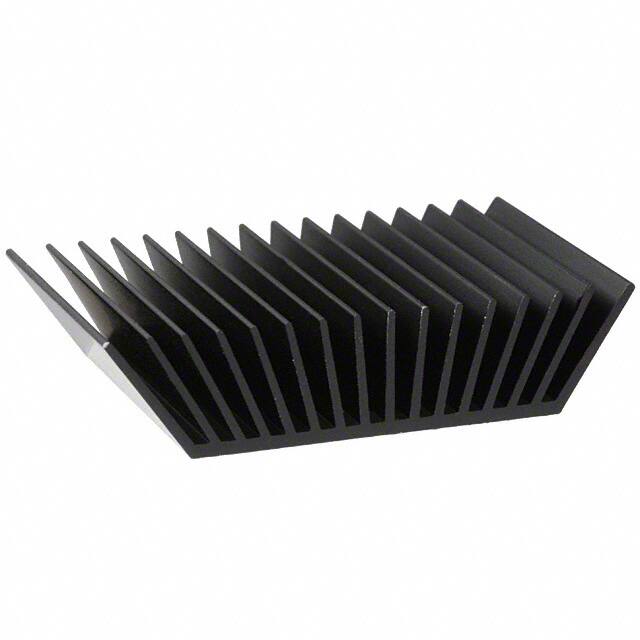

ATS-56007-C4-R0HEAT SINK 45MM X 45MM X 15MM |
75 |
|
Технический лист |
maxiFLOW | Bulk | Active | Top Mount | ASIC | Thermal Tape, Adhesive (Not Included) | Square, Angled Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.590" (15.00mm) | - | 2.40°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-1039-C3-R0HEATSINK 40X38X15MM PEM |
100 |
|
Технический лист |
maxiFLOW | Bulk | Active | Top Mount | BGA | Push Pin | Rectangular, Angled Fins | 1.575" (40.00mm) | 1.500" (38.10mm) | - | 0.590" (15.00mm) | - | 2.50°C/W @ 300 LFM | - | Aluminum | Green Anodized |
|
ATS-1042-C3-R0HEATSINK 41X45X15MM PEM |
82 |
|
Технический лист |
maxiFLOW | Bulk | Active | Top Mount | BGA | Push Pin | Rectangular, Angled Fins | 1.610" (40.89mm) | 1.772" (45.00mm) | - | 0.590" (15.00mm) | - | 2.50°C/W @ 300 LFM | - | Aluminum | Green Anodized |
|
ATS-61325R-C1-R0MAXIGRIP FANSINK 32.5X19.5MM |
102 |
|
Технический лист |
fanSINK, maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Pin Fins | 1.279" (32.50mm) | 1.279" (32.50mm) | - | 0.768" (19.50mm) | - | 1.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

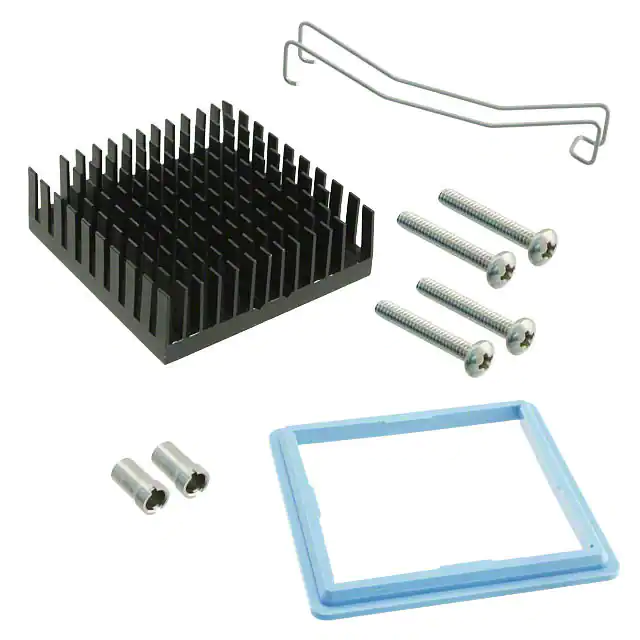

ATS-61450K-C1-R0MAXIGRIP FANSINK 45X45X14.5MM |
82 |
|
Технический лист |
fanSINK, maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Pin Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.571" (14.50mm) | - | 1.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-X53210B-C1-R0SUPERGRIP HEATSINK 21X21X7.5MM |
42 |
|
Технический лист |
superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.295" (7.50mm) | - | 20.20°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-61375R-C1-R0MAXIGRIP FANSINK 37.5X19.5MM |
105 |
|
Технический лист |
fanSINK, maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Pin Fins | 1.476" (37.50mm) | 1.476" (37.50mm) | - | 0.768" (19.50mm) | - | 1.55°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-X50170B-C1-R0SUPERGRIP HEATSINK 17X17X7.5MM |
46 |
|
Технический лист |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.669" (17.00mm) | 0.669" (17.00mm) | - | 0.295" (7.50mm) | - | 18.20°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X50210B-C1-R0SUPERGRIP HEATSINK 21X21X7.5MM |
115 |
|
Технический лист |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.295" (7.50mm) | - | 11.90°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X53150G-C1-R0STR FIN 14.25X14.25X12.5MM T766 |
99 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

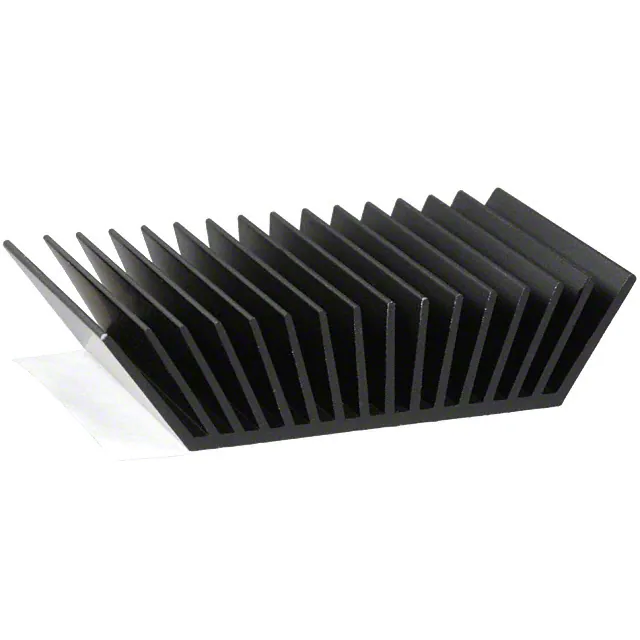

ATS-56007-C3-R0HEAT SINK 45MM X 45MM X 15MM |
93 |
|
Технический лист |
maxiFLOW | Bulk | Active | Top Mount | ASIC | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.590" (15.00mm) | - | 2.40°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

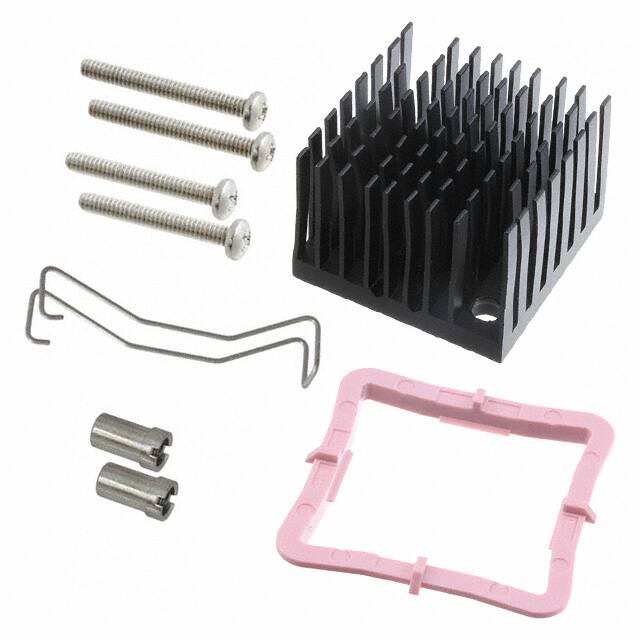

ATS-61330W-C2-R0MAXIGRIP FANSINK 33X33X24.5MM |
25 |
|
Технический лист |
fanSINK, maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Pin Fins | 1.299" (32.99mm) | 1.299" (32.99mm) | - | 0.965" (24.50mm) | - | 1.55°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-X50150G-C1-R0SUPERGRIP HEATSINK 15X15X12.5MM |
97 |
|
Технический лист |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.591" (15.00mm) | 0.591" (15.00mm) | - | 0.492" (12.50mm) | - | 11.70°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-59003-C1-R0HEAT SINK 32MM X 50MM X 12MM |
61 |
|
Технический лист |
maxiGRIP | Bulk | Active | Top Mount | Flip Chip Processors | Clip | Rectangular, Angled Fins | 1.260" (32.00mm) | 1.969" (50.00mm) | - | 0.472" (12.00mm) | - | 3.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-61375W-C2-R0MAXIGRIP FANSINK 37.5X24.5MM |
79 |
|
Технический лист |
fanSINK, maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Pin Fins | 1.476" (37.50mm) | 1.476" (37.50mm) | - | 0.965" (24.50mm) | - | 1.40°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
1277324.75" WIDE X 12" CENTER CHANNEL |
20 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 4.750" (120.65mm) | - | 0.461" (11.70mm) | - | - | 0.83°C/W | Aluminum | - |
|

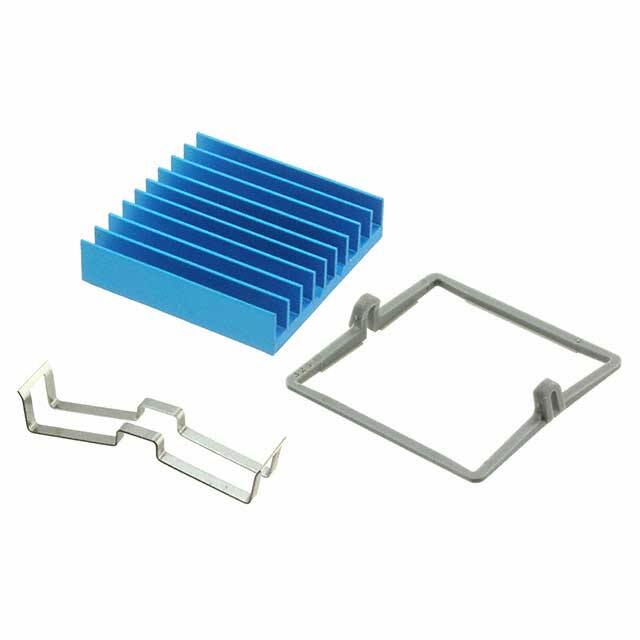

ATS-X53325B-C1-R0SUPERGRIP HEATSINK 32X32X7.5MM |
95 |
|
Технический лист |
superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.260" (32.00mm) | 1.260" (32.00mm) | - | 0.295" (7.50mm) | - | 11.30°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X53190G-C1-R0SUPERGRIP HEATSINK 19X19X12.5MM |
58 |
|
Технический лист |
superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.492" (12.50mm) | - | 12.00°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X53330B-C1-R0SUPERGRIP HEATSINK 33X33X7.5MM |
108 |
|
Технический лист |
superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.299" (32.99mm) | 1.299" (32.99mm) | - | 0.295" (7.50mm) | - | 11.10°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X53210G-C1-R0SUPERGRIP HEATSINK 21X21X12.5MM |
94 |
|
Технический лист |
superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.492" (12.50mm) | - | 11.10°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
