Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-61425W-C2-R0MAXIGRIP FANSINK 42.5X24.5MM |
85 |
|
Технический лист |
fanSINK, maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Pin Fins | 1.673" (42.50mm) | 1.673" (42.50mm) | - | 0.965" (24.50mm) | - | 1.20°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-X50290B-C1-R0SUPERGRIP HEATSINK 29X29X7.5MM |
82 |
|
Технический лист |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.142" (29.00mm) | 1.142" (29.00mm) | - | 0.295" (7.50mm) | - | 7.40°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X50170G-C1-R0SUPERGRIP HEATSINK 17X17X12.5MM |
120 |
|
Технический лист |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.669" (17.00mm) | 0.669" (17.00mm) | - | 0.492" (12.50mm) | - | 11.10°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X53290G-C1-R0SUPERGRIP HEATSINK 29X29X12.5MM |
98 |
|
Технический лист |
superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.142" (29.00mm) | 1.142" (29.00mm) | - | 0.492" (12.50mm) | - | 7.10°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X51290D-C1-R0MAXIFLOW 28.25X28.25X9.5MM T766 |
74 |
|
Технический лист |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.142" (29.00mm) | 1.142" (29.00mm) | - | 0.374" (9.50mm) | - | 7.40°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-X53150P-C1-R0STR FIN 14.25X14.25X17.5MM T766 |
100 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ATS-X53170P-C1-R0SUPERGRIP HEATSINK 17X17X17.5MM |
125 |
|
Технический лист |
superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 0.669" (17.00mm) | 0.669" (17.00mm) | - | 0.689" (17.50mm) | - | 9.30°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
1277291.625" WIDE X 12" CENTER CHANNEL |
51 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 1.625" (41.28mm) | - | 1.200" (30.50mm) | - | - | 1.16°C/W | Aluminum | - |
|

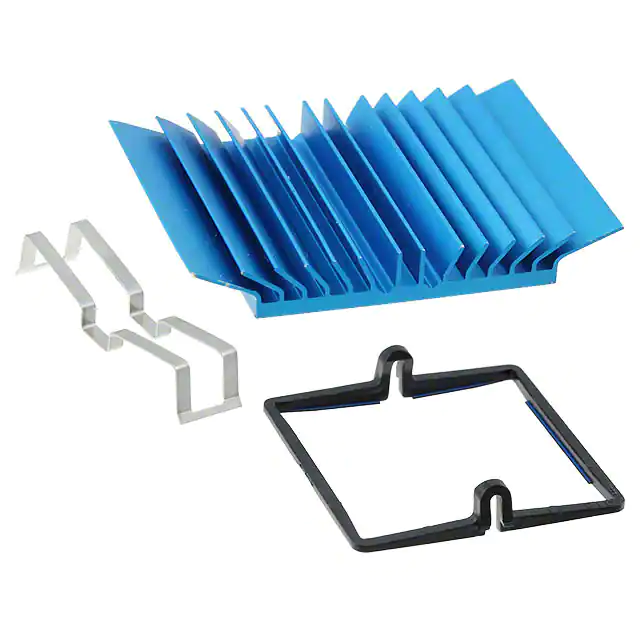

ATS-X50400B-C1-R0SUPERGRIP HEATSINK 40X40X7.5MM |
88 |
|
Технический лист |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.295" (7.50mm) | - | 4.50°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-59005-C1-R0HEAT SINK 29MM X 37MM X 10MM |
52 |
|
Технический лист |
maxiGRIP | Bulk | Active | Top Mount | Flip Chip Processors | Clip | Rectangular, Angled Fins | 1.142" (29.00mm) | 1.457" (37.00mm) | - | 0.394" (10.00mm) | - | 6.20°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-X50450B-C1-R0SUPERGRIP HEATSINK 45X45X7.5MM |
111 |
|
Технический лист |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.295" (7.50mm) | - | 2.10°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X53375G-C1-R0SUPERGRIP HEATSINK 37X37X12.5MM |
111 |
|
Технический лист |
superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.457" (37.00mm) | 1.457" (37.00mm) | - | 0.492" (12.50mm) | - | 5.00°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X53150R-C1-R0STR FIN 14.25X14.25X19.5MM T766 |
29 |
|
Технический лист |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.378" (35.00mm) | 2.415" (61.34mm) | - | 0.768" (19.50mm) | - | 2.20°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X53400G-C1-R0SUPERGRIP HEATSINK 40X40X12.5MM |
74 |
|
Технический лист |
superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.492" (12.50mm) | - | 4.60°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X53450G-C1-R0SUPERGRIP HEATSINK 45X45X12.5MM |
118 |
|
Технический лист |
superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.492" (12.50mm) | - | 4.10°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X53290P-C1-R0SUPERGRIP HEATSINK 29X29X17.5MM |
40 |
|
Технический лист |
superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.142" (29.00mm) | 1.142" (29.00mm) | - | 0.689" (17.50mm) | - | 5.00°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X50330G-C1-R0SUPERGRIP HEATSINK 33X33X12.5MM |
120 |
|
Технический лист |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.299" (32.99mm) | 1.299" (32.99mm) | - | 0.492" (12.50mm) | - | 3.50°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
1277412.5" WIDE X 12" T STYLE EXTRUSIO |
35 |
|
Технический лист |
- | Box | Active | Board Level, Extrusion | - | Bolt On | Rectangular, Fins | 12.000" (304.80mm) | 2.500" (63.50mm) | - | 1.500" (38.10mm) | - | - | 0.87°C/W | Aluminum | - |
|
ATS-X50375G-C1-R0SUPERGRIP HEATSINK 37X37X12.5MM |
100 |
|
Технический лист |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.457" (37.00mm) | 1.457" (37.00mm) | - | 0.492" (12.50mm) | - | 2.80°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X53310P-C1-R0SUPERGRIP HEATSINK 31X31X17.5MM |
108 |
|
Технический лист |
superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.689" (17.50mm) | - | 4.70°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
