Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
ATS041041013-PF027PINFIN HEATSINK 40.6X40.6X13.3MM |
97 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 1.598" (40.60mm) | 1.598" (40.60mm) | - | 0.524" (13.30mm) | - | 3.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS012012012-SF-2KHEATSINK 12X12X12MM |
27 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 0.472" (12.00mm) | 0.472" (12.00mm) | - | 0.472" (12.00mm) | - | 19.49°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-CPX035035015-176-C2-R0HEATSINK 35X35X15MM R-TAB CP |
45 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.590" (15.00mm) | - | 8.59°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX035035020-87-C2-R0HEATSINK 35X35X20MM R-TAB FP |
90 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.790" (20.00mm) | - | 13.16°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX035035025-58-C2-R0HEATSINK 35X35X25MM L-TAB FP |
88 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.984" (25.00mm) | - | 10.11°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

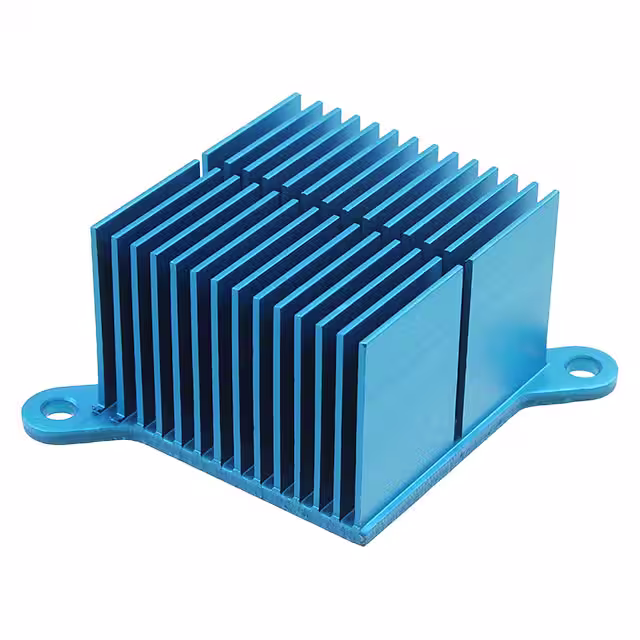

ATS-FPX035035025-88-C2-R0HEATSINK 35X35X25MM R-TAB FP |
60 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.984" (25.00mm) | - | 10.11°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX045045010-06-C2-R0HEATSINK 45X45X10MM XCUT FP |
37 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.394" (10.00mm) | - | 20.17°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS031031006-SF-10EHEATSINK 31X31X6MM |
77 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 1.220" (31.00mm) | 1.220" (31.00mm) | - | 0.236" (6.00mm) | - | 16.96°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS043045010-PF032PINFIN HEATSINK 44.5X43.2X10.2MM |
50 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Rectangular, Pin Fins | 1.752" (44.50mm) | 1.701" (43.20mm) | - | 0.402" (10.21mm) | - | 5.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-CPX035035030-151-C2-R0HEATSINK 35X35X30MM L-TAB CP |
51 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.181" (30.00mm) | - | 3.93°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX040040020-155-C2-R0HEATSINK 40X40X20MM L-TAB CP |
60 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.790" (20.00mm) | - | 5.37°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

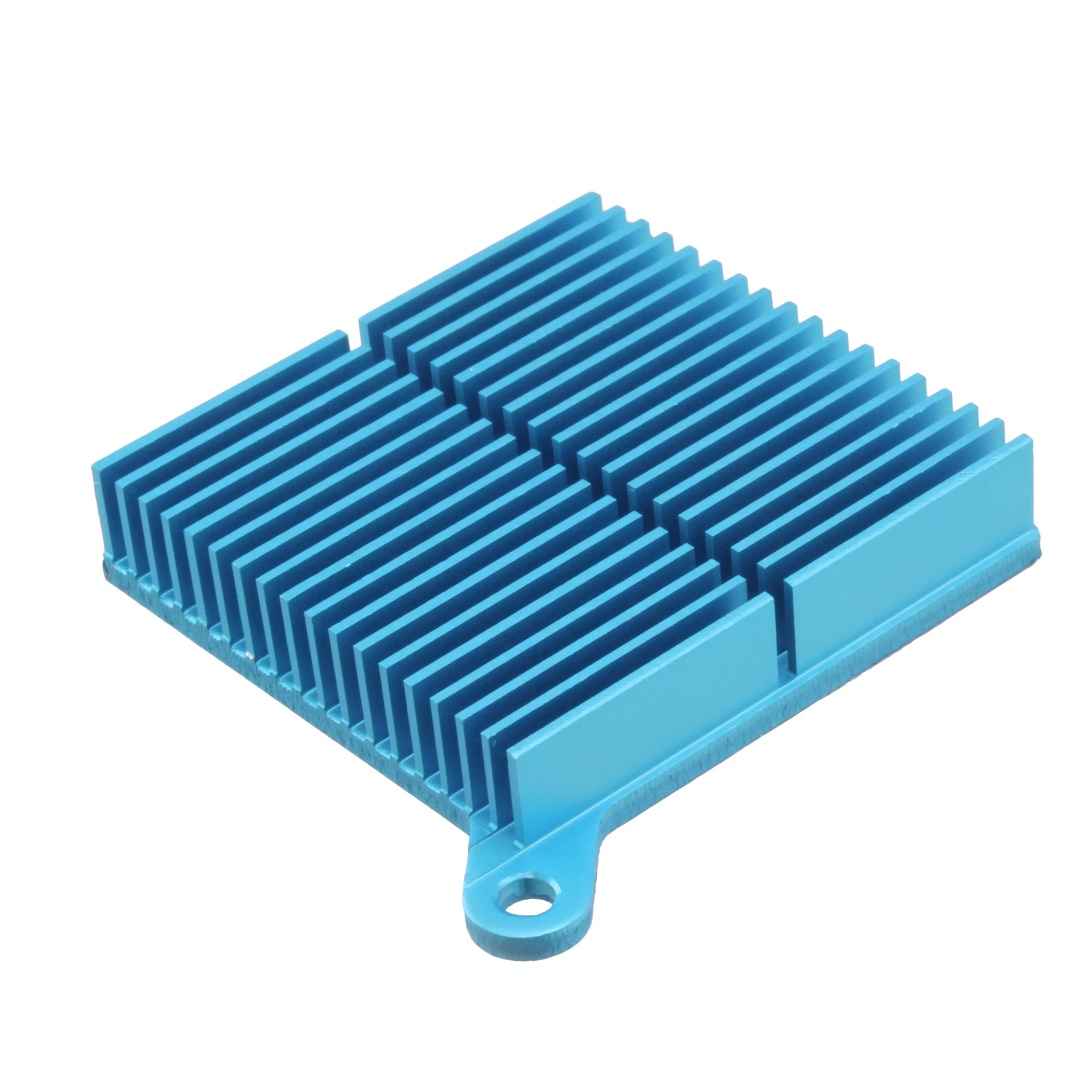

ATS-FPX045045010-67-C2-R0HEATSINK 45X45X10MM L-TAB FP |
100 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.394" (10.00mm) | - | 20.30°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS014014006-PF-3ECROSS CUT HEATSINK 14X14X6MM |
35 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 0.551" (14.00mm) | 0.551" (14.00mm) | - | 0.236" (6.00mm) | - | 35.94°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS014014014-SF-3MHEATSINK 14X14X14MM |
94 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 0.551" (14.00mm) | 0.551" (14.00mm) | - | 0.551" (14.00mm) | - | 13.37°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS020020012-SF-7KHEATSINK 20X20X12MM |
83 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 0.787" (20.00mm) | 0.787" (20.00mm) | - | 0.472" (12.00mm) | - | 10.59°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS019019009-SF-6HHEATSINK 19X19X9MM |
49 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.354" (9.00mm) | - | 15.77°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS015015006-PF-4EHEAT SINK 15MM X 15MM X 6MM |
81 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 0.591" (15.00mm) | 0.590" (15.00mm) | - | 0.236" (6.00mm) | - | 33.59°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS031031007-SF-10FHEATSINK 31X31X7MM |
49 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 1.220" (31.00mm) | 1.220" (31.00mm) | - | 0.276" (7.00mm) | - | 13.86°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS012012015-SF-2NHEATSINK 12X12X15MM |
74 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 0.472" (12.00mm) | 0.472" (12.00mm) | - | 0.591" (15.00mm) | - | 15.44°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

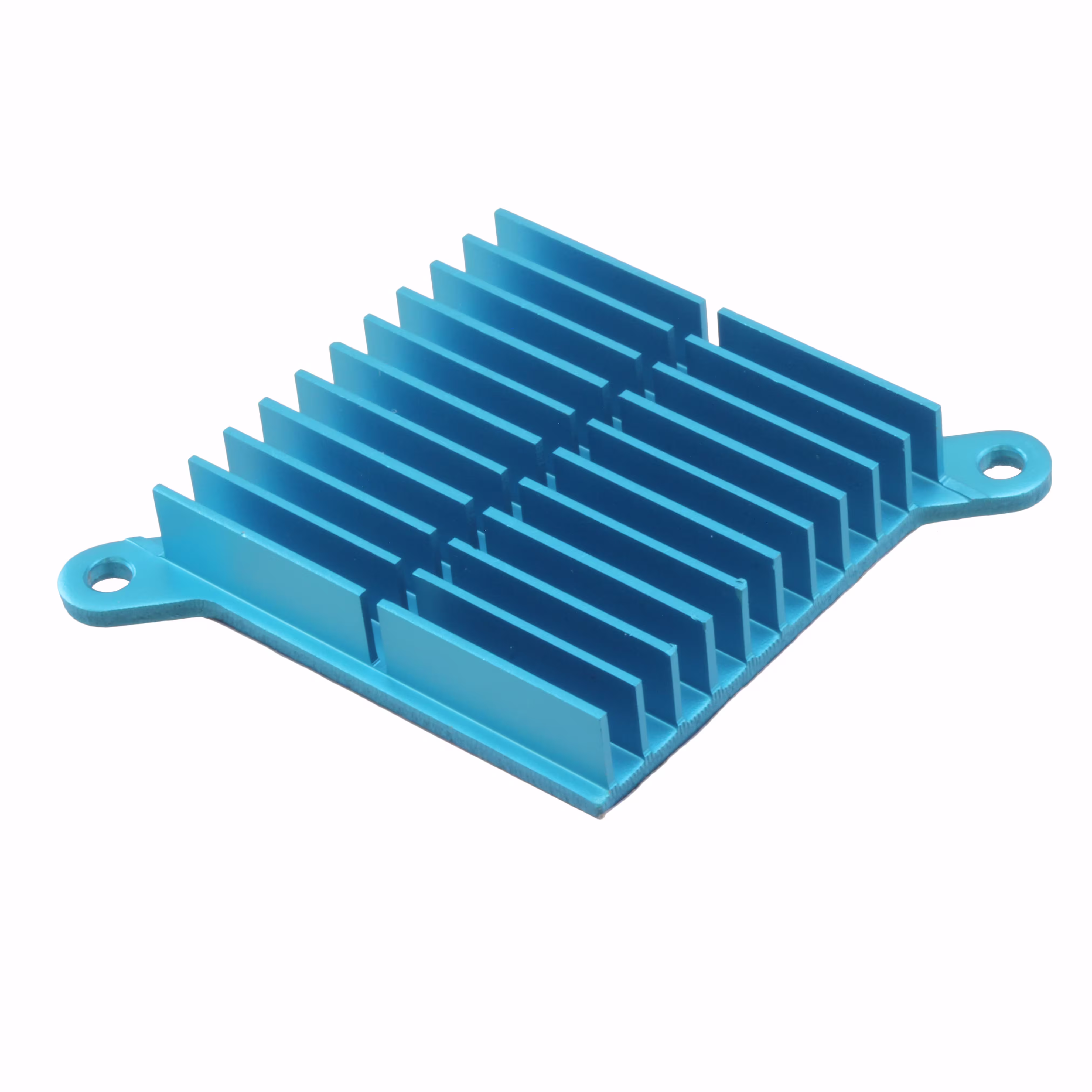

ATS-CPX045045010-159-C2-R0HEATSINK 45X45X10MM L-TAB CP |
76 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.394" (10.00mm) | - | 10.70°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
