DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTM4619EV#PBFDC DC CONVERTER 0.8-5V 0.8-5V |
1,529 |
|
Технический лист |
µModule® | 144-BLGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 4.5V | 26.5V | 0.8 ~ 5V | 0.8 ~ 5V | - | - | 4A, 4A | - | - | ITE (Commercial) | - | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.59" W x 0.11" H (15.0mm x 15.0mm x 2.8mm) | 144-LGA (15x15) | - | - | - |
|
THN 15-1212DC DC CONVERTER 12V 16W |
103 |
|
Технический лист |
THN 15 (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 1.3A | 16 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | - | - |
|

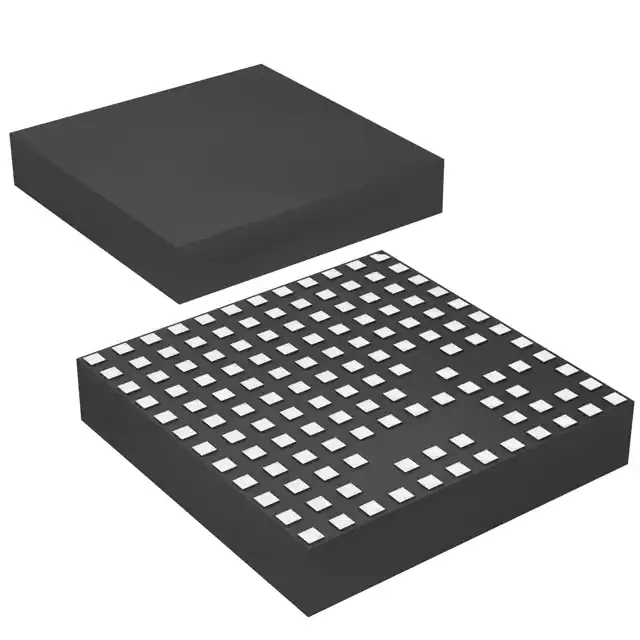

LTM4601AEV#PBFDC DC CONVERTER 0.6-5V |
444 |
|
Технический лист |
µModule® | 133-BLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 20V | 0.6 ~ 5V | - | - | - | 12A | - | - | ITE (Commercial) | OVP, SCP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 0.59" L x 0.59" W x 0.11" H (15.0mm x 15.0mm x 2.8mm) | 133-LGA (15x15) | - | - | - |
|
LTM4643EV#PBFDC DC CONVERTER 3X0.6-3.3V |
673 |
|
Технический лист |
µModule® | 77-LGA Module | Tray | Active | Non-Isolated PoL Module | 4 | 4V | 20V | 0.6 ~ 3.3V | 0.6 ~ 3.3V | 0.6 ~ 3.3V | - | 3A, 3A, 3A, 3A | - | - | ITE (Commercial) | OCP, OTP, OVP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.35" W x 0.07" H (15.0mm x 9.0mm x 1.8mm) | 77-LGA (15x9) | - | - | - |
|
TEN 8-2423WIDC DC CONVERTER +/-15V 8W |
460 |
|
Технический лист |
TEN 8WI (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 267mA, 267mA | 8 W | 1.5 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
TEN 8-2421WIDC DC CONVERTER +/-5V 8W |
194 |
|
Технический лист |
TEN 8WI (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 800mA, 800mA | 8 W | 1.5 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
LTM8025MPV#PBFDC DC CONVERTER 0.8-24V |
0 |
|
Технический лист |
µModule® | 70-BLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 3.6V | 36V | 0.8 ~ 24V | - | - | - | 3A | - | - | ITE (Commercial) | - | -55°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.35" W x 0.17" H (15.0mm x 9.0mm x 4.3mm) | 70-LGA (15x9) | - | - | - |
|
LTM4655IY#PBFEN55022B CMPLINT 40V DUAL 4A SNG |
107 |
|
Технический лист |
µModule® | 144-BBGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 3.1V | 40V | 0.5 ~ 26.5V | -0.5 ~ -26.5V | - | - | 4A, 4A | 212 W | - | ITE (Commercial) | Adjustable Output | -40°C ~ 125°C | - | - | - | Surface Mount | 0.63" L x 0.63" W x 0.21" H (16.0mm x 16.0mm x 5.2mm) | 144-BGA (16x16) | - | - | - |
|
|
LTM4614IV#PBFDC DC CONVERTER 0.8-5V 0.8-5V |
119 |
|
Технический лист |
µModule® | 144-BLGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 2.38V | 5.5V | 0.8 ~ 5V | 0.8 ~ 5V | - | - | 4A, 4A | - | - | ITE (Commercial) | - | -40°C ~ 125°C | 95% | - | - | Surface Mount | 0.59" L x 0.59" W x 0.11" H (15.0mm x 15.0mm x 2.8mm) | 144-LGA (15x15) | - | - | - |
|

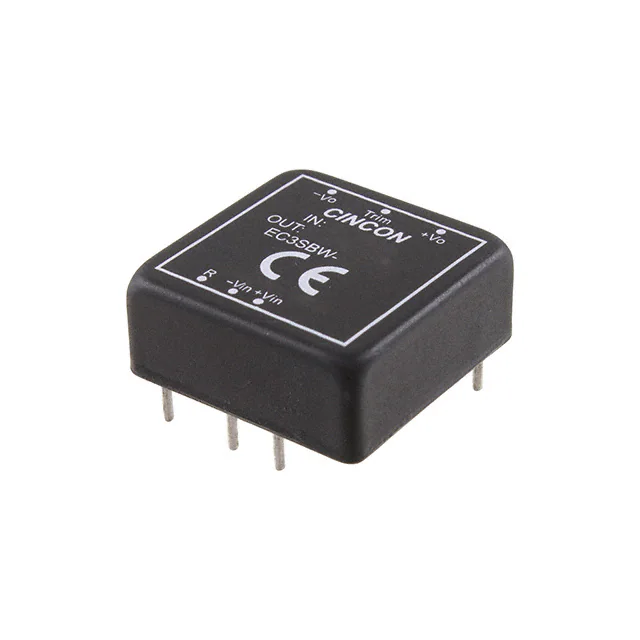

EC3SBW-24S05DC DC CONVERTER 5V 15W |
272 |
|
Технический лист |
EC3SBW (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 3A | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | Enable, Active High | CE | 60950-1 |
|
TMR 9-2413WIDC DC CONVERTER 15V 9W |
128 |
|
Технический лист |
TMR 9WI (9W) | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 600mA | 9 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) | - | - | CB, cURus | - |
|
THN 15-2410WIDC DC CONVERTER 3.3V 13W |
315 |
|
Технический лист |
THN 15WI (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 4A | 13 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CB, cURus | - |
|
LTM8045MPYDC DC CONVERTER +/-2.5 +/-15V |
398 |
|
Технический лист |
µModule® | 40-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 2.8V | 18V | -2.5 ~ -15V, 2.5 ~ 15V | - | - | - | 700mA | - | - | ITE (Commercial) | OTP, UVLO | -55°C ~ 125°C | - | - | - | Surface Mount | 0.44" L x 0.25" W x 0.19" H (11.3mm x 6.3mm x 4.9mm) | 40-BGA (11.25x6.25) | - | - | - |
|
|
LTM4615EV#PBFDC DC CNVRTR 2X0.8-5V 0.4-2.6V |
232 |
|
Технический лист |
µModule® | 144-BLGA Module | Tray | Active | Non-Isolated PoL Module | 3 | 2.38V | 5.5V | 0.8 ~ 5V | 0.8 ~ 5V | 0.4 ~ 2.6V | - | 4A, 4A, 1.5A | - | - | ITE (Commercial) | - | -40°C ~ 125°C | 95% | - | - | Surface Mount | 0.59" L x 0.59" W x 0.11" H (15.0mm x 15.0mm x 2.8mm) | 144-LGA (15x15) | - | - | - |
|
ULS-5/20-D48N-CDC DC CONVERTER 5V 100W |
1,439 |
|
Технический лист |
ULS (100W) | 8-DIP Module, 1/16 Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 20A | 100 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 91% | - | - | Through Hole | 1.30" L x 0.90" W x 0.40" H (33.0mm x 22.9mm x 10.2mm) | - | Enable, Active Low | - | - |
|
|
TMR 9-2412WIDC DC CONVERTER 12V 9W |
318 |
|
Технический лист |
TMR 9WI (9W) | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 750mA | 9 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) | - | - | CB, cURus | - |
|
|
TMR 9-2411WIDC DC CONVERTER 5V 8W |
106 |
|
Технический лист |
TMR 9WI (9W) | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 1.6A | 8 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) | - | - | CB, cURus | - |
|
THN 15-2411WIDC DC CONVERTER 5V 15W |
2,236 |
|
Технический лист |
THN 15WI (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 3A | 15 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CB, cURus | - |
|
THN 15-4811WIDC DC CONVERTER 5V 15W |
418 |
|
Технический лист |
THN 15WI (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 3A | 15 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CB, cURus | - |
|
|
THN 15-2412WIDC DC CONVERTER 12V 16W |
107 |
|
Технический лист |
THN 15WI (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1.3A | 16 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CB, cURus | - |
