DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

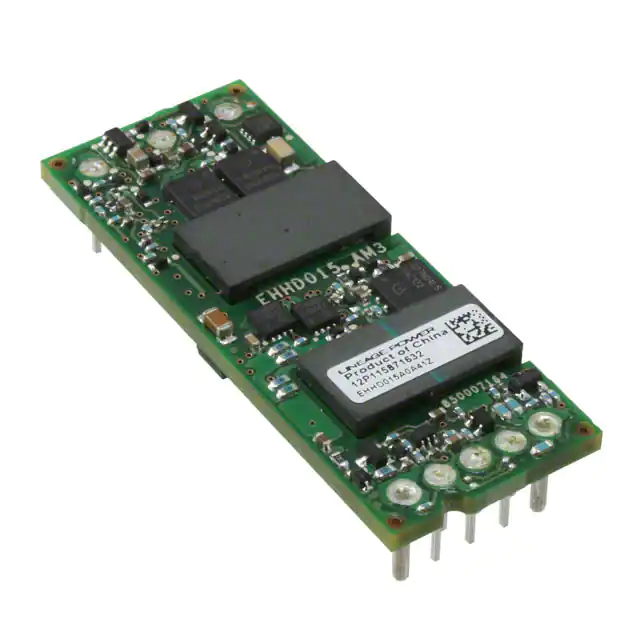

EHHD015A0A41ZDC DC CONVERTER 5V 75W |
608 |
|
Технический лист |
Hammerhead™ EHHD015A0A (75W) | 8-DIP Module, 1/8 Brick | Tray | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 15A | 75 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 90.5% | - | - | Through Hole | 2.28" L x 0.90" W x 0.31" H (57.9mm x 22.9mm x 7.8mm) | - | Enable, Active Low | - | - |
|

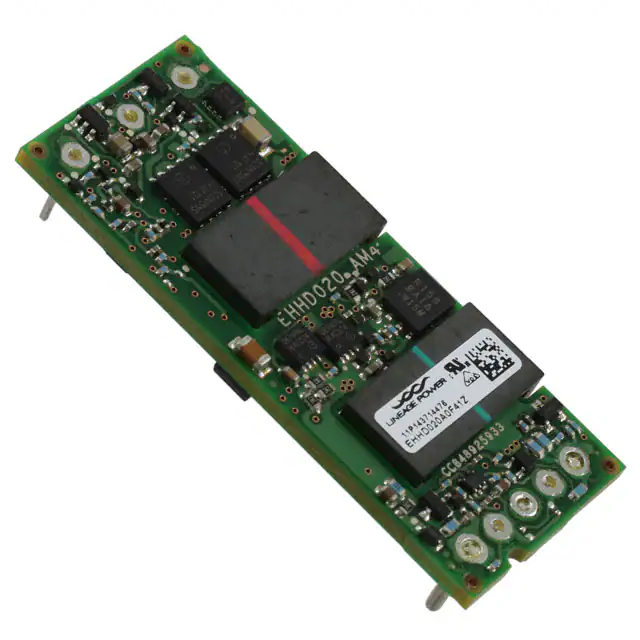

EHHD020A0F41ZDC DC CONVERTER 3.3V 66W |
190 |
|
Технический лист |
Hammerhead™ EHHD020A0F (66W) | 8-DIP Module, 1/8 Brick | Tray | Active | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 20A | 66 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 91% | - | - | Through Hole | 2.28" L x 0.90" W x 0.31" H (57.9mm x 22.9mm x 7.8mm) | - | Enable, Active Low | - | - |
|
LTM4606IV#PBFDC DC CONVERTER 0.6-5V |
230 |
|
Технический лист |
µModule® | 133-BLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 28V | 0.6 ~ 5V | - | - | - | 6A | - | - | ITE (Commercial) | OVP, SCP, UVLO | -40°C ~ 125°C | 93% | - | - | Surface Mount | 0.59" L x 0.59" W x 0.11" H (15.0mm x 15.0mm x 2.8mm) | 133-LGA (15x15) | - | - | - |
|
LTM4601IV#PBFDC DC CONVERTER 0.6-5V |
119 |
|
Технический лист |
µModule® | 118-BLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 20V | 0.6 ~ 5V | - | - | - | 12A | - | - | ITE (Commercial) | OVP, SCP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 0.59" L x 0.59" W x 0.11" H (15.0mm x 15.0mm x 2.8mm) | 118-LGA (15x15) | - | - | - |
|
LTM8027IV#PBFDC DC CONVERTER 2.5-24V |
0 |
|
Технический лист |
µModule® | 113-BLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 60V | 2.5 ~ 24V | - | - | - | 4A | - | - | ITE (Commercial) | - | -40°C ~ 125°C | 95% | - | - | Surface Mount | 0.59" L x 0.59" W x 0.17" H (15.0mm x 15.0mm x 4.3mm) | 113-LGA (15x15) | - | - | - |
.jpg)
|
REC6-2424SRW/R8/A/CTRLDC DC CONVERTER 24V 6W |
250 |
|
Технический лист |
ECONOLINE REC6/R (6W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 250mA | 6 W | 8 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 75°C | 84% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | Enable, Active Low | - | - |
|
LTM4643IV#PBFDC DC CONVERTER 3X0.6-3.3V |
150 |
|
Технический лист |
µModule® | 77-LGA Module | Tray | Active | Non-Isolated PoL Module | 4 | 4V | 20V | 0.6 ~ 3.3V | 0.6 ~ 3.3V | 0.6 ~ 3.3V | - | 3A, 3A, 3A, 3A | - | - | ITE (Commercial) | OCP, OTP, OVP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.35" W x 0.07" H (15.0mm x 9.0mm x 1.8mm) | 77-LGA (15x9) | - | - | - |
|
JCM3012D15DC DC CONVERTER +/-15V 30W |
315 |
|
Технический лист |
JCM30 (30W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 1A, 1A | 30 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 100°C | 90% | - | - | Through Hole | 1.00" L x 1.00" W x 0.41" H (25.4mm x 25.4mm x 10.4mm) | - | Enable, Active High | - | 62368-1 |
.jpg)
|
LTM8055EY#PBFDC DC CONVERTER 1.2-36V |
515 |
|
Технический лист |
µModule® | 121-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 5V | 36V | 1.2 ~ 36V | - | - | - | 8.5A | - | - | ITE (Commercial) | OTP | -40°C ~ 125°C | 97.5% | - | - | Surface Mount | 0.59" L x 0.59" W x 0.19" H (15.0mm x 15.0mm x 4.9mm) | 121-BGA (15x15) | - | - | - |
|

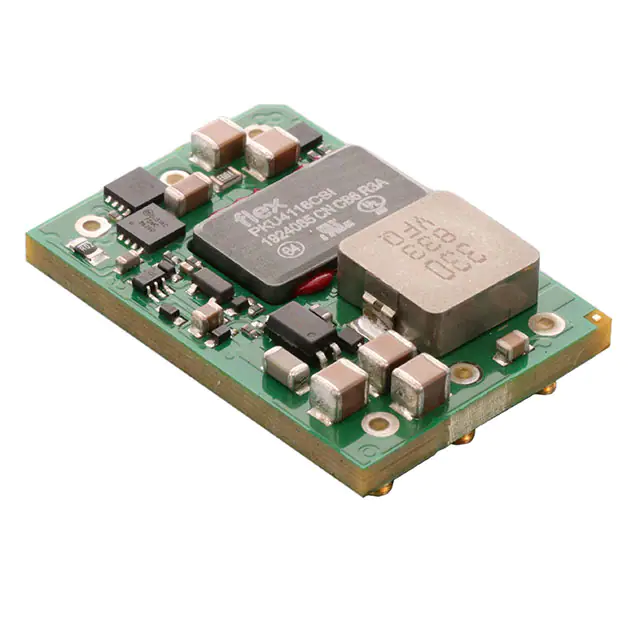

PKU4116CSIDC DC CONVERTER 30V 99W |
352 |
|
Технический лист |
PKU 4116C (100W) | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 30V | - | - | - | 3.3A | 99 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 125°C (With Derating) | 93.1% | - | - | Surface Mount | 1.30" L x 0.90" W x 0.38" H (33.0mm x 22.9mm x 9.6mm) | Sixteenth Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
LTM8055EY-1#PBFIC REG BCK BST ADJ 8.5A 121BGA |
214 |
|
Технический лист |
µModule® | 121-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 5V | 36V | 1.2 ~ 36V | - | - | - | 8.5A | - | - | ITE (Commercial) | Adjustable Output | -40°C ~ 125°C | 97.5% | - | - | Surface Mount | 0.59" L x 0.59" W x 0.19" H (15.0mm x 15.0mm x 4.9mm) | 121-BGA (15x15) | - | - | - |
|
|
LTM8056EY#PBFDC DC CONVERTER 1.2-48V |
0 |
|
Технический лист |
µModule® | 121-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 5V | 58V | 1.2 ~ 48V | - | - | - | 5.4A | - | - | ITE (Commercial) | OTP | -40°C ~ 125°C | 96% | - | - | Surface Mount | 0.59" L x 0.59" W x 0.19" H (15.0mm x 15.0mm x 4.9mm) | 121-BGA (15x15) | - | - | - |
|
TMR 9-2423WIDC DC CONVERTER +/-15V 9W |
767 |
|
Технический лист |
TMR 9WI (9W) | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 300mA, 300mA | 9 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) | - | - | CB, cURus | - |
|
THD 12-2411WIDC DC CONVERTER 5.1V 12W |
219 |
|
Технический лист |
THD 12WI (12W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5.1V | - | - | - | 2.4A | 12 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
LGA80D-00DADJJDC DC CNVRTR 0.6-5.2V 0.6-5.2V |
3,403 |
|
Технический лист |
LGA80D | 28-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module, Digital | 2 | 7V | 14V | 0.6 ~ 5.2V | 0.6 ~ 5.2V | - | - | 40A, 40A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 85°C | 95.5% | - | - | Surface Mount | 1.00" L x 0.50" W x 0.48" H (25.4mm x 12.7mm x 12.2mm) | - | - | - | - |
|
LTM4619IV#PBFDC DC CONVERTER 0.8-5V 0.8-5V |
390 |
|
Технический лист |
µModule® | 144-BLGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 4.5V | 26.5V | 0.8 ~ 5V | 0.8 ~ 5V | - | - | 4A, 4A | - | - | ITE (Commercial) | - | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.59" W x 0.11" H (15.0mm x 15.0mm x 2.8mm) | 144-LGA (15x15) | - | - | - |
|
LTM8071IYDC DC CONVERTER 0.97-15V |
101 |
|
Технический лист |
µModule® | 80-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 3.6V | 60V | 0.97 ~ 15V | - | - | - | 5A | - | - | ITE (Commercial) | OCP, OTP, SCP | -40°C ~ 125°C | - | - | - | Surface Mount | 0.44" L x 0.35" W x 0.14" H (11.3mm x 9.0mm x 3.5mm) | 80-BGA (11.25x9) | - | - | - |
|
|
LTM4601AIV#PBFDC DC CONVERTER 0.6-5V |
117 |
|
Технический лист |
µModule® | 133-BLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 20V | 0.6 ~ 5V | - | - | - | 12A | - | - | ITE (Commercial) | OVP, SCP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 0.59" L x 0.59" W x 0.11" H (15.0mm x 15.0mm x 2.8mm) | 133-LGA (15x15) | - | - | - |
|

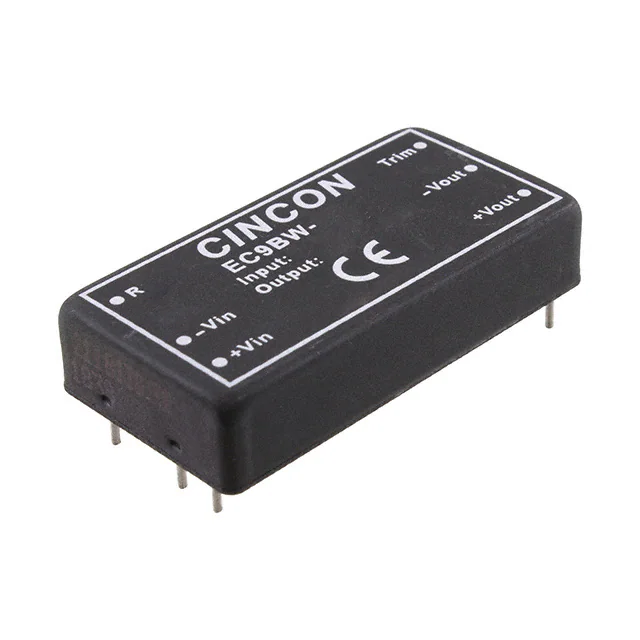

EC9BW-24S12DC DC CONVERTER 12V 30W |
278 |
|
Технический лист |
EC9BW (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 2.5A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 90.5% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | CE | 60950-1 |
|
LTM4605EV#PBFDC DC CONVERTER 0.8-16V |
219 |
|
- |
µModule® | 141-BLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 20V | 0.8 ~ 16V | - | - | - | 5A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 98% | - | - | Surface Mount | 0.59" L x 0.59" W x 0.11" H (15.0mm x 15.0mm x 2.8mm) | 141-LGA (15x15) | - | - | - |
