DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SKM30A-12DC DC CONVERTER 12V 30W |
771 |
|
Технический лист |
SKM30 (30W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 2.5A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 75°C (With Derating) | 89.5% | - | - | Through Hole | 2.00" L x 1.00" W x 0.44" H (50.8mm x 25.4mm x 11.2mm) | - | - | - | - |
|
R-7312DDC DC CONVERTER 12V 36W |
736 |
|
Технический лист |
INNOLINE R-7xxx | 12-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 15V | 28V | 12V | - | - | - | 3A | 36 W | - | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 97% | - | - | Through Hole, Right Angle | 1.27" L x 0.59" W x 0.36" H (32.2mm x 15.0mm x 9.1mm) | - | Enable, Active High | - | - |
|
PWR1300ACDC DC CONVERTER 5V 2W |
1,947 |
|
Технический лист |
PWR13xxC (1.5W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 300mA | 2 W | 4 kV | ITE (Commercial) | - | -40°C ~ 85°C | 75% | - | - | Through Hole | 1.27" L x 0.81" W x 0.40" H (32.3mm x 20.5mm x 10.2mm) | - | - | - | - |
|
PWR1307ACDC DC CONVERTER 12V 2W |
1,148 |
|
Технический лист |
PWR13xxC (1.5W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 125mA | 2 W | 4 kV | ITE (Commercial) | - | -40°C ~ 85°C | 75% | - | - | Through Hole | 1.27" L x 0.81" W x 0.40" H (32.3mm x 20.5mm x 10.2mm) | - | - | - | - |
|
TEN 5-2423DC DC CONVERTER +/-15V 6W |
1,007 |
|
Технический лист |
TEN 5 (6W) | 24-DIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 200mA, 200mA | 6 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | Module | - | - | - |
|
TEN 5-2422DC DC CONVERTER +/-12V 6W |
686 |
|
Технический лист |
TEN 5 (6W) | 24-DIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | Module | - | - | - |
|
TDR 3-2411WIDC DC CONVERTER 5V 3W |
132 |
|
Технический лист |
TDR 3WI (3W) | 14-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 600mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.74" L x 0.50" W x 0.34" H (18.9mm x 12.8mm x 8.7mm) | - | - | - | - |
|
LTM8067IYDC DC CONVERTER 2.5-24V |
456 |
|
Технический лист |
µModule® | 38-BBGA Module | Tray | Active | Isolated Module | 1 | 2.8V | 40V | 2.5 ~ 24V | - | - | - | 450mA | - | 2 kV | ITE (Commercial) | UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.44" L x 0.35" W x 0.19" H (11.3mm x 9.0mm x 4.9mm) | 38-BGA (11.25x9) | - | - | - |
|
TPSM8D6B24MOWR4-V TO 16-V INPUT, DUAL 25-A, SI |
536 |
|
Технический лист |
TPSM | 59-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.95V | 16V | 0.5 ~ 5.5V | - | - | - | 50A | - | - | ITE (Commercial) | Adjustable Output, PMBus™, Remote On/Off, Remote Sense | -40°C ~ 125°C | 91% | - | - | Surface Mount | 0.79" L x 0.63" W x 0.17" H (20.0mm x 16.0mm x 4.2mm) | 59-QFM (16x20) | - | - | - |
|
BEI15-120-Q12P-CDC DC CONVERTER +/-12V 15W |
1,148 |
|
Технический лист |
BEI15 (15W) | 6-DIP Module | Tray | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 625mA, 625mA | 15 W | 2 kV | ITE (Commercial) | - | -40°C ~ 85°C | 86% | - | - | Through Hole | 1.10" L x 0.96" W x 0.35" H (27.9mm x 24.4mm x 8.9mm) | - | - | - | - |
|
|
BEI15-150-Q12P-CDC DC CONVERTER +/-15V 15W |
414 |
|
Технический лист |
BEI15 (15W) | 6-DIP Module | Tray | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 500mA, 500mA | 15 W | 2 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84% | - | - | Through Hole | 1.10" L x 0.96" W x 0.35" H (27.9mm x 24.4mm x 8.9mm) | - | - | - | - |
|

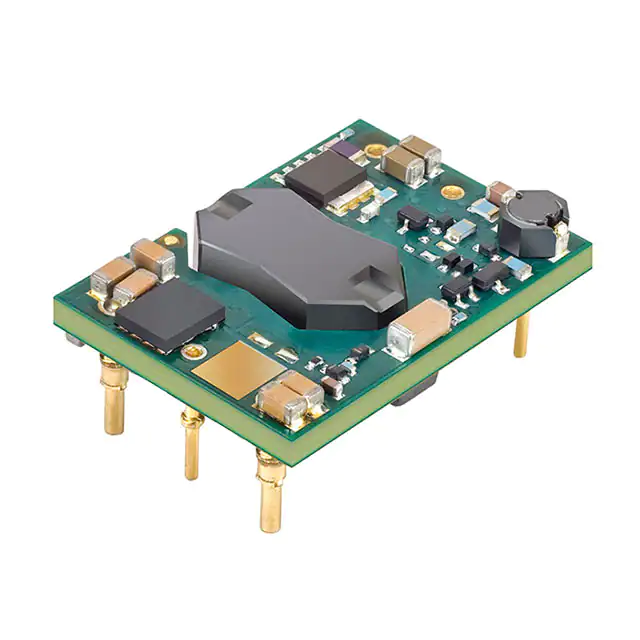

UWS-12/4.5-Q48N-CDC DC CONVERTER 12V 54W |
221 |
|
Технический лист |
UWS | 8-DIP Module, 1/16 Brick | Tray | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 4.5A | 54 W | 2.25 kV | ITE (Commercial) | Remote On/Off, UVLO | -40°C ~ 85°C | 91% | - | - | Through Hole | 1.31" L x 0.91" W x 0.36" H (33.3mm x 23.1mm x 9.1mm) | - | Enable, Active Low | - | - |
|

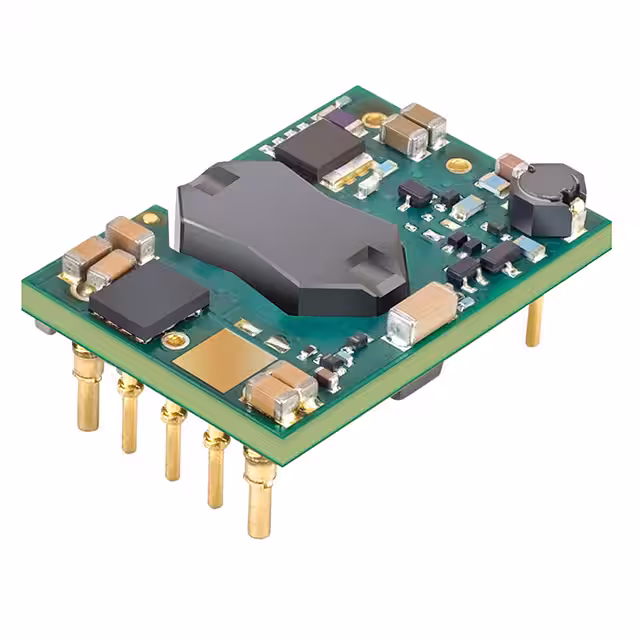

UWS-5/10-Q48N-CDC DC CONVERTER 5V 50W |
209 |
|
Технический лист |
UWS | 8-DIP Module, 1/16 Brick | Tray | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 10A | 50 W | 2.25 kV | ITE (Commercial) | Remote On/Off, UVLO | -40°C ~ 85°C | 91% | - | - | Through Hole | 1.31" L x 0.91" W x 0.36" H (33.3mm x 23.1mm x 9.1mm) | - | Enable, Active Low | - | - |
|
|
PKU4913DPIHS36-75VIN; 12VOUT; 100W; BASEPLAT |
192 |
|
Технический лист |
PKU4913D (100W) | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 8.3A | 100 W | 2.25 kV | ITE (Commercial) | Remote On/Off, Standby Output | -40°C ~ 125°C | 94.8% | - | - | Through Hole | 1.30" L x 0.90" W x 0.44" H (33.0mm x 22.9mm x 11.3mm) | Sixteenth Brick | Enable, Active High | cURus, UL | 62368-1 |
|

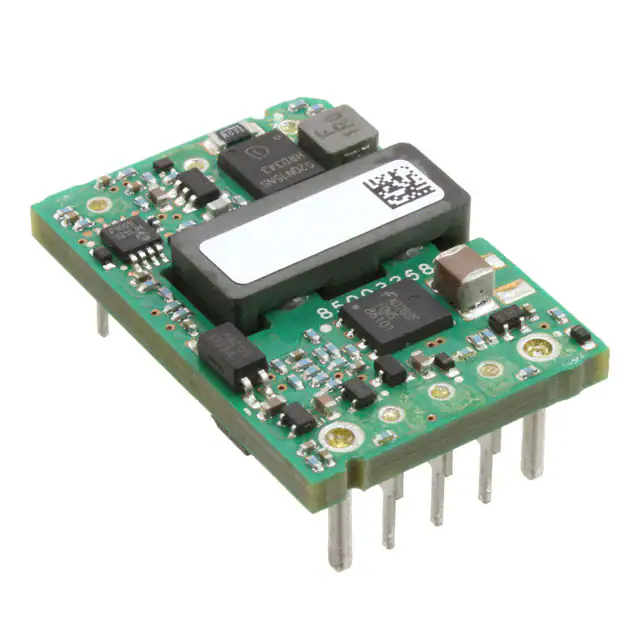

KHHD002A5B41ZDC DC CONVERTER 12V 30W |
965 |
|
Технический лист |
Hammerhead™ KHHD002A5B | 8-DIP Module, 1/16 Brick | Tray | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 2.5A | 30 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 90% | - | - | Through Hole | 1.30" L x 0.90" W x 0.37" H (33.0mm x 22.9mm x 9.3mm) | - | Enable, Active Low | - | - |
.jpg)
|
LTM4638IY#PBFDC DC CONVERTER 0.6-5.5V |
865 |
|
Технический лист |
µModule® | 49-BFBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 3.1V | 20V | 0.6 ~ 5.5V | - | - | - | 15A | - | - | ITE (Commercial) | OCP, OTP, OVP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.25" L x 0.25" W x 0.21" H (6.3mm x 6.3mm x 5.4mm) | 49-BGA (6.25x6.25) | - | - | - |
|
UWS-5/10-Q48NM-CDC DC CONVERTER 5V 50W |
1,453 |
|
Технический лист |
UWS | 8-SMD Module, 1/16 Brick | Tape & Reel (TR) | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 10A | 50 W | 2.25 kV | ITE (Commercial) | Remote On/Off, UVLO | -40°C ~ 85°C | 91% | - | - | Surface Mount | 1.31" L x 0.91" W x 0.36" H (33.3mm x 23.1mm x 9.1mm) | - | Enable, Active Low | - | - |
|

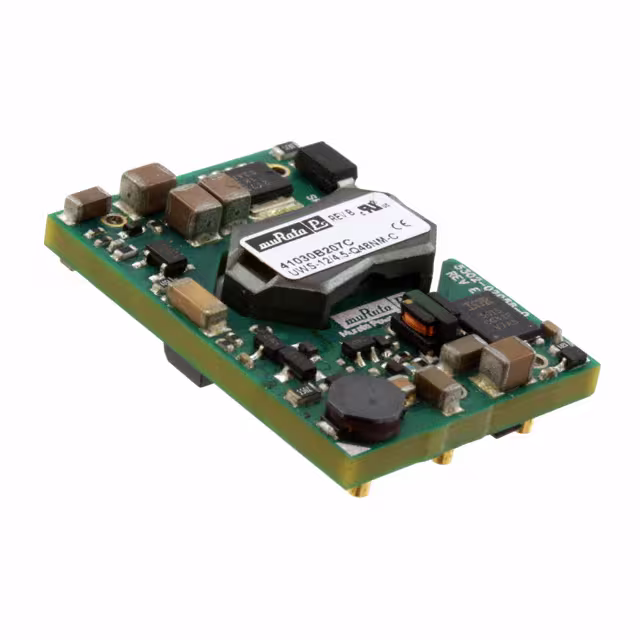

UWS-12/4.5-Q48NM-CDC DC CONVERTER 12V 54W |
587 |
|
Технический лист |
UWS | 8-SMD Module, 1/16 Brick | Tape & Reel (TR) | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 4.5A | 54 W | 2.25 kV | ITE (Commercial) | Remote On/Off, UVLO | -40°C ~ 85°C | 91% | - | - | Surface Mount | 1.31" L x 0.91" W x 0.36" H (33.3mm x 23.1mm x 9.1mm) | - | Enable, Active Low | - | - |
|
LTM8001EY#PBFDC DC CNVRTR 1.2-24V 3X0-24V |
181 |
|
Технический лист |
LTM®, uModule® | 121-BBGA | Tray | Active | Non-Isolated PoL Module | 6 | 6V | 36V | 1.2 ~ 24V | 0 ~ 24V | 0 ~ 24V | 0 ~ 24V | 5A | - | - | ITE (Commercial) | OTP, OVP, SCP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.59" W x 0.14" H (15.0mm x 15.0mm x 3.6mm) | 121-BGA (15x15) | - | - | - |
|

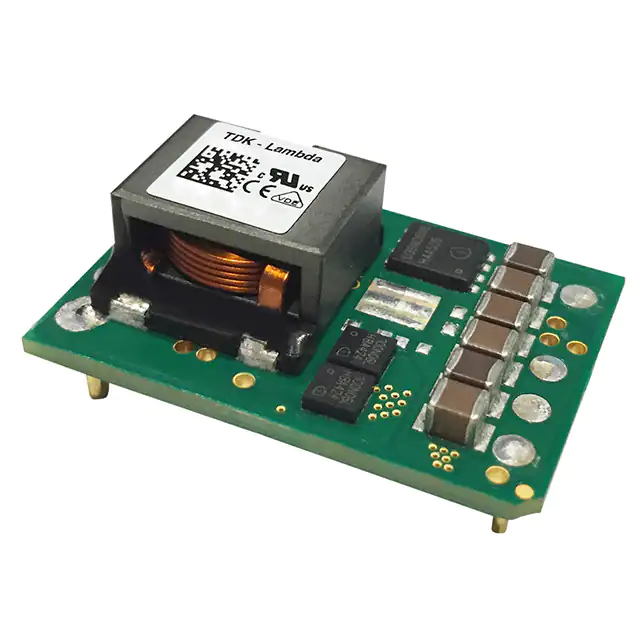

I6A4W020A033V-001-RDC DC CONVERTER 3.3-15V 250W |
6,312 |
|
Технический лист |
i6A4W (250W) | Sixteenth Brick | Box | Active | Non-Isolated PoL Module | 1 | 9V | 53V | 3.3 ~ 15V | - | - | - | 20A | 250 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP | -40°C ~ 125°C | 97% | - | - | Through Hole | 1.30" L x 0.90" W x 0.50" H (33.0mm x 22.9mm x 12.7mm) | Sixteenth Brick | Enable, Active Low | CE | - |
