DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TEN 8-2422WIDC DC CONVERTER +/-12V 8W |
214 |
|
Технический лист |
TEN 8WI (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 333mA, 333mA | 8 W | 1.5 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
THN 10-4811WIRDC DC CONVERTER 5V 10W |
163 |
|
Технический лист |
THN 10WIR (10W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 2A | 10 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CB, cURus | - |
|
SKMW30F-15DC DC CONVERTER 15V 30W |
241 |
|
Технический лист |
SKMW30 (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 2A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | - | - | - |
|
|
SKMW30F-12DC DC CONVERTER 12V 30W |
189 |
|
Технический лист |
SKMW30 (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 2.5A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | - | - | - |
|
PDQ15-Q24-S15-DDC DC CONVERTER 15V 15W |
1,115 |
|
Технический лист |
PDQ15-D (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 1A | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 105°C | 88% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | Enable, Active High | - | - |
|
LTM4651IY#PBFDC DC CNVRTR -0.5 TO -26.5V 24W |
66 |
|
Технический лист |
µModule® | 77-BBGA | Tray | Active | Non-Isolated PoL Module | 1 | 3.6V | 58V | -0.5 ~ -26.5V | - | - | - | - | 24 W | - | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.35" W x 0.21" H (15.0mm x 9.0mm x 5.2mm) | 77-BGA (15x9) | Enable, Active High | - | - |
|
LTM8023MPV#PBFDC DC CONVERTER 0.8-10V |
312 |
|
Технический лист |
µModule® | 50-BLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 3.6V | 36V | 0.8 ~ 10V | - | - | - | 2A | - | - | ITE (Commercial) | - | -55°C ~ 125°C | - | - | - | Surface Mount | 0.44" L x 0.35" W x 0.11" H (11.3mm x 9.0mm x 2.8mm) | 50-LGA (11.25x9) | - | - | - |
|
LTM8057MPYDC DC CONVERTER 2.5-12V 1.5W |
361 |
|
Технический лист |
µModule® | 38-BBGA Module | Tray | Active | Isolated Module | 1 | 3.1V | 31V | 2.5 ~ 12V | - | - | - | 440mA | - | 3 kV | ITE (Commercial) | UVLO | -55°C ~ 125°C | - | - | - | Surface Mount | 0.44" L x 0.35" W x 0.19" H (11.3mm x 9.0mm x 4.9mm) | 38-BGA (11.25x9) | - | - | - |
|
THN 15-2411DC DC CONVERTER 5V 15W |
835 |
|
Технический лист |
THN 15 (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 3A | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | - | - |
|
THN 15-2412DC DC CONVERTER 12V 16W |
112 |
|
Технический лист |
THN 15 (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 1.3A | 16 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | - | - |
|
JCA0624S05DC DC CONVERTER 5V 6W |
122 |
|
Технический лист |
JCA (6W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 1A | 6 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 100°C | 82% | - | - | Through Hole | 1.00" L x 0.80" W x 0.39" H (25.4mm x 20.3mm x 10.0mm) | - | - | - | 62368-1 |
|
LTM4606EV#PBFDC DC CONVERTER 0.6-5V |
13 |
|
Технический лист |
µModule® | 133-BLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 28V | 0.6 ~ 5V | - | - | - | 6A | - | - | ITE (Commercial) | OVP, SCP, UVLO | -40°C ~ 125°C | 93% | - | - | Surface Mount | 0.59" L x 0.59" W x 0.11" H (15.0mm x 15.0mm x 2.8mm) | 133-LGA (15x15) | - | - | - |
|
LTM4601EV#PBFDC DC CONVERTER 0.6-5V |
0 |
|
Технический лист |
µModule® | 118-BLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 20V | 0.6 ~ 5V | - | - | - | 12A | - | - | ITE (Commercial) | OVP, SCP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 0.59" L x 0.59" W x 0.11" H (15.0mm x 15.0mm x 2.8mm) | 118-LGA (15x15) | - | - | - |
|
LTM8027EV#PBFDC DC CONVERTER 2.5-24V |
0 |
|
Технический лист |
µModule® | 113-BLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 60V | 2.5 ~ 24V | - | - | - | 4A | - | - | ITE (Commercial) | - | -40°C ~ 125°C | 95% | - | - | Surface Mount | 0.59" L x 0.59" W x 0.17" H (15.0mm x 15.0mm x 4.3mm) | 113-LGA (15x15) | - | - | - |
|
LTM4656EY#PBF28VIN, 36VOUT SYNCHRONOUS BOOST |
0 |
|
Технический лист |
- | 144-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 28V | 6 ~ 36V | - | - | - | 4A | - | - | ITE (Commercial) | Adjustable Output, Load Sharing | -40°C ~ 125°C | 98% | - | - | Surface Mount | 0.63" L x 0.63" W x 0.29" H (16.0mm x 16.0mm x 7.4mm) | 144-BGA (16x16) | - | - | - |
|

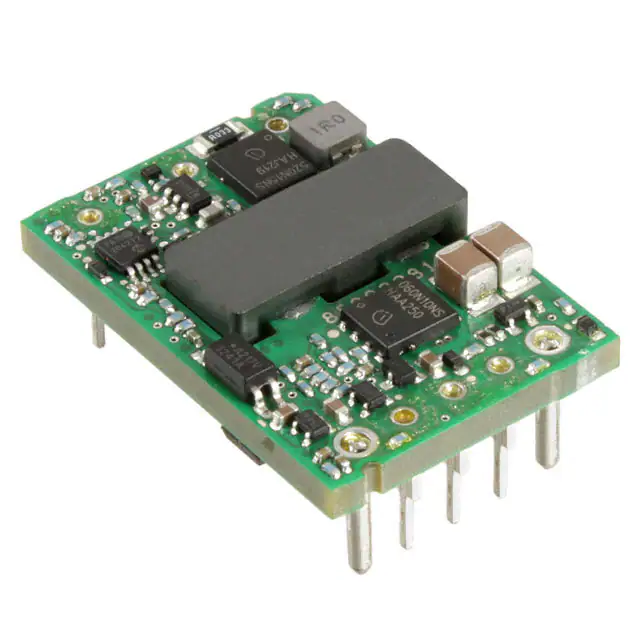

KHHD004A2B41ZDC DC CONVERTER 12V 50W |
2,116 |
|
Технический лист |
Hammerhead™ KHHD004A2B (50W) | 8-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 4.2A | 50 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 90% | - | - | Through Hole | 1.30" L x 0.90" W x 0.37" H (33.0mm x 22.9mm x 9.3mm) | - | Enable, Active Low | - | - |
|
TDR 3-1223SMDC DC CONVERTER +/-15V 3W |
115 |
|
Технический лист |
TDR 3SM (3W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 83% | - | - | Surface Mount | 0.74" L x 0.50" W x 0.34" H (18.9mm x 12.8mm x 8.7mm) | - | - | - | - |
|

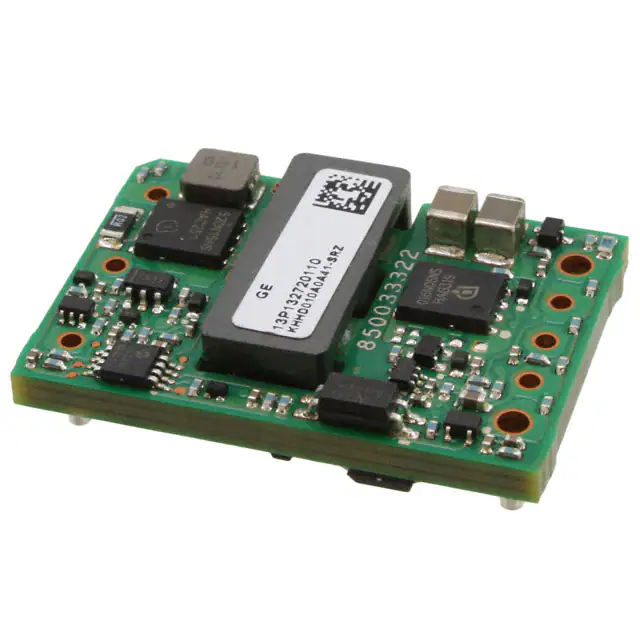

KHHD010A0A41ZDC DC CONVERTER 5V 50W |
9,148 |
|
Технический лист |
Hammerhead™ KHHD010A0A | 8-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 10A | 50 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 91% | - | - | Through Hole | 1.30" L x 0.90" W x 0.37" H (33.0mm x 22.8mm x 9.5mm) | - | Enable, Active Low | - | - |
|
BMR4642008/001DC DC CONVERTER 0.6-3.3V 165W |
130 |
|
Технический лист |
BMR464 (165W) | 20-SIP Module | Tray | Active | Non-Isolated PoL Module, Digital | 1 | 4.5V | 14V | 0.6 ~ 3.3V | - | - | - | 50A | 165 W | - | ITE (Commercial) | Adjustable Output, PMBus™, Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | 95.3% | - | - | Through Hole | 1.30" L x 0.30" W x 0.71" H (33.0mm x 7.6mm x 18.1mm) | - | Enable, Active High | CB, CSA, IEC, TUV, UL | 62368-1 |
|
LTM8060IY#PBFQUAD 40VIN, 3A STEP-DOWN SLIENT |
0 |
|
Технический лист |
µModule® | 165-BBGA Module | Tray | Active | Non-Isolated PoL Module | 4 | 3V | 40V | 0.8 ~ 8V | 0.8 ~ 8V | 0.8 ~ 8V | 0.8 ~ 8V | 3A, 3A, 3A, 3A | - | - | ITE (Commercial) | Adjustable Output | -40°C ~ 125°C | - | - | - | Surface Mount | 0.63" L x 0.47" W x 0.14" H (16.0mm x 11.9mm x 3.5mm) | 165-BGA (16x11.9) | - | - | - |
