DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
I6A24008A033V-N01-RDC DC CONVERTER -3.3 TO -30V 75W |
910 |
|
Технический лист |
i6AN (75W) | Sixteenth Brick | Tray | Active | Non-Isolated PoL Module | 1 | 9V | 40V | -3.3 ~ -30V | - | - | - | 8A | 75 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP | -40°C ~ 125°C | 92% | - | - | Through Hole | 1.30" L x 0.90" W x 0.50" H (33.0mm x 22.9mm x 12.7mm) | Sixteenth Brick | Enable, Active Low | CE | - |
|
I6A4W020A033V-000-RDC DC CONVERTER 3.3-15V 250W |
745 |
|
Технический лист |
i6A4W (250W) | Sixteenth Brick | Bulk | Active | Non-Isolated PoL Module | 1 | 9V | 53V | 3.3 ~ 15V | - | - | - | 20A | 250 W | - | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 125°C | 97% | - | - | Through Hole | 1.30" L x 0.90" W x 0.50" H (33.0mm x 22.9mm x 12.7mm) | Sixteenth Brick | Enable, Active High | CE | - |
|
I6A24014A033V-001-RDC DC CONVERTER 3.3-24V 250W |
594 |
|
Технический лист |
i6A (250W) | Sixteenth Brick | Tray | Active | Non-Isolated PoL Module | 1 | 9V | 40V | 3.3 ~ 24V | - | - | - | 14A | 250 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP | -40°C ~ 125°C | 98% | - | - | Through Hole | 1.30" L x 0.90" W x 0.50" H (33.0mm x 22.9mm x 12.7mm) | Sixteenth Brick | Enable, Active Low | - | - |
|

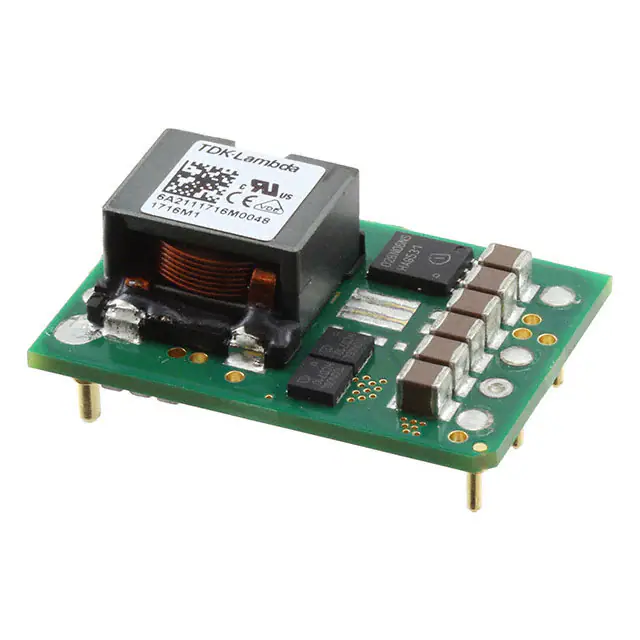

I6A4W010A033V-001-RDC DC CONVERTER 3.3-40V 250W |
368 |
|
Технический лист |
i6A4W (250W) | Sixteenth Brick | Tray | Active | Non-Isolated PoL Module | 1 | 9V | 53V | 3.3 ~ 40V | - | - | - | 10A | 250 W | - | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 125°C | 97% | - | - | Through Hole | 1.30" L x 0.90" W x 0.48" H (33.0mm x 22.9mm x 12.1mm) | Sixteenth Brick | Enable, Active Low | CE | - |
|
|
I6A24014A033V-003-RDC DC CONVERTER 3.3-24V 250W |
105 |
|
Технический лист |
i6A (250W) | Sixteenth Brick | Tray | Active | Non-Isolated PoL Module | 1 | 9V | 40V | 3.3 ~ 24V | - | - | - | 14A | 250 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP | -40°C ~ 125°C | 98% | - | - | Through Hole | 1.30" L x 0.90" W x 0.50" H (33.0mm x 22.9mm x 12.7mm) | Sixteenth Brick | Enable, Active Low | - | - |
|
MPM3690GBF-50B-TDC DC CONVERTER 1.8V |
113 |
|
Технический лист |
MPM | 144-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4V | 16V | 0.6 ~ 1.8V | - | - | - | 50A | - | - | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 125°C (With Derating) | - | - | - | Surface Mount | 0.63" L x 0.63" W x 0.20" H (16.0mm x 16.0mm x 5.2mm) | 144-BGA (16x16) | Enable, Active High | - | - |
|
UWS-5/10-Q48P-CDC DC CONVERTER 5V 50W |
141 |
|
Технический лист |
UWS | 8-DIP Module, 1/16 Brick | Tray | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 10A | 50 W | 2.25 kV | ITE (Commercial) | Remote On/Off, UVLO | -40°C ~ 85°C | 91% | - | - | Through Hole | 1.31" L x 0.91" W x 0.36" H (33.3mm x 23.1mm x 9.1mm) | - | Enable, Active High | - | - |
|

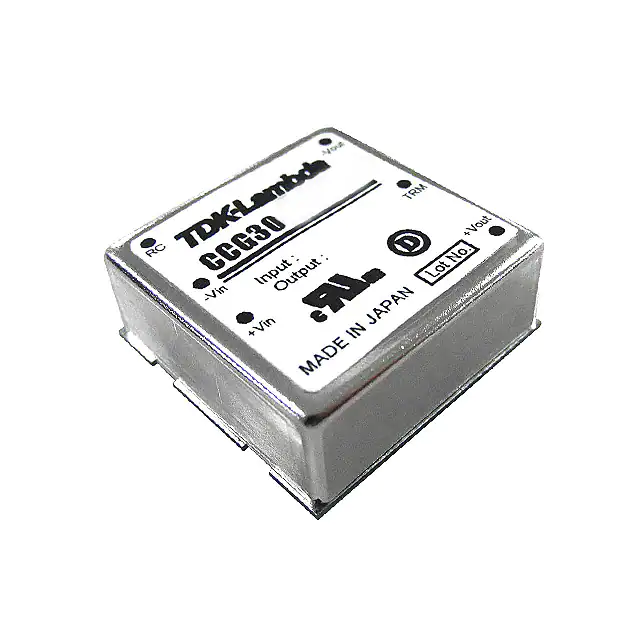

CCG30-24-12SDC DC CONVERTER 12V 30W |
1,488 |
|
Технический лист |
CCG30 (30W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 2.5A | 30 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, OCP | -40°C ~ 85°C | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
|
CCG30-24-05SDC DC CONVERTER 5V 30W |
800 |
|
Технический лист |
CCG30 (30W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 6A | 30 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, OCP | -40°C ~ 85°C | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
|
CCG30-24-15DDC DC CONVERTER +/-15V 30W |
485 |
|
Технический лист |
CCG30 (30W) | 6-DIP Module | Tray | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 1A, 1A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C | 91% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
|
CCG30-24-15SDC DC CONVERTER 15V 30W |
276 |
|
Технический лист |
CCG30 (30W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 2A | 30 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, OCP | -40°C ~ 85°C | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
|
CCG30-48-05SDC DC CONVERTER 5V 30W |
194 |
|
Технический лист |
CCG30 (30W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 76V | 5V | - | - | - | 6A | 30 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, OCP | -40°C ~ 85°C | 90% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
|
CCG30-48-12SDC DC CONVERTER 12V 30W |
172 |
|
Технический лист |
CCG30 (30W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 76V | 12V | - | - | - | 2.5A | 30 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, OCP | -40°C ~ 85°C | 90% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
SKMW20F-05DC DC CONVERTER 5V 20W |
124 |
|
Технический лист |
SKMW20 (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 4A | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | - | - | - |
|
TEN 5-2422WIDC DC CONVERTER +/-12V 6W |
551 |
|
Технический лист |
TEN 5WI (6W) | 24-DIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | Module | - | - | - |
|
EC7A-24S05DC DC CONVERTER 5V 10W |
101 |
|
Технический лист |
EC7A (10W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 2A | 10 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE, cURus | 60950-1 |
|
PTN78020AAHDC DC CONVERTER -15 TO -3V |
272 |
|
Технический лист |
PTN78020A (25W) | 7-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 9V | 29V | -15 ~ -3V | - | - | - | 4A | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 85°C | 87% | - | - | Through Hole | 1.50" L x 0.87" W x 0.36" H (38.1mm x 22.1mm x 9.1mm) | - | - | - | - |
|
THN 10-2415WIRDC DC CONVERTER 24V 10W |
780 |
|
Технический лист |
THN 10WIR (10W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 420mA | 10 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C | 90% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CB, cURus | - |
|
LTM8050IY#PBFDC DC CONVERTER 0.8-24V 48W |
258 |
|
Технический лист |
µModule® | 70-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 3.6V | 58V | 0.8 ~ 24V | - | - | - | 2A | - | - | ITE (Commercial) | OTP | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.35" W x 0.19" H (15.0mm x 9.0mm x 4.9mm) | 70-BGA (15x9) | - | - | - |
|
TEN 8-2411WIDC DC CONVERTER 5V 8W |
1,303 |
|
Технический лист |
TEN 8WI (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 1.6A | 8 W | 1.5 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
