DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
LTM4653IY#PBFDC DC CONVERTER 0.5-54.5V |
282 |
|
Технический лист |
LTM®, uModule® | 77-BBGA | Tray | Active | Non-Isolated PoL Module | 1 | 3.1V | 58V | 0.5 ~ 54.5V | - | - | - | 4A | - | - | - | OCP, OTP, OVP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.35" W x 0.21" H (15.0mm x 9.0mm x 5.2mm) | 77-BGA (15x9) | - | - | - |
|
JCM1524S12DC DC CONVERTER 12V 15W |
675 |
|
Технический лист |
JCM (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 1.3A | 15 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 105°C | 88% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | Enable, Active High | - | 62368-1 |
|
|
JCM1524S05DC DC CONVERTER 5V 15W |
207 |
|
Технический лист |
JCM (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 3A | 15 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 105°C | 87% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | Enable, Active High | - | 62368-1 |
|
LTM8026IV#PBFDC DC CONVERTER 1.2-24V 120W |
0 |
|
Технический лист |
µModule® | 81-BLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 6V | 36V | 1.2 ~ 24V | - | - | - | 5A | - | - | ITE (Commercial) | OTP, OVP, SCP | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.44" W x 0.11" H (15.0mm x 11.3mm x 2.8mm) | 81-LGA (15x11.25) | - | - | - |
|
TDR 3-2411SMDC DC CONVERTER 5V 3W |
368 |
|
Технический лист |
TDR 3SM (3W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 600mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 81% | - | - | Surface Mount | 0.74" L x 0.50" W x 0.34" H (18.9mm x 12.8mm x 8.7mm) | - | - | - | - |
|
TMR 6-2421WIRDC DC CONVERTER +/-5V 6W |
154 |
|
Технический лист |
TMR 6WIR (6W) | 8-SIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 600mA, 600mA | 6 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OCP, SCP | -40°C ~ 80°C (With Derating) | 84% | - | - | Through Hole | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) | - | - | - | - |
|

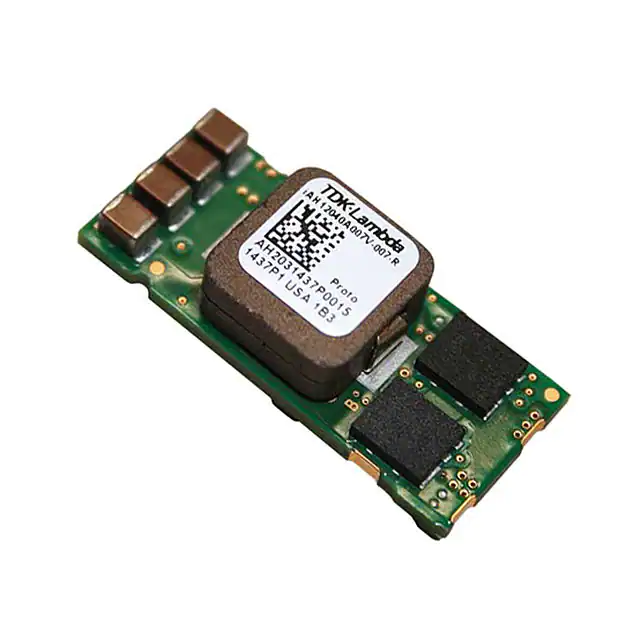

IAH12040A007V-007-RDC DC CONVERTER 0.7-5.5V |
933 |
|
Технический лист |
iAH (150W) | 10-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3.5V | 17V | 0.7 ~ 5.5V | - | - | - | 40A | - | - | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 115°C | 96% | - | - | Surface Mount | 1.30" L x 0.53" W x 0.39" H (33.0mm x 13.5mm x 10.0mm) | - | Enable, Active Low | - | - |
|
JCK1524D15DC DC CONVERTER +/-15V 15W |
1,326 |
|
Технический лист |
JCK (15W) | 5-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 500mA, 500mA | 15 W | 1.5 kV | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 100°C | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
JTF1224D12DC DC CONVERTER +/-12V 12W |
239 |
|
Технический лист |
JTF (15W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 500mA, 500mA | 12 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 105°C | 90% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | Enable, Active High | - | 62368-1 |
|

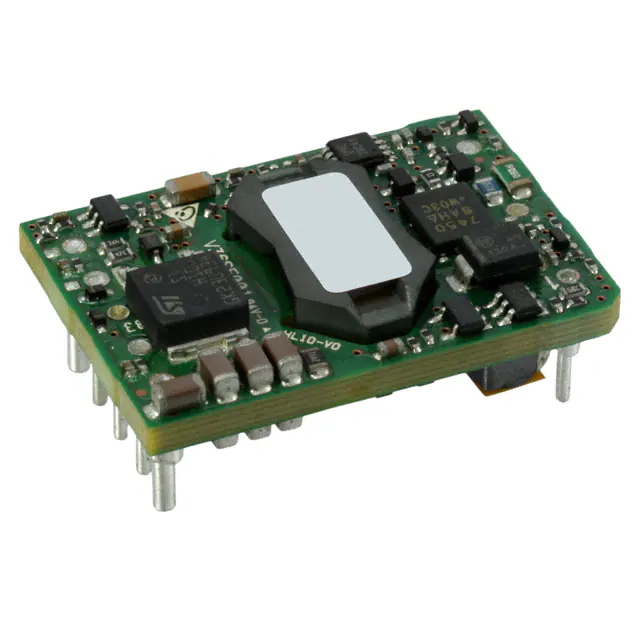

V36SE12004NRFADC DC CONVERTER 12V 50W |
1,811 |
|
Технический лист |
Delphi V36SE (50W) | 8-DIP Module, 1/16 Brick | Tray | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 4.2A | 50 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 122°C | 88% | - | - | Through Hole | 1.30" L x 0.90" W x 0.34" H (33.0mm x 22.8mm x 8.7mm) | - | Enable, Active Low | - | - |
|
LTM8073IYDC DC CONVERTER 0.8-15V |
0 |
|
Технический лист |
LTM®, uModule® | 48-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 3.4V | 60V | 0.8 ~ 15V | - | - | - | 5A | - | - | ITE (Commercial) | Adjustable Output | -40°C ~ 125°C | - | - | - | Surface Mount | 0.35" L x 0.25" W x 0.13" H (9.0mm x 6.3mm x 3.3mm) | 48-BGA (9x6.25) | - | - | - |
|
LTM8045MPY#PBFDC DC CONVERTER +/-2.5 +/-15V |
38 |
|
Технический лист |
µModule® | 40-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 2.8V | 18V | -2.5 ~ -15V, 2.5 ~ 15V | - | - | - | 700mA | - | - | ITE (Commercial) | OTP, UVLO | -55°C ~ 125°C | - | - | - | Surface Mount | 0.44" L x 0.25" W x 0.19" H (11.3mm x 6.3mm x 4.9mm) | 40-BGA (11.25x6.25) | - | - | - |
|

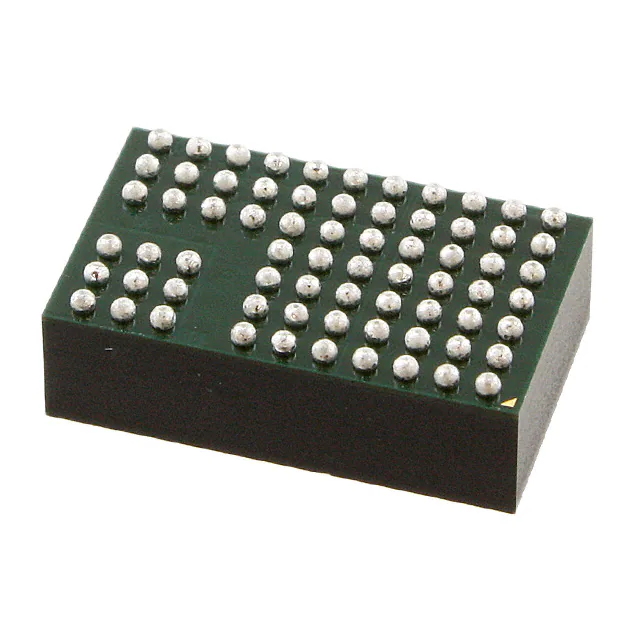

LTM8050EY#PBFDC DC CONVERTER 0.8-24V 48W |
652 |
|
Технический лист |
µModule® | 70-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 3.6V | 58V | 0.8 ~ 24V | - | - | - | 2A | - | - | ITE (Commercial) | OTP | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.35" W x 0.19" H (15.0mm x 9.0mm x 4.9mm) | 70-BGA (15x9) | - | - | - |
|
UEI15-050-Q48P-CDC DC CONVERTER 5V 15W |
128 |
|
Технический лист |
UEI15 (15W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 3A | 15 W | 2.25 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 86% | - | - | Through Hole | 1.10" L x 0.96" W x 0.32" H (27.9mm x 24.4mm x 8.1mm) | - | - | - | - |
|
LTM8033IY#PBFDC DC CONVERTER 0.8-24V |
0 |
|
Технический лист |
µModule® | 76-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 3.6V | 36V | 0.8 ~ 24V | - | - | - | 3A | - | - | ITE (Commercial) | - | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.44" W x 0.19" H (15.0mm x 11.3mm x 4.9mm) | 76-BGA (15x11.25) | - | - | - |
|
LTM8049EY#PBFDC DC CONVERTER +/-2.5 TO +/-24V |
181 |
|
Технический лист |
µModule® | 77-BBGA | Tray | Active | Non-Isolated PoL Module | 2 | 2.6V | 20V | 2.5 ~ 24V | -2.5 ~ -24V | - | - | 1A | - | - | ITE (Commercial) | OTP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.35" W x 0.10" H (15.0mm x 9.0mm x 2.4mm) | 77-BGA (15x9) | - | - | - |
|
LTM8022MPV#PBFDC DC CONVERTER 0.8-10V |
363 |
|
Технический лист |
µModule® | 50-BLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 3.6V | 36V | 0.8 ~ 10V | - | - | - | 1A | - | - | ITE (Commercial) | - | -55°C ~ 125°C | - | - | - | Surface Mount | 0.44" L x 0.35" W x 0.11" H (11.3mm x 9.0mm x 2.8mm) | 50-LGA (11.25x9) | - | - | - |
|
LTM8071IY#PBFDC DC CONVERTER 0.97-15V |
455 |
|
Технический лист |
µModule® | 80-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 3.6V | 60V | 0.97 ~ 15V | - | - | - | 5A | - | - | ITE (Commercial) | OCP, OTP, SCP | -40°C ~ 125°C | - | - | - | Surface Mount | 0.44" L x 0.35" W x 0.14" H (11.3mm x 9.0mm x 3.5mm) | 80-BGA (11.25x9) | - | - | - |
|
RS3-2405DZ/H3DC DC CONVERTER +/-5V 3W |
118 |
|
Технический лист |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 27V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 71°C | 77% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|

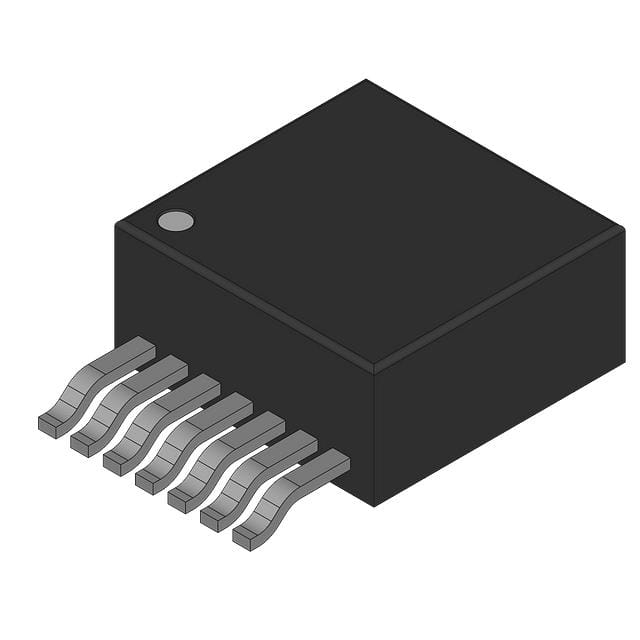

LMZ12003EXTTZ/NOPBDC DC CONVERTER 0.8-6V |
407 |
|
Технический лист |
SIMPLE SWITCHER® | TO-PMOD-7, Power Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 20V | 0.8 ~ 6V | - | - | - | 3A | - | - | ITE (Commercial) | UVLO | -55°C ~ 125°C | 92% | - | - | Surface Mount | 0.40" L x 0.39" W x 0.18" H (10.2mm x 9.9mm x 4.6mm) | TO-PMOD-7 | Enable, Active High | - | - |
