DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TEN 8-2411DC DC CONVERTER 5V 7.5W |
319 |
|
Технический лист |
TEN 8 (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 1.5A | 7.5 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
TEN 8-1212DC DC CONVERTER 12V 8W |
189 |
|
Технический лист |
TEN 8 (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 665mA | 8 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
TEN 8-2410DC DC CONVERTER 3.3V 6.6W |
181 |
|
Технический лист |
TEN 8 (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 2A | 6.6 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
LTM4602IV#PBFDC DC CONVERTER 0.6-5V |
19 |
|
Технический лист |
µModule® | 104-BLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 20V | 0.6 ~ 5V | - | - | - | 6A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 92% | - | - | Surface Mount | 0.59" L x 0.59" W x 0.11" H (15.0mm x 15.0mm x 2.8mm) | 104-LGA (15x15) | - | - | - |
|
TMR 6-2411WIRDC DC CONVERTER 5V 6W |
711 |
|
Технический лист |
TMR 6WIR (6W) | 8-SIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 1.2A | 6 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OCP, SCP | -40°C ~ 80°C (With Derating) | 84% | - | - | Through Hole | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) | - | - | - | - |
|

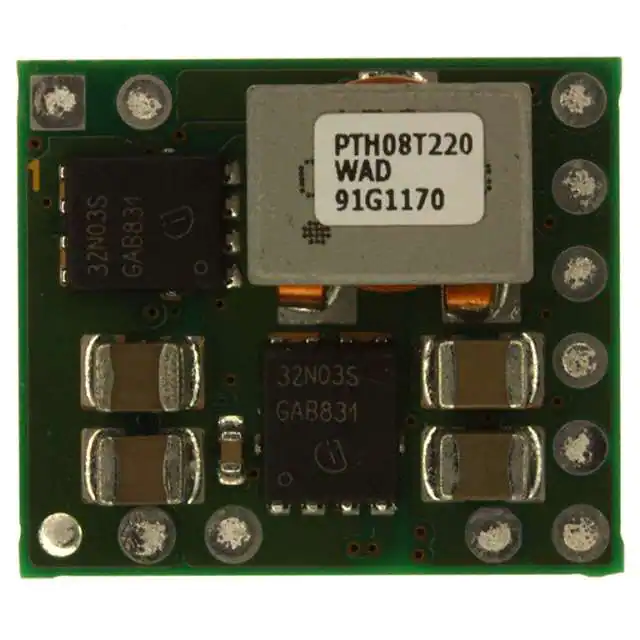

PTH08T220WADDC DC CONVERTER 0.69-5.5V |
152 |
|
Технический лист |
PTH08T220W | 11-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.69 ~ 5.5V | - | - | - | 16A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 95% | - | - | Through Hole | 0.87" L x 0.75" W x 0.34" H (22.1mm x 19.1mm x 8.6mm) | - | - | - | - |
|
LTM8052EV#PBFDC DC CONVERTER 1.2-24V |
115 |
|
Технический лист |
µModule® | 81-BLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 6V | 36V | 1.2 ~ 24V | - | - | - | 5A | - | - | ITE (Commercial) | UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.44" W x 0.11" H (15.0mm x 11.3mm x 2.8mm) | 81-LGA (15x11.25) | - | - | - |
|
|
LTM8052AEV#PBFDC DC CONVERTER 1.2-24V |
115 |
|
Технический лист |
µModule® | 81-BLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 6V | 36V | 1.2 ~ 24V | - | - | - | 5A | - | - | ITE (Commercial) | OTP, OVP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.44" W x 0.11" H (15.0mm x 11.3mm x 2.8mm) | 81-LGA (15x11.25) | - | - | - |
|

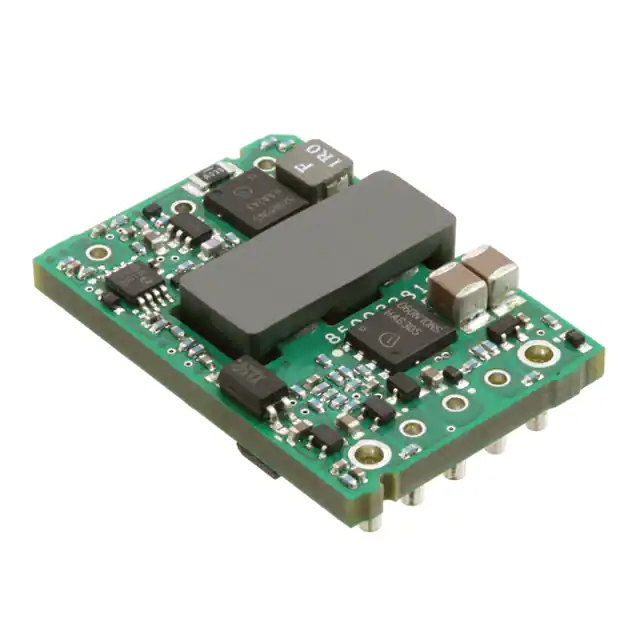

KHHD004A2B41-SRZDC DC CONVERTER 12V 50W |
280 |
|
Технический лист |
Hammerhead™ KHHD004A2B (50W) | 8-SMD Module | Tape & Reel (TR) | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 4.2A | 50 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 90% | - | - | Surface Mount | 1.30" L x 0.90" W x 0.37" H (33.0mm x 22.9mm x 9.3mm) | - | Enable, Active Low | - | - |
|
MPM3690GBF-20B-TDC DC CONVERTER 3.3V |
525 |
|
Технический лист |
MPM | 144-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4V | 16V | 0.6 ~ 3.3V | - | - | - | 26A | - | - | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 125°C (With Derating) | - | - | - | Surface Mount | 0.63" L x 0.63" W x 0.20" H (16.0mm x 16.0mm x 5.2mm) | 144-BGA (16x16) | Enable, Active High | - | - |
|
|
LTM4608AIY#PBFDC DC CONVERTER 0.6-5V |
102 |
|
Технический лист |
µModule® | 68-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 2.7V | 5.5V | 0.6 ~ 5V | - | - | - | 8A | - | - | ITE (Commercial) | OCP, OTP, OVP, UVLO | -40°C ~ 125°C | 95% | - | - | Surface Mount | 0.59" L x 0.35" W x 0.13" H (15.0mm x 9.0mm x 3.4mm) | 68-BGA (15x9) | - | - | - |
|
TEN 5-2423WIDC DC CONVERTER +/-15V 6W |
870 |
|
Технический лист |
TEN 5WI (6W) | 24-DIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 200mA, 200mA | 6 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | Module | - | - | - |
|
TEN 5-4823WIDC DC CONVERTER +/-15V 6W |
331 |
|
Технический лист |
TEN 5WI (6W) | 24-DIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 200mA, 200mA | 6 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | Module | - | - | - |
|

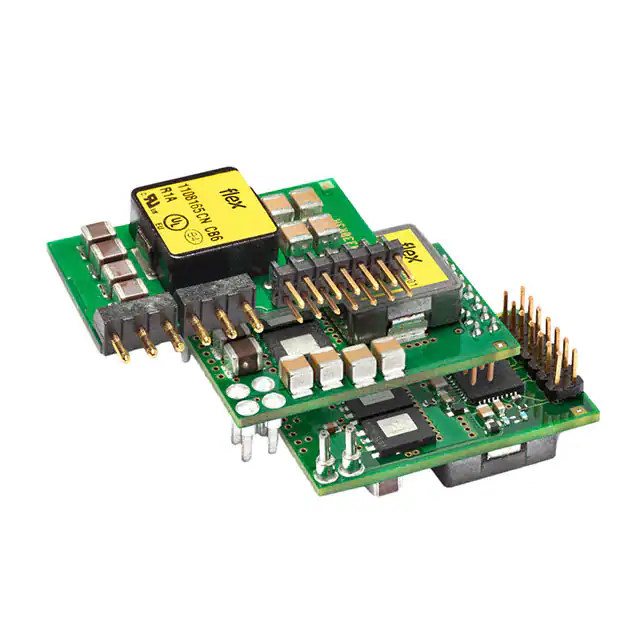

BMR4640008/001DC DC CONVERTER 0.6-3.3V 165W |
518 |
|
Технический лист |
BMR464 (165W) | 20-DIP Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module, Digital | 1 | 4.5V | 14V | 0.6 ~ 3.3V | - | - | - | 50A | 165 W | - | ITE (Commercial) | Adjustable Output, PMBus™, Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | 95.7% | - | - | Through Hole | 1.21" L x 0.79" W x 0.32" H (30.9mm x 20.0mm x 8.2mm) | - | Enable, Active High | CB, CSA, IEC, TUV, UL | 62368-1 |
|
LTM4648EY#PBFDC DC CONVERTER 0.6-5V |
11 |
|
Технический лист |
µModule® | 68-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 2.375V | 5.5V | 0.6 ~ 5V | - | - | - | 10A | - | - | ITE (Commercial) | OCP, OVP | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.35" W x 0.19" H (15.0mm x 9.0mm x 4.9mm) | 68-BGA (15x9) | - | - | - |
|
|
MAXM17536ALY#DC DC CONVERTER 0.9-12V |
136 |
|
Технический лист |
Himalaya | 29-PowerBLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 60V | 0.9 ~ 12V | - | - | - | 4A | - | - | ITE (Commercial) | Adjustable Output | -40°C ~ 125°C | - | - | - | Surface Mount | 0.35" L x 0.59" W x 0.17" H (9.0mm x 15.0mm x 4.4mm) | 29-SIP LGA (9x15) | - | - | - |
|

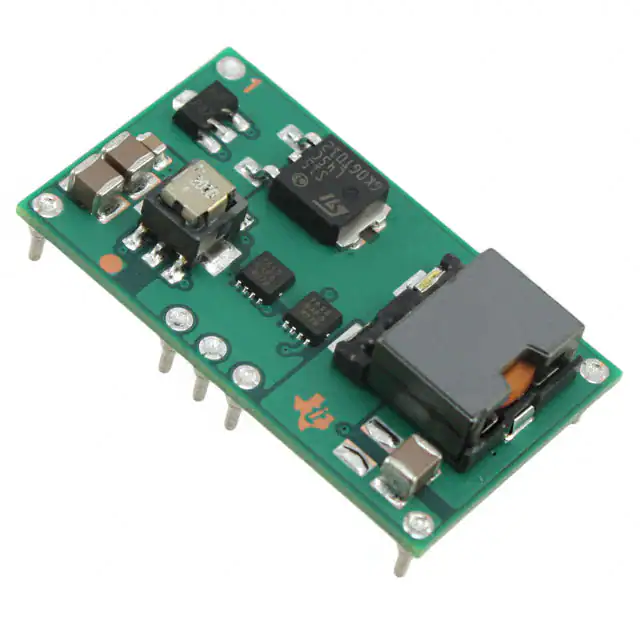

PTN78020WAHDC DC CONVERTER 2.5-12.6V |
656 |
|
Технический лист |
PTN78020W | 7-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 7V | 36V | 2.5 ~ 12.6V | - | - | - | 6A | - | - | ITE (Commercial) | UVLO | -40°C ~ 85°C | 94% | - | - | Through Hole | 1.50" L x 0.87" W x 0.35" H (38.1mm x 22.1mm x 8.9mm) | - | - | - | - |
|
|
PTN78020WADDC DC CONVERTER 2.5-12.6V |
380 |
|
Технический лист |
PTN78020W | 7-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 7V | 36V | 2.5 ~ 12.6V | - | - | - | 6A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 94% | - | - | Through Hole | 1.50" L x 0.87" W x 0.35" H (38.1mm x 22.1mm x 8.9mm) | - | - | - | - |
|

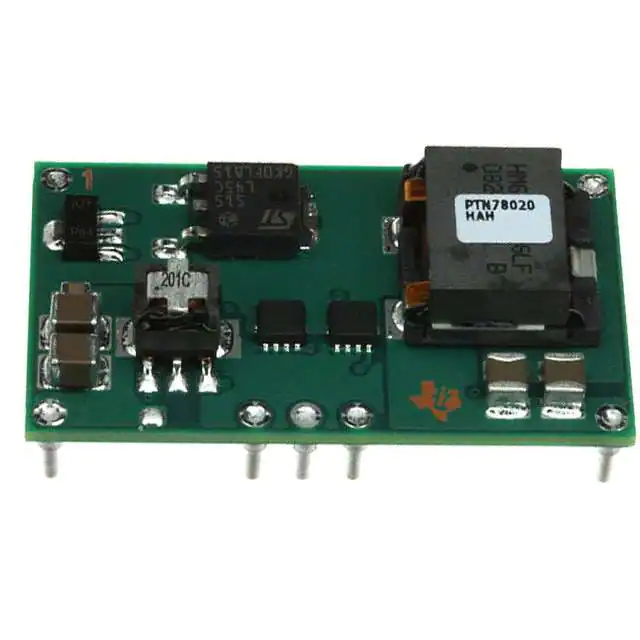

PTN78020HAHDC DC CONVERTER 11.85-22V |
183 |
|
Технический лист |
PTN78020H | 7-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 15V | 36V | 11.85 ~ 22V | - | - | - | 6A | - | - | ITE (Commercial) | UVLO | -40°C ~ 85°C | 96% | - | - | Through Hole | 1.50" L x 0.87" W x 0.35" H (38.1mm x 22.1mm x 8.9mm) | - | - | - | - |
|
LTM8071EY#PBFDC DC CONVERTER 0.97-15V |
48 |
|
Технический лист |
µModule® | 80-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 3.6V | 60V | 0.97 ~ 15V | - | - | - | 5A | - | - | ITE (Commercial) | OCP, OTP, SCP | -40°C ~ 125°C | - | - | - | Surface Mount | 0.44" L x 0.35" W x 0.14" H (11.3mm x 9.0mm x 3.5mm) | 80-BGA (11.25x9) | - | - | - |
