Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AE40-EW-S24-DINDC/DC DIN RAIL SUPPLY 24V 40W |
0 |
|
Технический лист |
AE40-EW-DIN (40W) | Tray | Obsolete | DC | 1 | - | 200V | 1200V | 24V | - | - | - | - | - | 1.67A | 40W | 4 kV | - | 84% | -25°C ~ 70°C (With Derating) | - | 5.32" L x 2.76" W x 1.54" H (135.0mm x 70.0mm x 39.0mm) | - | - |
|
SPDE244801RSWITCHING POWER SUPPLY, 24VDC 48 |
2 |
|
Технический лист |
SPDE (480W) | Box | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 120V | 370V | 24V | - | - | - | - | - | 20A | 480W | 3 kV | ITE (Commercial), Laboratory | 94% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 5.18" L x 1.89" W x 5.14" H (131.5mm x 48.0mm x 130.6mm) | CE, cULus, cURus, UKCA | 61010-1; 62368-1 |
|
LDW240-72PAC/DC DIN RAIL SUPPLY 72V 240W |
0 |
|
- |
LDW240 (240W) | Bulk | Obsolete | AC or DC | 1 | 187 ~ 550 VAC (1 ~ 2 Phase) | 250V | 725V | 72V | - | - | - | - | - | 3.5A | 240W | 4.2 kV | ITE (Commercial) | 92% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing | 4.33" L x 2.13" W x 4.53" H (110.0mm x 54.0mm x 115.0mm) | - | - |
|
VHK100W-Q48-S12-DINDC/DC DIN RAIL SUPPLY 12V 100W |
12 |
|
Технический лист |
VHK100W-DIN (100W) | Bulk | Active | DC | 1 | - | 18V | 75V | 12V | - | - | - | - | - | 8.3A | 100W | - | - | 85.5% | -40°C ~ 85°C | - | 4.23" L x 4.01" W x 2.07" H (107.4mm x 101.9mm x 52.6mm) | CE | - |
|
LDW120-24AC/DC DIN RAIL SUPPLY 24V 120W |
0 |
|
Технический лист |
LDW120 (120W) | Bulk | Obsolete | AC or DC | 1 | 187 ~ 550 VAC (1 ~ 2 Phase) | 250V | 725V | 24V | - | - | - | - | - | 5A | 120W | 4.2 kV | ITE (Commercial) | 88% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20 | 4.33" L x 1.57" W x 4.53" H (110.0mm x 40.0mm x 115.0mm) | - | - |
|
LOK4601-2RAC/DC DIN RAIL SUPPLY 24V 50W |
0 |
|
Технический лист |
Melcher LOK4 (50W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2A | 50W | 4.3 kV | ITE (Commercial) | 86% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 4.47" L x 1.50" W x 3.54" H (113.6mm x 38.0mm x 90.0mm) | cCSAus, CE, cULus, NEMKO, TUV | - |
|
|
SPM4241AC/DC CONVERTER 24V 60W |
3 |
|
Технический лист |
SPM4 (60W) | Box | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 120V | 370V | 24V | - | - | - | - | - | 2.5A | 60W | 3 kV | Industrial, ITE (Commercial) | 86% | -25°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 2.19" L x 2.79" W x 3.58" H (55.5mm x 71.0mm x 91.0mm) | CE, cULus, TUV | - |
|
1105440000AC/DC DIN RAIL SUPPLY 12V 140W |
2 |
|
- |
Connect Power Pro-H (140W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 12A | 140W | 4 kV | ITE (Commercial) | 85% | -25°C ~ 70°C | Adjustable Output, Load Sharing, Remote On/Off, Universal Input | 4.33" L x 2.13" W x 4.33" H (110.0mm x 54.0mm x 110.0mm) | CE, CSA, cULus, cURus, GOST | - |
|
|
LIHF480-23B24DIN-RAIL ACDC POWER SUPPLY 480W |
16 |
|
Технический лист |
LIHF480-23Bxx (480W) | Box | Not For New Designs | AC or DC | 1 | 85 ~ 277 VAC | 120V | 390V | 24V | - | - | - | - | - | 20A | 480W | 4 kV | ITE (Commercial), Laboratory | 94.5% | -40°C ~ 85°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Universal Input | 4.80" L x 2.76" W x 5.12" H (122.0mm x 70.0mm x 130.0mm) | - | 61010-1; 62368-1 |
|
|
LIHF480-23B48DIN-RAIL ACDC POWER SUPPLY 480W |
8 |
|
Технический лист |
LIHF480-23Bxx (480W) | Box | Not For New Designs | AC or DC | 1 | 85 ~ 277 VAC | 120V | 390V | 48V | - | - | - | - | - | 10A | 480W | 4 kV | ITE (Commercial), Laboratory | 95% | -40°C ~ 85°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Universal Input | 4.80" L x 2.76" W x 5.12" H (122.0mm x 70.0mm x 130.0mm) | - | 61010-1; 62368-1 |
|
PYB20-Q24-D12-DINDC/DC DIN RAIL SUPPLY +/-12V 20W |
0 |
|
Технический лист |
PYB20-DIN (20W) | Bulk | Obsolete | DC | 2 | - | 9V | 36V | 12V | -12V | - | - | - | - | 834mA, 834mA | 20W | - | - | 86% | -40°C ~ 85°C | - | 2.99" L x 1.24" W x 0.87" H (76.0mm x 31.5mm x 22.2mm) | EN | 55024; 55032 Class A |
|
SDR-480P-48AC/DC DIN RAIL SUPPLY 48V 480W |
5 |
|
Технический лист |
SDR-480P (480W) | Bulk | Not For New Designs | AC | 1 | 90 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 10A | 480W | 3 kV | Industrial, ITE (Commercial) | 94% | -25°C ~ 70°C (With Derating) | Adjustable Output | 5.06" L x 3.37" W x 4.93" H (128.5mm x 85.5mm x 125.2mm) | CB, CE, cULus, TUV | - |
|
|
LDW120-12AC/DC DIN RAIL SUPPLY 12V 120W |
6 |
|
Технический лист |
LDW120 (120W) | Box | Obsolete | AC or DC | 1 | 187 ~ 550 VAC (1 ~ 2 Phase) | 250V | 725V | 12V | - | - | - | - | - | 8A | 120W | 4.2 kV | ITE (Commercial) | 81% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20 | 4.33" L x 1.57" W x 4.53" H (110.0mm x 40.0mm x 115.0mm) | - | - |
|
|
PYB20-Q48-D12-DINDC/DC DIN RAIL SUPPLY +/-12V 20W |
0 |
|
Технический лист |
PYB20-DIN (20W) | Tray | Obsolete | DC | 2 | - | 18V | 75V | 12V | -12V | - | - | - | - | 834mA, 834mA | 20W | - | - | 86% | -40°C ~ 85°C | - | 2.99" L x 1.24" W x 0.87" H (76.0mm x 31.5mm x 22.2mm) | EN | 55024; 55032 Class A |
|
XCSW121CAC/DC DIN RAIL SUPPLY 24V 120W |
2 |
|
Технический лист |
- | Box | Discontinued | AC or DC | 1 | 187 ~ 550 VAC | 270V | 725V | 24V | - | - | - | - | - | 5A | 120W | - | Industrial | 86% | - | - | - | CB, CE, UL | - |
|

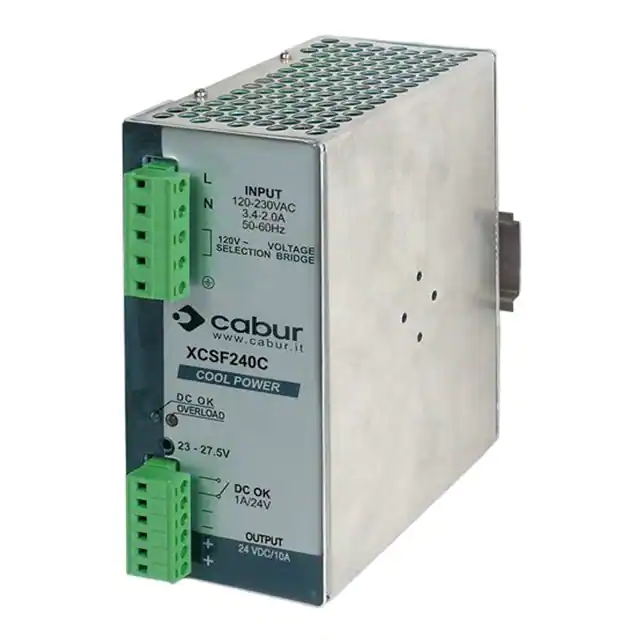

XCSF240CAC/DC DIN RAIL SUPPLY 24V 240W |
2 |
|
Технический лист |
- | Box | Active | AC or DC | 1 | 120 ~ 230 VAC | 300V | 345V | 24V | - | - | - | - | - | 10A | 240W | - | Industrial | 90% | - | - | - | CB, CE | - |
|
|
SCP30D524B-DNAC/DC DIN RAIL SUPPLY 5V 24V 29W |
2 |
|
- |
SCP (30W) | Bulk | Discontinued | AC or DC | 2 | 85 ~ 264 VAC | 100V | 375V | 5V | 24V | - | - | - | - | 3A, 600mA | 29W | - | ITE (Commercial) | 68% | -25°C ~ 65°C | IP20, Universal Input | 2.67" L x 1.37" W x 4.43" H (68.0mm x 35.0mm x 113.0mm) | CE, cURus | - |
|
|
LDT481-12AC/DC DIN RAIL SUPPLY 12V 480W |
2 |
|
Технический лист |
LDT481 (480W) | Bulk | Obsolete | AC | 1 | 340 ~ 550 VAC (3 Phase) | - | - | 12V | - | - | - | - | - | 40A | 480W | 4.2 kV | ITE (Commercial) | 87.5% | -40°C ~ 70°C | Adjustable Output, IP20 | 5.41" L x 3.15" W x 5.00" H (137.5mm x 80.0mm x 127.0mm) | - | - |
|
VHK150W-Q24-S12-DINDC/DC DIN RAIL SUPPLY 12V 150W |
17 |
|
Технический лист |
VHK150W-DIN (150W) | Bulk | Active | DC | 1 | - | 9V | 36V | 12V | - | - | - | - | - | 12.5A | 150W | - | - | 86% | -40°C ~ 85°C | - | 4.23" L x 4.01" W x 2.07" H (107.4mm x 101.9mm x 52.6mm) | CE | - |
|
|
LITF960-26B36DIN-RAIL ACDC POWER SUPPLY 960W |
16 |
|
Технический лист |
LITF960-26Bxx (960W) | Box | Not For New Designs | AC or DC | 1 | 320 ~ 600 VAC (3 Phase) | 450V | 800V | 36V | - | - | - | - | - | 26.6A | 958W | 4 kV | ITE (Commercial), Laboratory | 95.4% | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Standby Output, Universal Input | 5.22" L x 4.33" W x 5.12" H (132.5mm x 110.0mm x 130.0mm) | - | 61010-1; 62368-1 |
