Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LXN2660-6AC/DC DIN RAIL SUP 2X24.7V 500W |
2 |
|
Технический лист |
Melcher X (500W) | Bulk | Active | AC | 2 | 85 ~ 264 VAC | - | - | 24.7V | 24.7V | - | - | - | - | 10A, 10A | 500W | 2.8 kV | ITE (Commercial) | 87% | -40°C ~ 60°C | Adjustable Output, Load Sharing, PFC, Universal Input | 7.64" L x 4.47" W x 5.43" H (194.0mm x 106.6mm x 138.0mm) | cCSAus, CE | - |
|
EWN2660-0DC/DC DIN RAIL SUP 2X24.7V 250W |
0 |
|
Технический лист |
Melcher W (125W) | Bulk | Obsolete | DC | 2 | - | 66V | 150V | 24.7V | 24.7V | - | - | - | - | 5A, 5A | 250W | - | ITE (Commercial), Laboratory, Railway | 87% | -40°C ~ 70°C | - | 4.47" L x 4.05" W x 5.43" H (113.6mm x 103.0mm x 138.0mm) | CE, CSA, EN, IEC, UL | - |
|
AC1258POWER SUPPLY, 124 X 62 X 120 MM, |
5 |
|
Технический лист |
- | Box | Active | AC | 1 | 100 ~ 200 VAC, 120 ~ 240 VAC | - | - | 30.5V | - | - | - | - | - | 8A | 244W | - | ITE (Commercial) | 90.9% | -25°C ~ 70°C | - | 4.51" L x 2.44" W x 4.88" H (114.6mm x 62.0mm x 124.0mm) | CE, cULus, cURus, UKCA | - |
|
787-1634/000-070AC/DC DIN RAIL SUPPLY 24V 480W |
10 |
|
Технический лист |
- | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 300V | 24V | - | - | - | - | - | 20A | 480W | 4.242 kV | Industrial, ITE (Commercial), Laboratory | 92% | -25°C ~ 70°C | Adjustable Output, IP20, PFC, Universal Input | 6.69" L x 3.74" W x 5.00" H (170.0mm x 95.0mm x 127.0mm) | CE, EAC | 60950-1; 61010-1; UL 508 |
|
|
SPD484801BAC/DC DIN RAIL SUPPLY 48V 480W |
0 |
|
- |
SPD (480W) | Bulk | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 120V | 375V | 48V | - | - | - | - | - | 10A | 480W | - | Hazardous Locations, Industrial, ITE (Commercial) | 90% | -40°C ~ 71°C (With Derating) | Adjustable Output, IP20, PFC, Universal Input | 4.59" L x 6.91" W x 4.90" H (116.6mm x 175.5mm x 124.5mm) | CCC, CE, cULus, TUV | - |
|
|
LXN2660-6GAC/DC DIN RAIL SUP 2X24.7V 500W |
0 |
|
Технический лист |
Melcher X (500W) | Bulk | Active | AC | 2 | 85 ~ 264 VAC | - | - | 24.7V | 24.7V | - | - | - | - | 10A, 10A | 500W | 2.8 kV | ITE (Commercial) | 87% | -40°C ~ 60°C | Adjustable Output, Load Sharing, PFC, Universal Input | 7.64" L x 4.47" W x 5.43" H (194.0mm x 106.6mm x 138.0mm) | cCSAus, CE | - |
|
2866404AC/DC DIN RAIL SUPPLY 24V 960W |
17 |
|
Технический лист |
TRIO | Box | Obsolete | AC | 1 | 320 ~ 575 VAC (3 Phase), 360 ~ 575 VAC (2 Phase) | - | - | 24V | - | - | - | - | - | 40A | 960W | 4 kV | ITE (Commercial) | 91% | -25°C ~ 70°C | IP20, Universal Input | 7.48" L x 5.47" W x 5.12" H (190.0mm x 139.0mm x 130.0mm) | cULus, cURus, UL | - |
|
|
AC1253POWER SUPPLY, 124 X 62 X 120 MM, |
2 |
|
Технический лист |
- | Box | Active | AC | 1 | 380 ~ 480 VAC | - | - | 30.5V | - | - | - | - | - | 8A | 244W | - | ITE (Commercial) | 92% | -25°C ~ 70°C | - | 4.51" L x 2.44" W x 4.88" H (114.6mm x 62.0mm x 124.0mm) | CE, cULus, cURus, UKCA | - |
|
|
HRP2540-9RGDC/DC DIN RAIL SUPPLY 2X15V 288W |
0 |
|
Технический лист |
Melcher HR (288W) | Bulk | Active | DC | 2 | - | 16.8V | 150V | 15V | 15V | - | - | - | - | 9.6A, 9.6A | 288W | - | ITE (Commercial), Railway | 94% | -40°C ~ 71°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense | 6.77" L x 4.37" W x 3.15" H (171.9mm x 111.0mm x 80.0mm) | cCSAus, CE, EAC | 60950-1 |
|
2466920000AC/DC DIN RAIL SUPPLY 48V 960W |
16 |
|
Технический лист |
PRO TOP1 (960W) | Box | Active | AC or DC | 1 | 85 ~ 277 VAC | 80V | 410V | 48V | - | - | - | - | - | 20A | 960W | 4 kV | ITE (Commercial) | 94% | -25°C ~ 70°C (With Derating) | - | 4.92" L x 4.88" W x 5.12" H (125.0mm x 124.0mm x 130.0mm) | - | - |
|
SPD244803AC/DC DIN RAIL SUPPLY 24V 480W |
5 |
|
Технический лист |
SPD (480W) | Box | Active | AC or DC | 1 | 340 ~ 575 VAC (3 Phase) | 480V | 820V | 24V | - | - | - | - | - | 20A | 480W | 3 kV | Industrial, ITE (Commercial) | 90% | -25°C ~ 71°C (With Derating) | Adjustable Output, IP20, PFC | 4.38" L x 5.91" W x 4.87" H (111.3mm x 150.0mm x 123.6mm) | CE, cULus, TUV | - |
|
|
XCSG960CA 24V DC DIN Rail Power Supply f |
6 |
|
Технический лист |
- | Tape & Box (TB) | Active | AC | 1 | 340 ~ 550 VAC, 400 ~ 500 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 40A | 960W | 3 kV | Industrial, ITE (Commercial) | 92% | -20°C ~ 60°C (With Derating) | Adjustable Output, IP20 | 5.00" L x 3.15" W x 5.47" H (127.0mm x 80.0mm x 139.0mm) | CE, cULus | 60950-1; UL 508 |
|

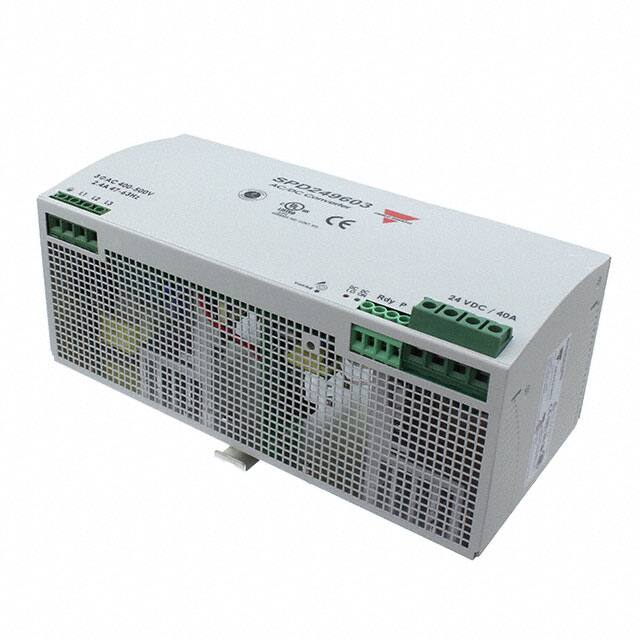

SPD249603AC/DC DIN RAIL SUPPLY 24V 960W |
11 |
|
Технический лист |
SPD (960W) | Box | Active | AC or DC | 1 | 340 ~ 575 VAC (3 Phase) | 480V | 820V | 24V | - | - | - | - | - | 40A | 960W | - | Hazardous Locations, Industrial, ITE (Commercial) | 92% | -40°C ~ 71°C (With Derating) | Adjustable Output, IP20, PFC | 10.86" L x 4.41" W x 4.97" H (275.8mm x 112.0mm x 126.2mm) | CE, cULus, TUV | - |
|
|
AC1421AS-I ETHERNET/IP GATEWAY, NUMBER |
2 |
|
Технический лист |
- | Box | Active | DC | 1 | - | 18V | 32V | - | - | - | - | - | - | - | - | - | ITE (Commercial) | - | 0°C ~ 60°C | - | 4.18" L x 3.66" W x 5.05" H (106.2mm x 93.0mm x 128.2mm) | CE, cULus, EAC, UKCA | - |
|
|
AC1422AS-I ETHERNET/IP GATEWAY, NUMBER |
4 |
|
Технический лист |
- | Box | Active | DC | 1 | - | 18V | 32V | - | - | - | - | - | - | - | - | - | ITE (Commercial) | - | 0°C ~ 60°C | - | 4.18" L x 3.66" W x 5.05" H (106.2mm x 93.0mm x 128.2mm) | CE, cULus, EAC, UKCA | - |
|
|
VTX-211-030-212AC/DC DIN RAIL SUPPLY 12V 30W |
30 |
|
Технический лист |
VTX-211 | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 12V | - | - | - | - | - | 2A | 24W | 4 kV | ITE (Commercial) | 82% | -40°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 2.28" L x 1.38" W x 3.65" H (58.0mm x 35.0mm x 92.7mm) | CE, cURus, UKCA | 62368-1 |
|
|
VTX-211-030-215AC/DC DIN RAIL SUPPLY 15V 30W |
30 |
|
Технический лист |
VTX-211 | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 15V | - | - | - | - | - | 2A | 30W | 4 kV | ITE (Commercial) | 82% | -40°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 2.28" L x 1.38" W x 3.65" H (58.0mm x 35.0mm x 92.7mm) | CE, cURus, UKCA | 62368-1 |
|
|
VTX-211-030-224AC/DC DIN RAIL SUPPLY 24V 30W |
24 |
|
Технический лист |
VTX-211 | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 24V | - | - | - | - | - | 1.5A | 36W | 4 kV | ITE (Commercial) | 82% | -40°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 2.28" L x 1.38" W x 3.65" H (58.0mm x 35.0mm x 92.7mm) | CE, cURus, UKCA | 62368-1 |
|
|
VTX-211-030-205AC/DC DIN RAIL SUPPLY 5V 30W |
22 |
|
Технический лист |
VTX-211 | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 5V | - | - | - | - | - | 3A | 15W | 4 kV | ITE (Commercial) | 82% | -40°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 2.28" L x 1.38" W x 3.65" H (58.0mm x 35.0mm x 92.7mm) | CE, cURus, UKCA | 62368-1 |
|
|
VTX-211-030-248AC/DC DIN RAIL SUPPLY 48V 30W |
15 |
|
Технический лист |
VTX-211 | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 48V | - | - | - | - | - | 750mA | 36W | 4 kV | ITE (Commercial) | 82% | -40°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 2.28" L x 1.38" W x 3.65" H (58.0mm x 35.0mm x 92.7mm) | CE, cURus, UKCA | 62368-1 |
