Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PYB15-Q24-D15-DINDC/DC DIN RAIL SUPPLY +/-15V 15W |
0 |
|
Технический лист |
PYB15-DIN (15W) | Tray | Obsolete | DC | 2 | - | 9V | 36V | 15V | -15V | - | - | - | - | 500mA, 500mA | 15W | - | - | 86% | -40°C ~ 85°C | - | 2.99" L x 1.24" W x 0.87" H (76.0mm x 31.5mm x 22.2mm) | EN | 55024; 55032 Class A |
|
|
PYB15-Q24-S3-DINDC/DC DIN RAIL SUPPLY 3.3V 15W |
0 |
|
Технический лист |
PYB15-DIN (15W) | Tray | Obsolete | DC | 1 | - | 9V | 36V | 3.3V | - | - | - | - | - | 4A | 15W | - | - | 85% | -40°C ~ 85°C | - | 2.99" L x 1.24" W x 0.87" H (76.0mm x 31.5mm x 22.2mm) | EN | 55024; 55032 Class A |
|
|
PYB15-Q24-S15-DINDC/DC DIN RAIL SUPPLY 15V 15W |
0 |
|
Технический лист |
PYB15-DIN (15W) | Tray | Obsolete | DC | 1 | - | 9V | 36V | 15V | - | - | - | - | - | 1A | 15W | - | - | 87% | -40°C ~ 85°C | - | 2.99" L x 1.24" W x 0.87" H (76.0mm x 31.5mm x 22.2mm) | EN | 55024; 55032 Class A |
|
|
PYB15-Q48-D12-DINDC/DC DIN RAIL SUPPLY +/-12V 15W |
0 |
|
Технический лист |
PYB15-DIN (15W) | Tray | Obsolete | DC | 2 | - | 18V | 75V | 12V | -12V | - | - | - | - | 625mA, 625mA | 15W | - | - | 86% | -40°C ~ 85°C | - | 2.99" L x 1.24" W x 0.87" H (76.0mm x 31.5mm x 22.2mm) | EN | 55024; 55032 Class A |
|
|
PYB15-Q48-S12-DINDC/DC DIN RAIL SUPPLY 12V 15W |
0 |
|
Технический лист |
PYB15-DIN (15W) | Tray | Obsolete | DC | 1 | - | 18V | 75V | 12V | - | - | - | - | - | 1.25A | 15W | - | - | 86% | -40°C ~ 85°C | - | 2.99" L x 1.24" W x 0.87" H (76.0mm x 31.5mm x 22.2mm) | EN | 55024; 55032 Class A |
|
PYB20-Q24-D5-DINDC/DC DIN RAIL SUPPLY +/-5V 20W |
0 |
|
Технический лист |
PYB20-DIN (20W) | Tray | Obsolete | DC | 2 | - | 9V | 36V | 5V | -5V | - | - | - | - | 2A, 2A | 20W | - | - | 84% | -40°C ~ 85°C | - | 2.99" L x 1.24" W x 0.87" H (76.0mm x 31.5mm x 22.2mm) | EN | 55024; 55032 Class A |
|
|
PYB20-Q24-D15-DINDC/DC DIN RAIL SUPPLY +/-15V 20W |
0 |
|
Технический лист |
PYB20-DIN (20W) | Tray | Obsolete | DC | 2 | - | 9V | 36V | 15V | -15V | - | - | - | - | 667mA, 667mA | 20W | - | - | 86% | -40°C ~ 85°C | - | 2.99" L x 1.24" W x 0.87" H (76.0mm x 31.5mm x 22.2mm) | EN | 55024; 55032 Class A |
|
|
PYB20-Q24-S5-DINDC/DC DIN RAIL SUPPLY 5V 20W |
0 |
|
Технический лист |
PYB20-DIN (20W) | Tray | Obsolete | DC | 1 | - | 9V | 36V | 5V | - | - | - | - | - | 4A | 20W | - | - | 88% | -40°C ~ 85°C | - | 2.99" L x 1.24" W x 0.87" H (76.0mm x 31.5mm x 22.2mm) | EN | 55024; 55032 Class A |
|
|
PYB20-Q24-S12-DINDC/DC DIN RAIL SUPPLY 12V 20W |
0 |
|
Технический лист |
PYB20-DIN (20W) | Tray | Obsolete | DC | 1 | - | 9V | 36V | 12V | - | - | - | - | - | 1.667A | 20W | - | - | 87% | -40°C ~ 85°C | - | 2.99" L x 1.24" W x 0.87" H (76.0mm x 31.5mm x 22.2mm) | EN | 55024; 55032 Class A |
|
|
PYB20-Q24-S15-DINDC/DC DIN RAIL SUPPLY 15V 20W |
0 |
|
Технический лист |
PYB20-DIN (20W) | Tray | Obsolete | DC | 1 | - | 9V | 36V | 15V | - | - | - | - | - | 1.333A | 20W | - | - | 88% | -40°C ~ 85°C | - | 2.99" L x 1.24" W x 0.87" H (76.0mm x 31.5mm x 22.2mm) | EN | 55024; 55032 Class A |
|
|
PYB20-Q48-S5-DINDC/DC DIN RAIL SUPPLY 5V 20W |
0 |
|
Технический лист |
PYB20-DIN (20W) | Tray | Obsolete | DC | 1 | - | 18V | 75V | 5V | - | - | - | - | - | 4A | 20W | - | - | 88% | -40°C ~ 85°C | - | 2.99" L x 1.24" W x 0.87" H (76.0mm x 31.5mm x 22.2mm) | EN | 55024; 55032 Class A |
|
|
PYB20-Q48-S24-DINDC/DC DIN RAIL SUPPLY 24V 20W |
0 |
|
Технический лист |
PYB20-DIN (20W) | Tray | Obsolete | DC | 1 | - | 18V | 75V | 24V | - | - | - | - | - | 834mA | 20W | - | - | 88% | -40°C ~ 85°C | - | 2.99" L x 1.24" W x 0.87" H (76.0mm x 31.5mm x 22.2mm) | EN | 55024; 55032 Class A |
|
DLP100-24-1AC/DC DIN RAIL SUPPLY 24V 98W |
0 |
|
Технический лист |
DLP100 (98.4W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 4.1A | 98W | 2 kV | ITE (Commercial) | 85% | -10°C ~ 60°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 4.33" L x 4.45" W x 2.36" H (110.0mm x 113.0mm x 60.0mm) | CE | - |
|

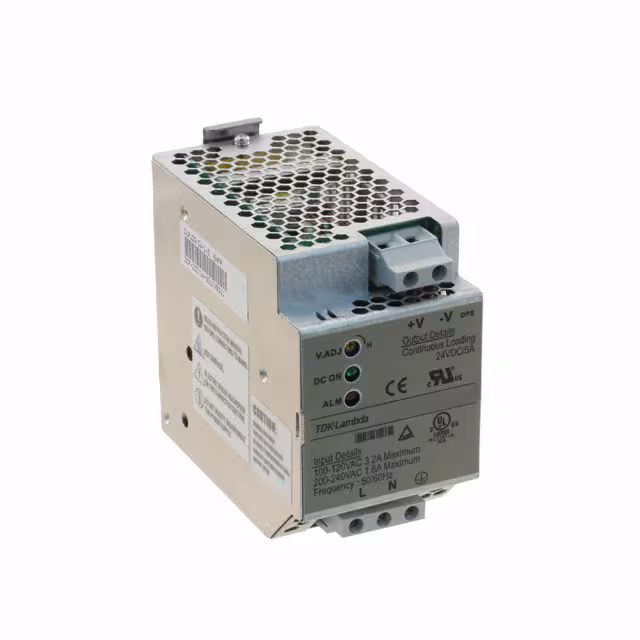

DLP120-24-1AC/DC DIN RAIL SUPPLY 24V 120W |
0 |
|
Технический лист |
DLP120 (120W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 2 kV | ITE (Commercial) | 85% | -10°C ~ 60°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 4.33" L x 4.45" W x 2.36" H (110.0mm x 113.0mm x 60.0mm) | CE | - |
|
|
DLP75-24-1AC/DC DIN RAIL SUPPLY 24V 75W |
0 |
|
Технический лист |
DLP75 (75W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 3.1A | 75W | 2 kV | ITE (Commercial) | 83% | -10°C ~ 60°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 4.33" L x 4.45" W x 1.97" H (110.0mm x 113.0mm x 50.0mm) | CE | - |
|
AA15S0500DAC/DC DIN RAIL SUPPLY 5V 15W |
0 |
|
- |
AA15S (15W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 3A | 15W | 3 kV | ITE (Commercial) | 75% | -25°C ~ 70°C (With Derating) | Universal Input | 3.78" L x 2.13" W x 0.92" H (96.0mm x 54.0mm x 23.3mm) | CE | - |
|
|
AA15S1500DAC/DC DIN RAIL SUPPLY 15V 15W |
0 |
|
- |
AA15S (15W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 15V | - | - | - | - | - | 1A | 15W | 3 kV | ITE (Commercial) | 79% | -25°C ~ 70°C (With Derating) | Universal Input | 3.78" L x 2.13" W x 0.92" H (96.0mm x 54.0mm x 23.3mm) | CE | - |
|
|
AA15S4800DAC/DC DIN RAIL SUPPLY 48V 15W |
0 |
|
- |
AA15S (15W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 310mA | 15W | 3 kV | ITE (Commercial) | 79% | -25°C ~ 70°C (With Derating) | Universal Input | 3.78" L x 2.13" W x 0.92" H (96.0mm x 54.0mm x 23.3mm) | CE | - |
|
|
AA15D1212DAC/DC DIN RAIL SUPPLY +/-12V 15W |
0 |
|
- |
AA15D (15W) | Box | Obsolete | AC | 2 | 85 ~ 264 VAC | - | - | 12V | -12V | - | - | - | - | 650mA, 650mA | 15W | 3 kV | ITE (Commercial) | 74% | -25°C ~ 70°C (With Derating) | Universal Input | 3.78" L x 2.13" W x 0.92" H (96.0mm x 54.0mm x 23.3mm) | CE | - |
|
|
AA15D1515DAC/DC DIN RAIL SUPPLY +/-15V 15W |
0 |
|
- |
AA15D (15W) | Box | Obsolete | AC | 2 | 85 ~ 264 VAC | - | - | 15V | -15V | - | - | - | - | 500mA, 500mA | 15W | 3 kV | ITE (Commercial) | 74% | -25°C ~ 70°C (With Derating) | Universal Input | 3.78" L x 2.13" W x 0.92" H (96.0mm x 54.0mm x 23.3mm) | CE | - |
