Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2939425AC/DC DIN RAIL SUPPLY 24V 60W |
0 |
|
Технический лист |
CM 50 | - | Obsolete | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | 3 kV | ITE (Commercial) | 85% | -25°C ~ 60°C | Adjustable Output, Load Sharing, Universal Input | 4.02" L x 1.97" W x 5.12" H (102.0mm x 50.0mm x 130.0mm) | cUR, UR | - |
|
|
2941277AC/DC DIN RAIL SUPPLY 5V 5W |
0 |
|
Технический лист |
CM 62 | - | Obsolete | AC | 1 | 120VAC | - | - | 5V | - | - | - | - | - | 1A | 5W | 4 kV | ITE (Commercial) | - | 0°C ~ 60°C | IP20 | 2.95" L x 2.46" W x 5.47" H (75.0mm x 62.5mm x 139.0mm) | CE | - |
|
|
2942030AC/DC DIN RAIL SUPPLY 10V 10W |
0 |
|
Технический лист |
CM 62 | - | Obsolete | AC | 1 | 230VAC | - | - | 10V | - | - | - | - | - | 1A | 10W | 4 kV | ITE (Commercial) | - | 0°C ~ 60°C | IP20 | 2.95" L x 2.46" W x 5.47" H (75.0mm x 62.5mm x 139.0mm) | CE | - |
|
|
2943660AC/DC DIN RAIL SUPPLY 12V 12W |
0 |
|
Технический лист |
CM 62 | - | Obsolete | AC | 1 | 230VAC | - | - | 12V | - | - | - | - | - | 1A | 12W | 4 kV | ITE (Commercial) | - | 0°C ~ 60°C | IP20 | 2.95" L x 2.46" W x 5.47" H (75.0mm x 62.5mm x 139.0mm) | CE | - |
|
|
2943673AC/DC DIN RAIL SUPPLY 15V 15W |
0 |
|
Технический лист |
CM 62 | - | Obsolete | AC | 1 | 230VAC | - | - | 15V | - | - | - | - | - | 1A | 15W | 4 kV | ITE (Commercial) | - | 0°C ~ 60°C | IP20 | 2.95" L x 2.46" W x 5.47" H (75.0mm x 62.5mm x 139.0mm) | CE | - |
|
|
2943796AC/DC DIN RAIL SUPPLY +/-12V 48W |
0 |
|
Технический лист |
CM 90 | - | Obsolete | AC | 2 | 120VAC | - | - | 12V | -12V | - | - | - | - | 1A, 1A | 48W | 4 kV | ITE (Commercial) | - | -20°C ~ 60°C | IP20 | 2.95" L x 3.54" W x 5.75" H (75.0mm x 90.0mm x 146.0mm) | - | - |
|
|
2943819AC/DC DIN RAIL SUPPLY +/-15V 30W |
0 |
|
Технический лист |
CM 90 | - | Obsolete | AC | 2 | 120VAC | - | - | 15V | -15V | - | - | - | - | 1A, 1A | 30W | 4 kV | ITE (Commercial) | - | -20°C ~ 60°C | IP20 | 2.95" L x 3.54" W x 5.75" H (75.0mm x 90.0mm x 146.0mm) | - | - |
|
2938578AC/DC DIN RAIL SUPPLY 24V 60W |
0 |
|
Технический лист |
Quint | Bulk | Obsolete | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | 4 kV | ITE (Commercial) | 86% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 4.92" L x 2.17" W x 5.12" H (125.0mm x 55.0mm x 130.0mm) | CB, cULus, cURus | - |
|

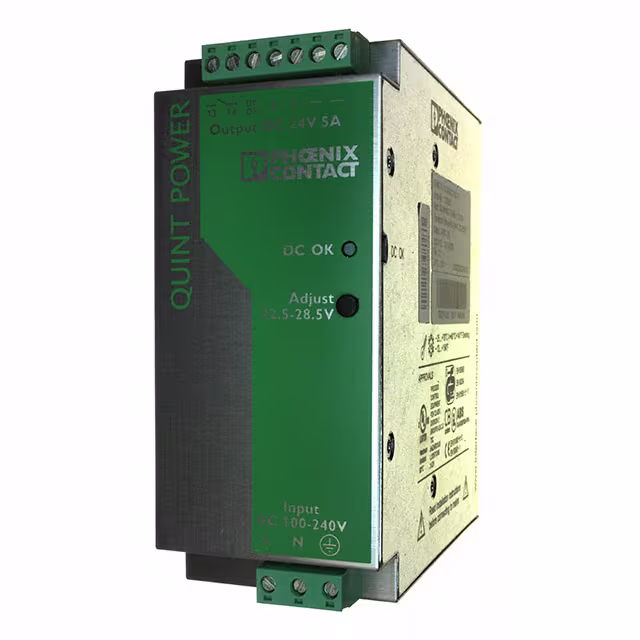

2938581AC/DC DIN RAIL SUPPLY 24V 120W |
0 |
|
Технический лист |
Quint | Bulk | Obsolete | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 4 kV | ITE (Commercial) | 86% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 4.92" L x 2.17" W x 5.12" H (125.0mm x 55.0mm x 130.0mm) | CB, cULus, cURus | - |
|

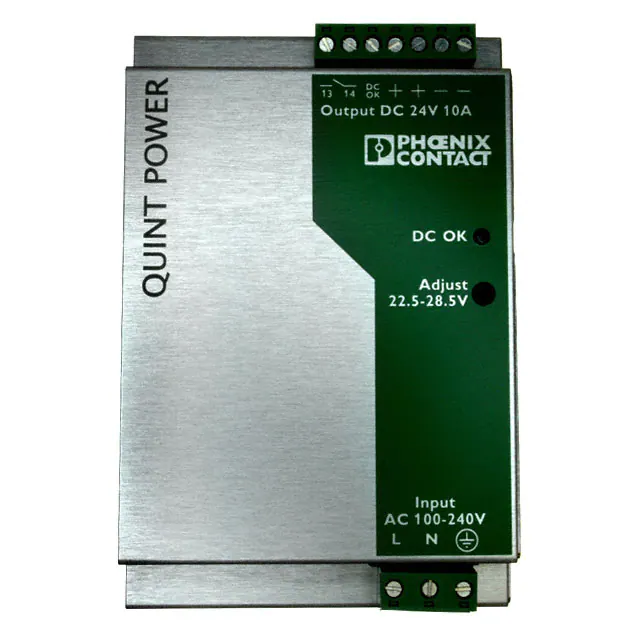

2938604AC/DC DIN RAIL SUPPLY 24V 240W |
0 |
|
Технический лист |
Quint | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 4 kV | ITE (Commercial) | 91% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 4.92" L x 3.35" W x 5.12" H (125.0mm x 85.0mm x 130.0mm) | CB, cULus, cURus | - |
|

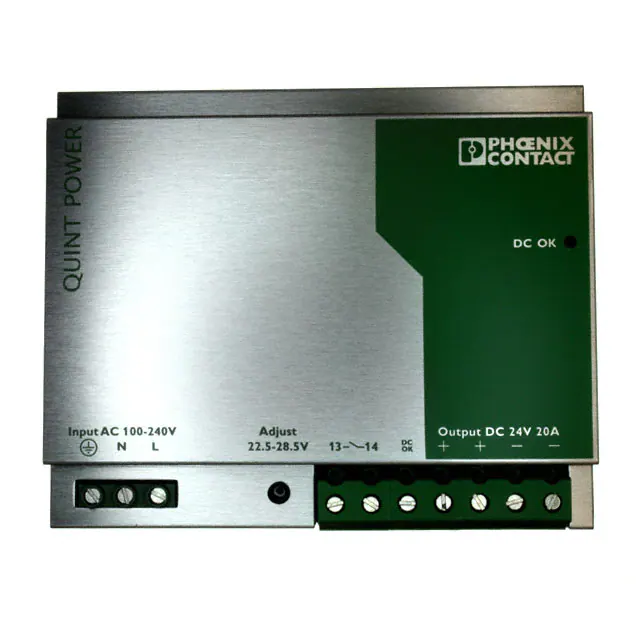

2938620AC/DC DIN RAIL SUPPLY 24V 480W |
0 |
|
Технический лист |
Quint | Bulk | Obsolete | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 4 kV | ITE (Commercial) | 92% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 4.92" L x 6.18" W x 5.12" H (125.0mm x 157.0mm x 130.0mm) | CB, cULus, cURus | - |
|
2938714AC/DC DIN RAIL SUPPLY 5V 15W |
0 |
|
Технический лист |
Quint | Bulk | Obsolete | AC | 1 | 100 ~ 240 VAC | - | - | 5V | - | - | - | - | - | 3A | 15W | 4 kV | ITE (Commercial) | 73% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 4.21" L x 0.89" W x 3.90" H (107.0mm x 22.5mm x 99.0mm) | CB, cULus, cURus | - |
|
2938730AC/DC DIN RAIL SUPPLY 24V 48W |
0 |
|
Технический лист |
Quint | Bulk | Obsolete | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 2A | 48W | 4 kV | ITE (Commercial) | 88% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 4.21" L x 1.77" W x 3.90" H (107.0mm x 45.0mm x 99.0mm) | CB, cULus, cURus | - |
|

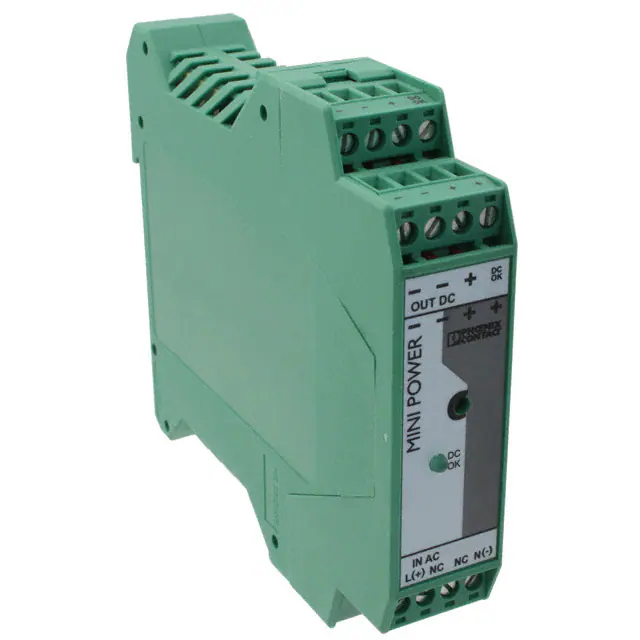

2938840AC/DC DIN RAIL SUPPLY 24V 24W |
0 |
|
Технический лист |
MINI | Box | Obsolete | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 1A | 24W | 4 kV | ITE (Commercial) | 80% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Universal Input | 4.51" L x 0.89" W x 3.90" H (114.5mm x 22.5mm x 99.0mm) | cULus, cURus | - |
|

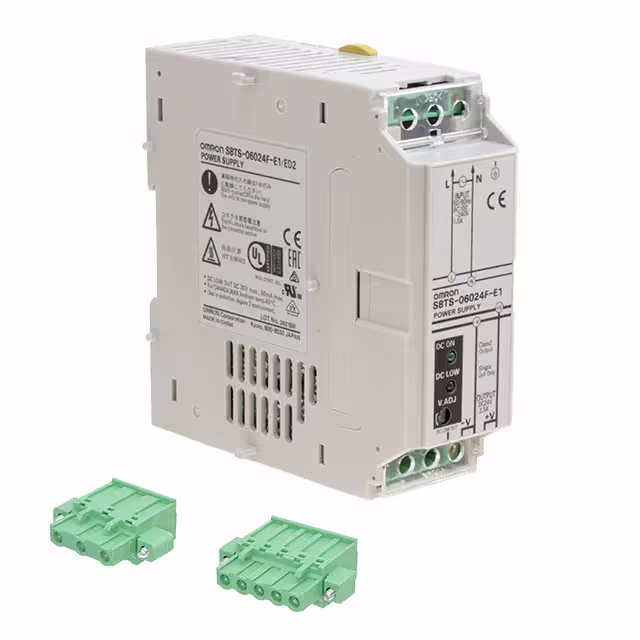

S8TS-06024F-E1AC/DC DIN RAIL SUPPLY 24V 60W |
0 |
|
Технический лист |
S8TS (60W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | 3 kV | ITE (Commercial) | 80% | -10°C ~ 55°C (With Derating) | Adjustable Output, Universal Input | 4.72" L x 1.69" W x 4.72" H (120.0mm x 43.0mm x 120.0mm) | CE, cULus, cURus, VDE | - |
|
S8VS-06024AC/DC DIN RAIL SUPPLY 24V 60W |
0 |
|
Технический лист |
S8VS (60W) | Bulk | Obsolete | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | 3 kV | ITE (Commercial) | 78% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 4.26" L x 1.57" W x 3.74" H (108.3mm x 40.0mm x 95.0mm) | CE, cULus, cURus, VDE | - |
|

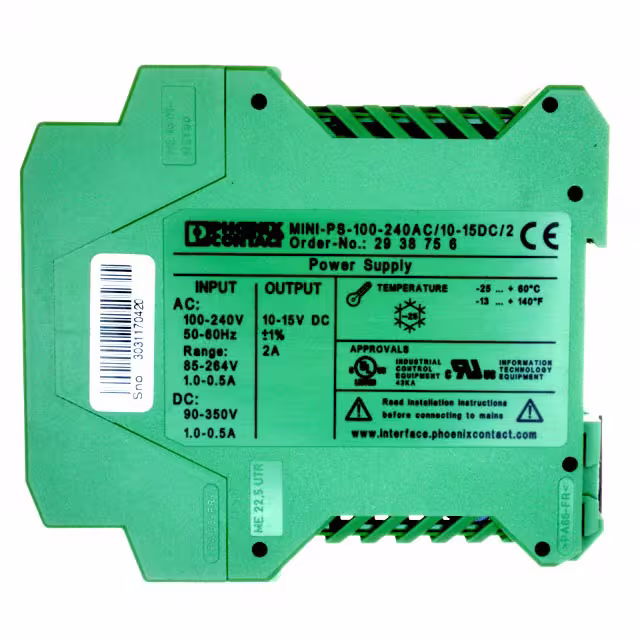

2938756AC/DC DIN RAIL SUPPLY 12V 30W |
0 |
|
Технический лист |
MINI | Box | Obsolete | AC | 1 | 100 ~ 240 VAC | - | - | 12V | - | - | - | - | - | 2A | 30W | 4 kV | ITE (Commercial) | 86% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Universal Input | 4.21" L x 1.77" W x 3.90" H (107.0mm x 45.0mm x 99.0mm) | cULus, cURus | - |
|
2938743AC/DC DIN RAIL SUPPLY +/-15V 15W |
0 |
|
Технический лист |
MINI | Box | Obsolete | AC | 2 | 100 ~ 240 VAC | - | - | 15V | -15V | - | - | - | - | 1A, 1A | 15W | 4 kV | ITE (Commercial) | 80% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Universal Input | 4.21" L x 1.77" W x 3.90" H (107.0mm x 45.0mm x 99.0mm) | cULus, cURus | - |
|
S8VS-01505AC/DC DIN RAIL SUPPLY 5V 15W |
0 |
|
Технический лист |
S8VS (15W) | Bulk | Obsolete | AC | 1 | 100 ~ 240 VAC | - | - | 5V | - | - | - | - | - | 2A | 15W | 3 kV | ITE (Commercial) | 72% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 3.79" L x 0.89" W x 3.35" H (96.4mm x 22.5mm x 85.0mm) | CE, cULus, cURus, VDE | - |
|
|
S8VS-01512AC/DC DIN RAIL SUPPLY 12V 15W |
0 |
|
Технический лист |
S8VS (15W) | Bulk | Obsolete | AC | 1 | 100 ~ 240 VAC | - | - | 12V | - | - | - | - | - | 1.2A | 15W | 3 kV | ITE (Commercial) | 74% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 3.79" L x 0.89" W x 3.35" H (96.4mm x 22.5mm x 85.0mm) | CE, cULus, cURus, VDE | - |
