Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2787-2347/000-030PSU, PRO 2 3-PH |
0 |
|
Технический лист |
- | Bulk | Active | AC | 1 | 340 ~ 550 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 3.15 kV | Laboratory | 95.9% | -25°C ~ 70°C | Adjustable Output, IP20, PFC | 5.12" L x 2.76" W x 5.12" H (130.0mm x 70.0mm x 130.0mm) | UL | 61010-1 |
|
|
SPD482403AC/DC DIN RAIL SUPPLY 48V 240W |
0 |
|
Технический лист |
SPD (240W) | Box | Active | AC or DC | 1 | 340 ~ 575 VAC (3 Phase) | 480V | 820V | 48V | - | - | - | - | - | 5A | 240W | - | Hazardous Locations, Industrial, ITE (Commercial) | 91% | -40°C ~ 71°C (With Derating) | Adjustable Output, IP20, PFC | 4.36" L x 3.50" W x 4.87" H (110.7mm x 89.0mm x 123.6mm) | CE, cULus, TUV | - |
|
|
16184.2AC/DC DIN RAIL SUPPLY |
0 |
|
Технический лист |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ADA750F-24-FN1AC/DC DIN RAIL SUPPLY 24V 456W |
0 |
|
Технический лист |
ADA (750W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 19A | 456W (756W Forced Air) | 3 kV | ITE (Commercial) | 88% | -10°C ~ 71°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | 6.91" L x 5.00" W x 2.76" H (175.5mm x 127.0mm x 70.0mm) | CE, CSA, cURus, TUV, UL | 60950-1; 62368-1 |
|

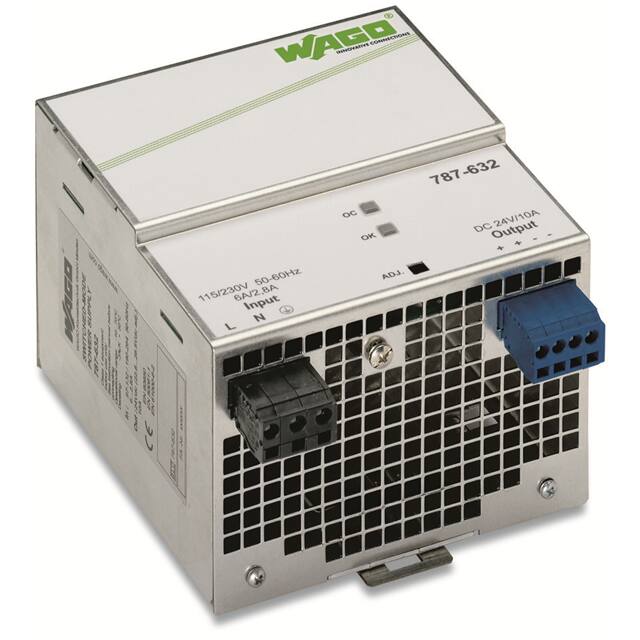

787-632AC/DC DIN RAIL SUPPLY 24V |
0 |
|
Технический лист |
- | Box | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 90V | 350V | 24V | - | - | - | - | - | 10A | - | 4.242 kV | Industrial, ITE (Commercial) | 88% | -10°C ~ 70°C | Adjustable Output, IP20, PFC, Universal Input | 5.51" L x 4.53" W x 3.43" H (140.0mm x 115.0mm x 87.0mm) | - | 60950-1; UL 508 |
|

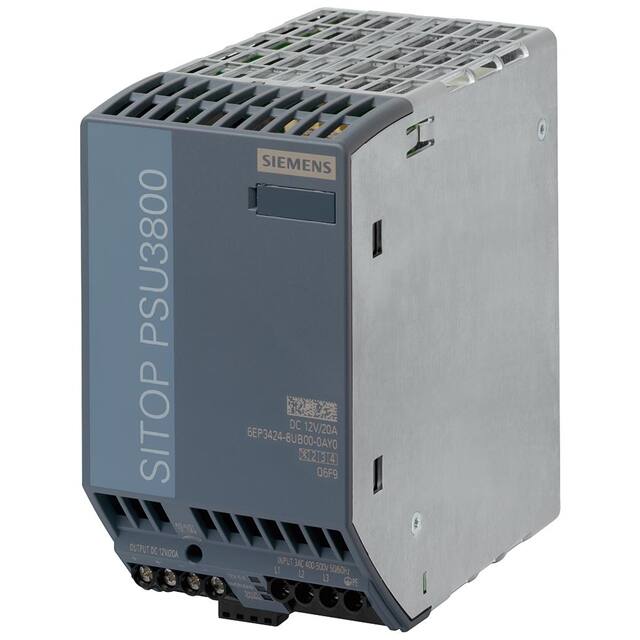

6EP34248UB000AY0AC/DC DIN RAIL SUPPLY 12V |
0 |
|
Технический лист |
6EP3 | Box | Active | AC | 1 | 320 ~ 575 VAC | - | - | 12V | - | - | - | - | - | 20A | - | - | Industrial, ITE (Commercial) | 91% | -25°C ~ 70°C | Adjustable Output, IP20 | 4.92" L x 2.76" W x 4.92" H (125.0mm x 70.0mm x 125.0mm) | CE, CSA, cULus, EAC, UL | 60950-1; UL 508 |
|
|
PSW-48024AC/DC DIN RAIL SUPPLY 24V 480W |
0 |
|
- |
PSW-480 (480W) | Bulk | Active | AC or DC | 1 | 180 ~ 550 VAC | 254V | 780V | 24V | - | - | - | - | - | 20A | 480W | 3 kV | Industrial, ITE (Commercial) | 92% | -30°C ~ 70°C (With Derating) | Adjustable Output | 5.06" L x 3.37" W x 4.93" H (128.5mm x 85.5mm x 125.2mm) | CB, CE, cULus | 508; 60950-1 |
|
|
PSW-48048AC/DC DIN RAIL SUPPLY 48V 480W |
0 |
|
- |
PSW-480 (480W) | Bulk | Active | AC or DC | 1 | 180 ~ 550 VAC | 254V | 780V | 48V | - | - | - | - | - | 10A | 480W | 3 kV | Industrial, ITE (Commercial) | 92% | -30°C ~ 70°C (With Derating) | Adjustable Output | 5.06" L x 3.37" W x 4.93" H (128.5mm x 85.5mm x 125.2mm) | CB, CE, cULus | 508; 60950-1 |
|
|
EWR1601-0GDC/DC DIN RAIL SUPPLY 24.7V 124W |
0 |
|
Технический лист |
Melcher W (125W) | Bulk | Obsolete | DC | 1 | - | 66V | 150V | 24.7V | - | - | - | - | - | 5A | 124W | 2.8 kV | ITE (Commercial), Laboratory, Railway | 87% | -40°C ~ 70°C | - | 4.47" L x 4.05" W x 5.43" H (113.6mm x 103.0mm x 138.0mm) | cCSAus, CE, NEMKO | - |
|
|
UNOTEC2420NPOWER SUPPLY, 20A, 24V DC, DIN R |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
6GK59230PS003AA2AC/DC DIN RAIL SUPPLY 54V 86W |
0 |
|
Технический лист |
- | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 54V | - | - | - | - | - | 1.6A | 86W | - | ITE (Commercial) | 89% | -40°C ~ 70°C | Adjustable Output, IP20 | 4.92" L x 1.65" W x 4.92" H (125.0mm x 42.0mm x 125.0mm) | CE, CSA, cULus, UL | 60950-1; UL 508 |
|
|
8951410010AC/DC DIN RAIL SUPPLY 24V 500W |
0 |
|
- |
Connect Power Pro-M (500W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 20A | 500W | 4 kV | ITE (Commercial) | 90% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 5.91" L x 4.76" W x 5.12" H (150.0mm x 121.0mm x 130.0mm) | CE, cULus, cURus, GOST, TUV | - |
|
|
S8VS-24024BP-FAC/DC DIN RAIL SUPPLY 24V 240W |
0 |
|
Технический лист |
S8VS (240W) | Bulk | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 7.5A | 240W | 3 kV | ITE (Commercial) | 80% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 4.93" L x 3.94" W x 4.53" H (125.2mm x 100.0mm x 115.0mm) | CE, cULus, cURus, VDE | - |
|
|
S8VS-24024B-FAC/DC DIN RAIL SUPPLY 24V 240W |
0 |
|
Технический лист |
S8VS (240W) | Bulk | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 7.5A | 240W | 3 kV | ITE (Commercial) | 80% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 4.93" L x 3.94" W x 4.53" H (125.2mm x 100.0mm x 115.0mm) | CE, cULus, cURus, VDE | - |
|
6EP34368UB000AY0AC/DC DIN RAIL SUPPLY 24V |
0 |
|
Технический лист |
6EP3 | Box | Active | AC | 1 | 320 ~ 550 VAC | - | - | 24V | - | - | - | - | - | 17A | - | - | Industrial, ITE (Commercial) | 94% | -25°C ~ 70°C | Adjustable Output, IP20 | 4.92" L x 2.76" W x 4.92" H (125.0mm x 70.0mm x 125.0mm) | cCSAus, CE, CSA, cULus, EAC, UL | 60950-1; UL 508 |
|
|
CACN-H-1-PE-EX2FIXED POWER SUPPLY |
0 |
|
- |
- | Bulk | Active | DC | 1 | - | 18V | 32V | 54V | - | - | - | - | - | 2A | 108W | - | ITE (Commercial) | - | -20°C ~ 55°C | IP20 | 3.15" L x 1.10" W x 4.72" H (80.0mm x 28.0mm x 120.0mm) | cULus, RCM | - |
|
787-821AC/DC DIN RAIL SUPPLY 12V 120W |
0 |
|
Технический лист |
- | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 300V | 12V | - | - | - | - | - | 10A | 120W | 4.242 kV | Industrial, ITE (Commercial), Laboratory | 87.8% | -25°C ~ 70°C | Adjustable Output, IP20, PFC, Universal Input | 6.42" L x 2.24" W x 6.42" H (163.0mm x 57.0mm x 163.0mm) | cURus, EAC, UL | 60950-1; 61010-1; UL 508 |
|
LDT960-48AC/DC DIN RAIL SUPPLY 48V 960W |
0 |
|
Технический лист |
LDT960 (960W) | Box | Active | AC | 1 | 340 ~ 550 VAC (3 Phase) | - | - | 48V | - | - | - | - | - | 20A | 960W | 4.2 kV | ITE (Commercial) | 92.5% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing | 5.41" L x 3.15" W x 5.00" H (137.5mm x 80.0mm x 127.0mm) | - | - |
.jpg)
|
SPD242401AC/DC DIN RAIL SUPPLY 24V 240W |
0 |
|
Технический лист |
SPD (240W) | Box | Obsolete | AC or DC | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | 210V | 375V | 24V | - | - | - | - | - | 10A | 240W | - | Hazardous Locations, Industrial, ITE (Commercial) | 89% | -40°C ~ 71°C (With Derating) | Adjustable Output, IP20, PFC, Universal Input | 4.59" L x 3.29" W x 4.90" H (116.6mm x 83.5mm x 124.5mm) | CCC, CE, cULus, cURus, TUV | - |
|
|
LWN2663-6EGAC/DC DIN RAIL SUPPLY |
0 |
|
Технический лист |
Melcher W (250W) | Bulk | Active | AC or DC | 2 | 85 ~ 264 VAC | 90V | 350V | - | - | - | - | - | - | - | - | 2 kV | Industrial, ITE (Commercial) | - | -40°C ~ 60°C | Universal Input | 4.47" L x 4.05" W x 5.43" H (113.6mm x 103.0mm x 138.0mm) | cCSAus, CE, cULus, NEMKO | - |
